Unno MITH RACE RS E-MTB
Black / S1
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Red Means Go.

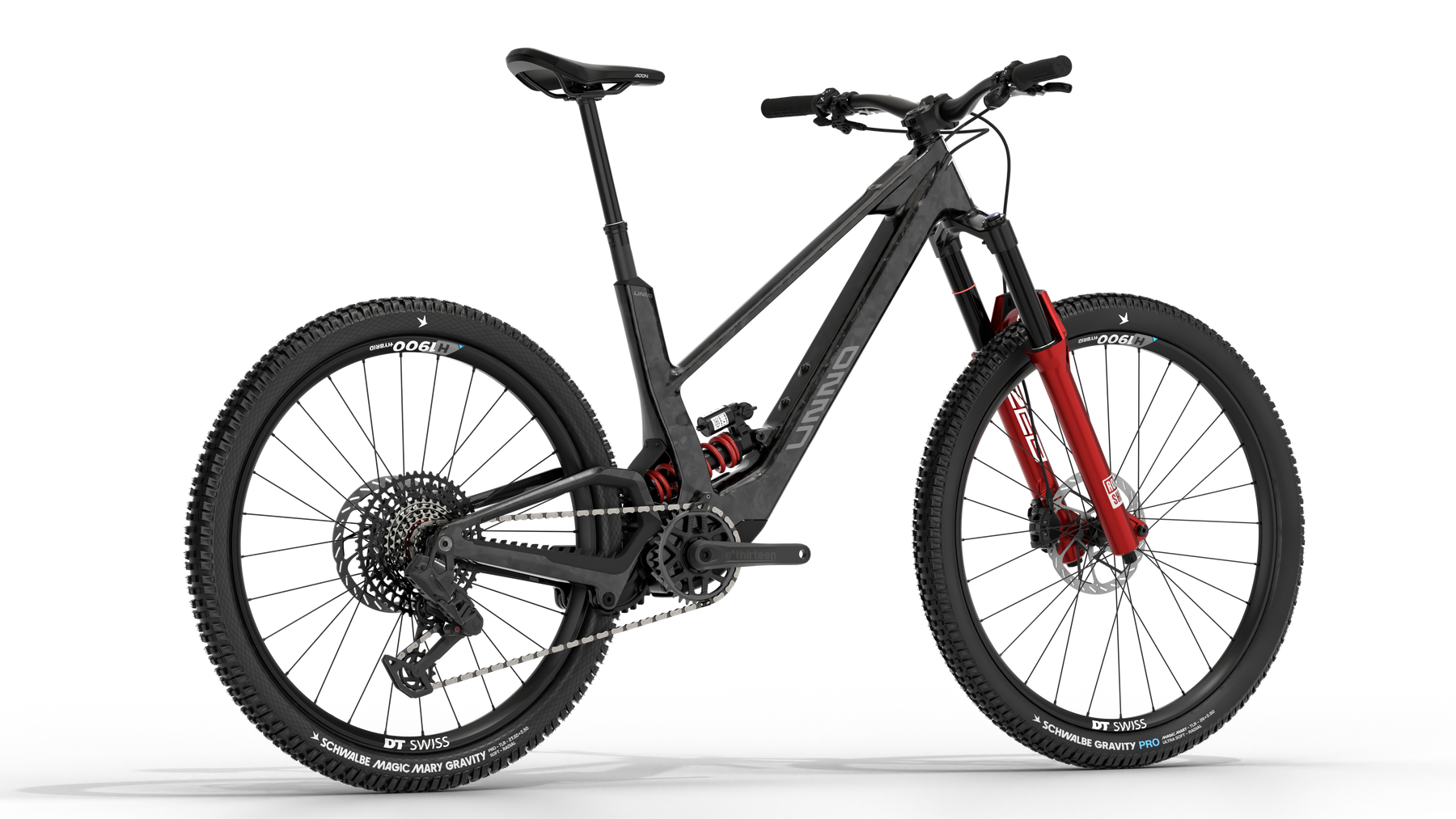

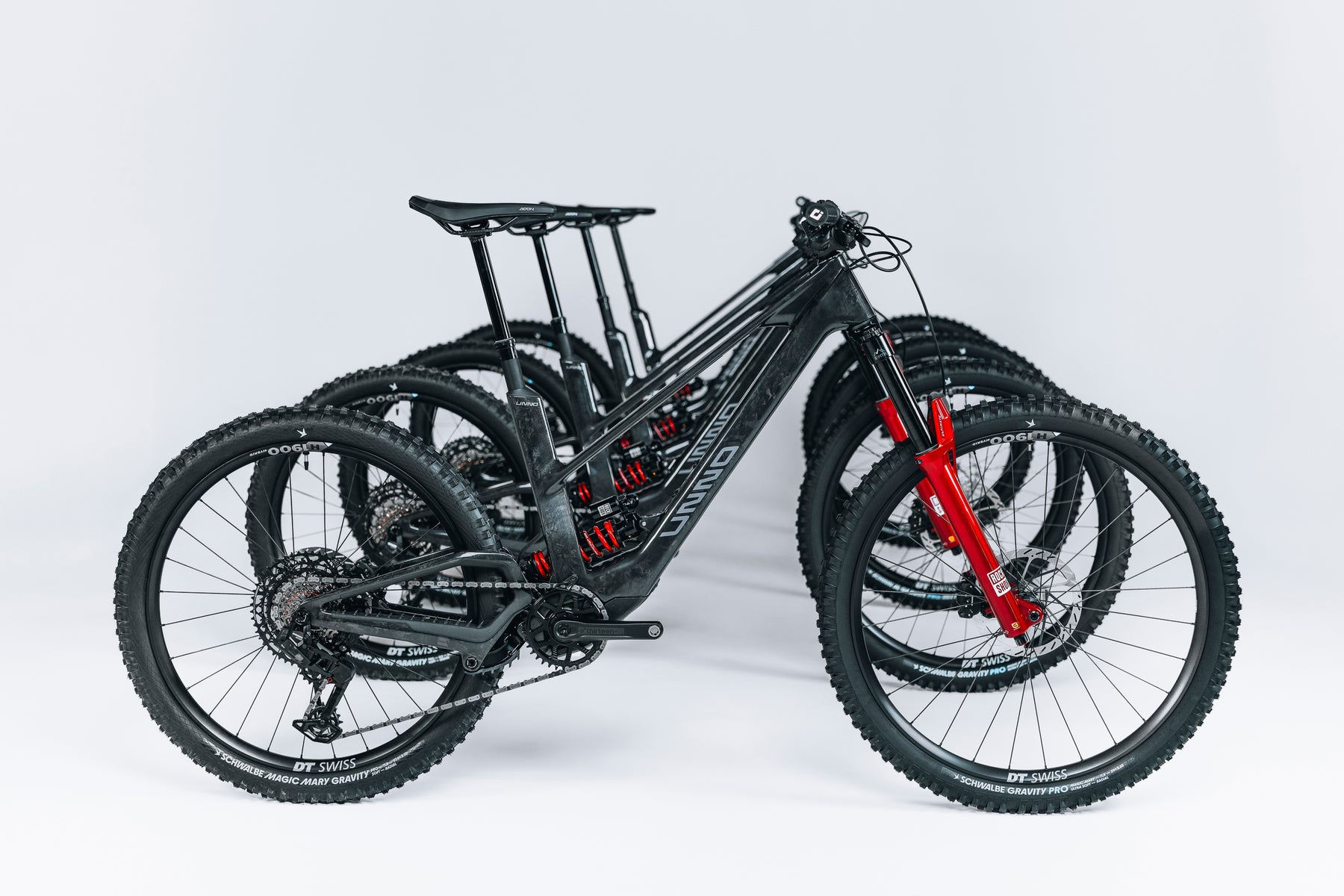

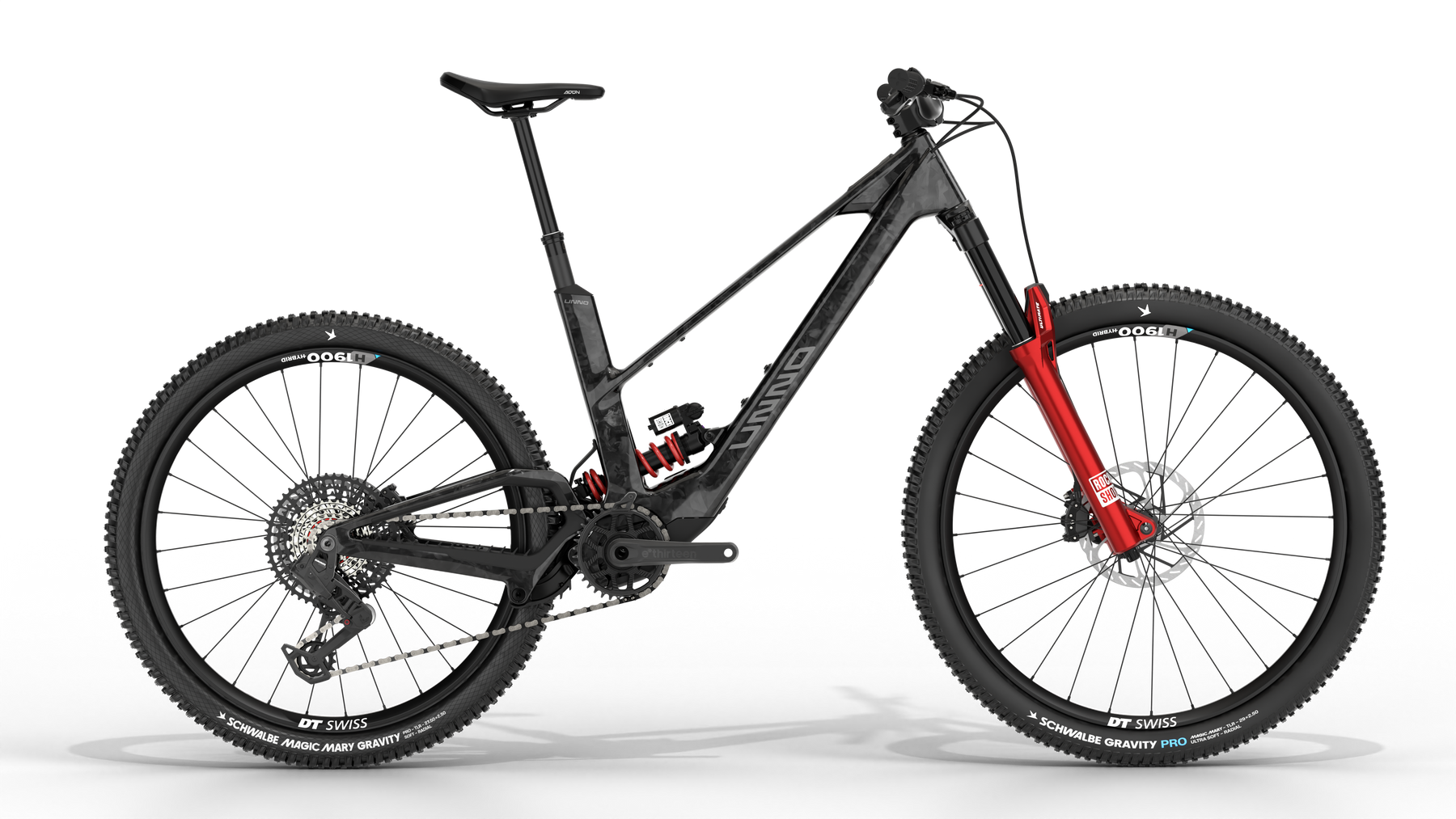

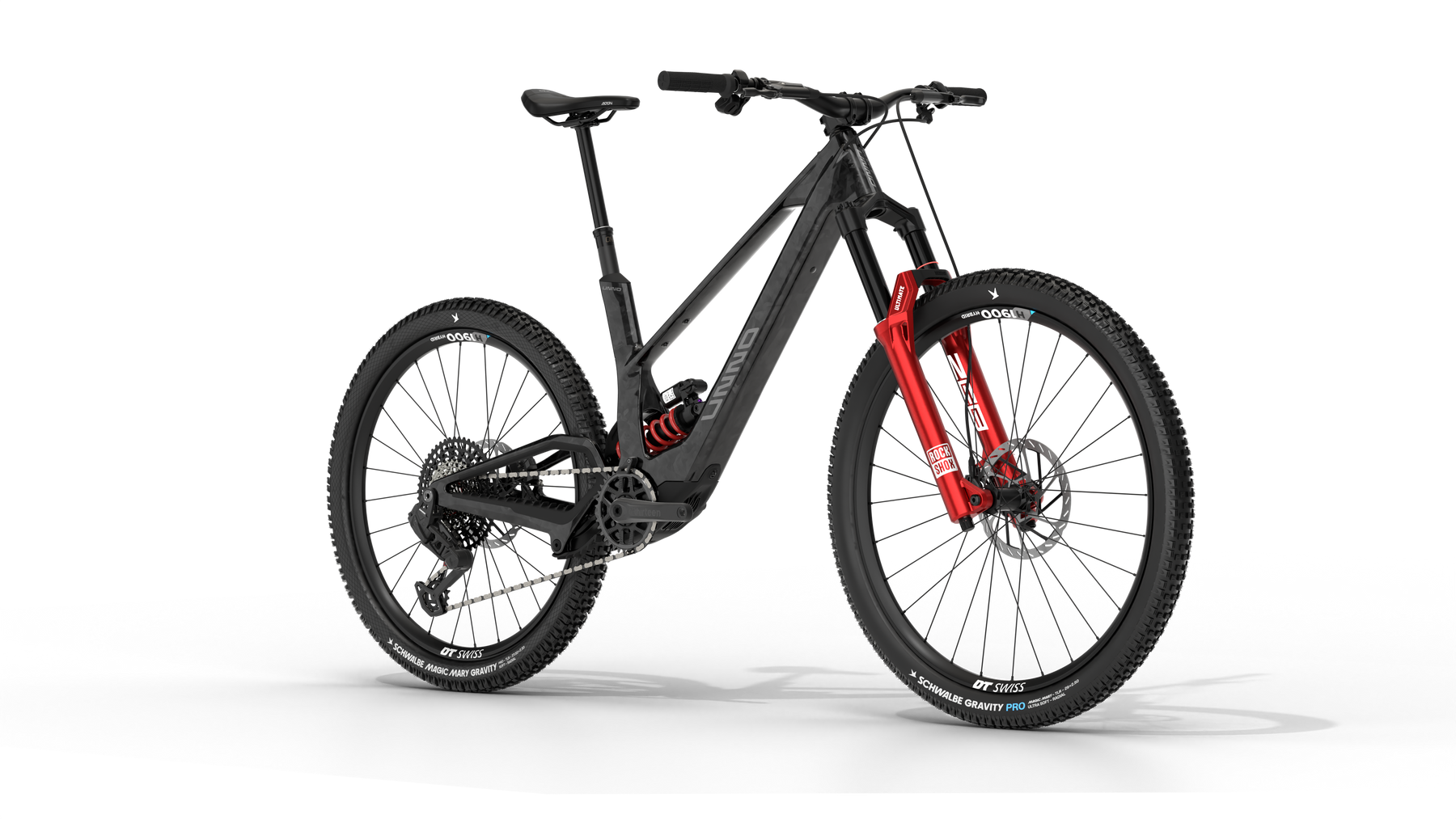

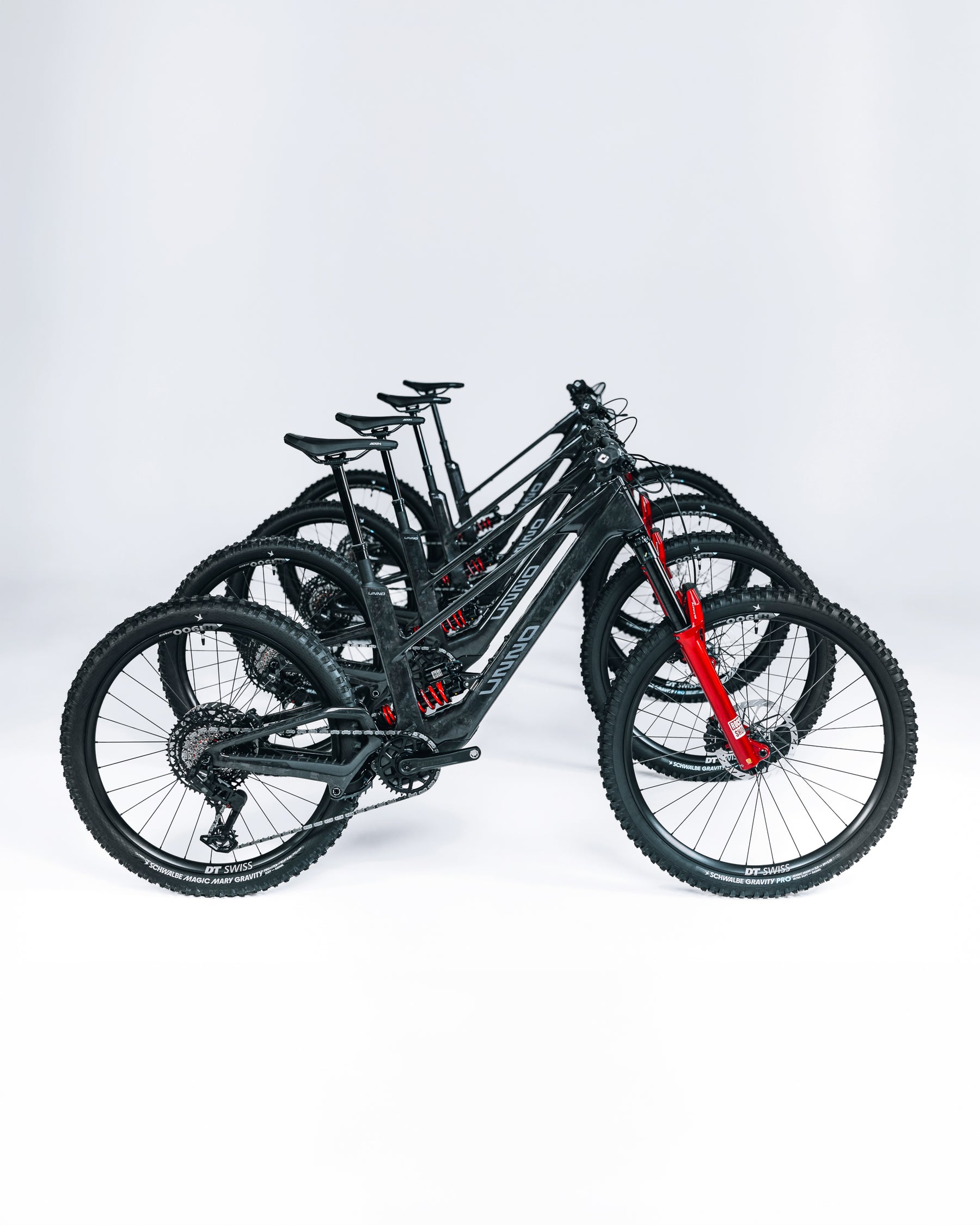

The UNNO MITH RACE RS
We could have left the MITH alone.
We didn’t.
Meet the MITH RACE RS. A special edition of our gravity-first eMTB, built around a RockShox suspension package, a raw forged-carbon finish and just enough red to make subtlety somebody else’s problem.
Same MITH. Different attitude. Available from October 1. Built Around RockShox
The MITH has always been about what happens when the climb is over. Power gets you to the top. The bike has to do the rest.

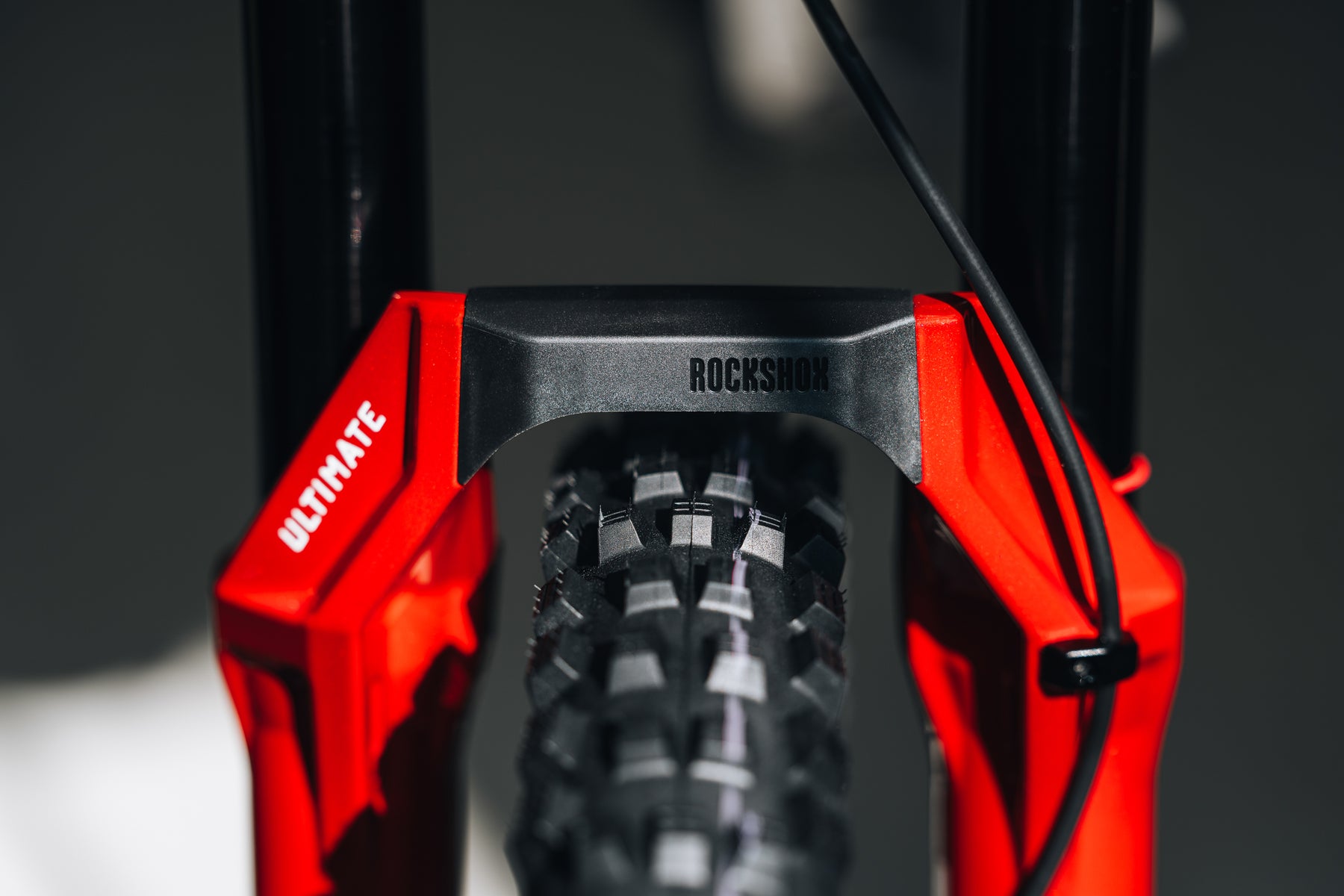

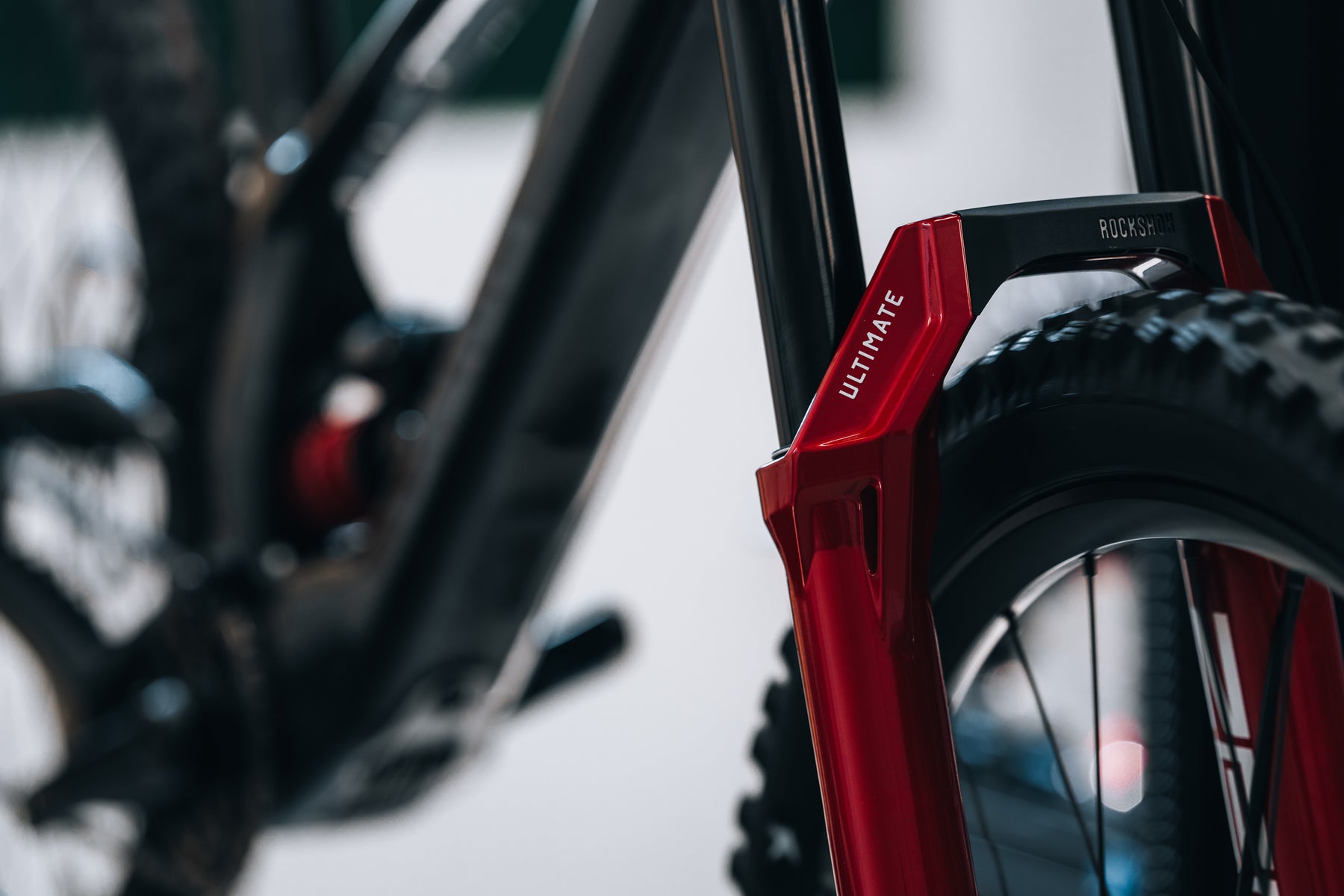

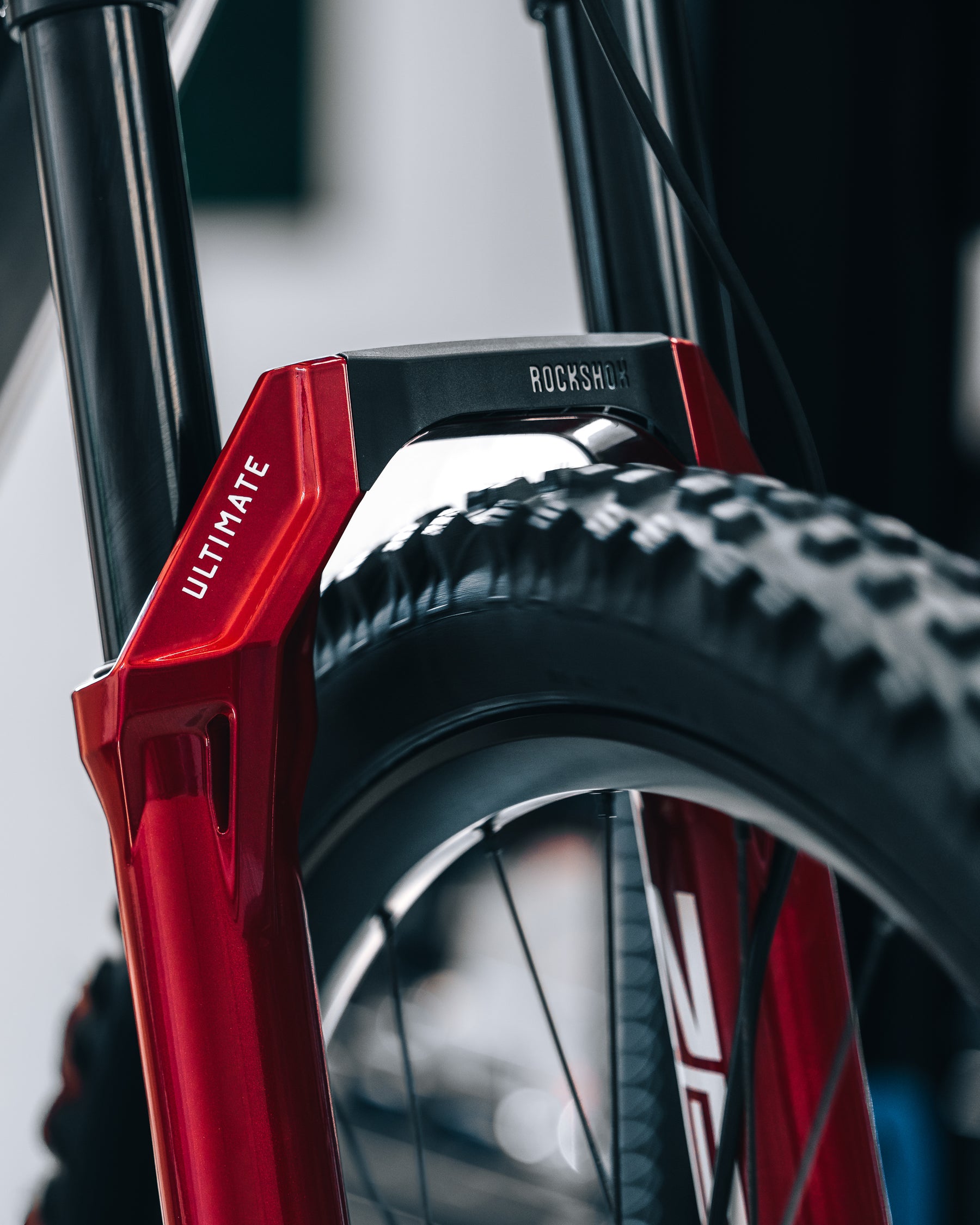

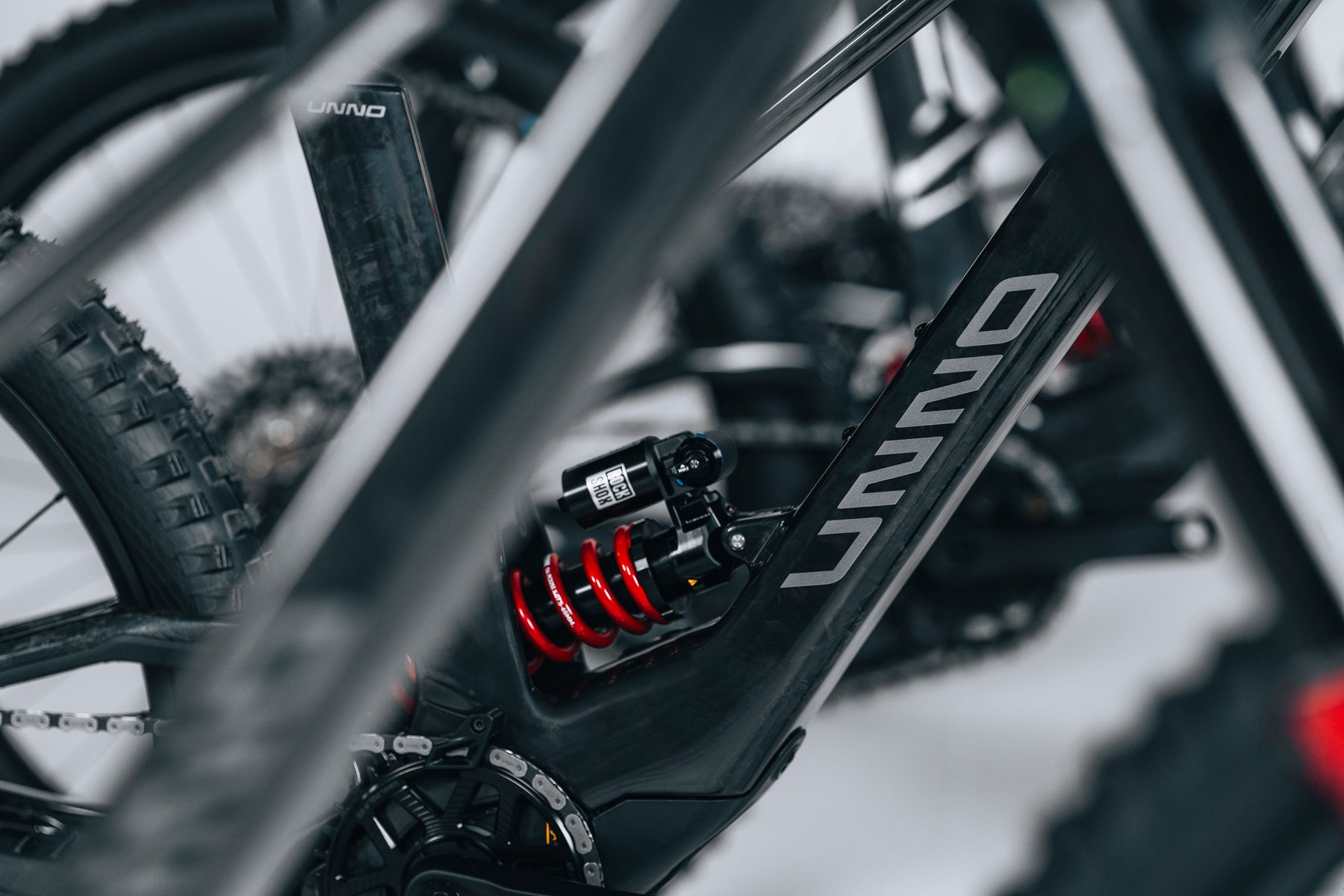

For the RACE RS, that starts with a 170 mm RockShox ZEB Ultimate up front, paired with a RockShox Vivid Coil Ultimate controlling 160 mm of rear travel. Big-hit control. Support when you push into the bike. Composure when the trail stops being tidy. The Vivid gets a custom UNNO tune, with spring rates matched across the three MITH sizes: 275 lbs on S1, 325 lbs on S2 and 400 lbs on S3. And because apparently black wasn’t enough, the suspension comes finished in Electric Red.

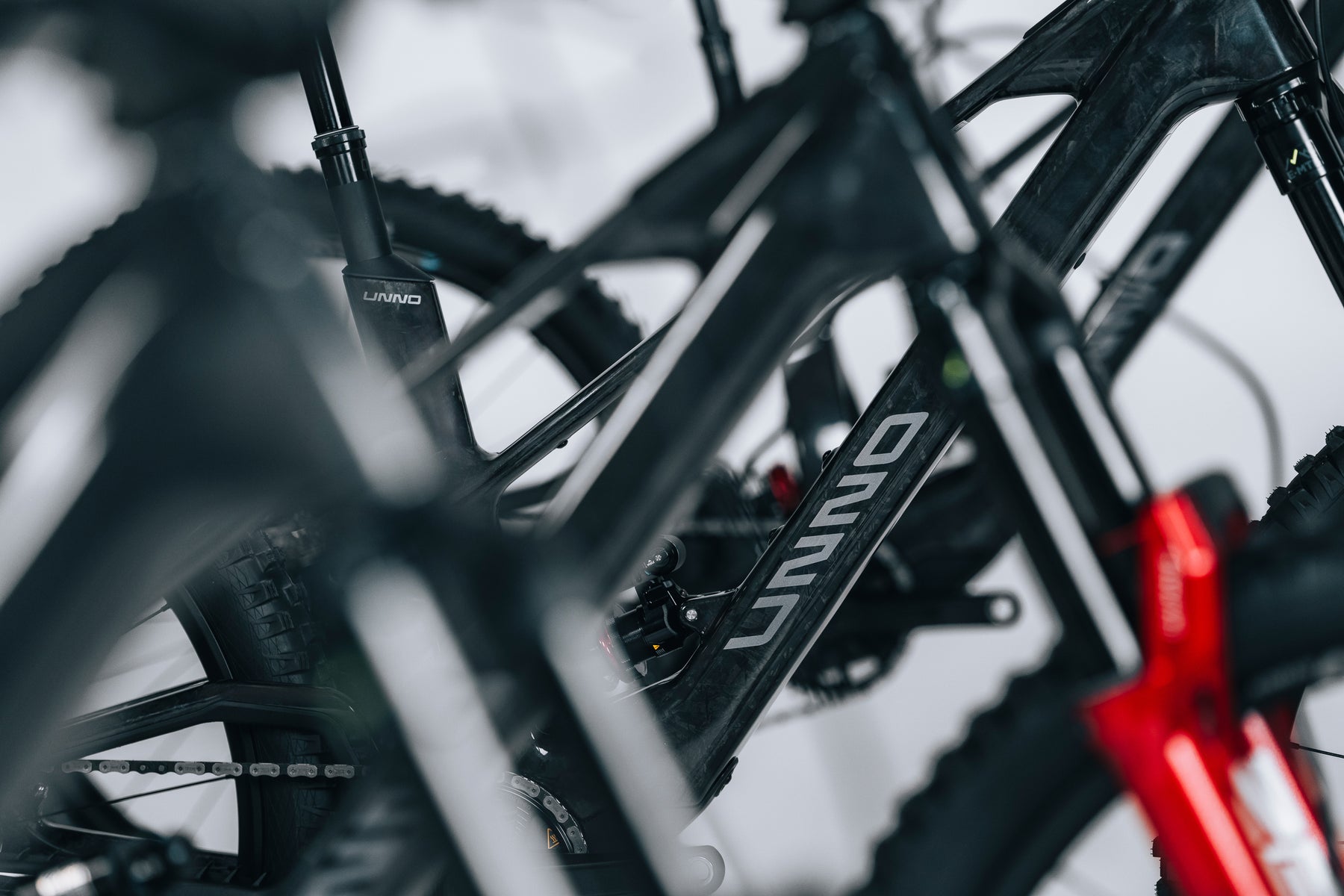

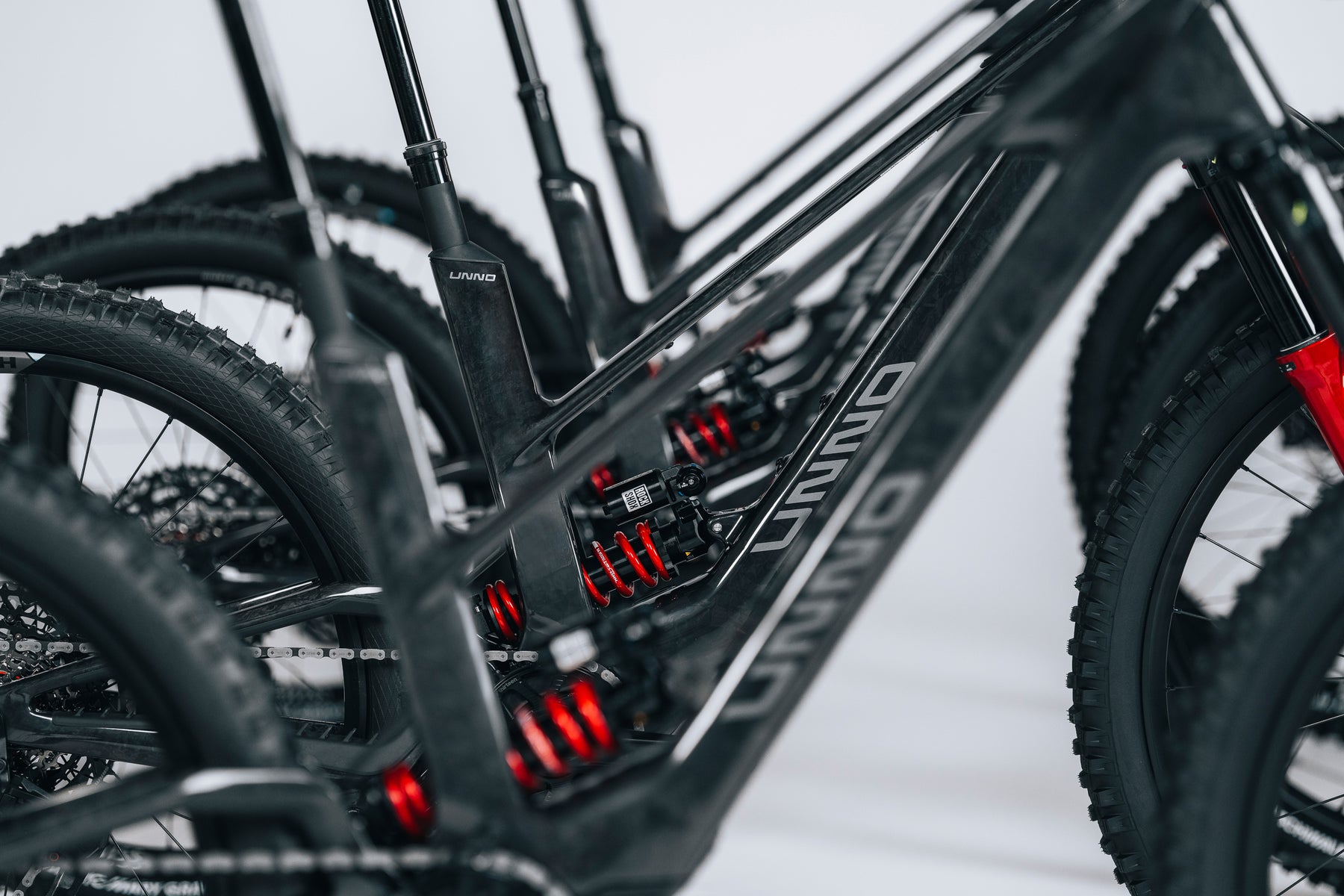

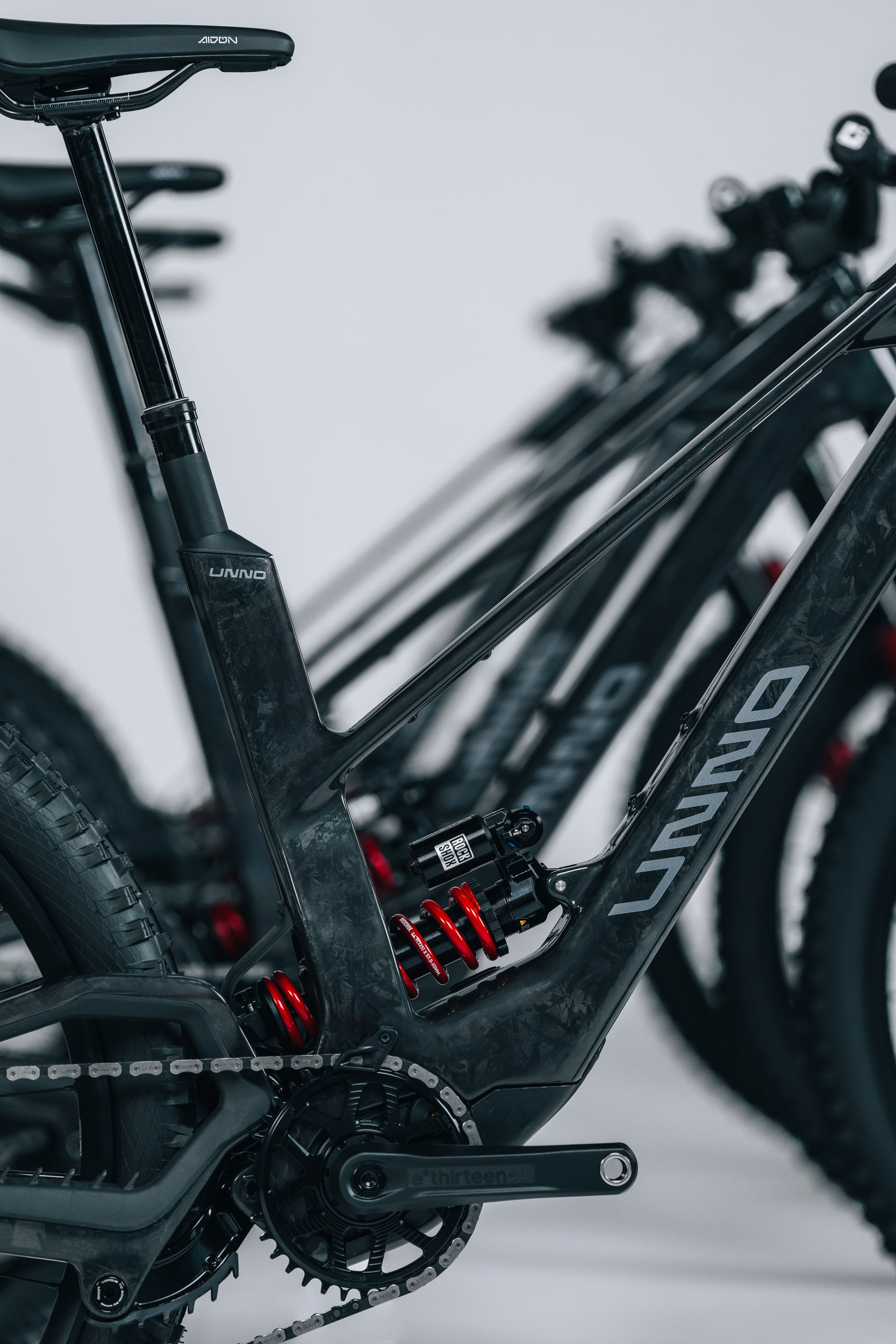

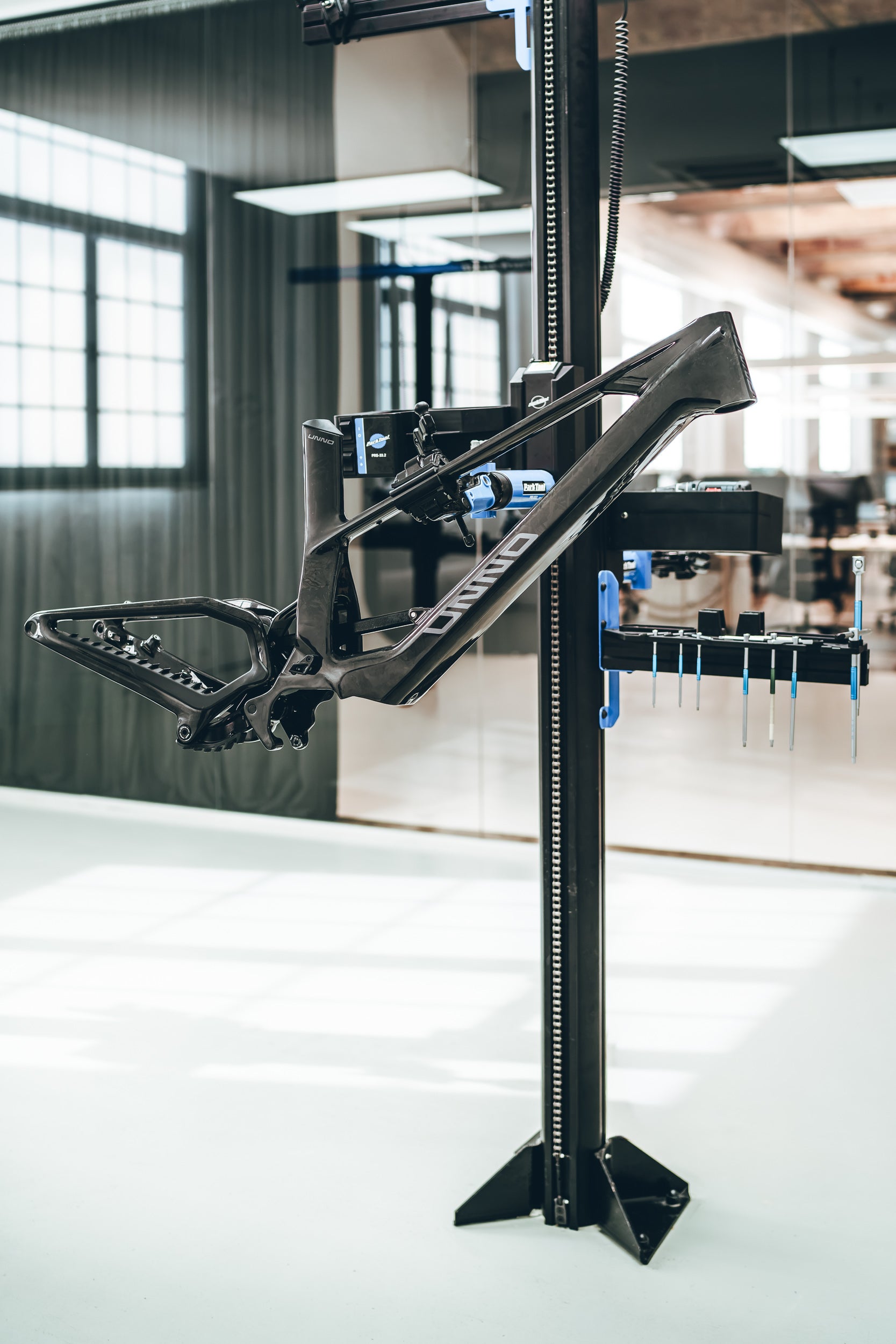

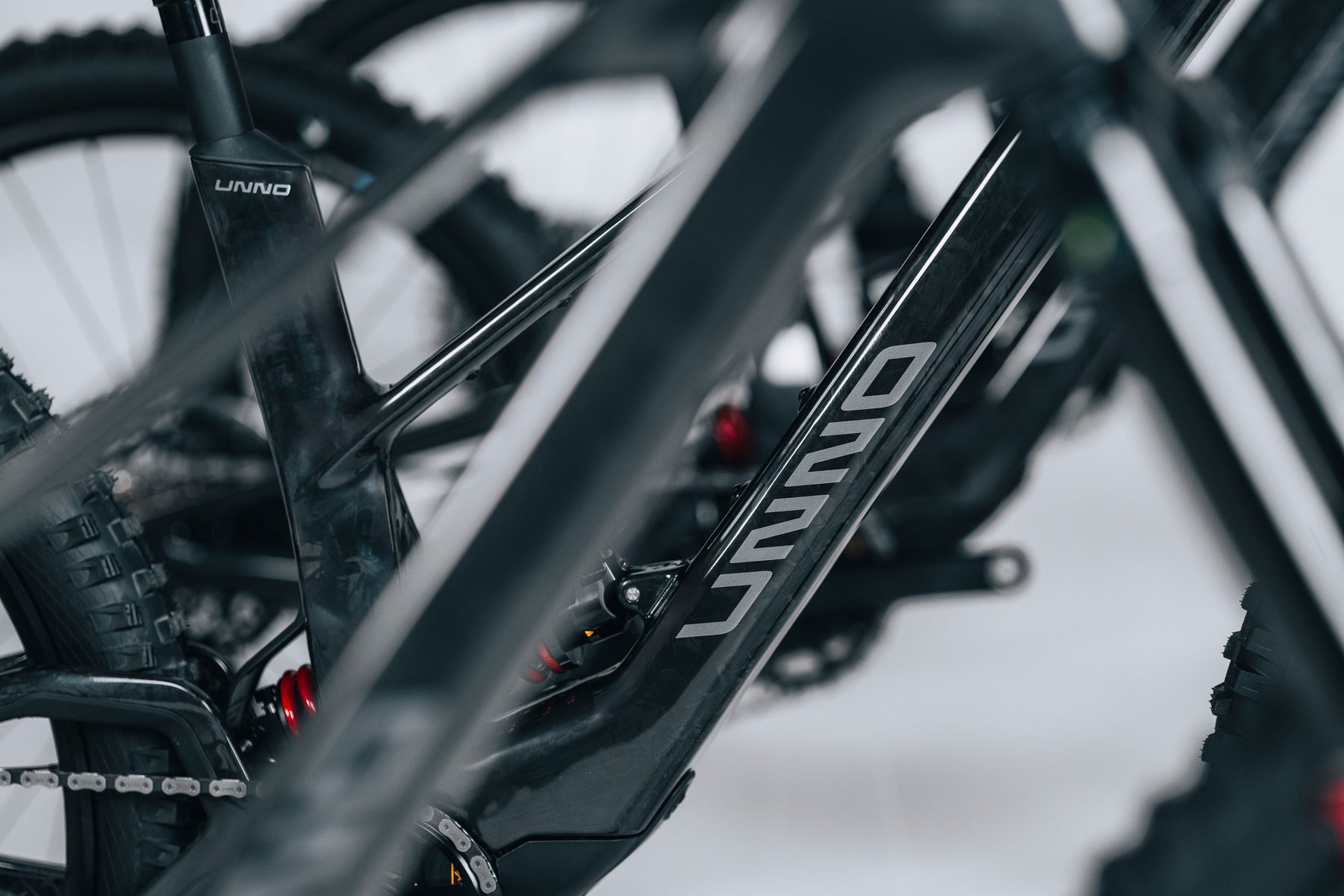

It’s not exactly trying to disappear. Forged Carbon. Electric Red. No paint pretending to be carbon. No graphics trying to explain what you’re looking at. The RACE RS leaves the MITH’s carbon construction visible in a forged-carbon finish, contrasted against the Electric Red RockShox suspension. Raw structure against precision hardware. The result looks fast standing still. Which is useful. Because it isn’t going to stand still very often.
The Climb Is Just Access
The RACE RS uses the Avinox M2S drive unit, delivering up to 1300 W of peak power, with 130 Nm in regular riding modes and up to 150 Nm in Boost. An integrated 800 Wh battery takes care of the rest. Those are big numbers. But we’ve already talked enough about numbers. The point of the motor isn’t to turn the MITH into something that rides itself. It’s to give you more access to the part you actually came for.
More laps.
More elevation.
More chances to point it back down.
Because once you hit the limiter, 1300 watts becomes zero. And then the bike has to be good. That’s Where the MITH Comes In 63.5-degree head angle. Mullet setup. 170 mm front travel. 160 mm rear travel. 450 mm chainstays. A carbon monocoque frame built around our virtual-pivot suspension platform.
The numbers aren't there to make the MITH look aggressive on a geometry chart. They're there because of how we want the bike to behave when speed takes over. Stable without becoming lazy. Supportive without feeling dead. Enough bike for the ugly stuff, but still something you want to throw around when the trail opens up.
The RACE RS doesn’t change that formula. It turns it up. No Trophy Parts A special edition doesn’t need a parts list chosen for a display stand. It needs parts you can ride hard.
The RACE RS runs SRAM S1000 Eagle AXS T-Type transmission with a 10–52T cassette, SRAM Maven brakes with 200 mm HS2 rotors, and DT Swiss H1900 wheels. A OneUp alloy cockpit, OneUp V3 dropper, E*thirteen 155 mm cranks and Schwalbe Magic Mary Gravity tyres finish the build. 29 x 2.5 up front. 27.5 x 2.5 out back. Ultra Soft front. Soft rear. Nothing complicated. Just a build designed to be ridden the way a MITH should be ridden. Hard.
22.45 Kilograms. 1300 Watts. Zero Excuses. In size S2, the complete MITH RACE RS weighs 22.45 kg.
There are lighter e-bikes. There are bikes with less travel. There are bikes designed to make the ride easier. This isn't one of them. The MITH was built around a simple idea: electric assistance should give you more riding, not take anything away from the ride itself.
The RACE RS follows exactly the same logic.
Get up faster.
Stay out longer.
Then forget the motor exists.
Three Sizes. One Purpose.

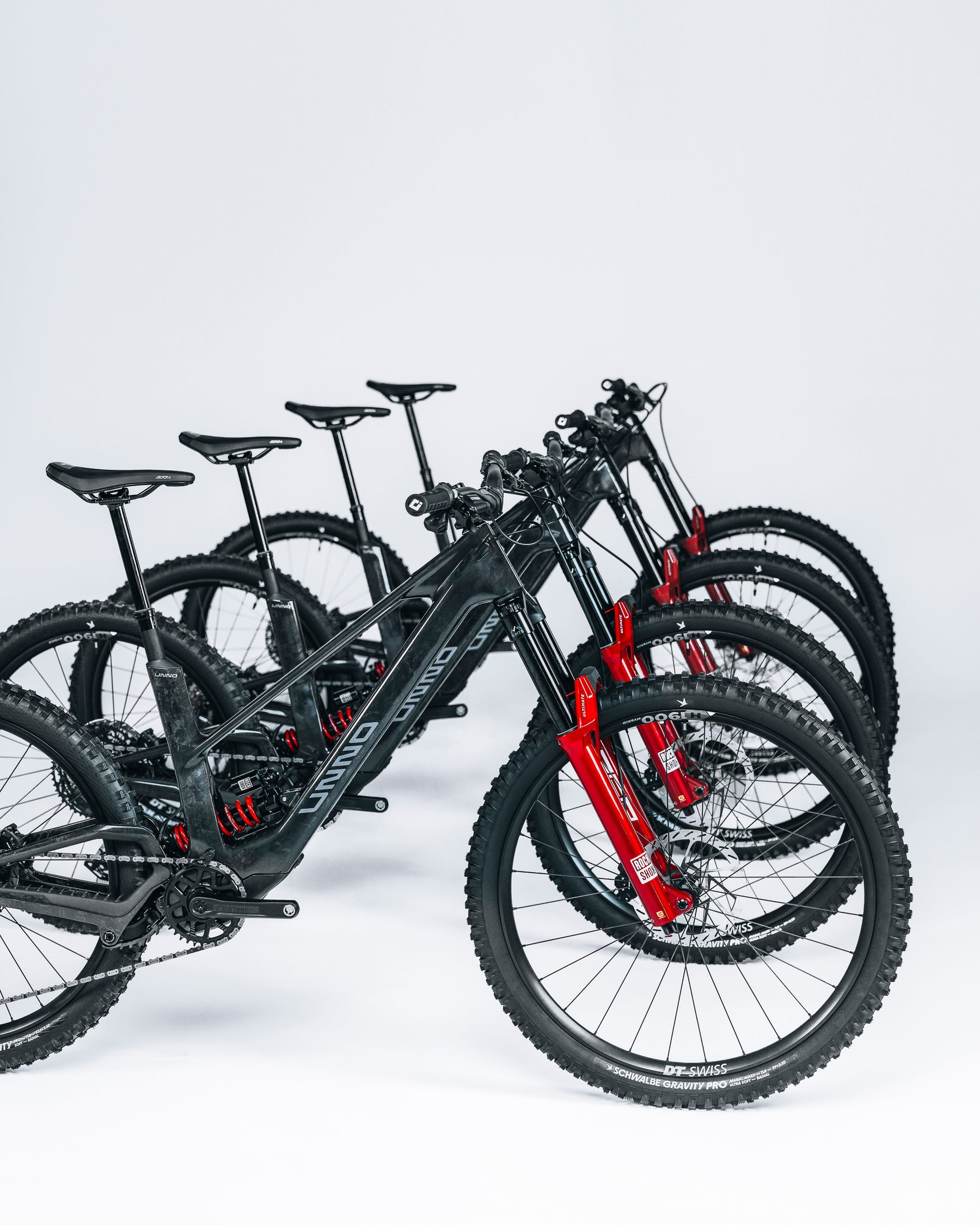

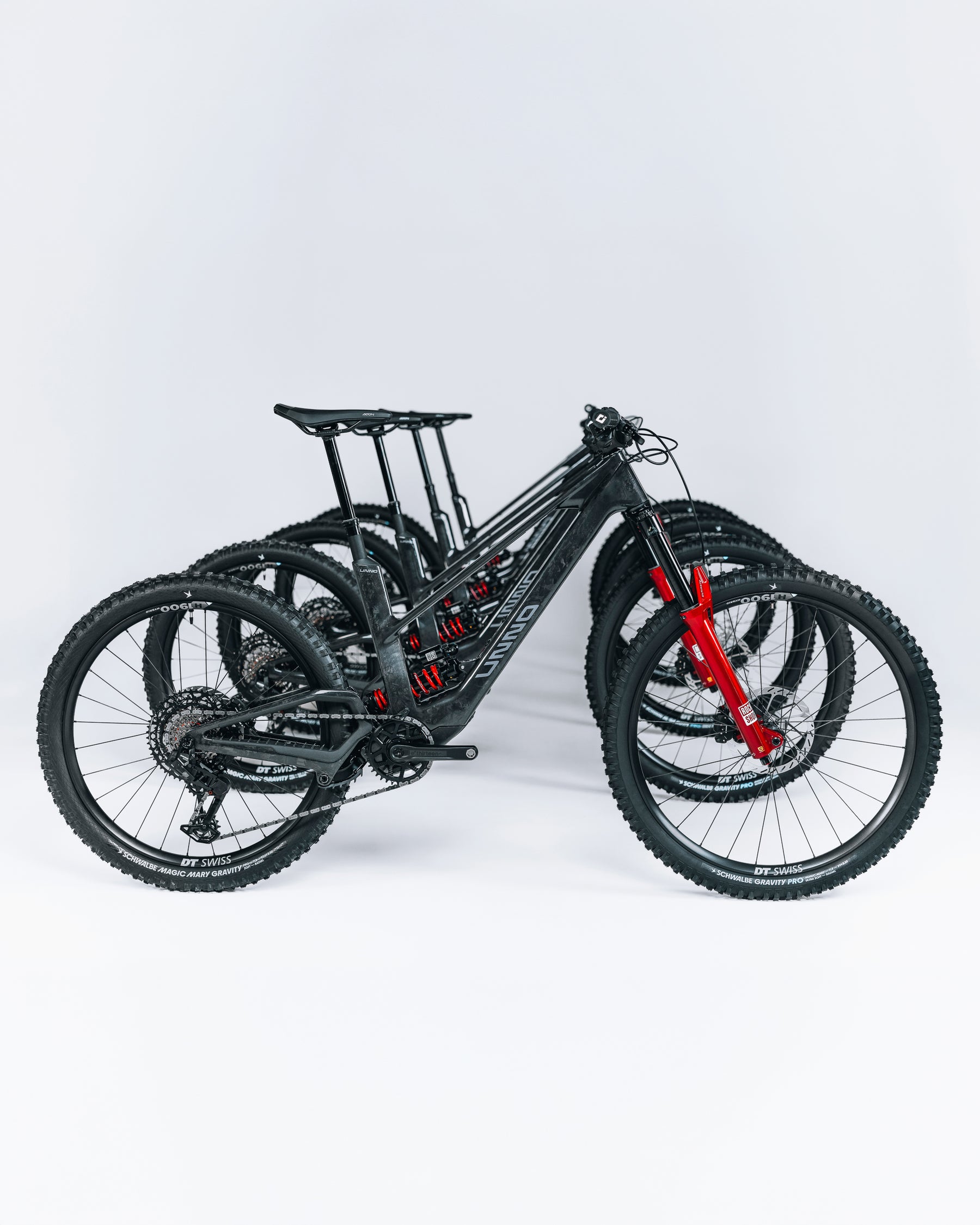

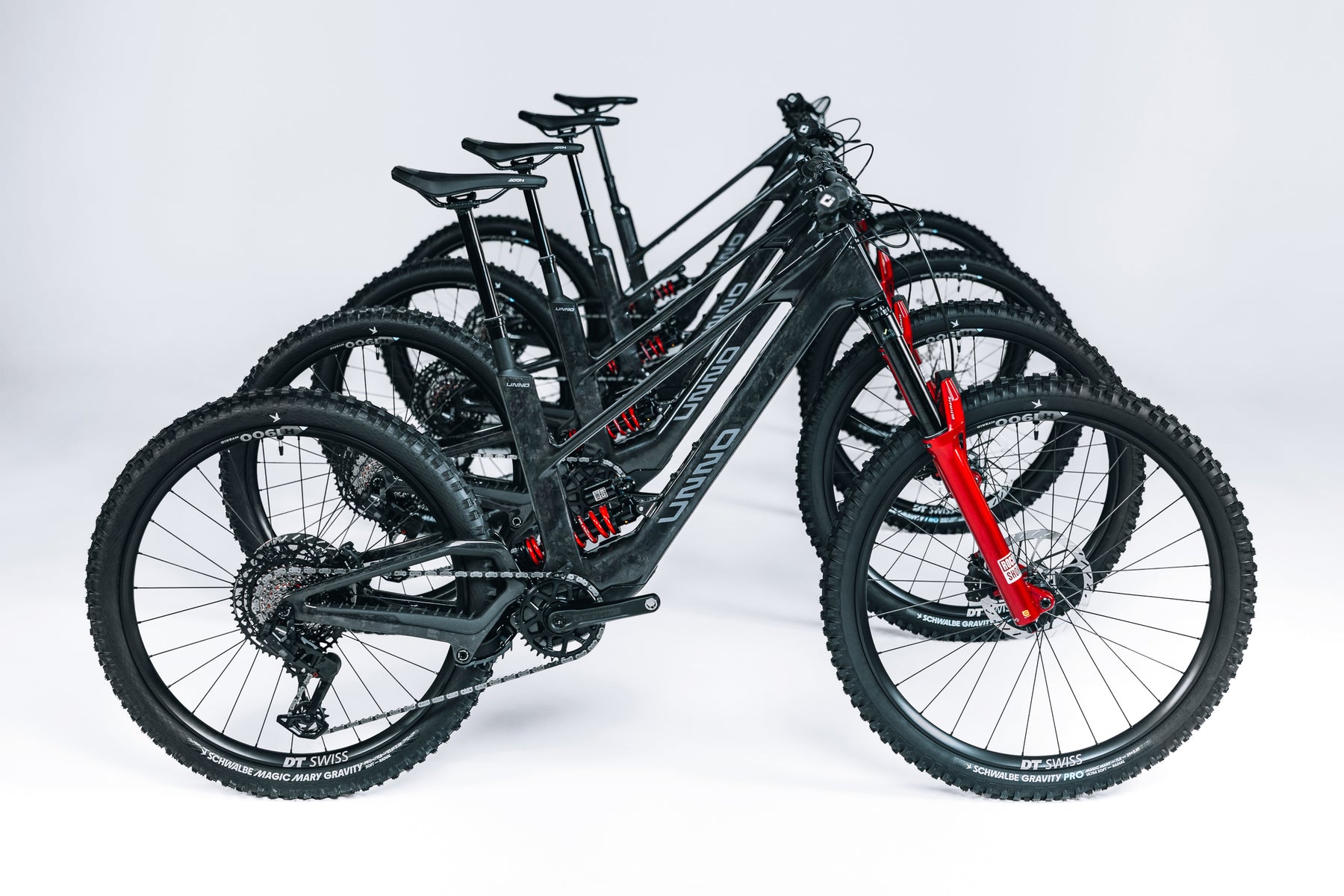

The MITH RACE RS is available in S1, S2 and S3, covering riders from approximately 155 cm to 195 cm.
All three sizes share the same 63.5° head angle, 77° effective seat angle and 450 mm chainstay length, with reach progressing from 430 mm through 460 mm to 490 mm. Different rider. Same intention.
We don't need another MITH. We wanted this one. Forged carbon. Electric Red.
RockShox ZEB Ultimate.
RockShox Vivid Coil Ultimate.
Avinox power.
MITH underneath it all.
The UNNO MITH RACE RS Special Edition drops October 1, 2026.
Red means go.
| MITH RACE RS | |
| Generation | 2nd GEN |
| Frame | T700/T1000 CARBON FIBER MONOCOQUE - VIRTUAL PIVOT SUSPENSION |
| Colours | FORGED CARBON |
| Sizes | S1, S2, S3 |
| Weight (Complete Bike, S2 in KG) | 22,90 KG |
| Fork Specification | |
| Fork | Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED |
| Travel (mm) | 170 mm |
| Wheel Size Option | 29" |
| Length (Axle to Crown mm) | 586 mm |
| Axle Dimension | 15X110 mm |
| Offset (mm) | 44 mm |
| Shock Specification | |
| Shock | Rock Shox - VIVID COIL ULTIMATE |
| S1 | Rock Shox - Coil 275lbs Vivid 230x65mm - Electric Red |
| S2 | Rock Shox - Coil 325lbs Vivid 230x65mm - Electric Red |
| S3 | Rock Shox - Coil 400lbs Vivid 230x65mm - Electric Red |
| Rear Travel (mm) | 160 mm |
| Length (mm) | 230 mm |
| Stroke (mm) | 65 mm |
| Tune | Custom UNNO |
| Cockpit Specification | |
| Handelbar | ONE UP ALLOY |
| Handelbar Length (mm) | 800 mm |
| Handlebar Rise (mm) | 35 mm |
| Handlebar Upsweep | 5º |
| Handlebar Backsweep | 8º |
| Handlebar/Stem Clamping Diameter (mm) | 35 mm |
| Headset | CANE CREEK FORTY Series (IS41-42/28.6 - IS52/40) |
| Topcap | UNNO Custom top cap |
| Topcap Height (mm) - Headset cap height | 8.75 mm |
| Stem | ONE UP FORGED |
| Stem Length (mm) | 42 mm |
| Stem Spacer | CANE CREEK ALLOY SPACER 28.6mm x10mm & 5mm |
| Grips | ODI ELITE PRO LOCK-ON 130 mm |
| Grips Lock-on | Slip-on | LOCK-ON |
| Drivetrain Specification | |
| Motor | AVINOX M2S (2,60kg Drive unit, 250W rated power, Regular modes max: 1300 W / 130 Nm; Boost mode max: 1300 W / 150 Nm) |
| Battery | AVINOX FS800 Wh (Integrated 3.74kg battery) |
| Display / Head Unit | AVINOX DP100 2" OLED (Smart multi-function touchscreen with 800 nits and 326 ppi.) |
| Charger | AVINOX CHARGER 168W 4A |
| Remote | AVINOX BC100 Wireless controller with Bluetooth Connectivity |
| Range Extender | N/A |
| Groupset | SRAM S1000 EAGLE AXS T-TYPE |
| Derailleur | SRAM S1000 EAGLE AXS T-TYPE (12-speed. AXS Wireless. T-type) |
| Cassette | SRAM 70 - XS 1270 T-TYPE 10-52 V2 |
| Chain | SRAM 70 T-TYPE 120 LINK |
| Gear Ratio | 5.2 |
| Number of Gears | 12 (10-52T) |
| Chainguard | N/A |
| Crank | E13 HELIX CORE E*SPEC |
| Crank Length (mm) | 155 mm length x 26.5 mm offset |
| Chainring | E13 HELIX RACE E*SPEC 36T 8mm OFFSET 55 mm CL |
| Brake Specification | |
| Brake | SRAM MAVEN BASE |
| Brake Lever | SRAM MAVEN BASE |
| Brake Disc | SRAM HS2 6-BOLT TYPE |
| Brake Disc Size | 200 mm |
| Wheel Specification | |
| Wheelset | DT SWISS H1900 |
| Wheelsize | Mullet 29" FRONT - 27.5" REAR |
| Rotor Mount | IS 6-BOLT TYPE |
| Rim Width (mm) | 30 mm (Internal Width) |
| Hub Width, Axel Front | 15X110 mm |
| Hub Width, Axel Rear | 12X148 mm |
| Tubeless Technology (Taped | Untaped) | Untaped |
| Thru Axle (rear) | UNNO Custom rear axle |
| Tyres (front) | SCHWALBE - 29" x 2.5 MAGIC MARY ULTRA SOFT GRAVITY PRO, TLR |
| Tyres (rear) | SCHWALBE - 27.5" x 2.5 MAGIC MARY - SOFT EVO, GRAVITY PRO, TLR |
| Seat Specification | |
| Saddle | FIZIK TERRA AIDON X5 145 |
| Seatpost | ONE UP V3 (Mechanical) |
| Seatpost Diameter (mm) | 31.6 mm |
| Seatpost Travel (mm) | 150 mm (S1) / 180 mm (S2) / 210 mm (S3) |
| Seatpost Insertion Depth Min. | 100 mm (S1) / 115 mm (S2) / 130 mm (S3) |
| Seatpost Insertion Depth Max. | 231 mm (S1) / 249 mm (S2) / 270 mm (S3) |

| S1 | S2 | S3 | |
|---|---|---|---|
| Stack | 624 | 636 | 658 |
| Reach | 430 | 460 | 490 |
| Headtube Angle | 63.5 | 63.5 | 63.5 |
| Headtube Length | 107 | 120 | 145 |
| Seattube Angle | 77 | 77 | 77 |
| Seattube Length | 420 | 420 | 440 |
| Toptube (Effective) | 560 | 590 | 623 |
| Chainstay Length | 450 | 450 | 450 |
| Wheelbase | 1225 | 1261 | 1302 |
| BB Drop | 30-15 | 30-15 | 30-15 |
| Standover | 706 | 706 | 706 |
| Dropper Post Travel | 150 | 180 | 210 |
| Crank Length | 155 | 155 | 155 |
Size Guide
| S1 | S2 | S3 | |
|---|---|---|---|
| Ride Height (CM) | 165 - 174cm | 175 - 184cm | 185 - 200cm |
