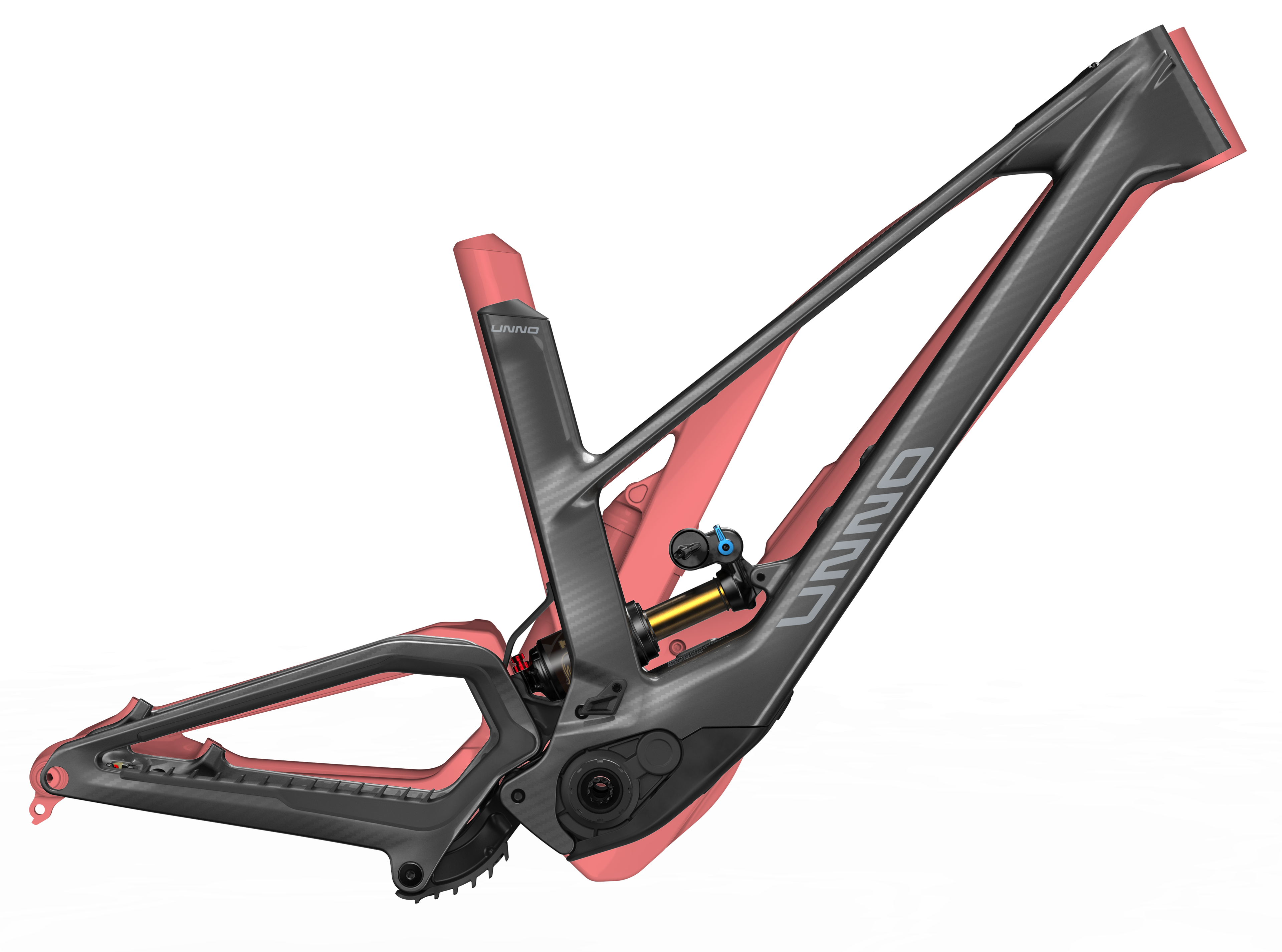

The WORLDS LEANEST e-MTB FRAME EQUIPPED WITH AN 800Wh BATTERY

The new MITH looks and rides like nothing else you have previously experienced.

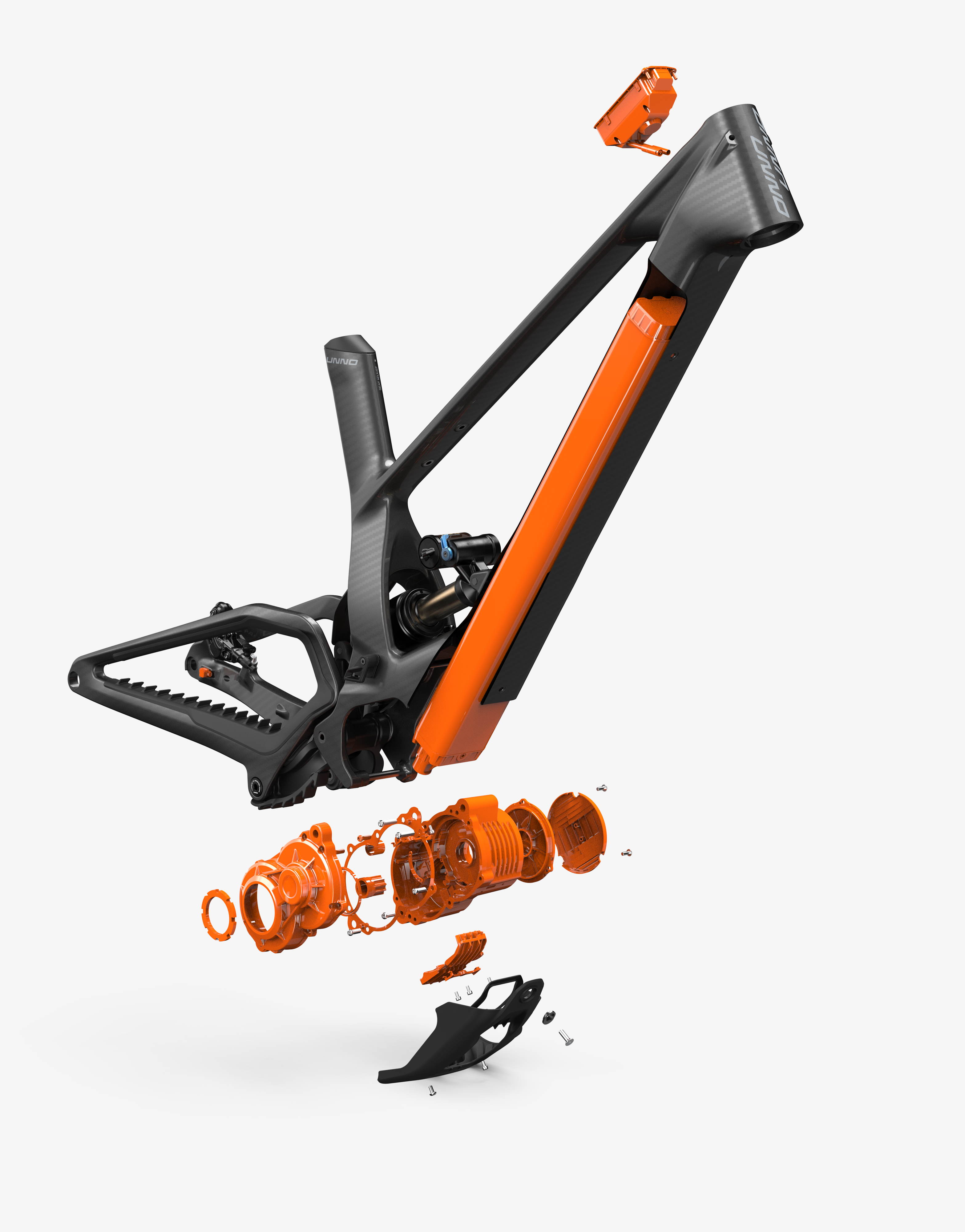

DJI AVINOX - THE MOST POWERFUL DRIVE SYSTEM AVAILABLE

105Nm in normal mode and 120Nm in Boost. Drive unit 2,52kg and 800Wh battery 3,74kg. Battery charged in 2:25h with fast charger. 2 inch OLED tactile display. Ambient light sensor. GPS, IMU, barometer, compass. Torque/cadence/wheel speed sensor. 4G connection with real-time bike location. Security and alarm system. Seamless integration with DJI products.

FULL GRAVITY BUILD WITH DH CASING TIRES

DDEEVVEELLOOPPMMEENNTT

TWILL CARBON WEAVE FINISH

The unique UNNO look is back on our Factory & Pro builds. The twill fabric finish is not only cosmetic but add sextra impact resistance. Additionally, our MITH frames are tested up to 2x the ISO norm, making us very confident to offer a lifetime warranty on any frame.

EXTRA
SEAT POST INSERTION

We've shortened the seat tube and increased the insertion by 60mm while keeping our disruptive and unique frame design.

Now, the MITH comes with 150mm dropper posts in S1, 180mm in S2, and 210mm in S3.

compare
new vs old

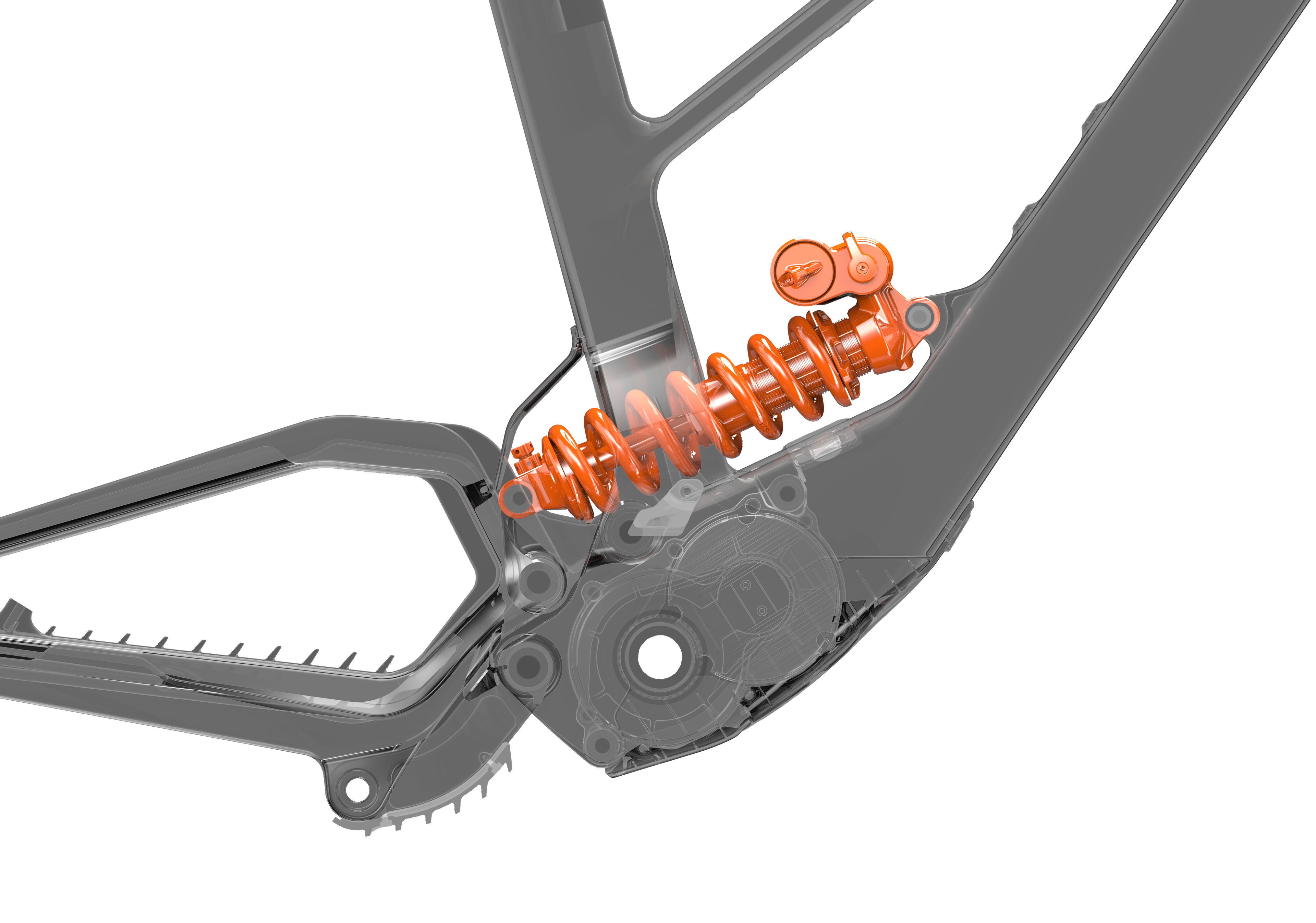

ACCESSIBLE SHOCK AND COIL COMPATIBLE

The shock is now easily accessible for making setting adjustments and hassle-free maintenance, and the frame is compatible with coil shocks, too.

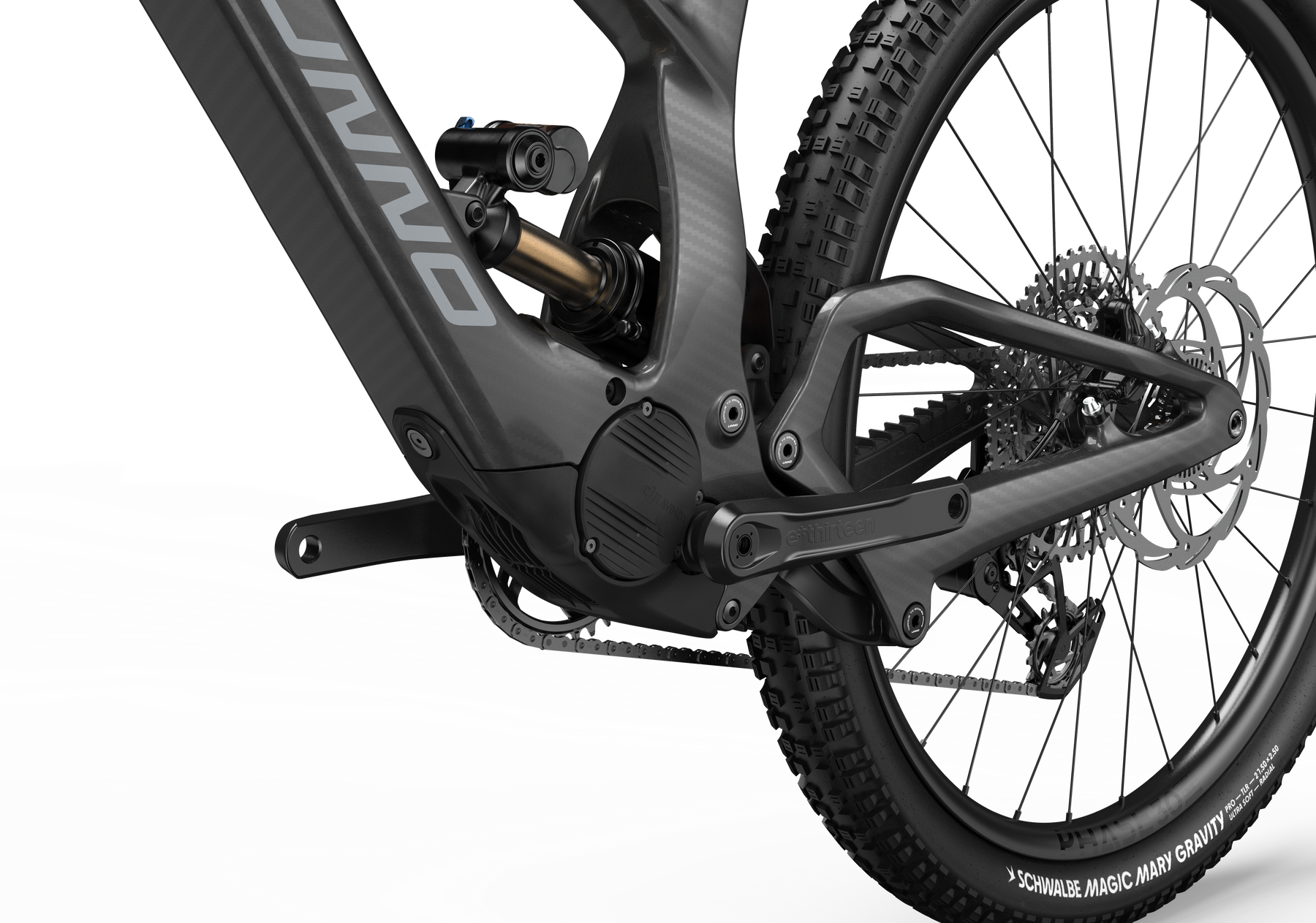

DUST GUARDS
PROTECTION

All bearings are shield from mud, dirt, and water, enhancing their durability.

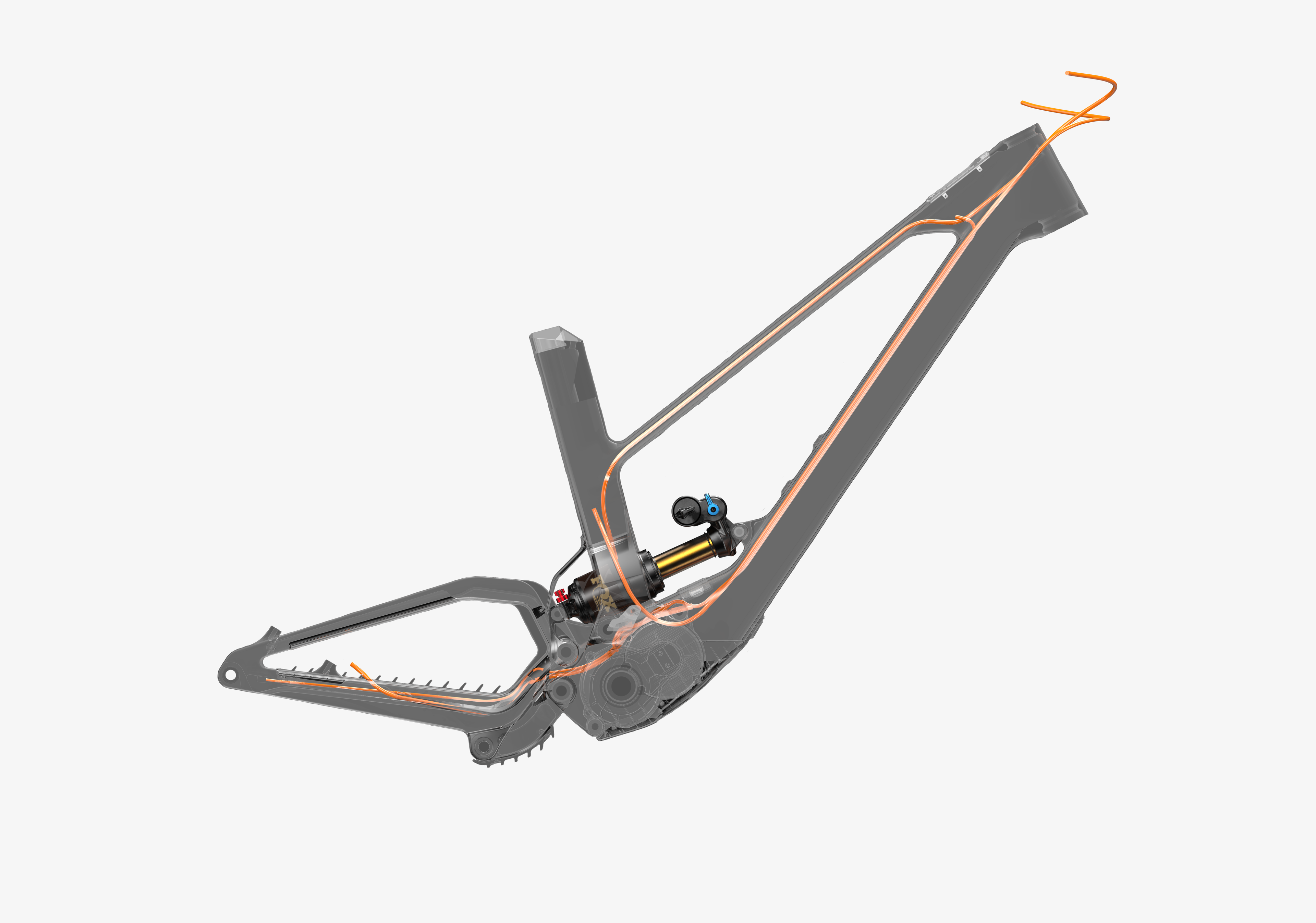

NO HEADSET CABLE ROUTING

We’ve ditched the trend of routing cables through the headset, gaining durability and ease of service. Additionally, the routing is now fully guided for a noiseless riding experience.

KKIINNEEMMAATTIICCSS

UNNO
VIRTUAL PIVOT
SUSPENSION
REFINED

The suspension kinematics use an initial 30% of the curve with a higher progressive ratio for maximum small bump sensitivity, while the other 70% is less progressive to give enough platform to push the bike in
corners and provide good bottom-out resistance.

recommended
SAG setup

We propose 2 different SAG settings: 30% for a standard setup or 35% for an aggressive setup, especially on steeper trails.
When using 35%, the bike is 0.5º slacker.

	S1	S2	S3
Stack	624	636	658
Reach	430	460	490
Headtube Angle	63.5	63.5	63.5
Headtube Length	107	120	145
Seattube Angle	77	77	77
Seattube Length	420	420	440
Toptube (Effective)	560	590	623
Chainstay Length	450	450	450
Wheelbase	1225	1261	1302
BB Drop	30-15	30-15	30-15
Standover	706	706	706
Dropper Post Travel	150	180	210
Crank Length	155	155	155

Size Guide

	S1	S2	S3
Ride Height (CM)	165 - 174cm	175 - 184cm	185 - 200cm

MORE UPGRADES AND NEW FEATURES

Specifications

Free shipping

We offer free shipping on orders over €50 and offer fast and competitive shipping for international customers.

	Mith Pro	Mith Race
Frame	Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Recommended SAG: 30-35%.	Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Recommended SAG: 30-35%.
Fork	Fox 38 Factory 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.	Fox 38 Factory 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.
Rear Shock	Fox Float X2 Factory 230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR	FOX Float X Factory 230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR.
Motor	DJI Avinox	DJI Avinox
Battery	DJI Avinox 800WH integrated.	DJI Avinox 800WH integrated.
Display	DJI Avinox 2-inch OLED Smart Touchscreen, Multi-Function Display	DJI Avinox 2-inch OLED Smart Touchscreen, Multi-Function Display
Controller	DJI dual Wireless Controllers Wireless Controllers with Bluetooth Connectivity	DJI dual Wireless Controllers Wireless Controllers with Bluetooth Connectivity
Headset	CANE CREEK 40 CANE CREEK 40, No cover, TPR-IS41/28.6/H9 \| IS52/40	CANE CREEK 40 CANE CREEK 40, No cover, TPR-IS41/28.6/H9 \| IS52/40
Stem	ONEUP 42mm stem	OneUp 42mm stem
Handlebars	ONEUP V2 Carbon handlebar, 35mm diameter, 800mm length, 35mm rise	ONEUP V2 Alloy handlebar, 35mm diameter, 800mm length, 35mm rise
Wheels	NEWMEN Phase 30 Carbon Mullet 29" Front and 27.5" Rear.	NEWMEN Performance 30 Alloy Mullet 29" Front and 27.5" Rear.
Front Tyre	SCHWALBE Magic Mary Ultra Soft, Gravity Pro, TLR, 29” x 2.5”	SCHWALBE Magic Mary Ultra Soft, Gravity Pro, TLR, 29” x 2.5”
Rear Tyre	SCHWALBE Magic Mary Soft Evo, Gravity Pro, TLR, 27.5” x 2.5”	SCHWALBE Magic Mary Soft Evo, Gravity Pro, TLR, 27.5” x 2.5”
Shifter	SRAM AXS Pod Ultimate Wireless. 12 speed. Concave design.	SRAM AXS Pod Rocker 12 speed. Wireless.
Rear Derailleur	SRAM X0 Eagle AXS T-Type 12 speed. AXS Wireless. T-type.	SRAM S1000 Eagle AXS T-Type 12 speed. AXS Wireless. T-type.
Crankset	*E13 Helix Core espec** 155mm	*E13 Helix Core espec** 155mm
Chainring	UNNO 36t	UNNO 36t
Cassette	SRAM X0 T-Type XS- 1295. 12 speed. 10-52t	SRAM Eagle 70 XS 1270 T-Type, 10-52t
Chain	SRAM X0 T-Type 120 links. Flat top. 12 speed	SRAM 70 T-Type 120 links. Flat top. 12 speed
Brakes	Formula Cura 4 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.	Formula Cura 4 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.
Rotors	Formula 203mm front rotor, 200mm rear rotor with integrated speed sensor slots.	Formula 203mm front rotor, 200mm rear rotor with integrated speed sensor slots.
Seatpost	OneUp V3 Mechanical 31.6mm S1: 150mm, S2: 180mm, S3: 210mm	OneUp V3 Mechanical 31.6mm S1: 150mm, S2: 180mm, S3: 210mm
Saddle	FIZIK Terra Aidon X5 145mm	FIZIK Terra Aidon X5 145mm
