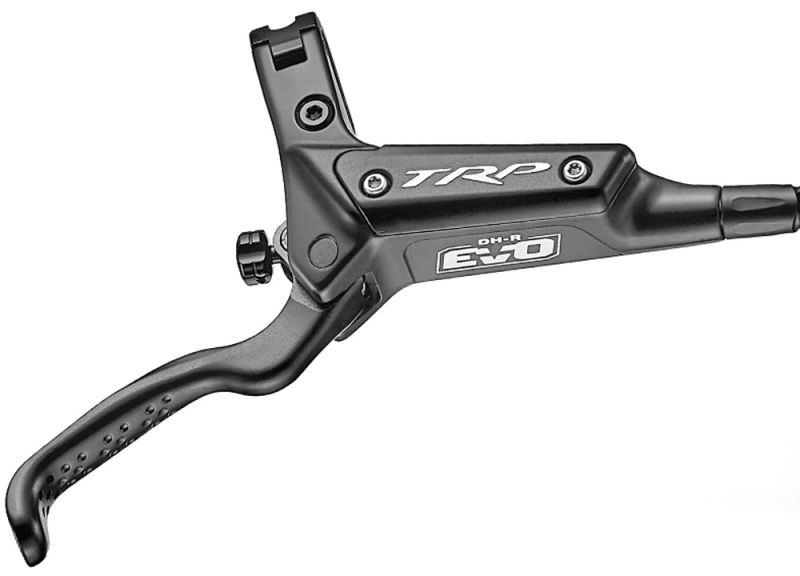

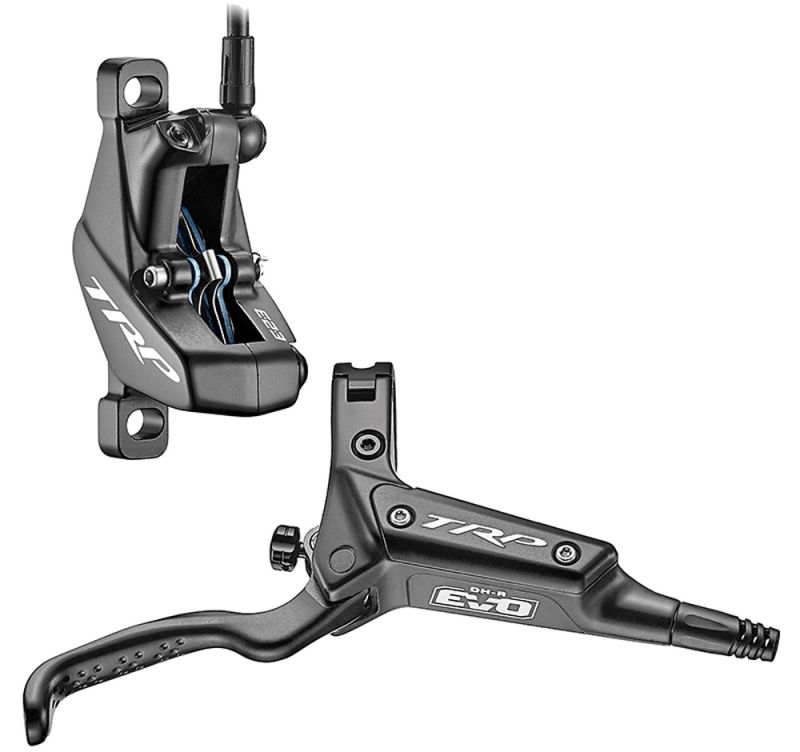

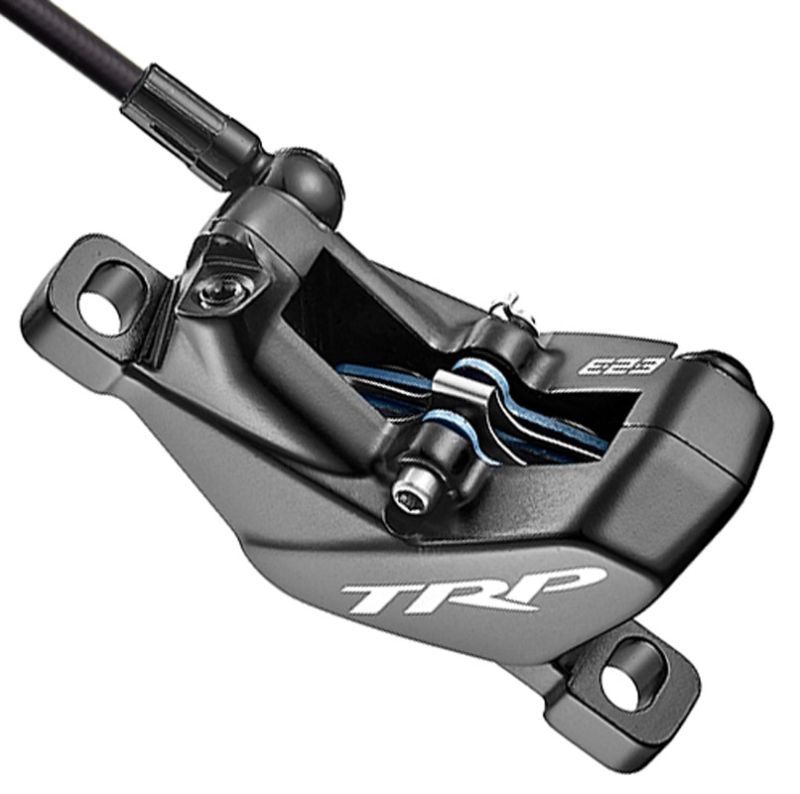

TRP DHR-EVO Disc Brake Set - Black

No stone was left untouched and the result at the end of the season was a completely re-designed TRP HD-M846 DH-R EVO. The TRP engineers did a lot to achieve this: ergonomic lever-blade, better formulated brake pad compounds, high-performance hydraulic oil and a 5 mm brake hose-system.

They continued with newly designed oil flow inside the calipers, a better hydraulic leverage ratio and a smaller size master cylinder piston, which lifts the overall performance of the DH-R EVO to this new standard of racing. The newest generation of brakes comes with tool free indexed reach adjustment and silver anodized finish!

---

Product features - TRP HD-M846 DH-R EVO Disc Brake

• Forged, CNC-machined and polished master unit and caliper with silver finish
• Ergonomic lever shape
• Nopped texture for better grip on the track
• 9-mm master piston
• Aluminium reservoir cap
• Adjustable grip width
• Folding clamp
• I-Spec II compatible
• 5 mm thick hydraulic lines
• Powerful, heat-stable mineral oil with low viscosity for even better response
• Weight: 310g (VR, without rotor and adapters)
• New high-flow design
• Hybrid pistons
• High-performance resin pads
• CNC-milled and marked adapters
• Designed for 2.3mm thick brake discs
• Compatible 223/220/203/180/160/140mm rotors
• Compatible only with 2.3mm thick disc rotors!

Product features

• Use: Downhill, E-MTB
• Model: HD-M846 DH-R EVO
• Brake type: Hydraulic Disc-Brake
• Pistons: 4
• Lever length: 1-2 Finger
• Clamp: Open
• Adjustable pressure point: No
• Reach adjustment: Yes
• Brake mounting: Postmount (IS with adapter)
• Brake hose length: each 1900mm
• Brake fluid: Mineral oil

Mount (choose variant)

• Front Wheel - left
• Rear Wheel - right

Material

• Aluminum forged, CNC machined

Color

• black

Weight

• approx. 310g (manufacturer information)
