Transition TransAm Steel Hardtail MTB Frameset

Sale price€1,050.00
Color:

Color

Size:

Size

Quantity:

Availability

In Store: Out of stock

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Transition TransAm Steel Hardtail MTB Frameset

Chrome / S

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup available, usually ready in 5+ days

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

The Passionate Pioneer
It will steel your heart.

The classic TransAM returns! After a seven-year hiatus, the reliable trail-shredding hardtail is back in the lineup for a limited time. Now with modern geometry, dual 29-inch wheels, a capable build spec or frameset options, and two classic color schemes, this will be one to hang on to and pass down for many generations. The updated geo encourages hard-charging but rewards thoughtful line choice. It orchestrates a fast-paced ballet through the landscape of your choosing. The new TransAM is ready for the core rider looking to get back to their roots.

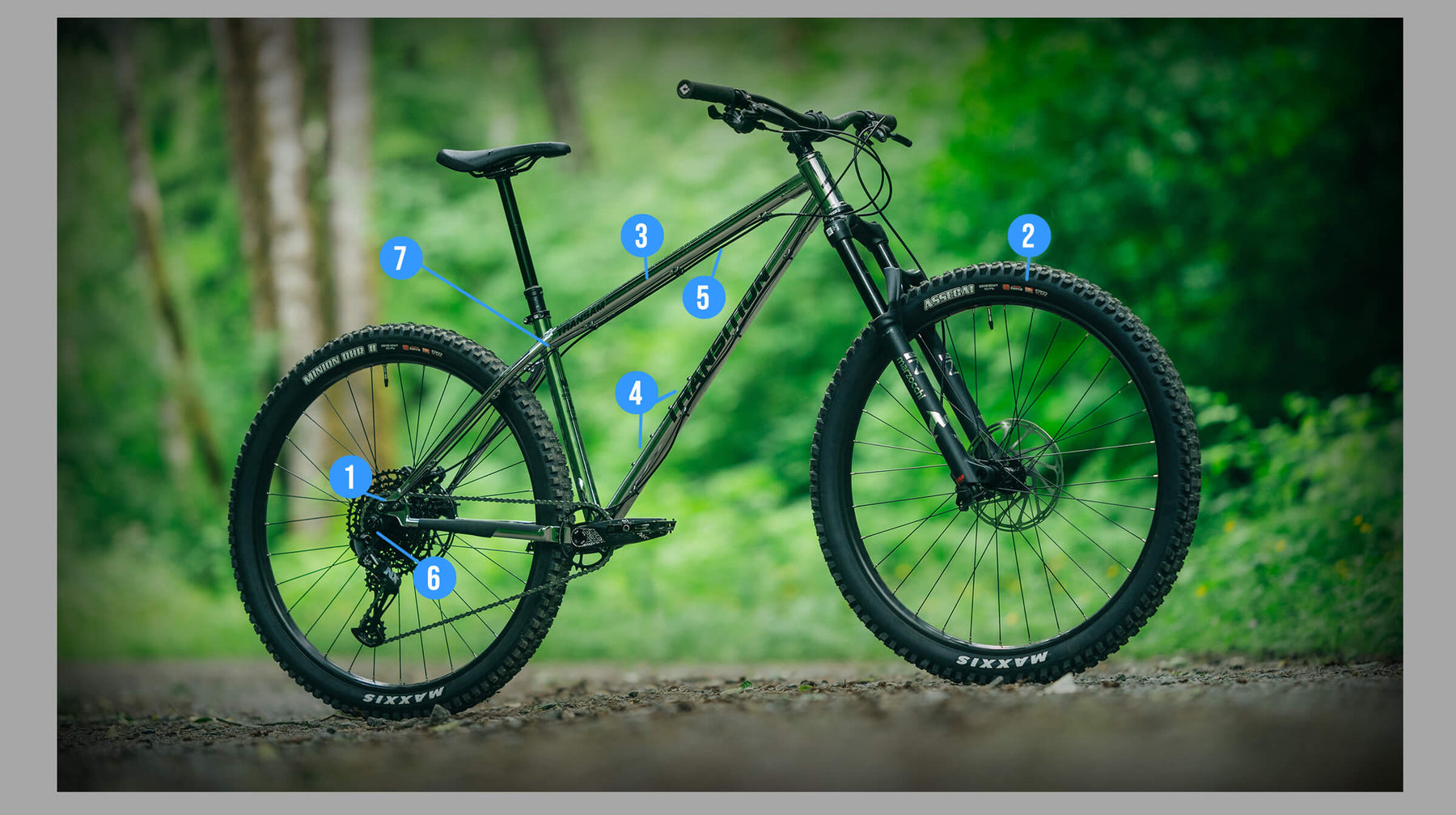

transition transam frame features

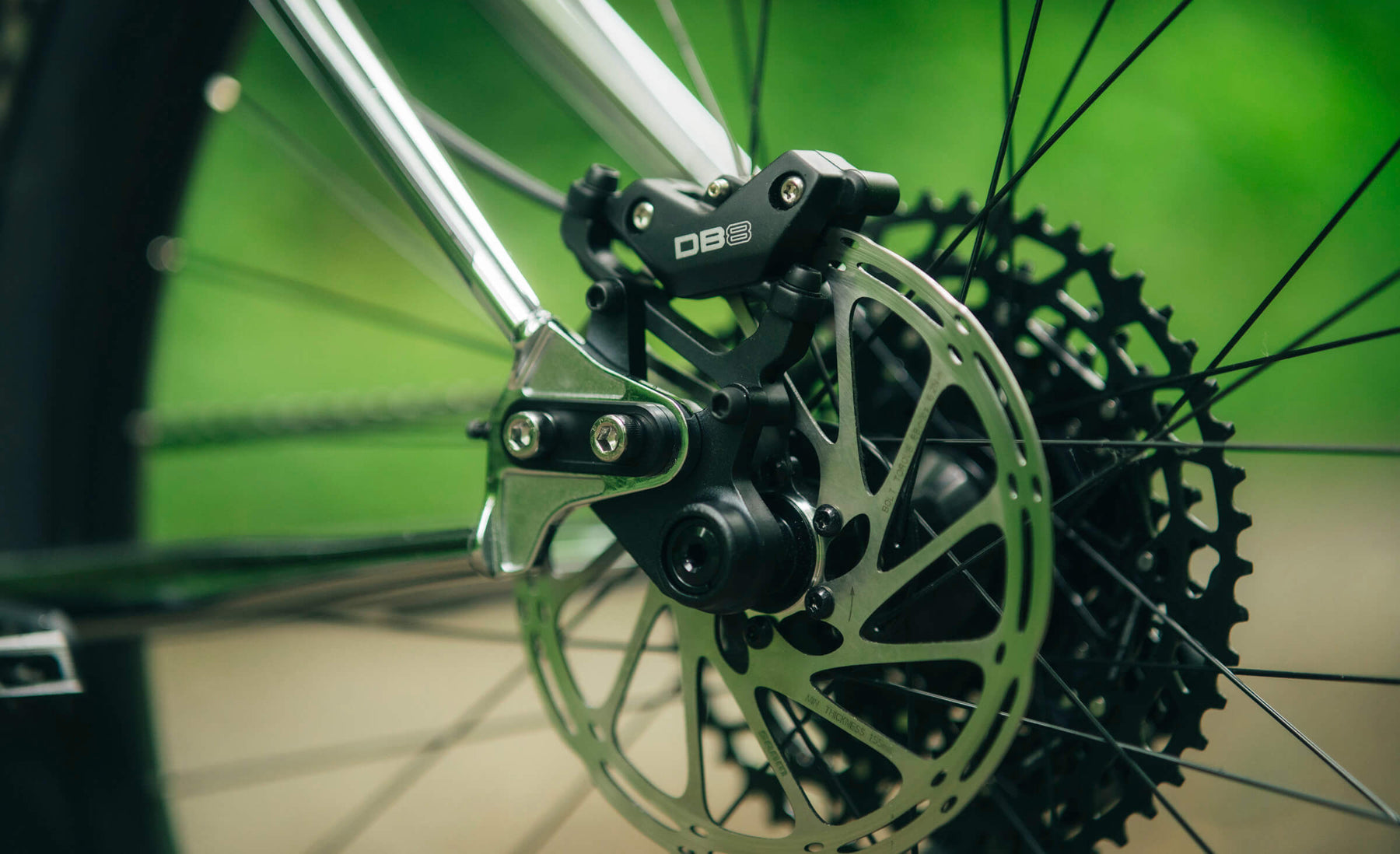

  1. Adjustable Dropouts: Run gears or singlespeed, your choice.
  2. Multiple Wheel Options: Run 29" or 27.5"
  3. Steel Is Real: Nothing beats the feeling of our custom butted chromoly steel frame.

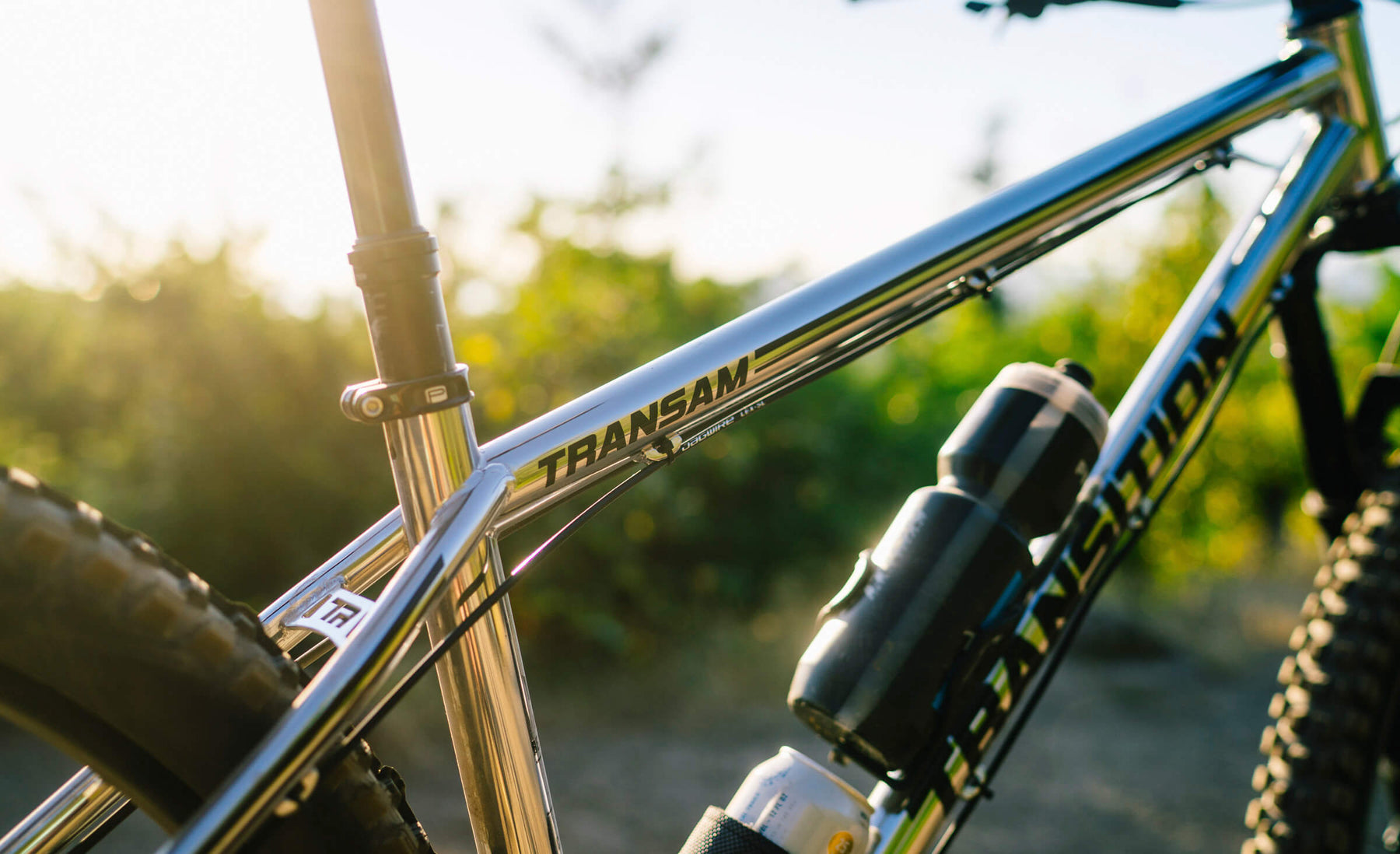

  4. Storage & Waterbottle Mounts: 4 Mounting holes on the downtube.
  5. External Cable Routing: Simple and quick setup and on the fly maintenance.
  6. UDH Hanger: The TransAM features the SRAM Universal Derailleur hanger available everywhere.
  7. Lifetime Frame Warranty: We believe your frame should last longer than you.
transition transam frame features 1

Simple is fun

For the rider who loves refined simplicity with the feeling of the wind in their face as they rip beautiful ribbons of terra firma in both directions, we give you the TransAM. The TransAM brings a feeling of nostalgia and reminds its rider of that first taste of freedom when they were young.

For those that watch The Wizard of Oz while listening to the dark side of the moon. For the Off-Road Cyclist. For the person who doesn't always have a plan but knows that whatever lies ahead will be a most excellent adventure. The TransAM pays homage to the free spirits of yesteryear who found rolling through the mountains on two wheels to be the best way to experience life.

Transition Transam frame features 2

Less is more

Tech keeps getting more complicated, the list of features gets longer, and the number of batteries keeps increasing. While we too are a bunch of bike nerds, excited about the latest and greatest, at our core we are mountain bikers who simply care about good dirt and good company. The new TransAM has no batteries, no motor, no apps, just a Chromoly frame that'll last a lifetime. In contrast to the times, we wanted to resurrect a bike that was clean and simple. With just enough updates and features like adjustable sliding dropouts, a UDH, and options for different wheel sizes, you can customize your bike to fit your style. Get the complete or the frame, either way, get out there and leave the fuss behind.

Specifications


NX Eagle Complete
Frame TransAm Chromoly Steel
Wheel Size 29"
Fork Marzocchi Z2 (150mm)
Headset FSA No.10/7B/44
Stem RaceFace Aeffect R (40mm)
Handlebars RaceFace Chester 35 SM/MD(780x20) LG/XL(780x35)
Grips ODI Elite Flow Lock-On
Saddle SDG Bel Air 3
Seatpost One Up Dropper Post SM(150mm) MD(180mm) LG/XL(210mm)
Brakes Sram DB8
Rotors SRAM Centerline (200/180mm)
Shifter SRAM NX Eagle MMX
Rear Derailleur SRAM NX Eagle
Cassette SRAM PG1230 (11-50T)
Chain SRAM NX Eagle
Crankset TRUVATIV Descendant 6K DUB (170mm x 30t)
Rims WTB ST i30
Spokes Pillar Double Butted
Hubs Novatech D791SB/D902SB
Front Tyre Maxxis Assegai 3C EXO+ (2.5)
Rear Tyre Maxxis Minion DHRII 3C EXO+ (2.4)
Extras Tubeless Valves & Sealant
Weight 33lbs / 14.97kg

Geometry

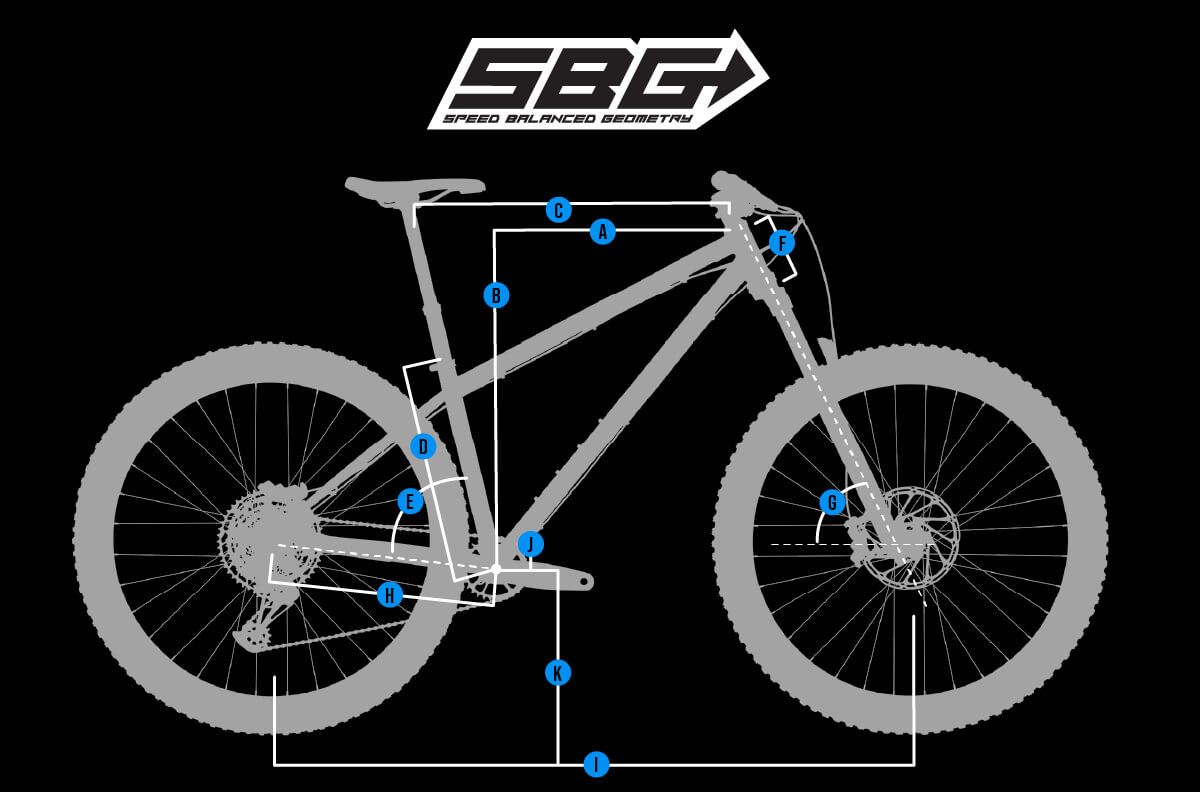

Transition TransAm frame geometry
S M L XL
A. Reach 430 460 485 510
B. Stack 641 641 646 655
C. Effective TT Length 584 614 640 667
D. Seattube Length 370 400 430 460
E. Effective ST Angle 76.5 76.5 76.5 76.5
F. Headtube Length 105 105 110 120
G. Headtube Angle 64 64 64 64
H. Chainstay Length 425-437 425-437 425-437 425-437
I. Wheelbase * 1187 1219 1246 1276
J. Bottom Bracket Drop 50 50 50 50
K. Estimated BB Height 320 320 320 320
L. Standover Height 662 667 670 677
M. Fork Offset 44 44 44 44
N. Seatpost Insertion 250 280 320 350
* Wheelbase based off 425mm chainstay measurement

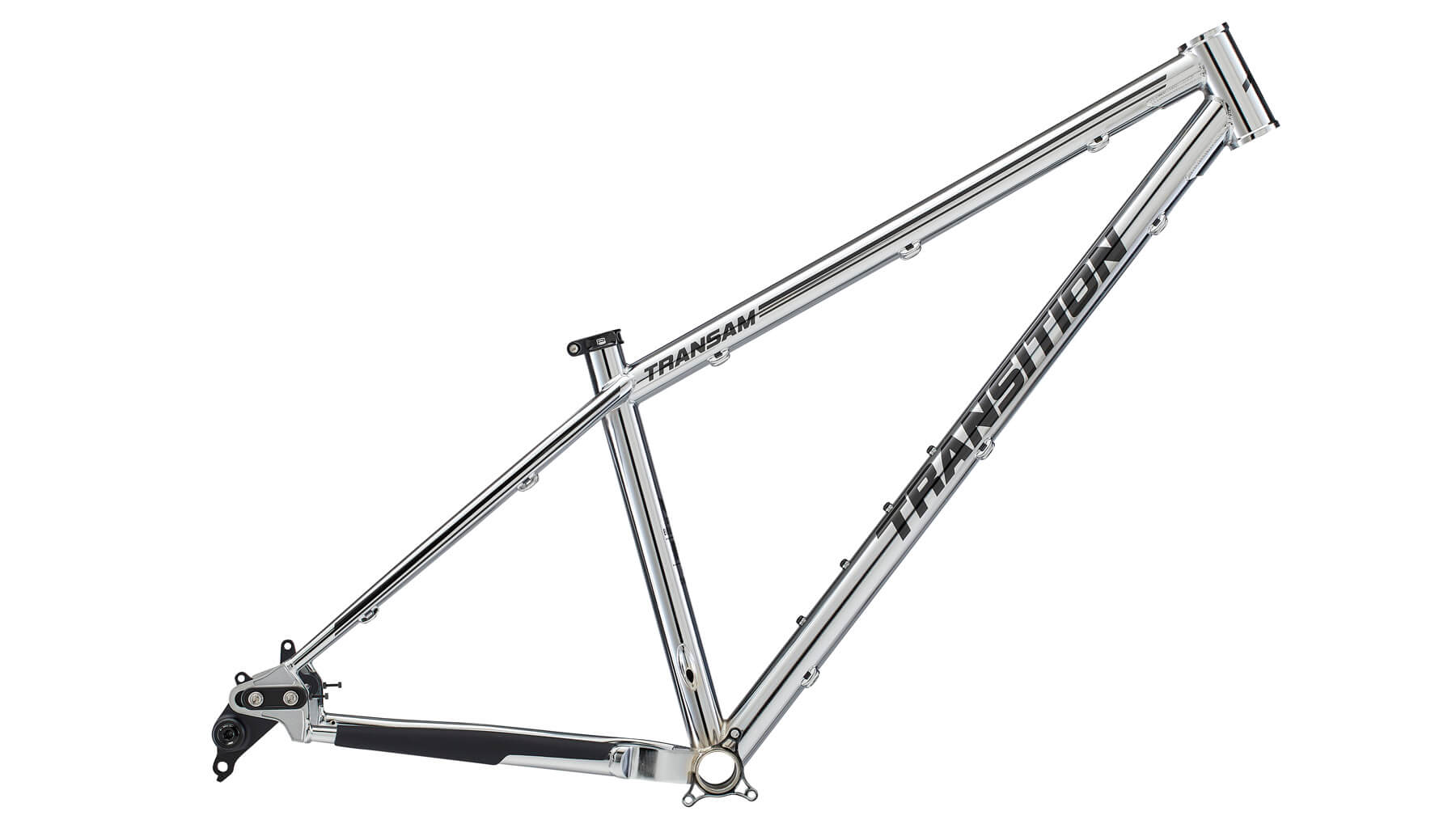

Frame Specifications


Front Travel 150mm
Wheel Size 29"
Frame Material 4130 Chromoly Steel
Fork Axle To Crown 574mm
Fork Offset 44mm
Headset (Top) ZS44
Headset (Bottom) EC44
BB Shell 73mm BSA Thread
Chainline 52-55mm
Rear Brake Mount 160mm IS
Max Rotor Size 223mm
Derailleur Hanger Sram UDH
Rear Axle Transition Axle For UDH 12 x 148mm
ISCG Tabs ISCG05
Seatpost Diameter 30.9mm
Seatclamp 34.9mm
Max Seatpost Insertion S: 250mm | M: 280mm | L: 320mm | XL: 350mm
Max Chainring Size: 34T
Max Tyre Size: 29 x 2.5"
