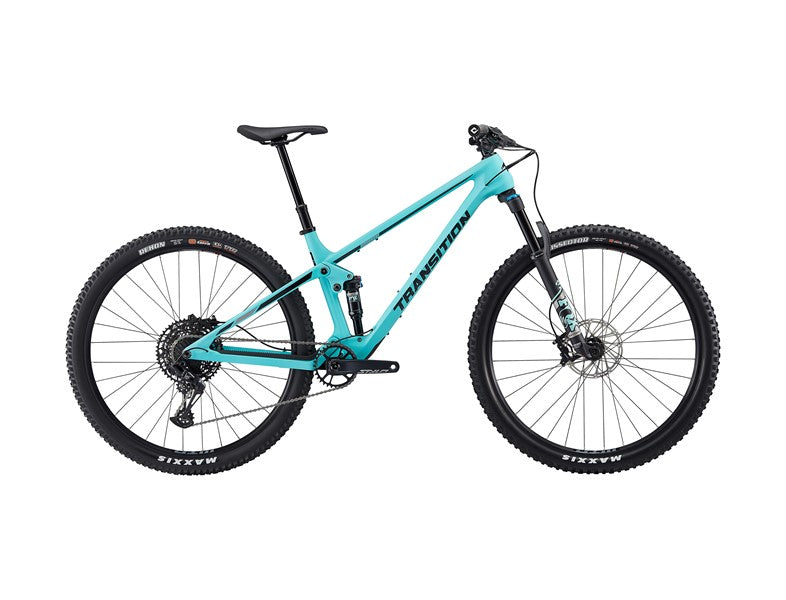

Transition Spur NX Bike
Aqua / L
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Transition Spur
The All-Country Bike
Effortlessly explore, seek, and pursue the mountain in ways you never imagined.
The Spur provides a sense of connection to the bike as if it were an extension to your body. Fast and efficient with an anti-gravity feel and laser-pointer precision that begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where you're usually accustomed to pedalling. Don't judge a book by its cover though, with all these lightweight and uphill oriented character traits the Spur requires no adjustment to descend like you're used to, you might actually go faster.
Specifications
| Carbon GX | Carbon Deore | Carbon NX | Carbon GX AXS | |
|---|---|---|---|---|
| Frame | Spur Carbon 120mm | Spur Carbon 120mm | Spur Carbon 120mm | Spur Carbon 120mm |
| Fork |
Fox Float 34 Performance Elite Fit 4 (120mm) |
RockShox SID Select 120mm, 44mm Offset |
Fox Float 34 Rhythm (120mm) |
Fox Float 34 Factory Fit 4 (120mm) |
| Rear Shock |
Fox DPS Performance Elite (190x45mm) |
RockShox SIDLuxe Select+ |
Fox DPS Performance (190x45mm) |
Fox DPS Factory (190x45mm) |
| Headset | FSA No.57E | FSA No.57E | FSA No.57E | FSA No.57E |
| Stem | ANVL Swage (40mm) | RaceFace Aeffect R (50mm) | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) |
| Handlebars |
ANVL Mandrel Alloy SM/MD(800mm x 20mm) LG/XL(800x30) |
RaceFace Aeffect R (780mm x 20mm) |
RaceFace Aeffect R SM/MD(780mm x 20mm) LG/XL(780x35) |
OneUp Carbon Bar SM/MD(800mm x 20mm) LG/XL(800x35) |
| Grips | ODI Elite Flow | Sensus Lite | ODI Elite Flow | ODI Elite Flow |
| Rims | RaceFace Aeffect R | Stans Arch D | WTB ST i25 | DT Swiss XRC 1501 Spline 30 Carbon |
| Spokes | RaceFace 2.0/1.7/2.0 | Pillar Double Butted | DT Swiss Competition Race | |
| Hubs | RaceFace Trace 28h | Shimano MT410 | Novatech D791SB/D902SB | DT Swiss 240 Ratchet EXP |
| Front Tyre | Maxxis Dissector 3C EXO (2.4) | Maxxis Dissector 3C EXO (29 x 2.4) | Maxxis Dissector 3C EXO (2.4) | Maxxis Dissector 3C EXO (2.4) |
| Rear Tyre | Maxxis Rekon 3C EXO (2.4) | Maxxis Rekon 3C EXO (29 x 2.4) | Maxxis Rekon 3C EXO (2.4) | Maxxis Rekon 3C EXO (2.4) |
| Shifter | SRAM GX Eagle | Shimano Deore M6100 | SRAM NX Eagle | SRAM GX AXS (Rocker Paddle) |
| Rear Derailleur | SRAM GX Eagle | Shimano Deore M6100 | SRAM NX Eagle | SRAM GX AXS |
| Crankset |
SRAM GX Eagle DUB (32t/170mm) |
Shimano Deore M6100 (32T/175mm) Small 170mm |
SRAM Stylo 6k DUB (32t/170mm) |
SRAM XO1 Carbon DUB (32t/170mm) |
| Cassette | SRAM XG 1275 (10-52t) | Shimano Deore M6100 (10-51T) | SRAM XG 1230 (10-50t) | SRAM XG 1295 (10-52t) |
| Chain | SRAM GX Eagle | Shimano Deore M6100 | SRAM NX Eagle | SRAM XX1 Eagle Black |
| Brakes | SRAM G2 RSC | Shimano Deore M6120 | SRAM G2 R | SRAM G2 RSC |
| Rotors | SRAM Centerline (180mm) | Shimano RT64 (180/160mm) | SRAM Centerline (180mm) | SRAM HS2 (180mm) |
| Seatpost | OneUp Dropper Post |
OneUp Dropper Post |
OneUp Dropper Post | OneUp Dropper Post |
| Saddle |
ANVL Forge Cromo or SDG Bel Air 3 |
ANVL Forge Cromo | SDG Bel Air 3 |
ANVL Forge Cromo or SDG Bel Air 3 |
| Extras | Tubeless Valves & Sealant | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Sealant | SRAM AXS Battery Charger Tubeless Valves & Sealant |
| weight | 28.6 lbs/12.82 kg (Size MD) | 29.8 lbs/13.51 kg (Size MD) | 26.2 lbs/11.88 kg (Size MD) |
Geometry
| S | M | L | X | |
|---|---|---|---|---|
| A. Reach | 425 | 455 | 480 | 510 |
| B. Stack | 600 | 610 | 619 | 632 |
| C. Effective TT Length | 569 | 602 | 630 | 664 |
| D. Seat Tube Length | 380 | 410 | 460 | 500 |
| E. Effective ST Angle | 76.7 | 76.2 | 75.9 | 75.6 |
| Saddle Height For Effective ST Angle | 600 | 660 | 720 | 780 |
| Actual ST Angle | 72 | 72 | 72 | 72 |
| Seattube Offset At BB | 51 | 51 | 51 | 51 |
| F. Headtube Length | 100 | 110 | 120 | 135 |
| G. Headtube Angle | 66.0 | 66.0 | 66.0 | 66.0 |
| H. Chainstay Length | 435 | 435 | 435 | 435 |
| I. Wheelbase | 1156 | 1190 | 1219 | 1255 |
| J. Bottom Bracket Drop | 40 | 40 | 40 | 40 |
| K. Estimated BB Height | 335 | 335 | 335 | 335 |
| L. Standover Height | 662 | 667 | 670 | 677 |
| M. Fork Offset | 44 | 44 | 44 | 44 |
