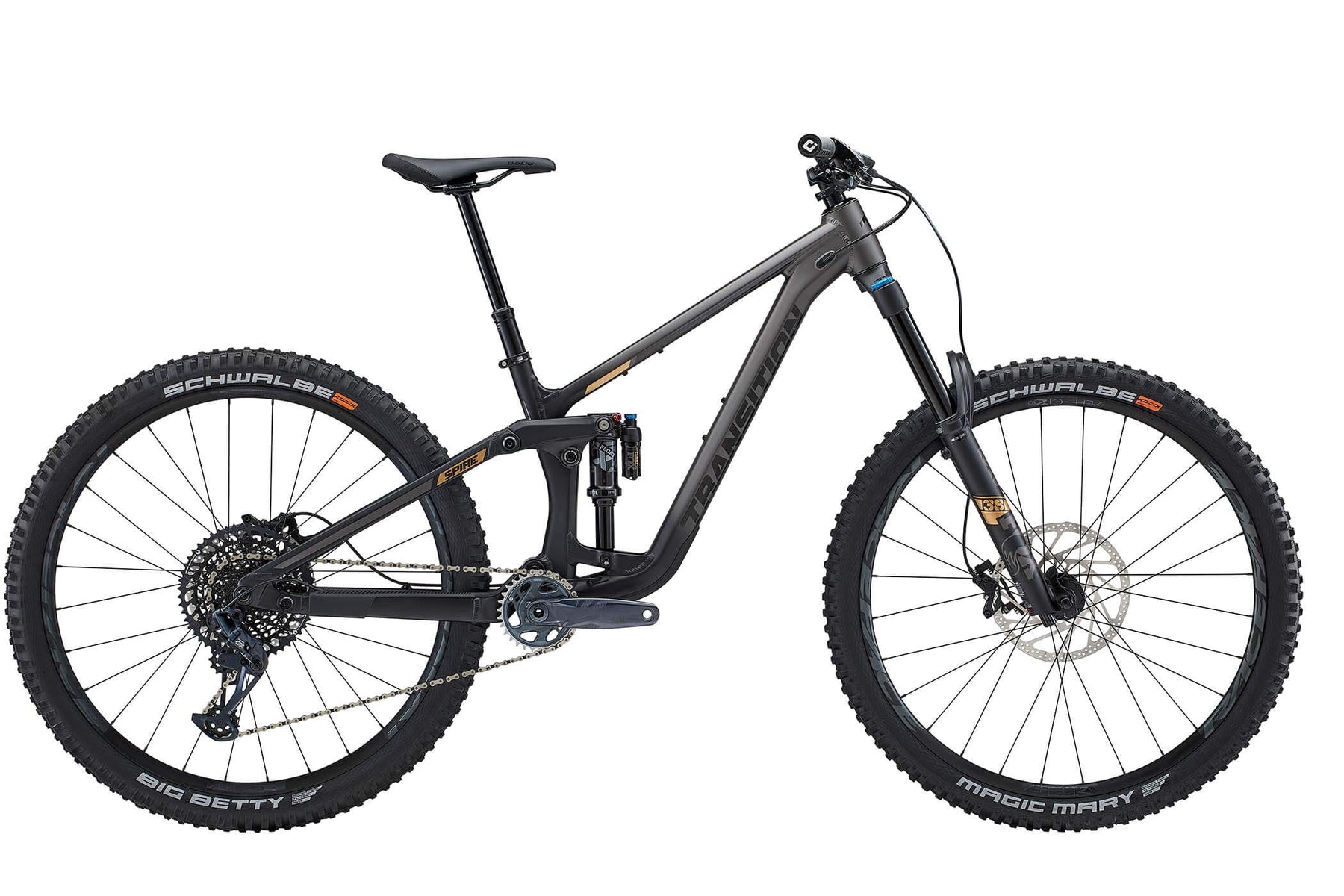

Fade To Black / L

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup available, usually ready in 5+ days

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

Transition Spire

The Nimble Bruiser
Take on the biggest terrain without the penalty, Long travel doesn’t have to mean single purpose

The Spire blends DH bike capability with mid-travel efficiency in such a way it’s almost two bikes in one. A delicately tuned pedaling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favorite challenging descent, then cruise on over to your local flow trail and you’ll be rewarded on both ends of the spectrum. Don’t be fooled though, while it’s no one-trick pony, the Spire lives to push your limits. Get in-Spired.

Specifications

Alloy NX Alloy GX Carbon GX Carbon XO AXS Alloy Frameset Carbon Frameset
Frame Spire Alloy 170mm Spire Alloy 170mm Spire Carbon 170mm Spire Carbon 170mm Spire Alloy 170mm Spire Carbon 170mm
Fork Marzocchi Bomber Z1 Air
(170mm)
Fox Float 38 Performance Elite
(170mm)
Fox Float 38 Performance Elite
(170mm)
Fox Float 38 Factory
(170mm)
Rear Shock Fox Float X Performance
(205x65mm)
Fox Float X Performance Elite
(205x65mm)
Fox Float X Performance Elite
(205x65mm)
Fox Float X2 Factory
(205x65mm)
Fox Float X2 Factory
(205x65mm)
Fox Float X2 Factory
(205x65mm)
Headset FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57
Stem RaceFace Aeffect R (40mm) ANVL Swage (40mm) ANVL Swage (40mm) ANVL Swage (40mm)
Handlebars RaceFace Chester 35
SM (780x20) MD/LG/XL/XXL(780x35)
ANVL Mandrel Alloy 35
SM(800x20) MD/LG/XL(800x30) XXL(800x40)
ANVL Mandrel Alloy 35
SM(800x20) MD/LG/XL(800x30) XXL(800x40)
OneUp Carbon
SM/MD(800x20) LG/XL(800x35)
Grips ODI Elite Flow ODI Elite Flow ODI Elite Flow ODI Elite Flow
Rims WTB ST i30 RaceFace Aeffect R RaceFace Aeffect R RaceFace Aeffect R
Spokes Pillar Double Butted RaceFace 2.0/1.7/2.0 RaceFace 2.0/1.7/2.0 RaceFace 2.0/1.7/2.0
Hubs Novatec D791SB-B15/D902SB-B12 RaceFace Trace 28H RaceFace Trace 28H RaceFace Trace 28H
Front Tyre Schwalbe Magic Mary, Super Trail, Soft (2.4) Schwalbe Magic Mary, Super Trail, Soft (2.4) Schwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4) Schwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4)
Rear Tyre Schwalbe Big Betty, Super Trail, Soft (2.4) Schwalbe Big Betty, Super Trail, Soft (2.4) Schwalbe Big Betty, Super Gravity, Soft (29x2.4) Schwalbe Big Betty, Super Gravity, Soft (29x2.4)
Shifter SRAM NX Eagle MMX SRAM GX Eagle SRAM GX Eagle SRAM POD Ultimate Bridge MMX
Rear Derailleur SRAM NX Eagle SRAM GX Eagle SRAM GX Eagle SRAM XO AXS Eagle Transmission
Crankset SRAM Descendent 6K DUB
(30t/165mm)
SRAM GX Eagle DUB
(30t/165mm)
SRAM GX Eagle DUB
(30t/165mm)
SRAM XO Eagle DUB T-Type
(30t/165mm)
Cassette SRAM PG 1230 (11-50t) SRAM XG 1275 (10-52t) SRAM XG 1275 (10-52t) SRAM XS 1295 T-Type (10-52t)
Chain SRAM NX Eagle SRAM GX Eagle SRAM GX Eagle SRAM XO AXS Eagle Transmission
Chainguide OneUp Bash Guide OneUp Bash Guide OneUp Bash Guide OneUp Bash Guide
Brakes SRAM Code R TRP DH-R EVO TRP DH-R EVO SRAM Code Ultimate Stealth
Rotors SRAM Centerline (220mm/200mm) TRP R1 2.3 (223/203mm) TRP R1 2.3 (223/203mm) SRAM HS2 (220/200mm)
Seatpost OneUp Dropper Post OneUp Dropper Post OneUp Dropper Post OneUp Dropper Post
Saddle SDG Bel Air 3 SDG Bel Air 3 SDG Bel Air 3 SDG Bel Air 3
Extras Tubeless Valves & Sealant Tubeless Valves & Sealant Tubeless Valves & Sealant Tubeless Valves & Sealant
Weight 36.7 lbs / 16.65 kg (Size MD) 10.6 lbs / 4.81 kg (Size MD w/ Shock) 7.6 lbs / 3.45 kg (Size MD w/ Shock)

Geometry

Transition Spire Geometry Diagram
SM
High/Low
MD
High/Low
LG
High/Low
XL
High/Low
XXL
High/Low
A. Reach 430 / 425 460/455 485/480 510/505 535/530
B. Stack 619/624 619/624 628/633 637/642 646/651
C. Effective TT Length 547/550 577/580 605/608 633/636 661/664
D. Seattube Length 360 390 430 460 490
E. Effective ST Angle 79.6/79.1 78.8/78.3 78.1/77.6 77.5/77 77.2/76.7
Saddle Height For Effective ST Angle 600 660 720 780 820
Actual ST Angle 70.5/70 70.5/70 70.5/70 70.5/70 70.5/70
Seattube Offset At BB 100 100 100 100 100
F. Headtube Length 100 100 110 120 130
G. Headtube Angle 63/62.5 63/62.5 63/62.5 63/62.5 63/62.5
H. Chainstay Length 446/448 446/448 446/448 452/454 452/454
I. Wheelbase 1227/1229 1257/1259 1287/1289 1322/1324 1352/1354
J. Bottom Bracket Drop 25/32 25/32 25/32 25/32 25/32
K. Estimated BB Height 350/343 350/343 350/343 350/343 350/343
L. Standover Height 685/680 700/695 715/710 730/725 745/740
M. Fork Offset 44 44 44 44 44
