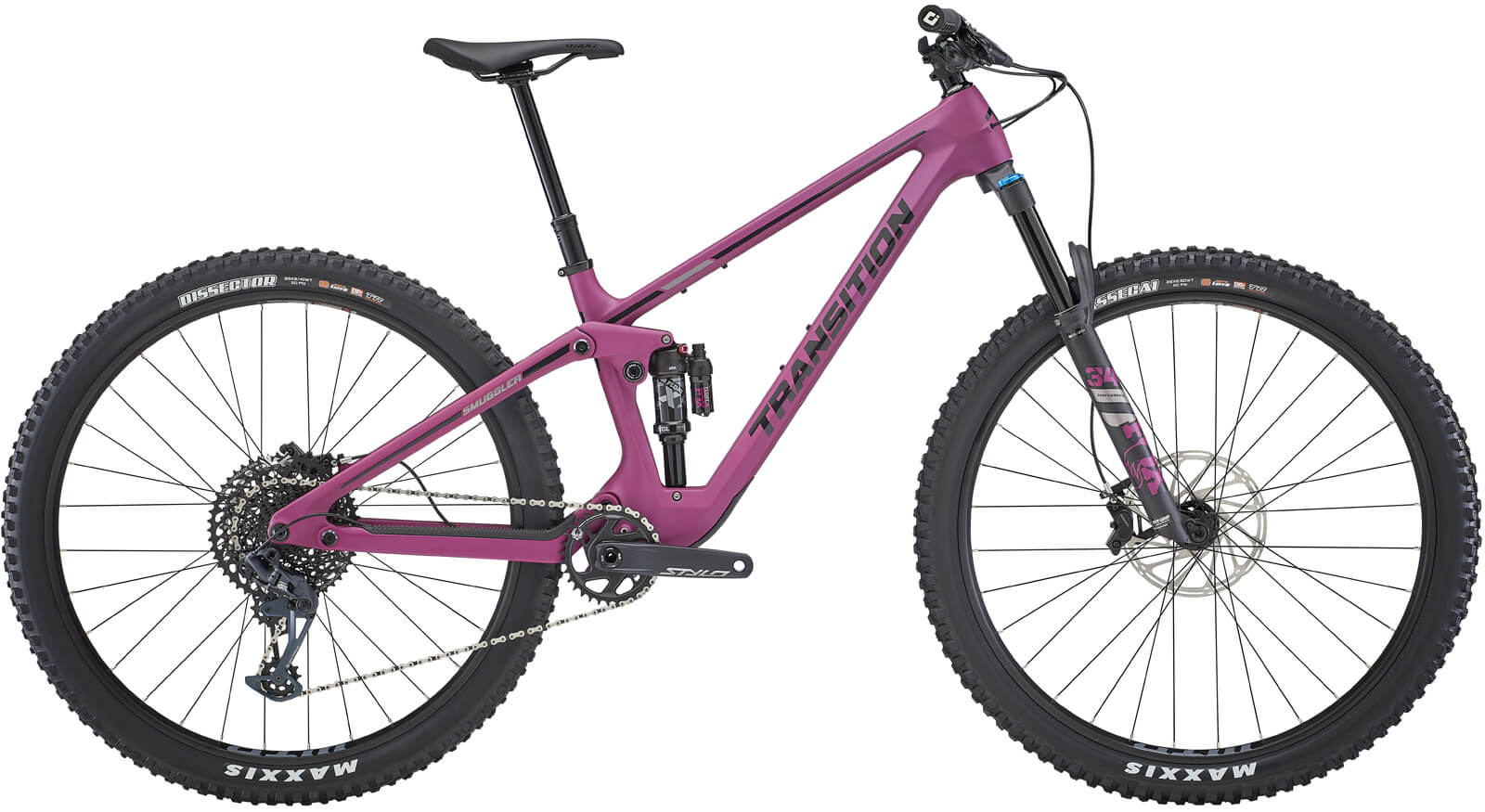

Transition Smuggler Carbon GX Complete Bike
Transition Smuggler Carbon GX Complete Bike
Transition Smuggler Carbon GX Complete Bike
Transition Smuggler Carbon GX Complete Bike

Transition

Transition Smuggler Carbon GX Complete Bike

Sale price€7,540.00
Color:

Color

Size:

Size

Quantity:

Availability

In Store: Out of stock

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Transition Smuggler Carbon GX Complete Bike

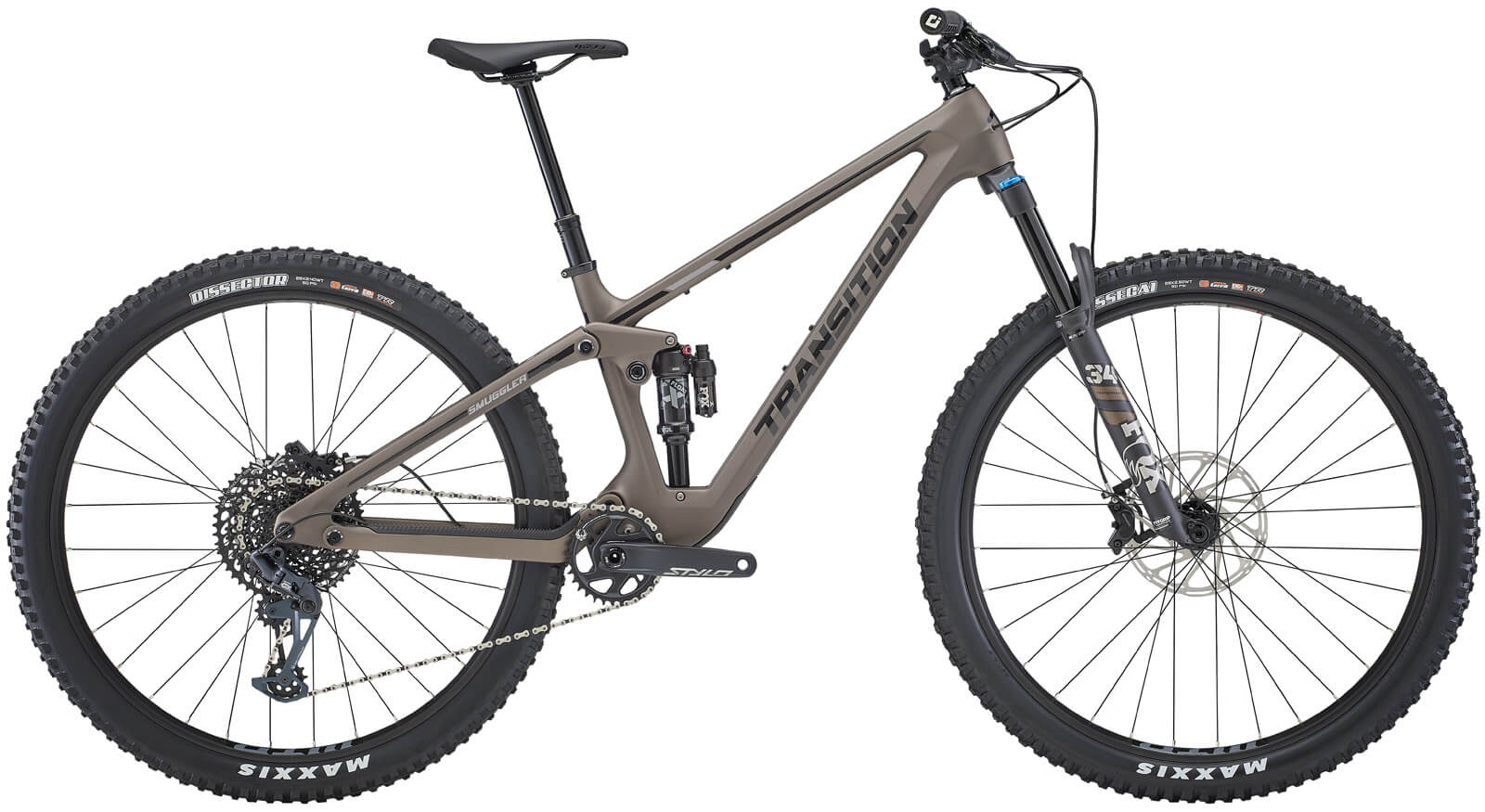

Espresso / S

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup available, usually ready in 5+ days

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

The trusty tool for any trail

Like the reliable tool you grab for every job, the smuggler is the go-to bike for any trail pointed up, down and all around.

With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

Specifications


Carbon X01 AXS Carbon GX AXS Carbon GX Alloy NX Carbon Frameset
Wheel Size 29" 29" 29" 29" 29"
Frame Smuggler Carbon 130mm Smuggler Carbon 130mm Smuggler Carbon 130mm Smuggler Alloy 130mm Smuggler Carbon 130mm
Rear Shock Fox Float X Factory 2 Position Fox Float X Performance Elite 2 Position Fox Float X Performance 2 Position Fox Float X Performance 2 Position Fox Float X Factory 2 Position
Fork Fox Float 34 Grip 2 Factory (140mm) Fox Float 34 Grip 2 Performance Elite (140mm) Fox Float 34 Grip Performance (140mm) Marzocchi Z2 (140mm)
Headset FSA NO.42/48/ACB FSA NO.42/48/ACB FSA NO.42/48/ACB FSA No.57E FSA NO.42/48/ACB
Stem ANVL Swage (40mm) ANVL Swage (40mm) RaceFace Aefect R (40mm) RaceFace Aefect R (40mm)
Handlebar OneUp Carbon XS/SM (800x20) MD/LG/XL/XXL (800x35) ANVL Mandrel Alloy 35 XS/SM (800x20) MD/LG/XL (800x30) XXL (800x40) RaceFace Chester 35 XS/SM (780x20) MD/LG/XL/XXL (780x35) RaceFace Chester 35 XS/SM (780x20) MD/LG/XL/XXL (780x35)
Grips ODI Elite Flow Lock-On ODI Elite Flow Lock-On ODI Elite Flow Lock-On ODI Elite Flow Lock-On
Saddle SDG Bel Air 3 SDG Bel Air 3 SDG Bel Air 3 SDG Bel Air 3 SDG Bel Air 3
Seatpost OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL
Brakes SRAM Code RSC SRAM Code RSC SRAM Code R SRAM Code R
Rotors SRAM HS2 (200mm/180mm) SRAM Centerline (200mm/180mm) SRAM Centerline (200mm/180mm) SRAM Centerline (200mm/180mm)
Shifter SRAM XO AXS SRAM GX AXS SRAM NX Eagle MMX SRAM NX Eagle MMX
Derailleur SRAM XO AXS SRAM GX AXS SRAM GX Eagle SRAM NX Eagle
Cassette SRAM XO AXS 10/52T SRAM GX AXS 10/52T SRAM XG1275 10/52T Sram XG1275 10/50T
Chain SRAM XO AXS SRAM GX AXS SRAM GX Eagle SRAM NX Eagle
Crank SRAM XO AXS (170mm x 32t) SRAM GX AXS (170mm x 32t) SRAM Stylo 6K DUB (170mm x 32t) SRAM Stylo 6K DUB (170mm x 30t)
Rims Crankbrothers Synthesis Enduro Alloy RaceFace Aeffect R WTB ST i30 WTB ST i30
Spokes Sapim D-Light (front), Sapim Race (rear) RaceFace 2.0/1.7/2.0 Pillar Double Butted Pillar Double Butted
Hubs Industry Nine 1/1, 28 (front), 32 (rear) RaceFace Trace 28H Novatec D791SB-B15/D902SB-B12 Novatec D791SB-B15/D902SB-B12
Front Tyre Maxxis Assegai EXO+ 2.5 Maxxis Assegai EXO+ 2.5 Maxxis Assegai EXO+ 2.5 Maxxis Assegai EXO+ 2.5
Rear Tyre Maxxis Dissector 3C EXO+ (2.4) Maxxis Dissector 3C EXO+ (2.4) Maxxis Dissector 3C EXO+ (2.4) Maxxis Dissector 3C EXO+ (2.4)
Extras SRAM AXS Battery Charger Tubeless Valves & Sealant SRAM AXS Battery Charger Tubeless Valves & Sealant Tubeless Valves & Sealant Tubeless Valves & Sealant
Weight TBD TBD 31.1 lbs / 14.09 kg (Size MD) 34.5 lbs / 15.65 kg (Size MD) 6.6 lbs/3.00 kg (Size MD w/shock)

Inspiration
We went into the Smuggler project with the intention of creating a bike that had the quick and high-energy feel of the Spur, but with a bit more travel front and rear. What we ended up with was a perfect blend of the Spur and Sentinel in geometry, travel, capability, and weight. It's not all downhill in the PNW; there's plenty of singletrack, technical trail, and meandering connective routes. The Smuggler is perfect for a day when your path comes across all of the above.

Progression in all the right places
The kinematics are similar to the Spur with a little over 27% progression. This provides a bottomless feel in a mid-travel package. Paired with the Fox Float X shock, the Smuggler can be set up to suit any rider's preference. Looking to increase rear travel? Simply remove the travel reducer in the shock to bump the travel up to 140mm. Looking for a bit more progression? Just add a larger volume spacer. All of this equates to a super lively, active, and forgiving rear suspension feel in any terrain.

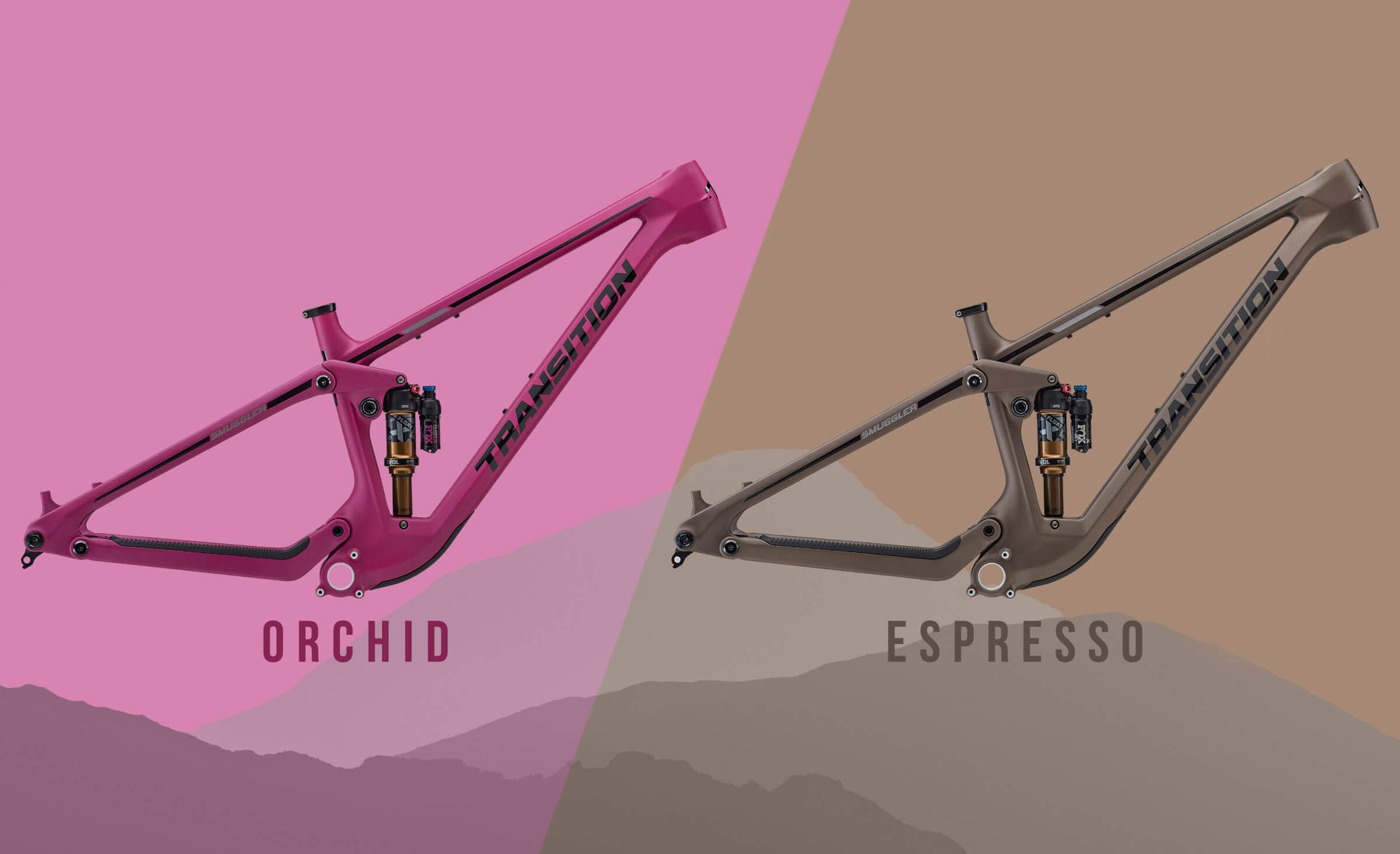

Frame Design Evolution transition smuggler 2023 frame features The Smuggler exhibits a few frame design features that further our push to have clean aesthetics while remaining easy to service. The most notable is the headtube area that provides better functionality and serviceability. The new headtube has integrated bearing cups and no longer needs headset cups pressed into the frame. This allows the frame to have super clean cable ports at the front of the headtube with fully guided internal cable routing from the headtube to the port above the bottom bracket shell. From there, cables cleanly enter the rear triangle hidden from view.

Geometry


Transition Smuggler 2023 Geometry Diagram
SM MD LG XL XXL
A. Reach 430 460 485 510 535
B. Stack 607 616 625 635 644
C. Effective TT Length 555 588 617 645 670
D. Seat Tube Length (Carbon) 360 390 430 460 490
D. Seat Tube Length (Alloy) 375 390 430 460 490
E. Effective ST Angle 79.3 78.6 78.1 77.6 77.3
Saddle Height For Effective ST Angle 600 660 720 780 820
G. Actual ST Angle 72 72 72 72 72
H. Headtube Length 100 110 120 130 140
I. Headtube Angle 65 65 65 65 65
J. Chainstay Length (Carbon) 435 435 440 440 440
J. Chainstay Length (Alloy) 437 437 443 443 443
K. Wheelbase (Carbon) 1179 1213 1247 1277 1306
K. Wheelbase (Alloy) 1181 1215 1250 1280 1309
L. Bottom Bracket Drop 35 35 35 35 35
M. Estimated BB Drop 340 340 340 340 340
2023 transition smuggler key features
  1. 29" Wheels Clearance for 2.5" Tyres
  2. 140mm Front & 130mm Rear Travel The perfect amount of travel for moving around the mountains.
  3. Drop in Headset Bearings Eliminates headset cups for simpler setup and durability.
  4. Improved Cable Routing Clean headtube cable routing for precise cable management.
  5. Internal Cable Routing Guide tubes inside the frame for super easy setup
  6. Size Specific Chainstays As the frame sizes grow, so do the chainstays to keep rider weight balanced on the bike.
  7. 27% Progression Allows the bike to be incredibly responsive to the trail while still being able to take large hits.
  8. Gear Accessory Mount Ditch the backpack and keep essential gear for on trail repairs.
  9. UDH SRAM's universal derailleur hanger available at almost every bike shop.
  10. 5 Sizes We make it easy to find the perfect size for you
  11. Lifetime Warranty We believe your bike should last longer than you
