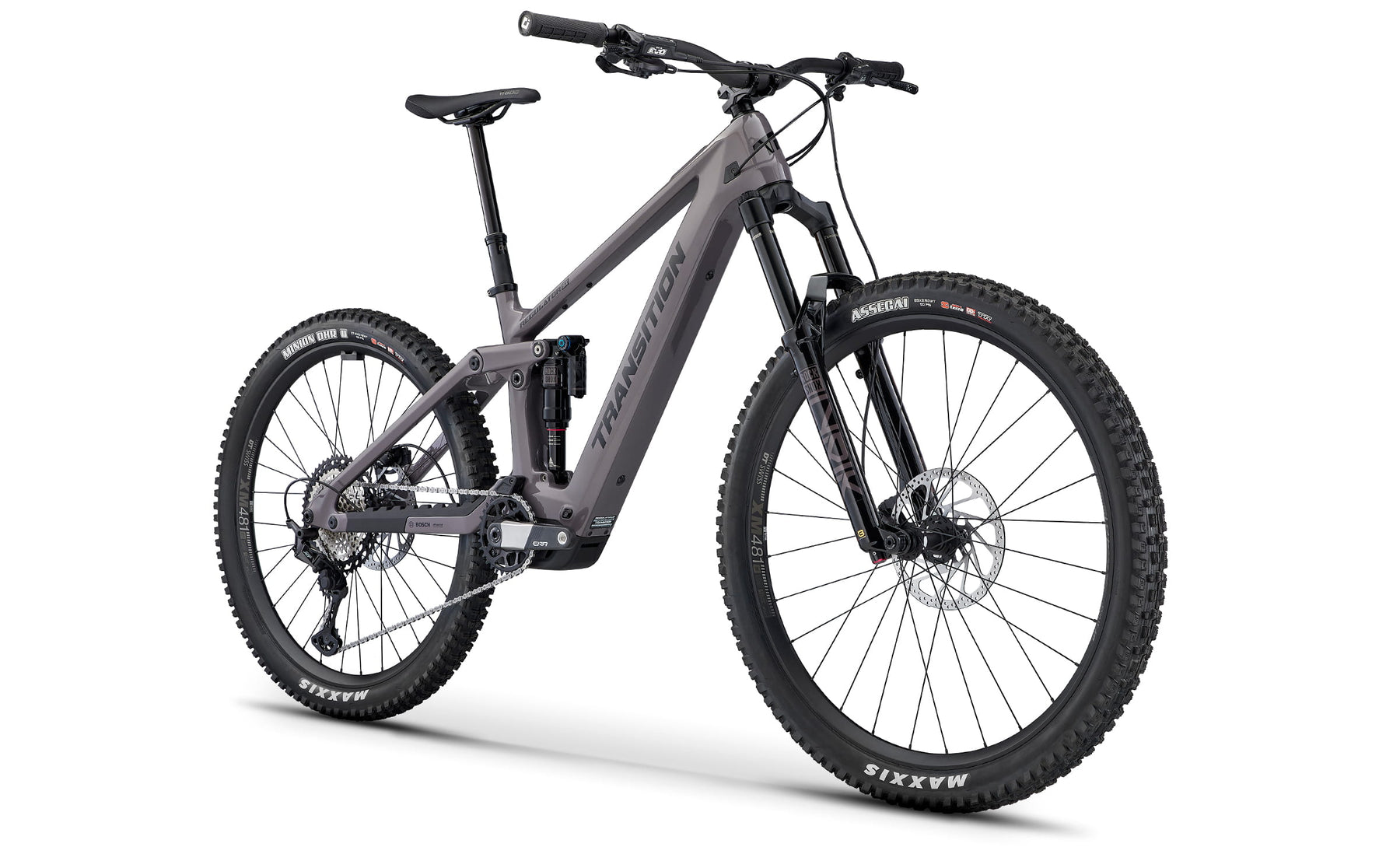

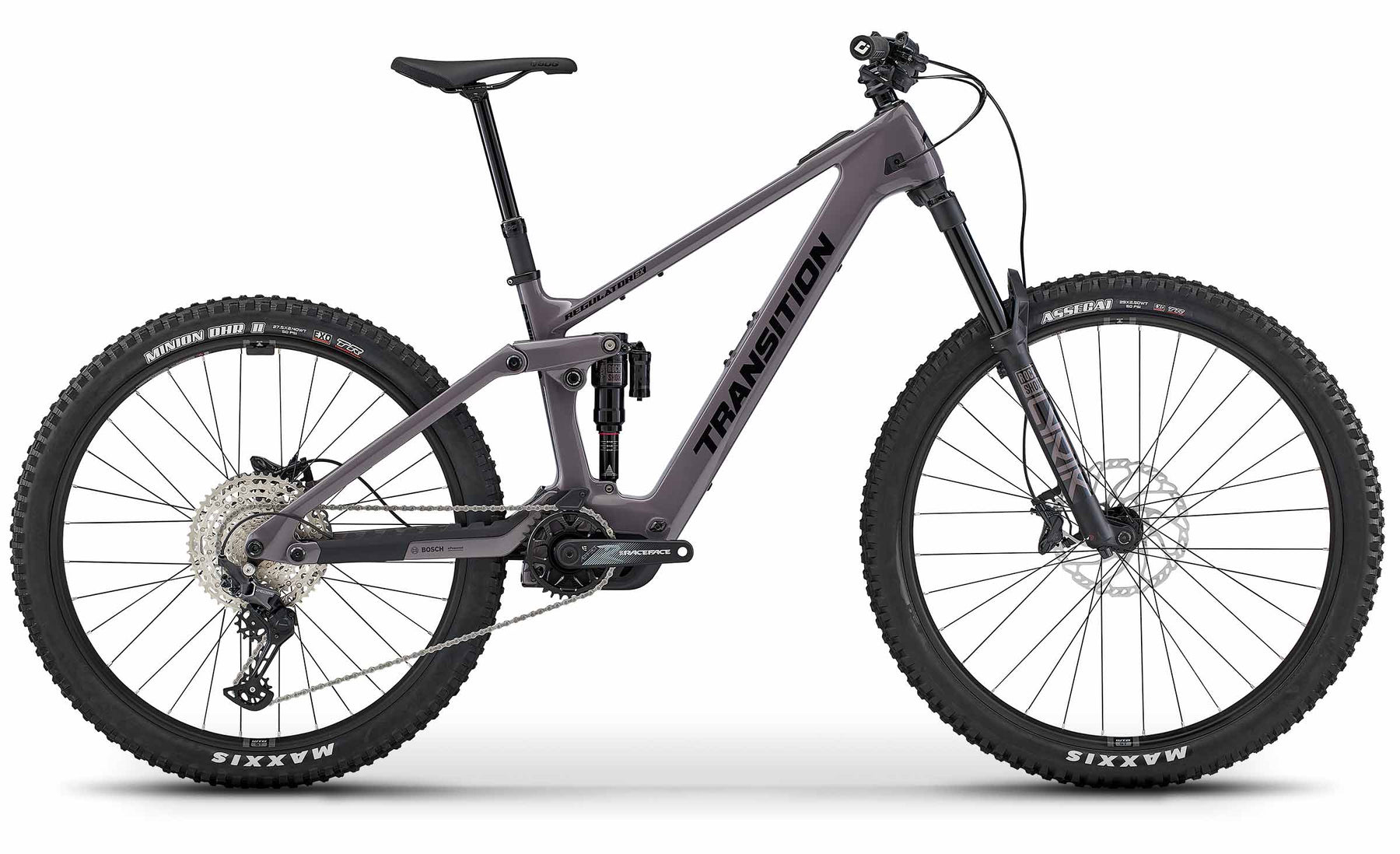

Transition Regulator SX Carbon XT Ebike
Stormshadow Grey / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Regulators, mount up!
The all-mountain steed is here to deliver fun on every trail.
The Regulator SX is our all-mountain eMTB designed to provide a nimble and responsive ride. No trail is too tame or too gnarly for the dedicated mixed-wheel platform with 150mm rear and 160mm front travel and geometry that promotes agility and playfulness. The Regulator SX will be the choice for riders looking for a chassis that excels in a variety of terrain with the added assistance of a Bosch SX drive unit delivering 55nm of torque from a 400wh battery. Coupled with our SBG geometry, you have an eMTB experience close to that of non-assisted bikes. This combination provides the best range-to-weight ratio for those who value lighter ride characteristics, giving you the best of both worlds with one of the most reliable and intuitive motor systems available on the market. For those looking for extra range, the Bosch range extender will take you up to 650wh for all day adventures.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 623 | 632 | 641 | 651 |
| Reach | 425 | 455 | 480 | 510 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 |
| Headtube Length | 105 | 115 | 125 | 135 |
| Seattube Angle | 78.8 | 78.5 | 78.2 | 77.9 |
| Seattube Length | 375 | 400 | 440 | 470 |
| Saddle Height For Seat Angle | 600 | 660 | 720 | 780 |
| Toptube (Effective) | 551 | 583 | 610 | 643 |
| Chainstay Length | 442 | 442 | 448 | 448 |
| Wheelbase | 1201 | 1235 | 1271 | 1305 |
| BB Height | 350 | 350 | 350 | 350 |
| BB Drop | 25 | 25 | 25 | 25 |
Specifications
| Carbon Deore | Carbon XT | |
|---|---|---|
| Frame | Regulator SX Carbon 150mm | Regulator SX Carbon 150mm |
| Fork |
RockShox Lyrik Base (160mm) |
RockShox Lyrik Ultimate (160mm) |
| Rear Shock |
RockShox SuperDeluxe Select (205x60mm) |
RockShox SuperDeluxe Ultimate (205x60mm) |
| Headset | FSA No.57E | FSA No.57E |
| Stem | RaceFace Aefect R (40mm) | ANVL Swage (40mm) |
| Handlebars |
RaceFace Chester 35 SM (780x20) MD/LG/XL (780x35) |
OneUp Carbon SM (800x20) MD/LG/XL (800x35) |
| Grips | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On |
| Rims | WTB ST i30 | DT Swiss XM 481 |
| Spokes | Pillar Double Butted | DT Swiss Competition |
| Hubs | Novatech D791SB/D902SB | DT Swiss 350 Classic DEG |
| Front Tyre | Maxxis Assegai 3C EXO/TR (2.5) | Maxxis Assegai 3C EXO+ (2.5) |
| Rear Tyre | Maxxis Minion DHRII 3C EXO/TR (2.4) | Maxxis Minion DHRII 3C EXO+ (2.4) |
| Shifter | Shimano Deore M6100 iSpec EV | Shimano XT M8100 |
| Rear Derailleur | Shimano Deore M6100 SGS 12sp | Shimano XT M8100 SGS 12sp |
| Crankset | RaceFace Aeffect R E-MTB (160mm) | RaceFace ERA Carbon E-MTB (160mm) |
| Chainring | E*Thirteen Helix Race Direct Mount (32t) | E*Thirteen Helix Race Direct Mount (32t) |
| Cassette | Shimano Deore M6100 (10-51t) | Shimano XT M8100 (10-51t) |
| Chain | Shimano Deore M6100 | Shimano XT M8100 |
| Chainguide | Transition Integrated Top Guide | Transition Integrated Top Guide |
| Brakes | Shimano Deore M6120 4 Piston | TRP EVO PRO |
| Rotors | Shimano RT66 (203mm) | TRP R1 2.3 (203mm) |
| Seatpost |
SDG Tellis SM (150mm) MD (170mm) LG (200mm) XL (230mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG (210mm) XL (240mm) |
| Saddle | SDG Bel Air 3 | SDG Bel Air 3 LUX |
| Extras |
Bosch Charger Tubeless Valves & Sealant |
Bosch Charger Tubeless Valves & Sealant |
| Weight | TBD | 41.16 lbs / 18.67 kg (Size MD) |
| Motor | Bosch Performance Line SX (BDU31) | Bosch Performance Line SX (BDU31) |
| Battery | Bosch CompactTube (400wh) | Bosch CompactTube (400wh) |
| Display | Bosch System Controller | Bosch System Controller |
| Switch | Bosch Wireless Mini Remote | Bosch Wireless Mini Remote |
