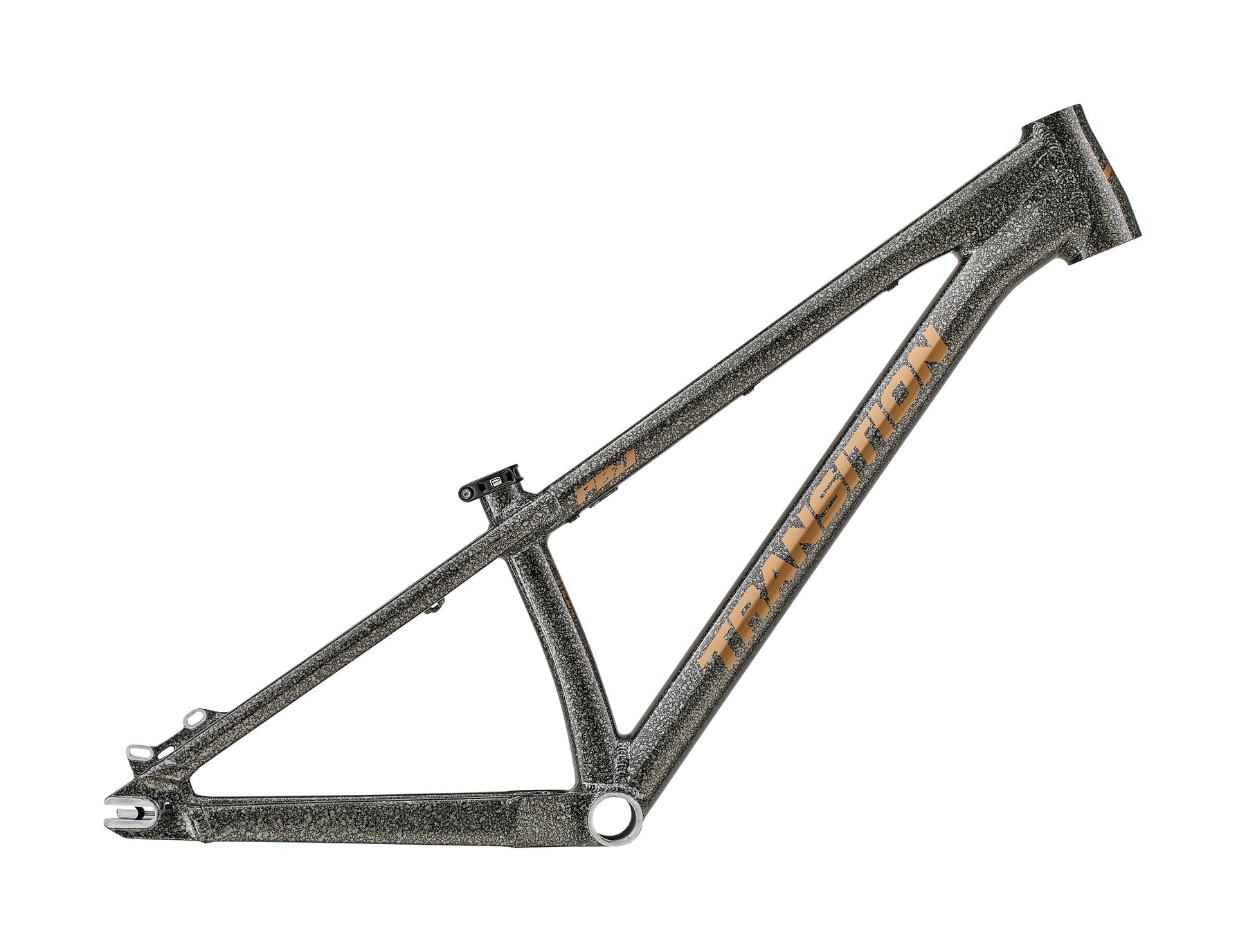

Transition PBJ Youth Alloy Hardtail Frame 24"
Acid Bath
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The All-New Pbj Is Here!
The best thing in-between sliced bread.
The all-new PBJ was redesigned from the ground up, now featuring an aluminum frame, new geometry and added features. The hydro-formed 6061 aluminum frame allowed us to build in the features that riders need for the level of riding today, unlocking extremely short chainstays and low standover height. The geometry and sizing has evolved to provide a quick and responsive feel, to help pump through corners and pull back off the steepest of lips. For riders seeking to find their flow riding dirt jumps, skate park, and pump track, look no further, the PBJ is here to pump, bump and jump everything in sight. Now available in two sizes, short and standard, to best suit rider's needs.
2 Sizes Available
The "Short" size was designed not only for shorter humans, but also to complement riders looking for a precise feel that allows for ultimate creativity. This size may just help you land that next rotation, boost out of the quarter pipe, or nail the trickiest of manual lines with a 377-395mm chainstay length and 395mm reach.
The "Standard" size is best for riders looking to sharpen their skills at the pumptrack, or prefer a more stable geo for bigger jumps and higher speeds without sacrificing the playfulness of the short rear end. This size has the same 377-395mm chainstay length as the short, and is paired with a 420mm reach.
Hydro-Formed 6061 Aluminum
The all-new new frame is made of hydro-formed 6061 aluminum, known for its high strength to weight ratio, and smooth look. It's both simple and refined, all while keeping it light. The design keeps things compact with a low standover height, giving you a feeling of effortless control with room to move. The clean lines create a modern vibe with a laid-back, minimalist style that fits in at the dirt jumps, skate park or pumptrack.
Chain Tensioners
Integrated chain tensioners make it easy to fine tune your chain tension and keep the rear wheel aligned in your frame. These work with all 10x135 hubs and are easy to adjust with the tool-less design.
Cable Routing
Internal or external cable routing allows you to have it your way. Run your brake cable internal for a clean and tidy look, or external to make brake swaps simple as well as give gyro capability.
Geometry
| Youth | ||
|---|---|---|
| A | Reach | 360 mm |
| B | Stack | 538 mm |
| C | Effective Toptube Length | 556 mm |
| D | Seattube Length | 280 mm |
| E | Effective Seattube Angle | 71 mm |
| Saddle Height For Effective Seattube Angle | 380 mm | |
| Actual Seattube Angle | 68 mm | |
| Seattube Offset At Bottom Bracket | 22 mm | |
| F | Headtube Length | 115 mm |
| G | Headtube Angle | 69 mm |
| H | Chainstay Length | 357 - 375 mm |
| I | Wheelbase | 958 - 976 mm |
| J | Bottom Bracket Drop (Front) | 15 mm |
| J | Bottom Bracket Drop (Rear) | 15 mm |
| K | Estimated Bottom Bracket Height | 291 mm |
Frame Specifications
General Specs
| Frame Material | Alloy |
| Wheel Size | 26" or 24" |
| Sizes | Youth, Short, Standard |
Component Compatibility
| Water-Bottle Fitment | None |
| Fork Offset | 37 mm 26" or 41mm 24" |
| Fork Axle-to-Crown | 483 mm 26" or 458 mm 24" (Including Headset) |
| Headset (Top) | 44 mm Zero Stack (ZS44) |
| Headset (Bottom) | 56 mm Zero Stack (ZS56) |
| BB | 73 mm BSA Threaded |
| ISCG Tabs | None |
| Chainguide | None |
| Chainring Maximum | 30T |
| Chainline | 49.5 mm |
| Rear Brake Mount | IS 160 mm |
| Derailleur Hanger | None |
| Rear Axle | 10 √ó 135 mm with Integrated Chain Tensioners |
| Seat Clamp | 34.9 mm |
| Seatpost Diameter | 31.6 mm |
| Notes | Internal Cable Routing, Optional External Routing |
Suspension Specs
| Front Travel | 100 mm |
