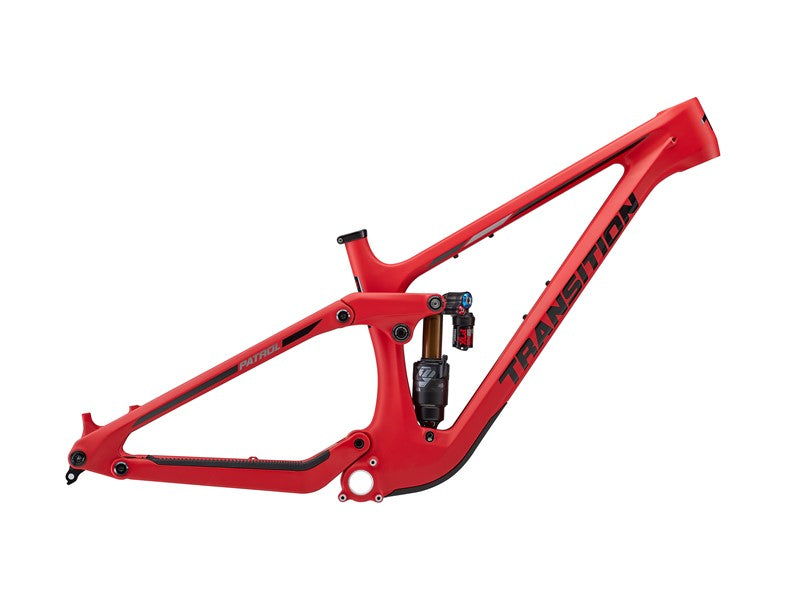

Transition Patrol Carbon Frameset

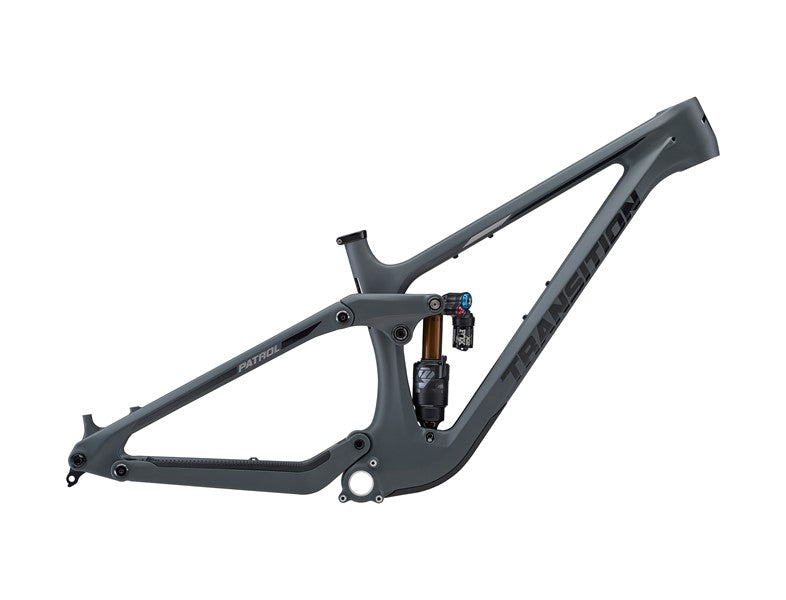

Moonshadow / L
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Pure Bred Party Animal.

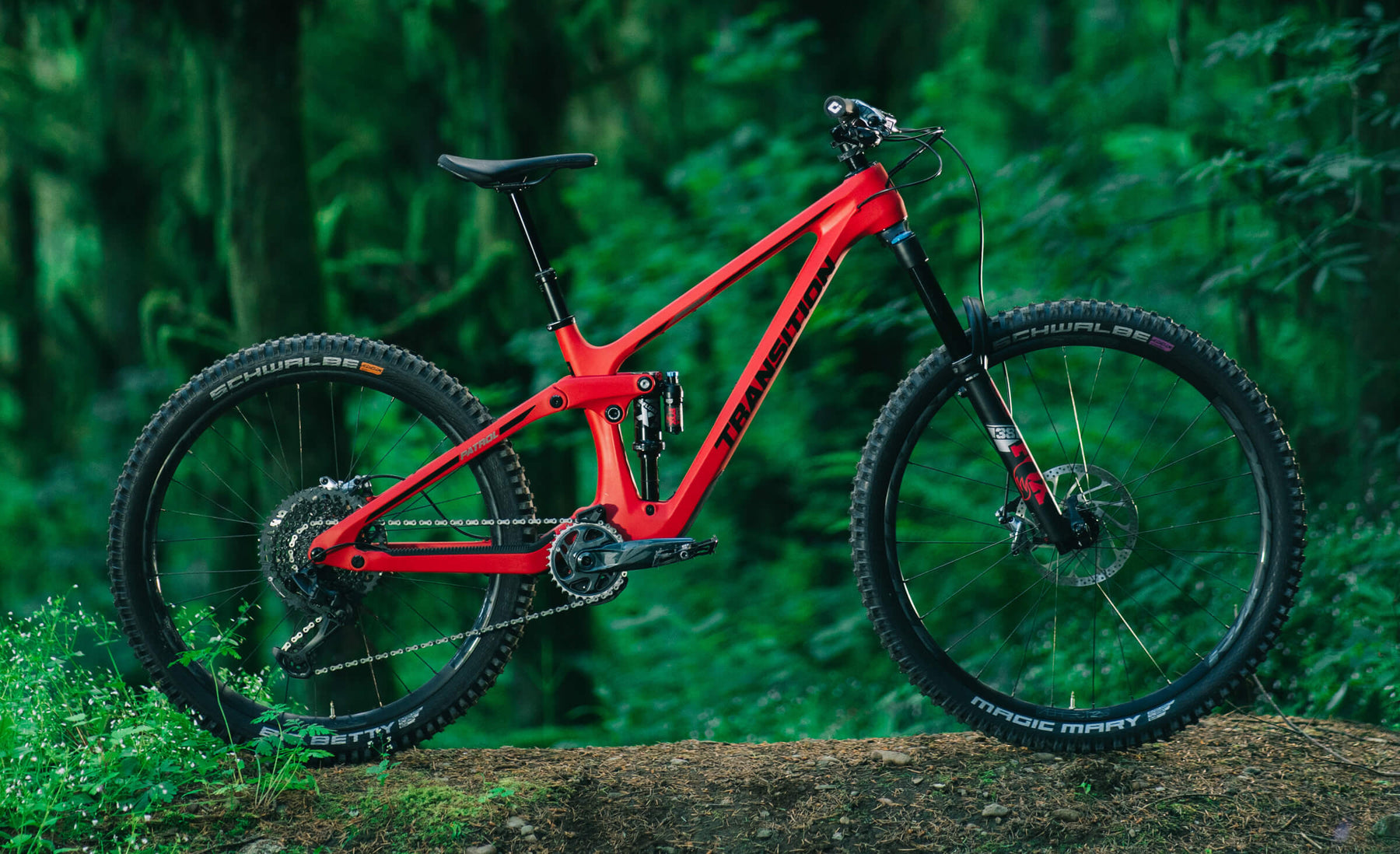

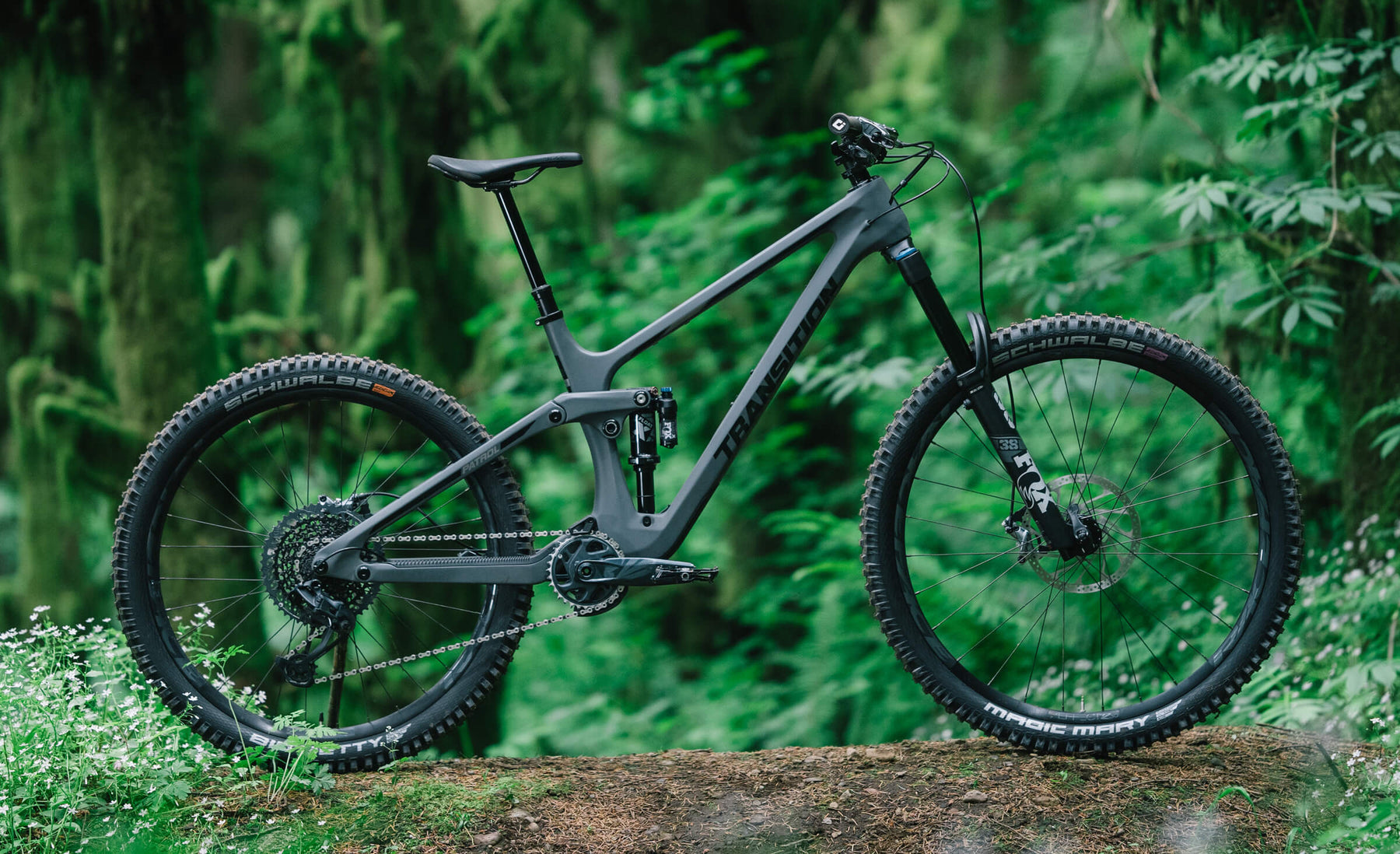

The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Specifications
| Alloy NX | Alloy GX | Carbon GX | Carbon X0 AXS | Carbon Frameset | Alloy Frameset | |
|---|---|---|---|---|---|---|
| Frame | Patrol Alloy 160mm | Patrol Alloy 160mm | Patrol Carbon 160mm | Patrol Carbon 160mm | Patrol Carbon 160mm | Patrol Alloy 160mm |
| Fork |
Marzocchi Bomber Z1 Air (160mm) |
Fox Float 38 Performance Elite (160mm) |
Fox Float 38 Performance Elite (160mm) |
Fox Float 38 Grip 2 Factory (160mm) |
||
| Rear Shock |
Fox Float X Performance (205x60) |
Fox Float X Performance Elite (205x60) |
Fox Float X Performance Elite (205x60) |
Fox Float X2 Factory (205x60) |
Fox Float X2 Factory (205x60) |
Fox Float X2 Factory (205x60) |
| Headset | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 |
| Stem | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ||
| Handlebars |
RaceFace Chester 35 SM(780x20) MD/LG/XL(780x35) |
ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) |
ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) |
OneUp Carbon SM(800x20) MD/LG/XL(800x35) |
||
| Grips | ODI Elite Flow | ODI Elite Flow | ODI Elite Flow | ODI Elite Flow | ||
| Rims | WTB ST i30 | RaceFace Aeffect R | RaceFace Aeffect R | RaceFace Aeffect R | ||
| Spokes | Pillar Double Butted | RaceFace 2.0/1.7/2.0 | RaceFace 2.0/1.7/2.0 | RaceFace 2.0/1.7/2.0 | ||
| Hubs | Novatec D791SB-B15/D902SB-B12 | RaceFace Trace 28H | RaceFace Trace 28H | RaceFace Trace 28H | ||
| Front Tyre | Schwalbe Magic Mary, Super Trail, Soft (2.4) | chwalbe Magic Mary, Super Trail, Soft (2.4) | Schwalbe Magic Mary, Super Trail, Soft (2.4) | Schwalbe Magic Mary, Super Trail, Soft (2.4) | ||
| Rear Tyre | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | ||
| Shifter | SRAM NX Eagle MMX | SRAM GX Eagle | SRAM GX Eagle | SRAM POD Ultimate Bridge MMX | ||
| Rear Derailleur | SRAM NX Eagle | SRAM GX Eagle | SRAM GX Eagle | SRAM XO AXS Eagle Transmission | ||
| Crankset |
SRAM Descendent 6K DUB (32t/165mm) |
SRAM GX Alloy DUB (32t/165mm) |
SRAM GX Eagle DUB (32t/165mm) |
SRAM XO Eagle DUB T-Type (32t/165mm) |
||
| Cassette | SRAM PG 1230 (11-50t) | SRAM XG 1275 (10-52t) | SRAM XG 1275 (10-52t) | SRAM XS 1295 T-Type (10-52t) | ||
| Chain | SRAM NX Eagle | SRAM GX Eagle | SRAM GX Eagle | SRAM XO Eagle Transmission | ||
| chainguide | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | ||
| Brakes | SRAM Code R | TRP DH-R Evo | TRP DH-R Evo | SRAM Code Ultimate Stealth | ||
| Rotors | SRAM Centerline (200mm) | TRP R1 2.3 (203mm) | TRP R1 2.3 (203mm) | SRAM HS2 (200mm) | ||
| Seatpost | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | ||
| Saddle | SDG Bel Air 3 | SDG Bel Air 3 | SDG Bel Air 3 | SDG Bel Air 3 | ||
| Extras | Tubeless Valves & Sealant | Tubeless Valves & Sealant | Tubeless Valves & Sealant | SRAM AXS Battery Charger, Tubeless Valves & Sealant | ||
| weight | 16.42 kg (Size MD) | 14.97 kg (Size MD) | 3.36 kg (Size MD w/ Shock) | 4.63 kg (Size MD w/ Shock) |
Frame Specifications
| REAR TRAVEL: | 160mm (Compatible with 170mm) |
| FRONT TRAVEL: | 160mm (Compatible with 170mm single crown fork or dual crown forks) |
| WHEEL SIZE: | 29" Front / 27.5" Rear |
| SIZES: | SM, MD, LG, XL |
| COLORS: | Carbon: Moonshadow, Bonfire Red Alloy: Blueberry, Raw, Moonshadow, Bonfire Red |
| FRAME BEARINGS: | 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 |
| FORK AXLE TO CROWN: | 574mm at 160mm |
| FORK OFFSET: | 44mm |
| REAR SHOCK SIZE: | 205mm x 60mm (Compatible with 205mm x 65mm) |
| SHOCK HARDWARE: | Trunnion Mount Top / 30mm x 8mm Bottom |
| HEADSET (TOP): | 56mm Zero Stack |
| HEADSET (BOTTOM): | 56mm Zero Stack |
| BB SHELL: | 73mm BSA Threaded |
| CHAINLINE: | 52mm |
| REAR BRAKE MOUNT: | 180mm Post Mount, Max Rotor Size 223mm |
| DERAILLEUR HANGER: | SRAM UDH |
| REAR AXLE: | Transition Axle For UDH, 12mm x 148mm Spacing |
| ISCG TABS: | ISCG05 |
| SEATPOST DIAMETER: | 31.6mm |
| SEAT CLAMP: | Carbon: 37.0mm Alloy: 34.9mm |
| MAX SEATPOST | Carbon: Small 220mm | Medium 250mm | Large 290mm | XL 320mm Alloy: Small 200mm | Medium 230mm | Large 270mm | XL 300mm |
| MAX CHAINRING SIZE: | 34T Standard Single Ring (Based on 52mm Boost Chainline) |
| MAX TIRE SIZE: | 27.5 x 2.6 |
| REAR SHOCK SAG: | 160mm/60mm: 16-20mm (27-33%) 170mm/65mm: 18-22mm (28-34%) |
Geometry
|
SM High/Low |
MD High/Low |
LG High/Low |
XL High/Low |
|
|---|---|---|---|---|
| A. Reach | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 |
| B. Stack | 623 / 628 | 623 / 628 | 632 / 637 | 641 / 646 |
| C. Effective TT Length | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 |
| D. Seat Tube Length | 360 | 390 | 430 | 460 |
| E. Effective St Angle | 79.6 / 79.1 | 78.8 / 78.3 | 78.1 / 77.6 | 77.5 / 77 |
| F. Head Tube Length | 100 | 100 | 110 | 120 |
| G. Head Tube Angle | 63.5 / 63 | 63.5 / 63 | 63.5 / 63 | 63.5 / 63 |
| H. Chainstay Length | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 |
| I. Wheelbase | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 |
| J. BB Drop | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 |
| K. Estimated BB Height | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 |
| L. Stand Over Height | 675 / 685 | 675 / 685 | 675 / 685 | 675 / 685 |
| M. Fork Offset | 44 | 44 | 44 | 44 |
