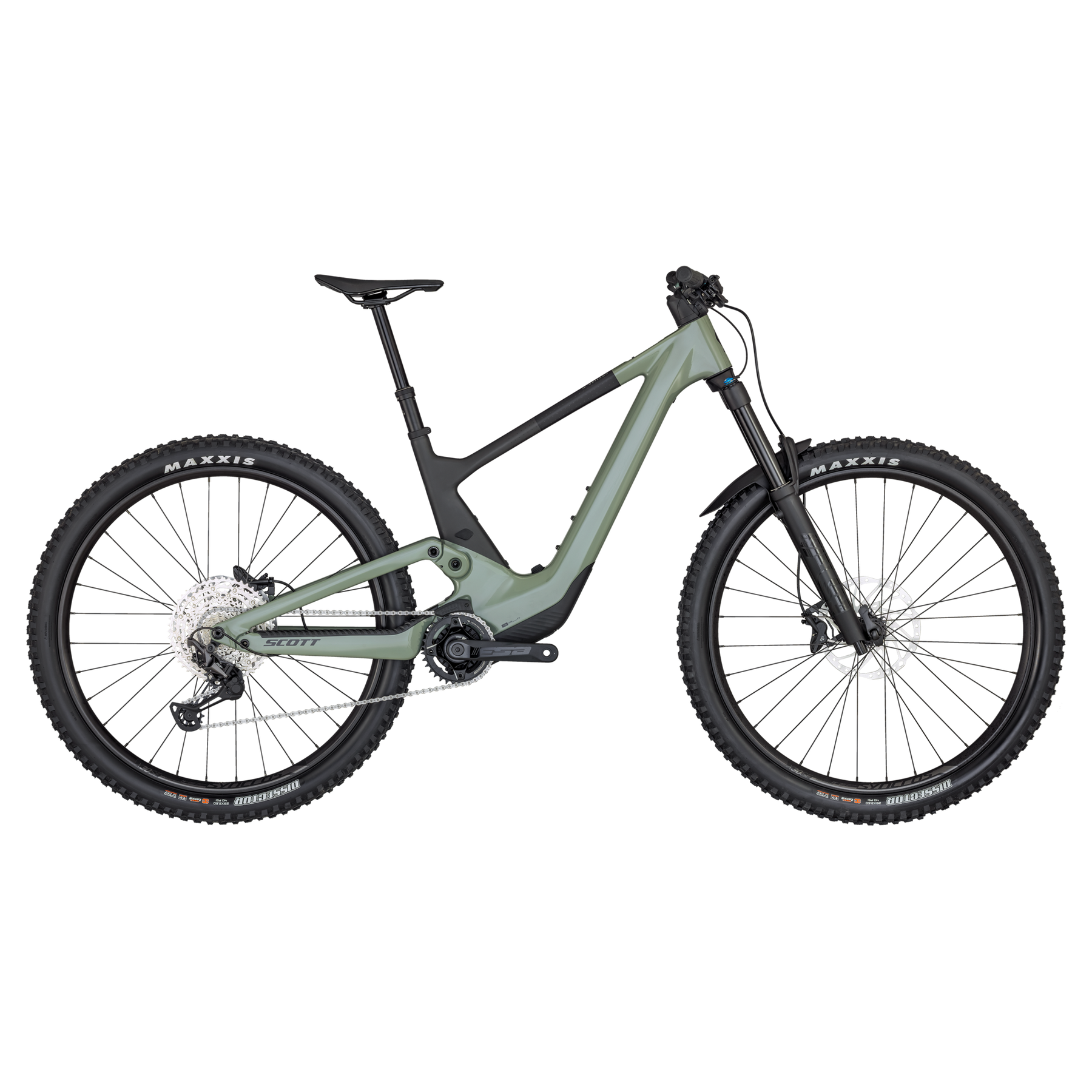

Scott Voltage eRIDE 910 Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline, Range Extender Ready |
|---|---|
| fork | FOX 36 Float Rhythm Air Grip, 3 modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 160mm travel |
| rear-shock | FOX NUDE 6T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Low Speed Adj. / Custom large Air volume / Reb. Adj., Travel 155-100-Lockout / T185X55mm |
| derailleur | Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed |
| shift-levers | Shimano Deore SL-M6100-IR / Rapidfire Plus, I-spec EV clamp |
| front-derailleur | |
| brake-front | Shimano Deore M6120 4-Piston Disc |
| brake-rear | Shimano Deore M6120 4-Piston Disc |
| brake-disc-front | Shimano SM-RT64 CL / 203mm |
| brake-disc-rear | Shimano SM-RT64 CL / 203mm |
| wheelset | |
| rims | Syncros X-30S / 32H / 30mm / Sleeve Joint, Tubeless ready |
| tire-front | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
| tire-rear | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
| hub-front | Formula CL-811 / 15x110mm |
| hub-rear | Formula CL-148M / 12x148mm |
| spokes | Stainless Black 15G / 1.8mm |
| handlebar | Syncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm |
| stem | Syncros AM 1.5, Syncros Cable Integration System, 4° rise / 7050 Alloy / 31.8mm / 1 1/8" |
| headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 1.5 Regular, Titanium rails |
| seat-post | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm, S size 140mm / M size 180mm / L & XL size 210mm |
| crankset | FSA Alloy crankset / 175mm / 34T |
| bottom-bracket | |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano CS-M6100 / 10-51 T |
| Pedals | |
| motor | TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph |
| battery | TQ Internal 360Wh |
| display | TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app |
| charger | TQ 100-240V-4A |
Specifications
| stack | 622 |
|---|---|
| reach | 437 |
| seat-tube-length | 405 |
| seat-tube-angle | 77,1 |
| top-tube-length | 580 |
| head-tube-length | 110 |
| head-tube-angle | 63,9 |
| stem-length | 40 |
| handlebar-width | 780 |
| wheelbase | 1233 |
| standover | 765 |
| chainstay-length | 455 |
| fork-rake | 44 |
| bottom-bracket-height | 350 |
| bottom-bracket-drop | 27 |
