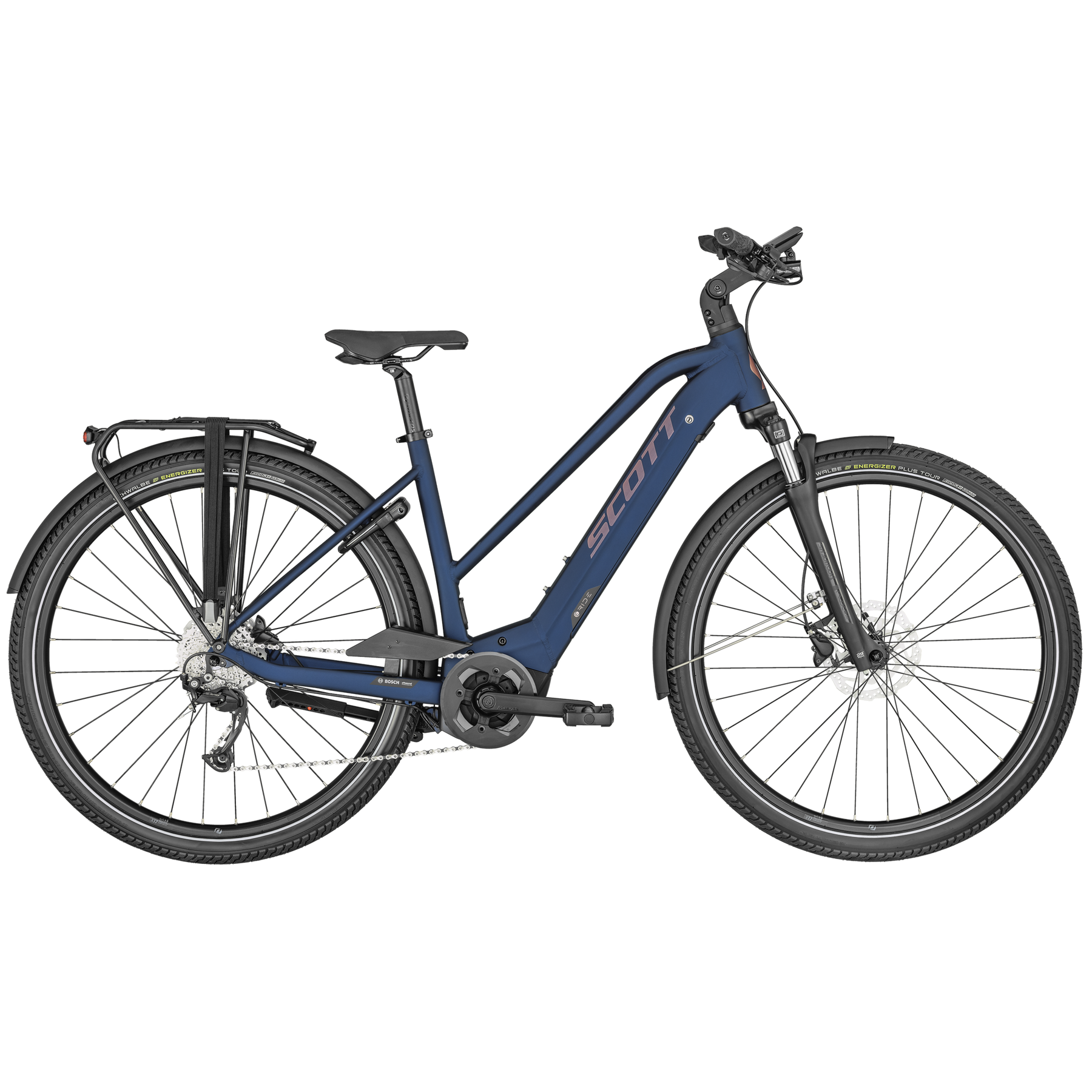

Scott Sub Tour eRIDE 20 Lady Electric Hybrid Bike
Color
Size
Model
Click & Collect
Scott Sub Tour eRIDE 20 Lady Electric Hybrid Bike
Rift Blue / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin
Warehouse
Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin
The SCOTT SUB Tour eRIDE 20 makes getting around town easier. ePowered by the Bosch Smart System with a battery beautifully integrated in the frame, the SUB Tour eRide is the ideal commuter bike. Equipped with high-end lights and a rack, it's ready to provide many kilometers of worry-free reliability.
Please note that bike specifications are subject to change without prior notice.
Specifications
"frame | Sub eRIDE 6061 Alloy |
---|---|
fork | SUNTOUR NVX 30 DS QR 700C TAPERED / 63mm Travel |
rear-shock | |
derailleur | Shimano Alivio RD M3100SGS 9 Speed |
shift-levers | Shimano Alivio SL-M3100 9 Speed |
front-derailleur | |
brake-front | Shimano BR-M200 Disc |
brake-rear | Shimano BR-M200 Disc |
brake-disc-front | SM-RT10 rotor 180mm |
brake-disc-rear | SM-RT10 rotor 160mm |
wheelset | |
rims | Cross X17 Disc 32h |
tire-front | Schwalbe Energizer Plus Tour 700x55c |
tire-rear | Schwalbe Energizer Plus Tour 700x55c |
hub-front | Shimano HBMT200B 32H QR CL |
hub-rear | Shimano FHMT200B 32H QR CL |
spokes | BLACK spokes * F: 14G / R: 13G |
handlebar | Syncros UC3.0 680mm / Rise 12mm / backsweep 15° |
stem | Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount |
headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
grips | |
saddle | Syncros Capilano |
seat-post | Syncros 3.0 / 31.6mm / 350mm |
crankset | Miranda 172,5mm |
bottom-bracket | |
Chain | KMC E9s NPBK |
Cassette | Shimano CS HG400 11-36 |
Pedals | Syncros SP-828 |
motor | Bosch Perfomance BES3 |
battery | PowerTube 500Wh |
display | Intuvia 100 Display |
charger | 4A Charger |
Specifications
stack | 630 |
---|---|
reach | 405 |
seat-tube-length | 440 |
seat-tube-angle | 74,5 |
top-tube-length | 580 |
head-tube-length | 130 |
head-tube-angle | 69,5 |
stem-length | 110 |
handlebar-width | 680 |
wheelbase | 1142 |
standover | 682 |
chainstay-length | 480 |
fork-rake | 44 |
bottom-bracket-height | 441 |
bottom-bracket-drop | 75 |
