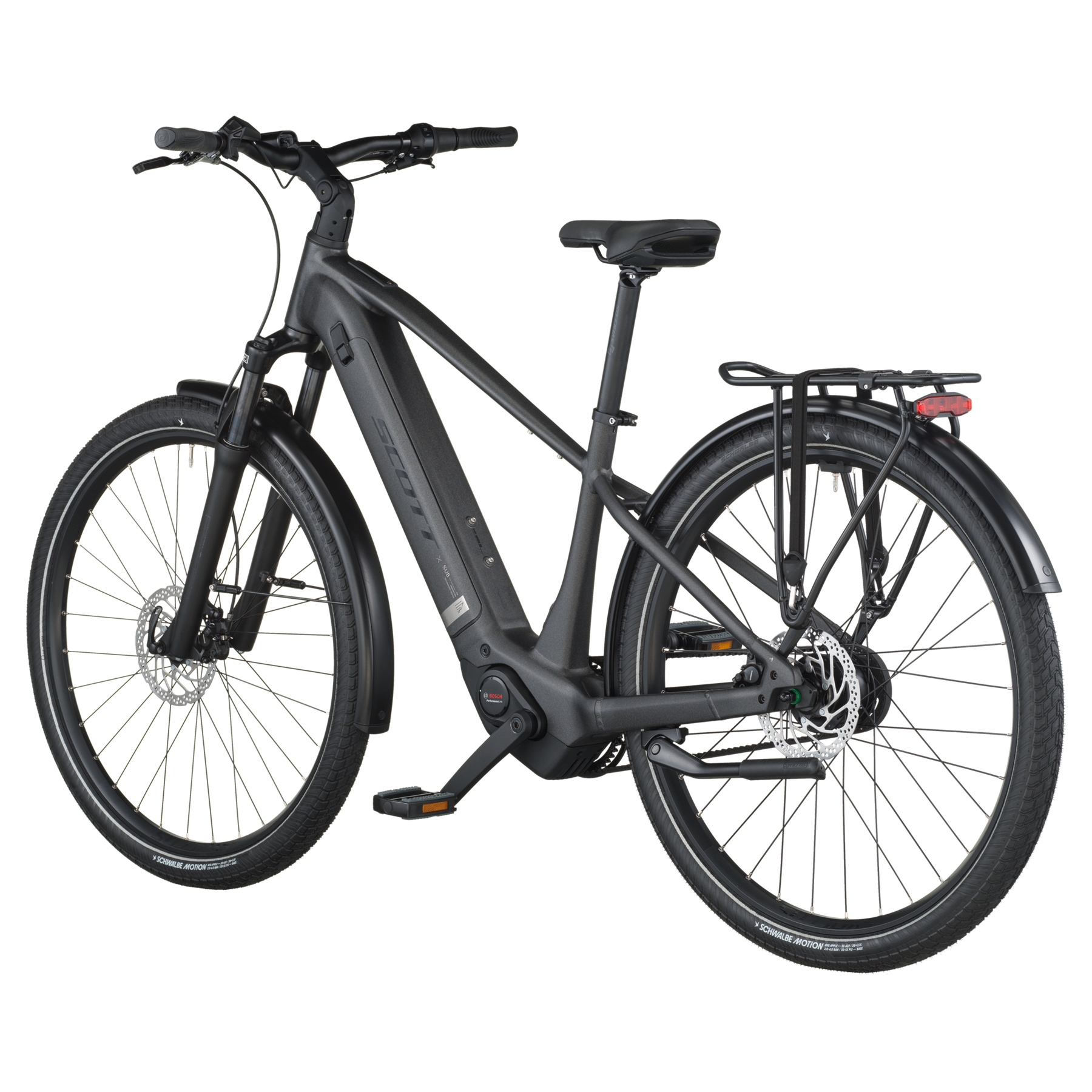

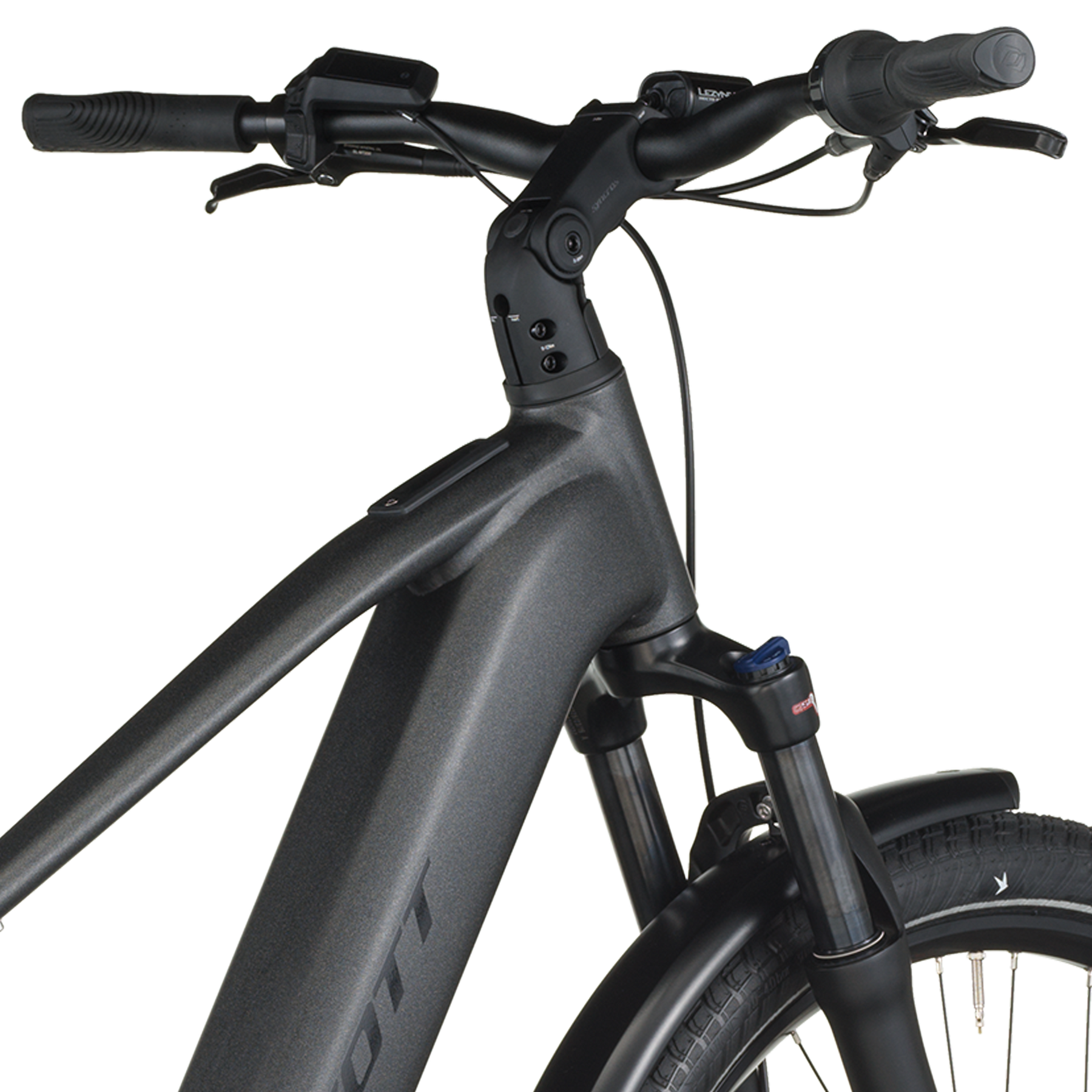

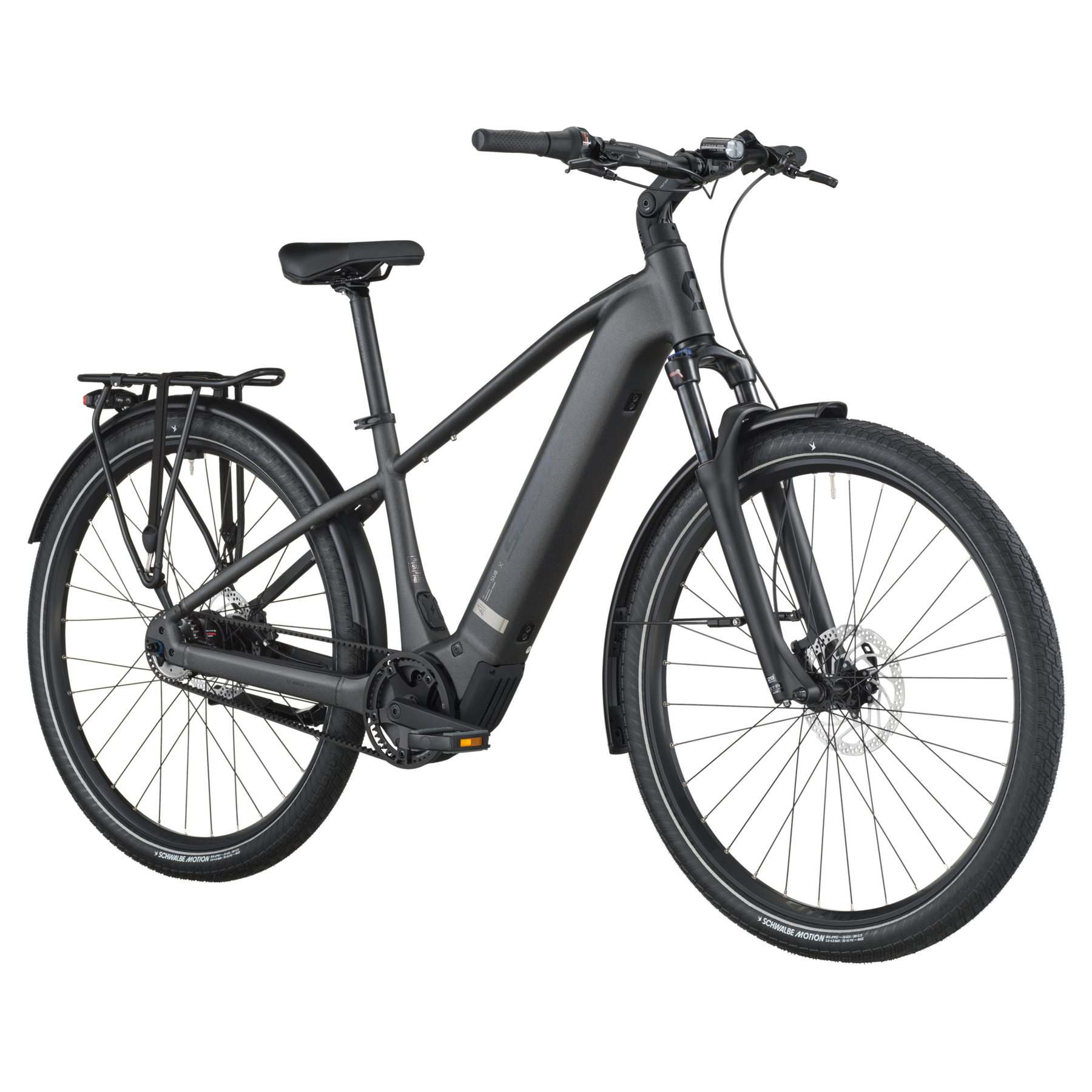

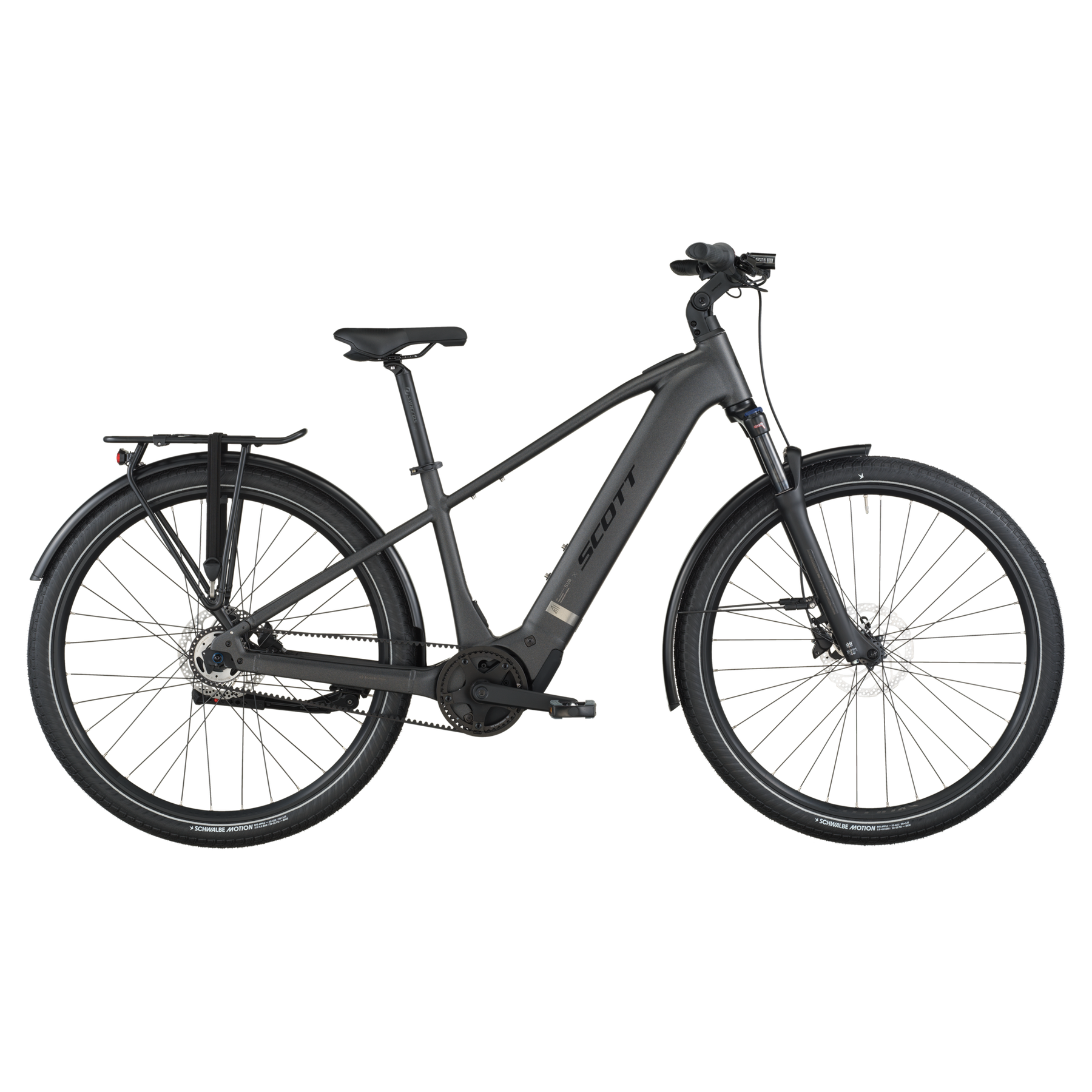

Scott Sub Tour 30 Electric Hybrid Bike 2026
Color
Size
Click & Collect
Scott Sub Tour 30 Electric Hybrid Bike 2026
Midnight Grey / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Sub Tour 30 E-Bike is the ultimate choice when it comes to the economical and effortless rides around town. With its powerful and quiet Bosch Performance motor and a 540Wh battery, it delivers confident, natural-feeling, and smooth power delivery supported by ample modes to suit any task, big or small.
Whether you’re commuting to work, running to the store, or riding further on a sunny day out, take advantage of effortless pedaling and confident handling as you navigate your urban jungle. When you begin to pedal, the power comes on smoothly. If you’re coming up on a hill, Sub Tour 30 makes easy work of it. And when you need to weave your way through some congestion, it’s confident and responsive to your steering. Sub Tour can also carry loads up to 25kg on its rear rack, and fits an optional kids’ seat if you want to make the ride a family outing.
One of the Sub Tour’s most impressive hidden features is the internal gear cluster in the rear hub. This clever design extends the lifespan of the drivetrain and reduces maintenance costs for you. Additionally, a suspension fork in the front fork makes rough roads a breeze, ensuring a comfortable ride even on uneven terrain.
Please note that bike specifications are subject to change without prior notice.
Specifications
| Frame | Alloy S-XL=29", 6061 Alloy custom butted tubingSide extraction batteryUDH Interface, 135mm with 46mm Beltline |
|---|---|
| Fork | SR Suntour NVX 32 5TA NLO Coil, Tapered, 5x100 TA, Lock Out, 100mm Travel |
| Headset | Acros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm |
| Stem | Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount |
| Handlebars | Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° |
| Rims | Syncros X18 Disc |
| Spokes | Black Spokes |
| Front Hub | Shimano HBQC400B58LL, 5x100mm |
| Rear Hub | Shimano Nexus Inter 5e |
| Front Tyre | Schwalbe Big Apple Performance, 55-622 |
| Rear Tyre | Schwalbe Big Apple Performance, 55-622 |
| Shifter | Shimano Nexus Inter 5e |
| Crankset | Miranda Virage 170mm |
| Chainring | Gates CDC 46T w/Guard |
| Cassette | Gates CDX 32T |
| Chain | Gates CDC 130T |
| Brakes | Shimano BR-MT200 Disc |
| Rotors | Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm |
| Seatpost | Syncros 3.0, 31.6mm, 350mm |
| Saddle | Syncros Capilano |
| Pedals | Marwi SP-828 |
| Mudguards | Curana alloy profile Fender |
| Rear Rack | Racktime carrier SnapIt 2.0 25KG |
| Lights | Front Lezyne Hecto E65Rear Lezyne Light |
| Kickstand | Ursus Kickstand |
| Weight | 28.4kg |
| Motor | Bosch Performance Line (BDU346Y)EU: 25kmh |
| Battery | PowerTube 540Wh |
| Display | Bosch Purion 200 |
| Charger | 2A Charger |
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 636 | 636 | 641 | 651 | 660 |
| Reach | 425.4 | 425.4 | 444.2 | 461.8 | 479.4 |
| Headtube Angle | 67.2 | 67.2 | 68.2 | 68.2 | 68.2 |
| Headtube Length | 130 | 130 | 130 | 140 | 150 |
| Seattube Angle | 77 | 77 | 77 | 77 | 77 |
| Seattube Length | 370 | 400 | 440 | 490 | 540 |
| Toptube (Effective) | 577 | 577 | 597 | 617 | 637 |
| Chainstay Length | 482 | 482 | 482 | 482 | 482 |
| Wheelbase | 1205.7 | 1197.1 | 1205.7 | 1227.2 | 1248.8 |
| BB Height | 302.4 | 302.4 | 302.4 | 302.4 | 302.4 |
| BB Drop | 72.6 | 72.6 | 72.6 | 72.6 | 72.6 |
| Standover | 752.2 | 767.2 | 768 | 805.4 | 840.1 |
| Trail | 115.6 | 115.6 | 108.3 | 108.3 | 108.3 |
| Stem Length | 90 | 90 | 90 | 90 | 90 |
