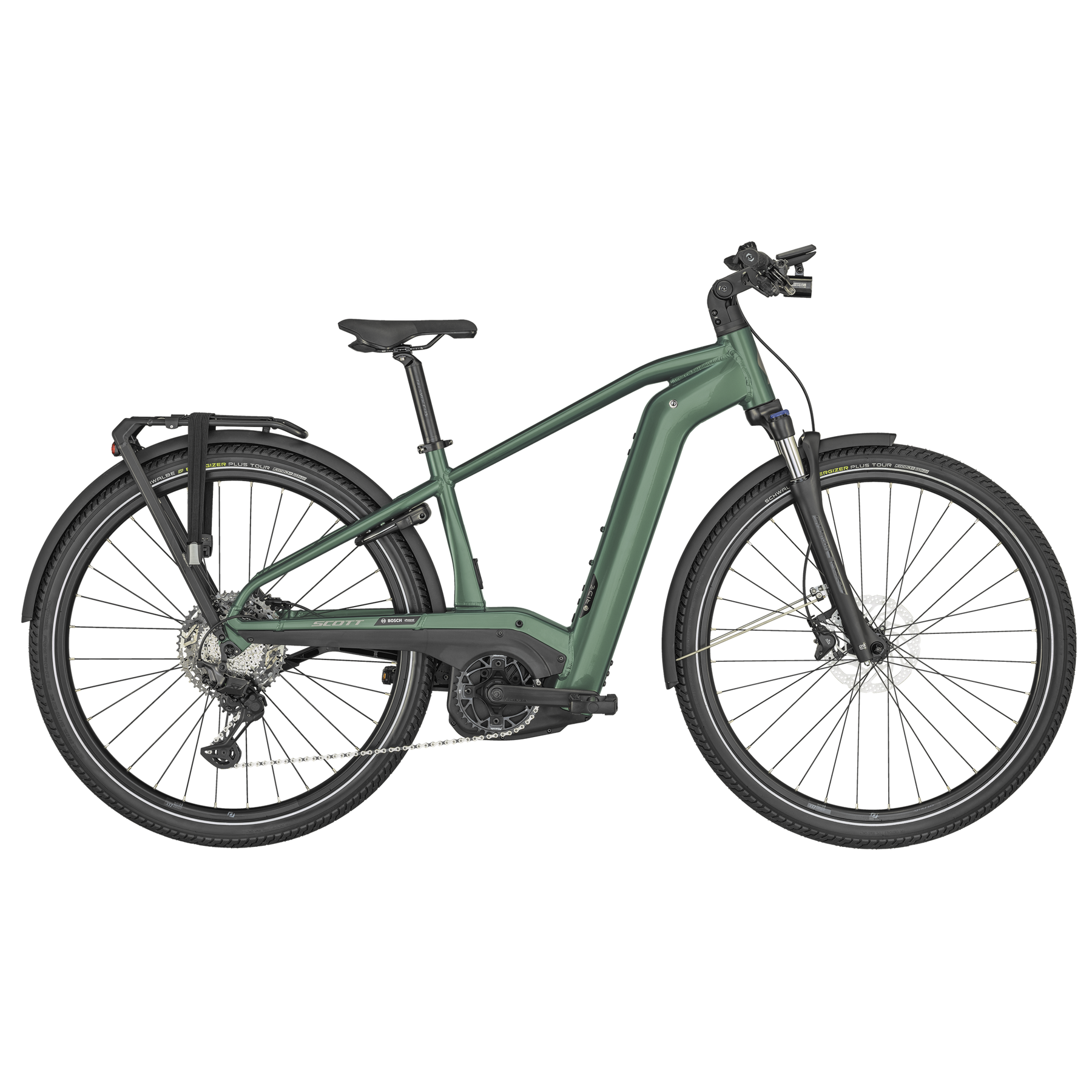

Scott Sub Sport eRIDE 10 Men Electric Hybrid Bike
Color
Size
Model
Click & Collect
Scott Sub Sport eRIDE 10 Men Electric Hybrid Bike
Malachite Green / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The SCOTT Sub Sport eRIDE 10 makes commuting by electric bike an obvious choice. ePowered by the newest generation of Bosch drive units with a 750Wh battery and all the connectivity features you need, the Sub Sport eRIDE 10 is the ideal urban commuter. Top notch integration combined with high-end lights and a rack make this bicycle ready to help you cover great distances with worry-free reliability.
Please note that bike specifications are subject to change without prior notice.
Specifications
| frame | 6061 Alloy custom butted tubing, Bosch 750Wh integrated Battery / Internal cable routing / Elevated chainstays |
|---|---|
| fork | SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel |
| rear-shock | |
| derailleur | Shimano XT RD M8130SGS Linkgilde / 11 Speed |
| shift-levers | Shimano XT Trigger SL-M8130 R |
| front-derailleur | |
| brake-front | Shimano BR-MT410 Disc |
| brake-rear | Shimano BR-MT410 Disc |
| brake-disc-front | SM-RT30 CL rotor 180mm |
| brake-disc-rear | RT-EM300M CL rotor 180mm |
| wheelset | |
| rims | Cross X17 Disc 32h |
| tire-front | Schwalbe Energizer Plus Tour 700x55c |
| tire-rear | Schwalbe Energizer Plus Tour 700x55c |
| hub-front | Shimano HBMT200B 32H QR CL |
| hub-rear | Shimano FHMT200BB41B 32H QR CL |
| spokes | BLACK spokes * F: 14 F / R: 13G |
| handlebar | Syncros UC3.0 680mm / 10° bend |
| stem | Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount |
| headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| grips | |
| saddle | Syncros Capilano |
| seat-post | Syncros 3.0 / 31.6mm / 350mm |
| crankset | Miranda 172, 5mm |
| bottom-bracket | |
| Chain | KMC E11S |
| Cassette | Shimano CS-LG600-11 11-50T 11S |
| Pedals | Syncros SP-828 |
| motor | Bosch Performance CX, EU: 25kmh |
| battery | PowerTube 750Wh |
| display | Bosch LED Remote & Intuvia 100 |
| charger | 4A Charger |
Specifications
| stack | 646 |
|---|---|
| reach | 405 |
| seat-tube-length | 440 |
| seat-tube-angle | 74,5 |
| top-tube-length | 584 |
| head-tube-length | 130 |
| head-tube-angle | 69,5 |
| stem-length | 90 |
| handlebar-width | 680 |
| wheelbase | 1146 |
| standover | 804 |
| chainstay-length | 486 |
| fork-rake | 44 |
| bottom-bracket-height | 300 |
| bottom-bracket-drop | 75 |
