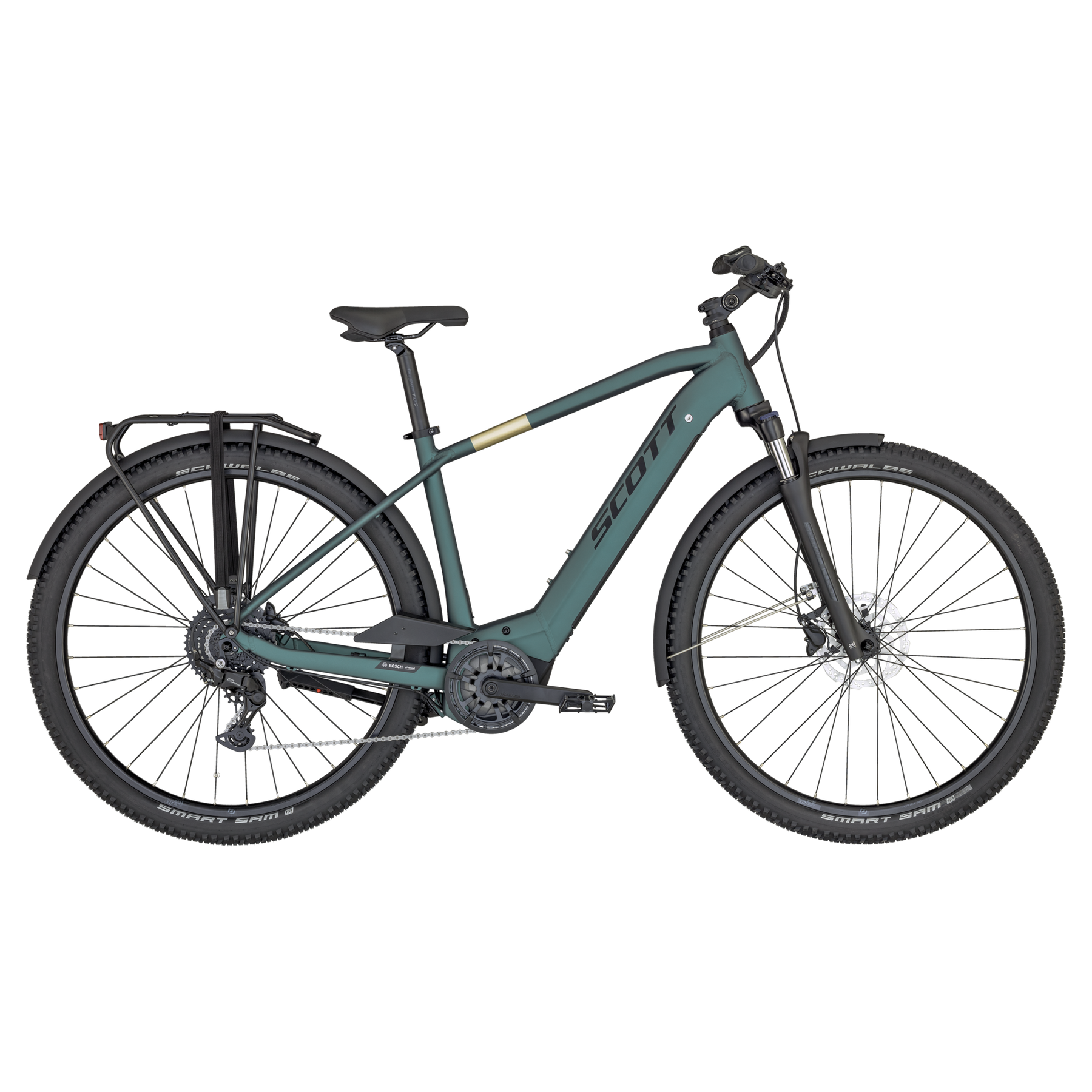

Scott Sub Cross eRIDE 30 Men EQ Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Meet the Sub Cross eRIDE 30, the easy way to explore gravel roads or smooth trails. The bike is equipped with the powerful Bosch Active drive unit, intelligently integrated into the frame for a slick and smooth design. An adjustable stem and ergonomic saddle result in optimal comfort.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Sub eRIDE 6061 Alloy S-XL |
|---|---|
| fork | SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel |
| rear-shock | |
| derailleur | Shimano CUES ARDU4000GS 9 Speed |
| shift-levers | Shimano CUES ASLU40009RC 9 Speed |
| front-derailleur | |
| brake-front | Shimano BR-M200 Disc |
| brake-rear | Shimano BR-M200 Disc |
| brake-disc-front | SM-RT10 rotor 180mm |
| brake-disc-rear | SM-RT10 rotor 160mm |
| wheelset | |
| rims | Cross X17 Disc 32h |
| tire-front | |
| tire-rear | Schwalbe Smart Sam 29x2.25 |
| hub-front | Shimano HBMT200B 32H QR CL |
| hub-rear | Shimano FHMT200B 32H QR CL |
| spokes | BLACK spokes * F: 14G / R: 13G |
| handlebar | Syncros UC3.0 680mm / 10° bend |
| stem | Syncros UC 3.0 adjustable |
| headset | GW semi integrated |
| grips | |
| saddle | Syncros Capilano |
| seat-post | Syncros 3.0 / 31.6mm / 350mm |
| crankset | Miranda 172, 5mm |
| bottom-bracket | |
| Chain | KMC eGLIDE |
| Cassette | Shimano CS-LG3009 11-41T |
| Pedals | VPE-506 |
| motor | Bosch Active, EU: 25kmh |
| battery | 400Wh PowerTube Battery |
| display | Purion Display |
| charger | 2A Charger |
Specifications
| stack | 630 |
|---|---|
| reach | 405 |
| seat-tube-length | 440 |
| seat-tube-angle | 74,5 |
| top-tube-length | 580 |
| head-tube-length | 130 |
| head-tube-angle | 69,5 |
| stem-length | 110 |
| handlebar-width | 680 |
| wheelbase | 1142 |
| standover | 775 |
| chainstay-length | 480 |
| fork-rake | 44 |
| bottom-bracket-height | 441 |
| bottom-bracket-drop | 75 |
