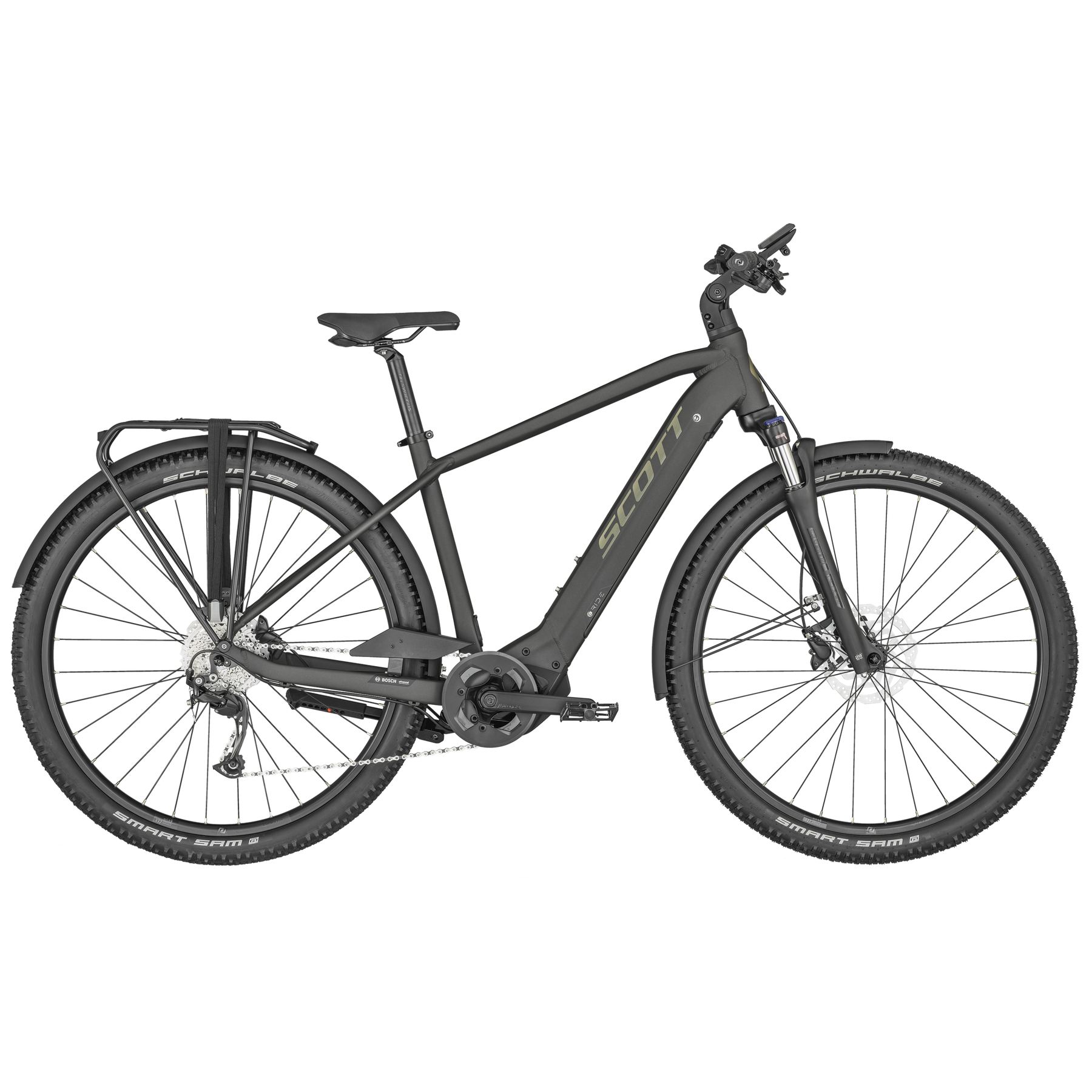

Scott Sub Cross eRIDE 20 Men EQ Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Meet the Sub Cross eRIDE 20, the easy way to explore gravel roads or smooth trails. The bike is equipped with the powerful Bosch Performance CX drive unit and a PowerTube battery intelligently integrated into the frame for a slick design. An adjustable stem and the ergonomic Syncros saddle result in optimal comfort.
Please note that bike specifications are subject to change without prior notice.
Specifications
| frame | Sub eRIDE 6061 Alloy |
|---|---|
| fork | SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel |
| rear-shock | |
| derailleur | Shimano Alivio RD M3100SGS 9 Speed |
| shift-levers | Shimano Alivio SL-M3100 9 Speed |
| front-derailleur | |
| brake-front | Shimano BR-M200 Disc |
| brake-rear | Shimano BR-M200 Disc |
| brake-disc-front | SM-RT10 rotor 180mm |
| brake-disc-rear | SM-RT10 rotor 160mm |
| wheelset | |
| rims | Cross X17 Disc 32h |
| tire-front | |
| tire-rear | Schwalbe Smart Sam 29x2.25 |
| hub-front | Shimano HBMT200B 32H QR CL |
| hub-rear | Shimano FHMT200B 32H QR CL |
| spokes | BLACK spokes * F: 14G / R: 13G |
| handlebar | Syncros UC3.0 680mm / 10° bend |
| stem | Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount |
| headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| grips | |
| saddle | Syncros Capilano |
| seat-post | Syncros 3.0 / 31.6mm / 350mm |
| crankset | Miranda 172,5mm |
| bottom-bracket | |
| Chain | KMC E9s NPBK |
| Cassette | Shimano CS HG400 11-36 |
| Pedals | VPE-506 |
| motor | Bosch Performance CX BES3s, EU: 25kmh / US: 20mph |
| battery | 500Wh PowerTube Battery |
| display | Intuvia 100 Display |
| charger | 4A Charger |
Specifications
| stack | 630 |
|---|---|
| reach | 405 |
| seat-tube-length | 440 |
| seat-tube-angle | 74,5 |
| top-tube-length | 580 |
| head-tube-length | 130 |
| head-tube-angle | 69,5 |
| stem-length | 110 |
| handlebar-width | 680 |
| wheelbase | 1142 |
| standover | 775 |
| chainstay-length | 480 |
| fork-rake | 44 |
| bottom-bracket-height | 441 |
| bottom-bracket-drop | 75 |
