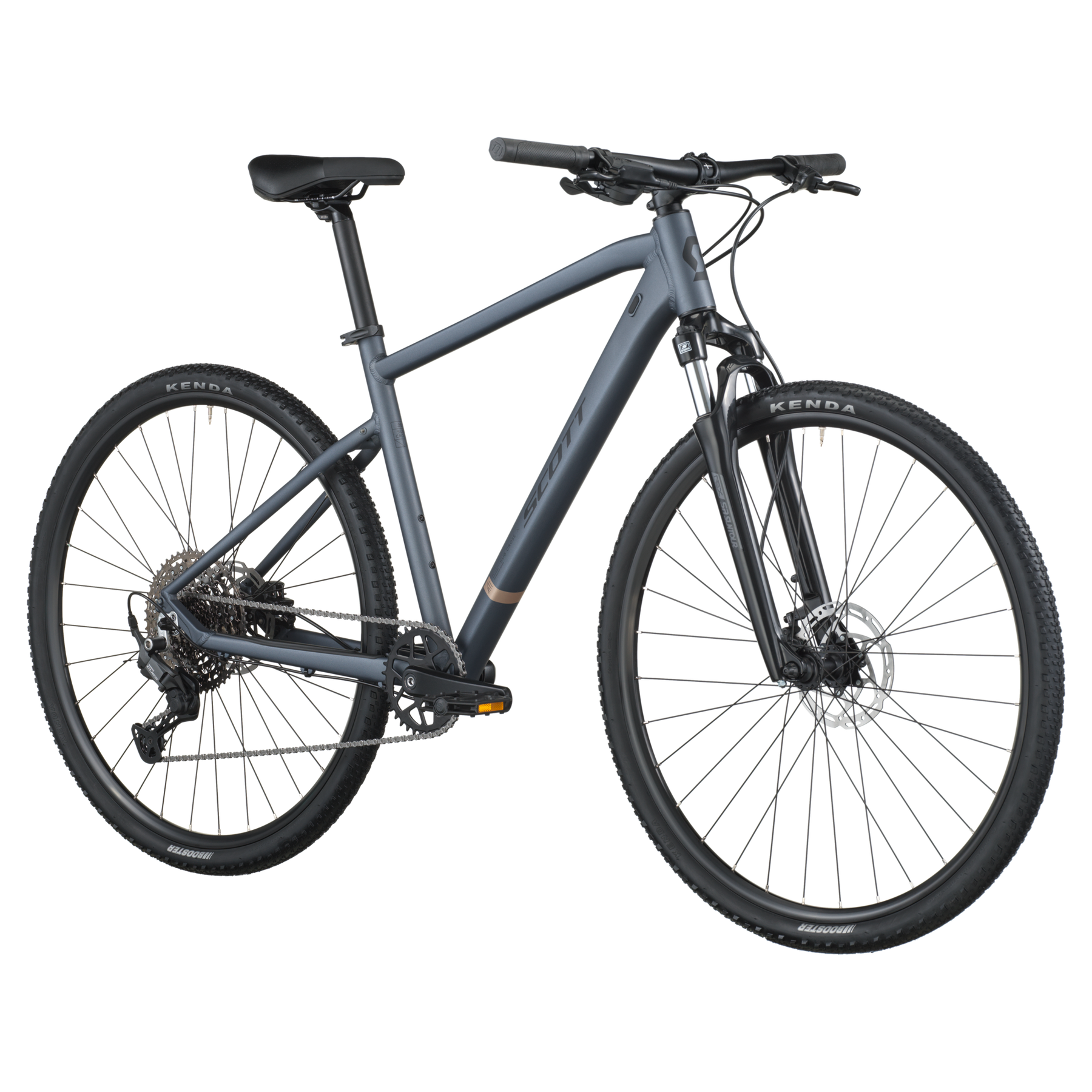

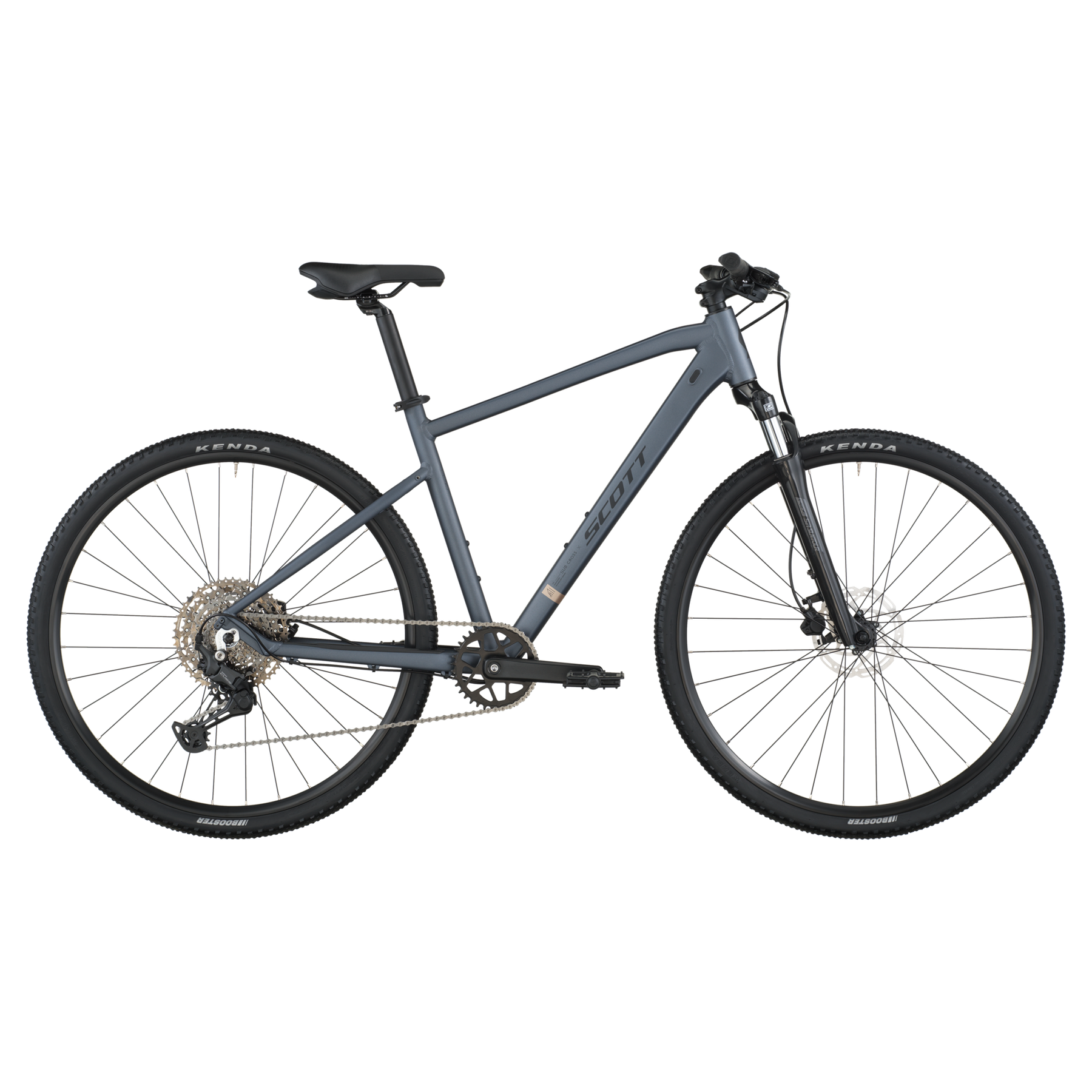

Scott Sub Cross 20 Hybrid Bike 2026
Color
Size
Availability
Click & Collect
Scott Sub Cross 20 Hybrid Bike 2026
Fjord Grey / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Need to get around town but aren’t looking to do it on a skinny race bike? The Sub Cross 20 is the fun-loving, easy-going, commuter-friendly companion you’ve been waiting for. Designed to maximize comfort, stability, and convenience during rides around the city, the Sub Cross 10 is the natural bike of choice to tour or commute whether you’re in vacation mode or a 9–5er turning pedals toward the weekend.
The strong alloy frame is lightweight and nimble, yet stable and planted as you navigate your route, and the 63mm suspension fork takes the bite out of chaos potholes and other rough sections of pavement you may have ridden over on the way. Sub Cross 20 fits two water bottles and is compatible with racks and fenders, making it a ride ready to handle conditions 365.
Shimano’s 11-speed drivetrain and strong hydraulic disc brakes give plenty of range and stopping power to navigate far and wide.
Please note that bike specifications are subject to change without prior notice.
Specifications
| Frame | Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry |
|---|---|
| Fork | SR Suntour NEX, 63mm travel |
| Headset | Syncros OE Press Fit, 1 1/8"OD 50mm, ID 44mm |
| Stem | HL TDS-C342-8FOV, 10°, 31.8, Black |
| Handlebars | HL MTB-AL-312BT, 720mm, black, 12mm riseSyncros Comfort lock on Grip |
| Rims | Alexrims X-20 Disc32H, black |
| Spokes | 14 G, stainless, black |
| Front Hub | Formula DC-19 FQR Disc |
| Rear Hub | Formula DC-25 8s RQR Disc |
| Front Tyre | Kenda Booster, 700x45C, 30 TPI |
| Rear Tyre | Kenda Booster, 700x45C, 30 TPI |
| Shifter | Shimano CUES SL-U6000-11, 2 way release |
| Rear Derailleur | Shimano CUES RD-U6000-SGSShadow Type, 11 Speed |
| Crankset | Prowheel C10Y-NW Steel36T |
| Cassette | Shimano CUES CS-LG400-11, 11-50T |
| Chain | Shimano CN-LG500 |
| Bottom Bracket | Feimin FP.B908NBB73, square taper |
| Brakes | Tektro HDM275 Hydr. Disc Brakes |
| Rotors | Tektro, 6 bolt, F&R 160mm |
| Seatpost | HL SP C21231.6mm, 350mm, Black |
| Saddle | Syncros Capilano Sport |
| Weight | 13.63kg |
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 388.3 | 386.8 | 393.5 | 399.8 | 405.6 |
| Headtube Angle | 70 | 70 | 70 | 70 | 70 |
| Headtube Length | 105 | 125 | 145 | 165 | 185 |
| Seattube Angle | 73 | 72.5 | 72.3 | 72 | 72 |
| Seattube Length | 450 | 480 | 510 | 550 | 590 |
| Toptube (Effective) | 567 | 577 | 592 | 608 | 620 |
| Chainstay Length | 456 | 456 | 456 | 456 | 456 |
| Wheelbase | 1078 | 1084 | 1097 | 1110 | 1123 |
| BB Drop | 56 | 56 | 56 | 56 | 56 |
| Standover | 767 | 793 | 817 | 847 | 876 |
| Stem Length | 80 | 90 | 90 | 100 | 100 |
