Scott
Scott Sub Cross 10 Hybrid Bike 2026
Color:
Color
Size:
Size
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

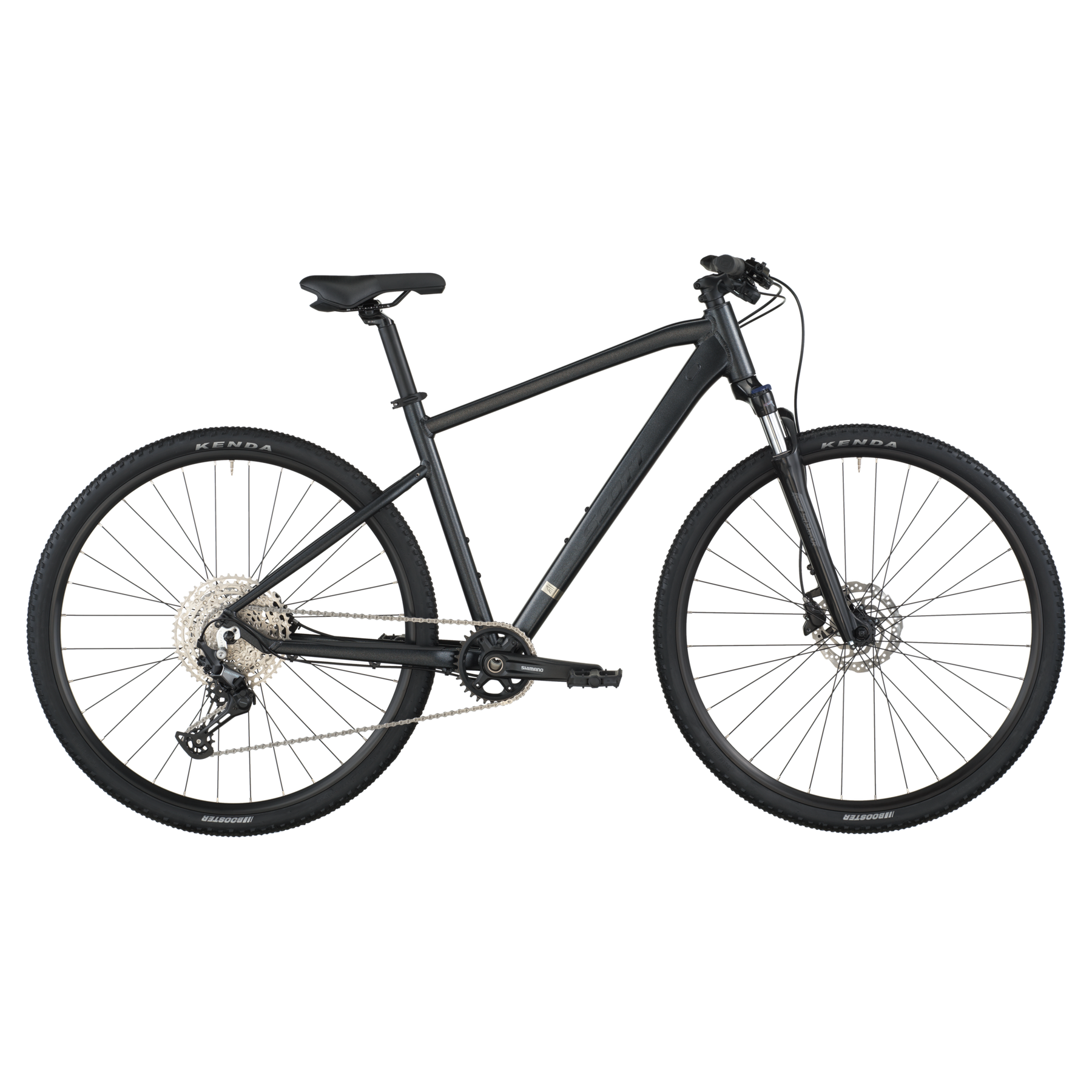

Scott Sub Cross 10 Hybrid Bike 2026
Granite Black / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Please note that bike specifications are subject to change without prior notice.
Specifications
| Frame |
Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry
|
|---|---|
| Fork | SR Suntour NEX, 63mm travel |
| Headset | Syncros OE Press Fit, 1 1/8"OD 50mm, ID 44mm |
| Stem | HL TDS-C342-8FOV, 10°, 31.8, Black |
| Handlebars | HL MTB-AL-312BT, 720mm, black, 12mm riseSyncros Comfort lock on Grip |
| Rims | Alexrims X-20 Disc32H, black |
| Spokes | 14 G, stainless, black |
| Front Hub | Formula DC-19 FQR Disc |
| Rear Hub | Formula DC-25 8s RQR Disc |
| Front Tyre | Kenda Booster, 700x45C, 30 TPI |
| Rear Tyre | Kenda Booster, 700x45C, 30 TPI |
| Shifter | Shimano CUES SL-U6000-11, 2 way release |
| Rear Derailleur | Shimano CUES RD-U6000-SGSShadow Type, 11 Speed |
| Crankset | Prowheel C10Y-NW Steel36T |
| Cassette | Shimano CUES CS-LG400-11, 11-50T |
| Chain | Shimano CN-LG500 |
| Bottom Bracket | Feimin FP.B908NBB73, square taper |
| Brakes | Tektro HDM275 Hydr. Disc Brakes |
| Rotors | Tektro, 6 bolt, F&R 160mm |
| Seatpost | HL SP C21231.6mm, 350mm, Black |
| Saddle | Syncros Capilano Sport |
| Weight | 13.63kg |
Geometry

| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 388.3 | 386.8 | 393.5 | 399.8 | 405.6 |
| Headtube Angle | 70 | 70 | 70 | 70 | 70 |
| Headtube Length | 105 | 125 | 145 | 165 | 185 |
| Seattube Angle | 73 | 72.5 | 72.3 | 72 | 72 |
| Seattube Length | 450 | 480 | 510 | 550 | 590 |
| Toptube (Effective) | 567 | 577 | 592 | 608 | 620 |
| Chainstay Length | 456 | 456 | 456 | 456 | 456 |
| Wheelbase | 1078 | 1084 | 1097 | 1110 | 1123 |
| BB Drop | 56 | 56 | 56 | 56 | 56 |
| Standover | 767 | 793 | 817 | 847 | 876 |
| Stem Length | 80 | 90 | 90 | 100 | 100 |
