Scott

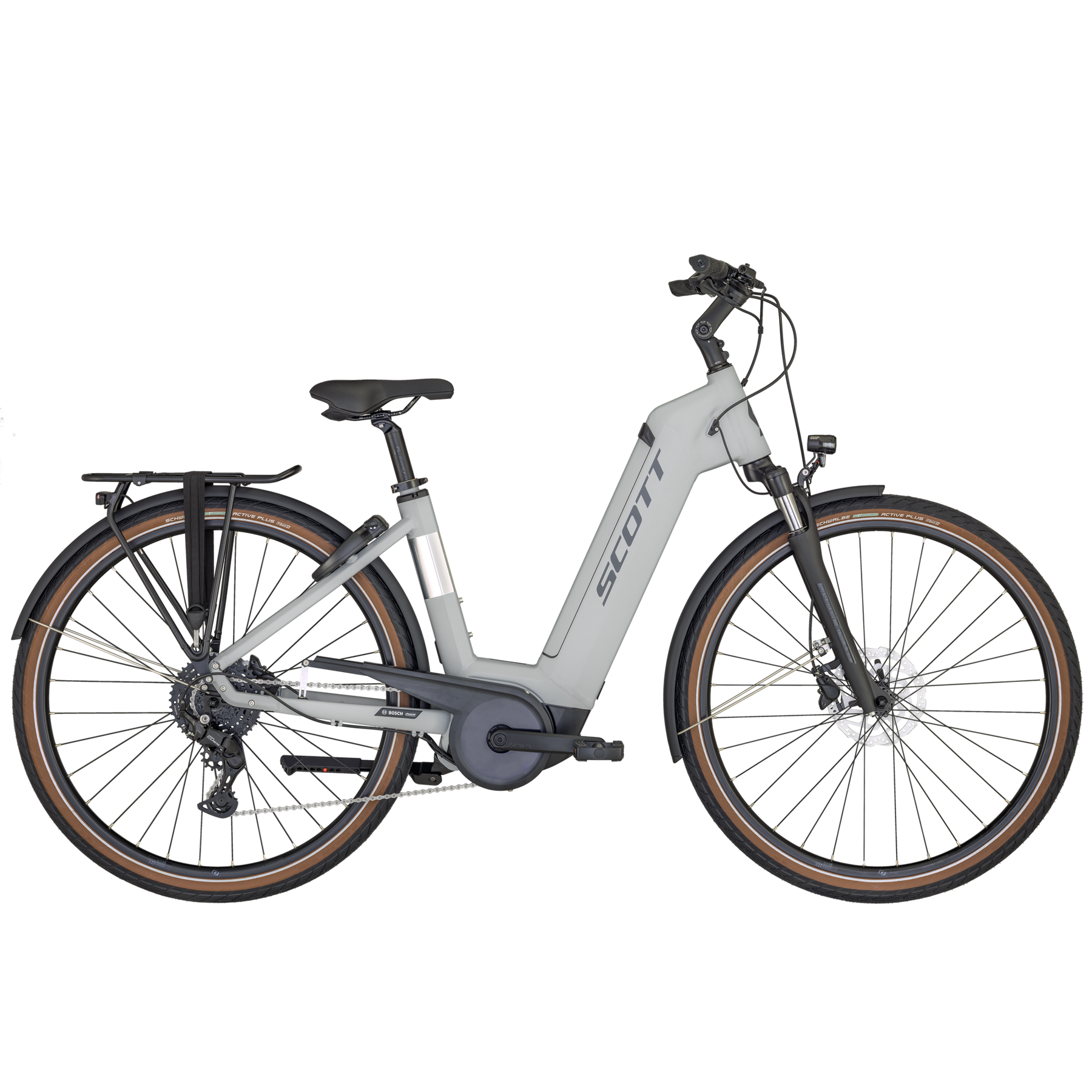

Scott Sub Active eRIDE Unisex Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Sub Active eRIDE Unisex Electric Hybrid Bike
Azzuro Grey / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Sub Active eRIDE provides outstanding comfort and simplicity. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The lights, the rack and the fenders makes it city ready.
Please note that bike specifications are subject to change without prior notice
Specifications
frame | 6061 Alloy custom butted tubing, Bosch 400Wh integrated Battery / Internal cable routing |
---|---|
fork | SUNTOUR NEX-E25 DS QR 700C / 63mm Travel |
rear-shock | |
derailleur | Shimano CUES ARDU4000GS 9 Speed |
shift-levers | Shimano CUES ASLU40009RC 9 Speed |
front-derailleur | |
brake-front | Shimano BR-M200 Disc |
brake-rear | Shimano BR-M200 Disc |
brake-disc-front | SM-RT10 rotor 180mm |
brake-disc-rear | SM-RT10 rotor 160mm |
wheelset | |
rims | Cross X17 Disc 32h |
tire-front | Schwalbe Energizer Active Plus 700x50c |
tire-rear | Schwalbe Energizer Active Plus 700x50c |
hub-front | Shimano HBMT200B 32H QR CL |
hub-rear | Shimano FHQC300HMBZB 32H QR CL |
spokes | BLACK spokes * F: 14G / R: 13G |
handlebar | Syncros UC3.0 680mm / Rise 12mm / backsweep 15° |
stem | Syncros UC 3.0 adjustable |
headset | GW semi integrated |
grips | |
saddle | Syncros Capilano |
seat-post | Syncros 3.0 / 31.6mm / 350mm |
crankset | Miranda 172, 5mm |
bottom-bracket | |
Chain | KMC eGLIDE |
Cassette | Shimano CS-LG3009 11-41T |
Pedals | Syncros SP-828 |
motor | Bosch Active, EU: 25kmh / US: 20mph |
battery | PowerTube 400Wh |
display | Purion |
charger | 2A Charger |
Specifications
stack | 644 |
---|---|
reach | 392 |
seat-tube-length | 440 |
seat-tube-angle | 72,5 |
top-tube-length | 595 |
head-tube-length | 170 |
head-tube-angle | 69,5 |
stem-length | |
handlebar-width | 680 |
wheelbase | 1151 |
standover | 499 |
chainstay-length | 505 |
fork-rake | 42 |
bottom-bracket-height | 304 |
bottom-bracket-drop | 70 |
