Scott
Scott Sub Active eRIDE 20 Unisex rack Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model

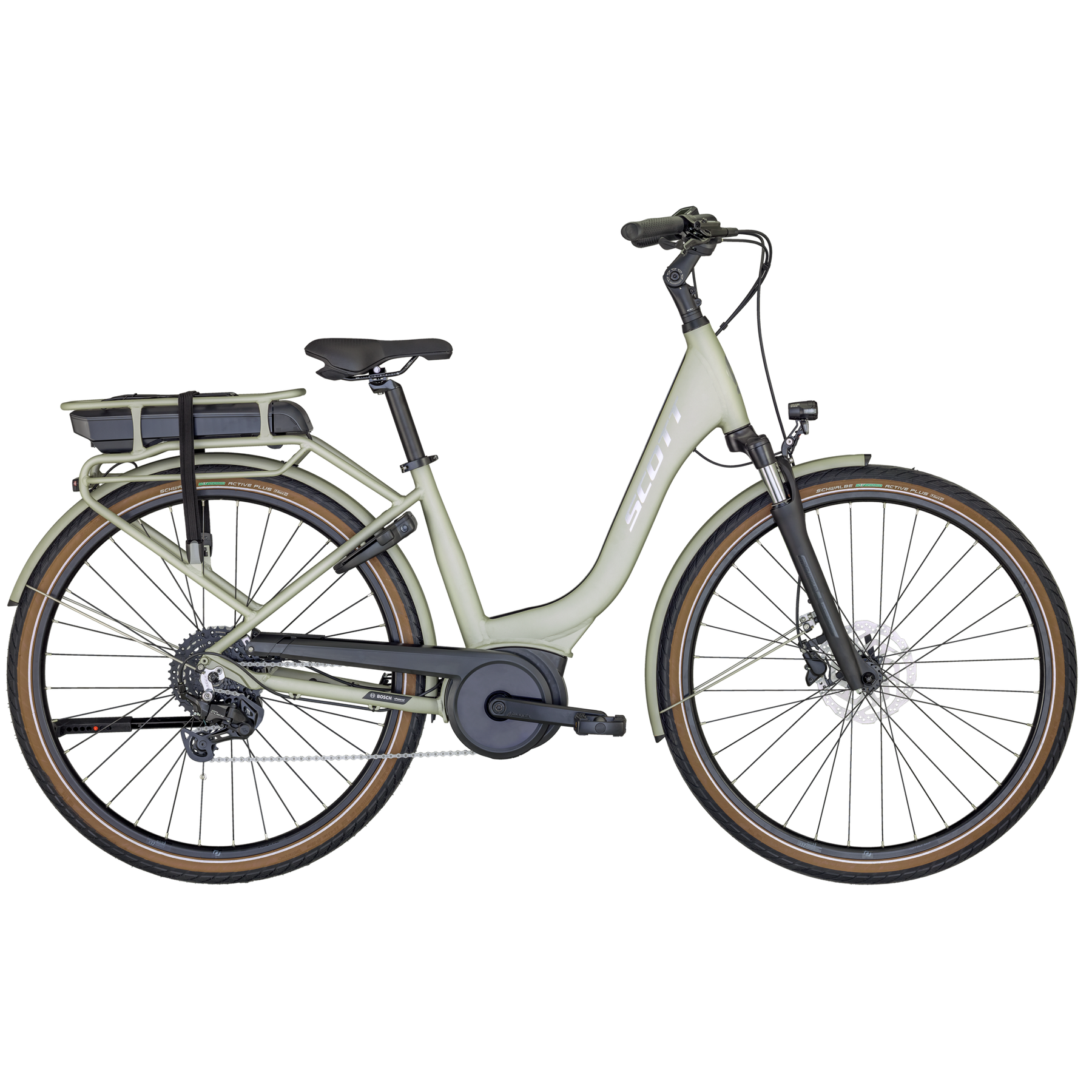

The Sub Active eRIDE 20 rack provides outstanding comfort and style. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The drop of the downtube also makes getting on or off your bike as easy as can be while the lights and the rack make it city ready.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | 6061 Alloy custom butted tubing, Bosch 400Wh Rack Battery / Internal cable routing |
|---|---|
| fork | SUNTOUR NEX-E25 DS QR 700C / 63mm Travel |
| rear-shock | |
| derailleur | Shimano CUES ARDU4000GS 9 Speed |
| shift-levers | Shimano CUES ASLU40009RC 9 Speed |
| front-derailleur | |
| brake-front | Shimano BR-M200 Disc |
| brake-rear | Shimano BR-M200 Disc |
| brake-disc-front | SM-RT10 rotor 180mm |
| brake-disc-rear | SM-RT10 rotor 160mm |
| wheelset | |
| rims | Cross X17 Disc 32h |
| tire-front | Schwalbe Energizer Active Plus 700x50c |
| tire-rear | Schwalbe Energizer Active Plus 700x50c |
| hub-front | Shimano HB-QC300BAL 32H QR CL |
| hub-rear | Shimano FH-FHQC300HMBZ 32H QR CL |
| spokes | BLACK spokes * F: 14G / R: 13G |
| handlebar | HL NR-AL-16 W: 610mm Comfort |
| stem | Syncros UC 3.0 adjustable |
| headset | GW semi integrated |
| grips | |
| saddle | Syncros Capilano |
| seat-post | Syncros 3.0 / 31.6mm / 350mm |
| crankset | Miranda 172, 5mm |
| bottom-bracket | |
| Chain | KMC E9s NPBK |
| Cassette | Shimano CS-LG3009 11-41T |
| Pedals | Syncros SP-828 |
| motor | Bosch Active Plus, EU: 25kmh |
| battery | PowerPack Battery 400Wh |
| display | Purion |
| charger | 2A Charger |
Specifications
| stack | 636 |
|---|---|
| reach | 361 |
| seat-tube-length | 420 |
| seat-tube-angle | 73 |
| top-tube-length | 555 |
| head-tube-length | 185 |
| head-tube-angle | 70 |
| stem-length | |
| handlebar-width | 610 |
| wheelbase | 1112 |
| standover | 446 |
| chainstay-length | 480 |
| fork-rake | 60 |
| bottom-bracket-height | |
| bottom-bracket-drop | 65 |
