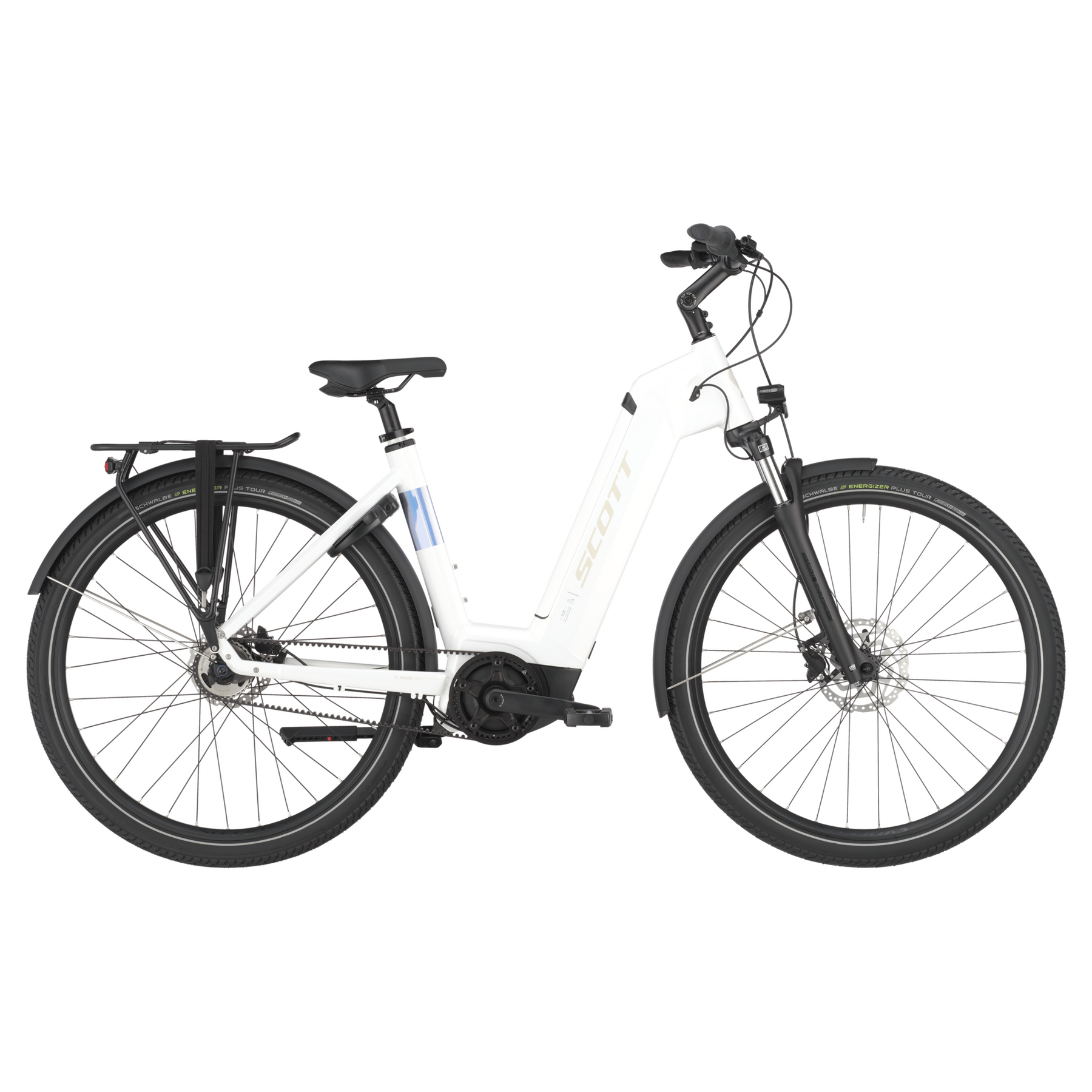

Scott Sub 40 Belt Wave Electric Hybrid Bike
Bianco White / XS / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The power to do more.
SUB eRIDE is an electric urban bike powered by the Bosch Performance motor and 625Wh battery, comfortable and ready to tackle the city.
With features such as strong fenders, rear carrier compatible with Racktime Snap it 2.0, powerful Lezyne lights and a belt drive for low maintenance, SUB will be your everyday companion.
Specifications
| Frame | Alloy XS-L=29" / 6061 Alloy custom butted tubing, Top extraction battery, 135mm QR with 52mm Chainline |
|---|---|
| Fork | SR Suntour NVX30 DS / Tapered / QR x 100mm |
| Shifter | Shimano Nexus Inter 5e |
| Front Brake | Shimano BR-MT200 Disc |
| Rear Brake | Shimano BR-MT200 Disc |
| Rotors | front: Shimano SM-RT10 CL 180mmRear: Shimano SM-RT10 CL 160mm |
| Rims | Syncros X18 Disc |
| Front Hub | Shimano HBQC400BAL / 100 QR |
| Rear Hub | Shimano Nexus Inter 5e |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe Energizer Plus Tour 700x55c |
| Rear Tyre | Schwalbe Energizer Plus Tour 700x55c |
| Handlebars | Syncros UC3.0 680mm / Rise 12mm / Backsweep 15° |
| Stem | Syncros UC 3.0 adjustable |
| Headset | GW semi integrated |
| Saddle | Syncros Capilano |
| Seatpost | Syncros 3.0 / 31.6mm / 350mm |
| Crankset | FSA CK-220 170mm |
| Chain | Gates CDX 130T |
| Cassette | Gates CDX 130T |
| Motor | Bosch Performance, EU: 25kmh |
| Battery | PowerTube 625Wh |
| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Weight (KG) | 30,2 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 696 | 688 | 705 | 705 |
| Reach | 413 | 433 | 450 | 450 |
| Headtube Angle | 68.2 | 68.2 | 68.2 | 68.2 |
| Headtube Length | 160 | 160 | 170 | 170 |
| Seattube Angle | 67.9 | 67.9 | 67.9 | 67.9 |
| Seattube Length | 440 | 480 | 520 | 560 |
| Toptube (Effective) | 575 | 595 | 615 | 615 |
| Chainstay Length | 482 | 482 | 482 | 482 |
| Wheelbase | 1190 | 1210 | 1232 | 1232 |
| BB Height | 299.5 | 299.5 | 299.5 | 299.5 |
| BB Drop | -75.5 | -75.5 | -75.5 | -75.5 |
| Standover | 638 | 633 | 630 | 630 |
| Trail | 100 | 100 | 100 | 100 |
| Stem Length | 90 | 90 | 90 | 90 |
