Scott
Scott Sub 30 Wave Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

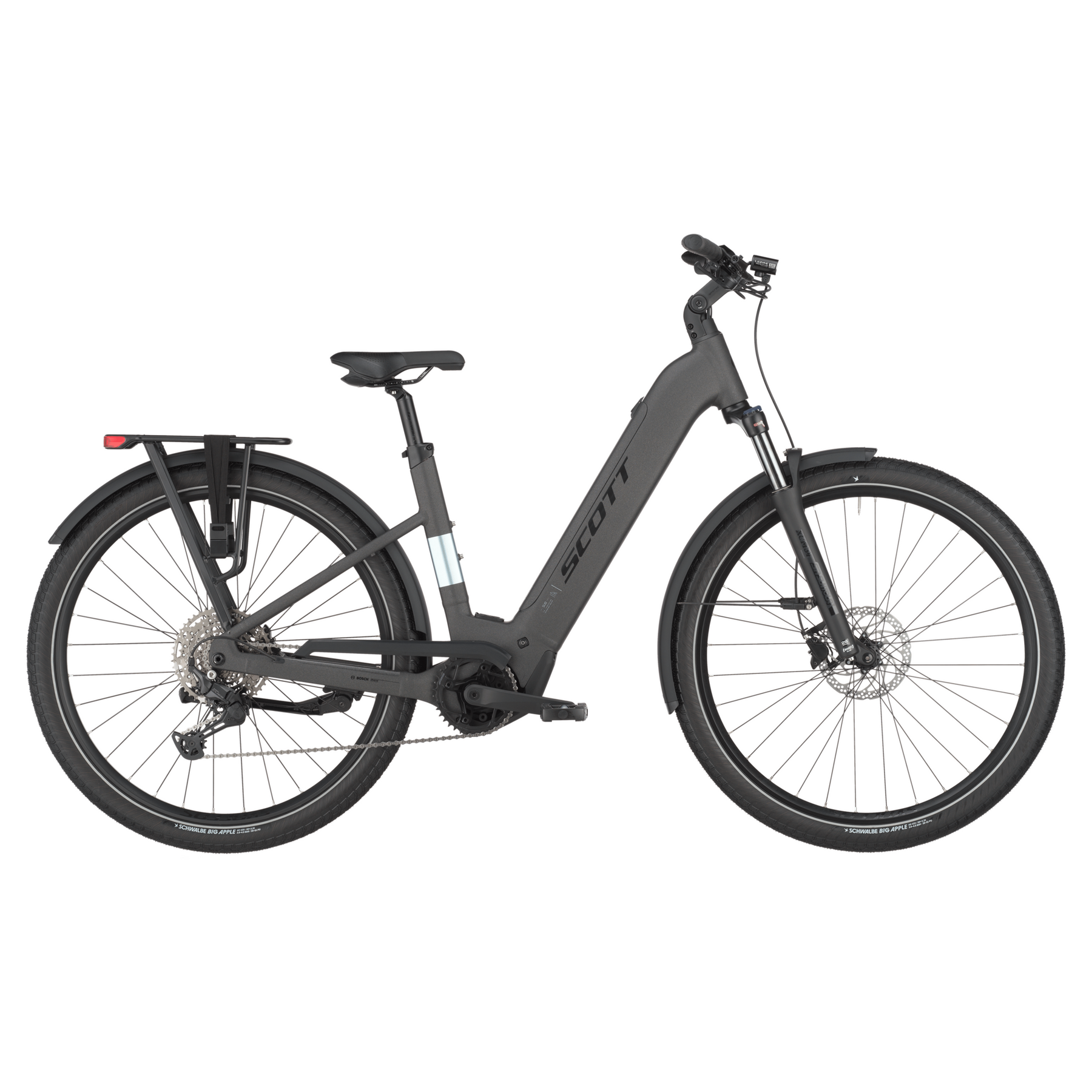

Scott Sub 30 Wave Electric Hybrid Bike
Midnight Grey / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The power to do more.
This is the ALL-NEW SCOTT SUB eRIDE: an electric urban bike powered by the ALL-NEW Bosch Performance CX motor and 600Wh battery - goodbye range anxiety.
You can now bring along the kids or dogs with the SUB thanks to the new Syncros Thru-Axle enabling you to tow cargo trailers, while the new Syncros Heavy Duty rack that can carry up to 27kg.
No more barriers. Move with SUB.
Specifications
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface / 12x148mm with 52mm Chainline |
|---|---|
| Fork | SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 100mm Travel |
| Shifter | Shimano CUES RD-U6000GS 10 Speed |
| Front Brake | Shimano BR-MT200 Disc |
| Rear Brake | Shimano BR-MT200 Disc |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano SM-RT30 CL 160mm |
| Rims | Syncros X18 Disc |
| Front Hub | Shimano HBTC50015BB CL / 15x110mm |
| Rear Hub | Shimano FHTC500HMBB / 148x12mm |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe Big Apple Performance, 60-622 |
| Rear Tyre | Schwalbe Big Apple Performance, 60-622 |
| Handlebars | Syncros UC3.0 680mm / Rise 12mm / Backsweep 15° |
| Stem | Syncros UC 3.0 adjustable with front Light mount |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros 3.0 / 31.6mm / 350mm |
| Crankset | FSA CK-220 170mm |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG40010 11-48 T |
| Motor | Bosch Performance CX, EU: 25kmh |
| Battery | PowerTube 600Wh |
| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Weight (KG) | 30 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 696 | 688 | 705 | 705 |
| Reach | 413 | 433 | 450 | 450 |
| Headtube Angle | 68.2 | 68.2 | 68.2 | 68.2 |
| Headtube Length | 160 | 160 | 170 | 170 |
| Seattube Angle | 67.9 | 67.9 | 67.9 | 67.9 |
| Seattube Length | 440 | 480 | 520 | 560 |
| Toptube (Effective) | 575 | 595 | 615 | 615 |
| Chainstay Length | 482 | 482 | 482 | 482 |
| Wheelbase | 1190 | 1210 | 1232 | 1232 |
| BB Height | 299.5 | 299.5 | 299.5 | 299.5 |
| BB Drop | -75.5 | -75.5 | -75.5 | -75.5 |
| Standover | 638 | 633 | 630 | 630 |
| Trail | 100 | 100 | 100 | 100 |
| Stem Length | 90 | 90 | 90 | 90 |
