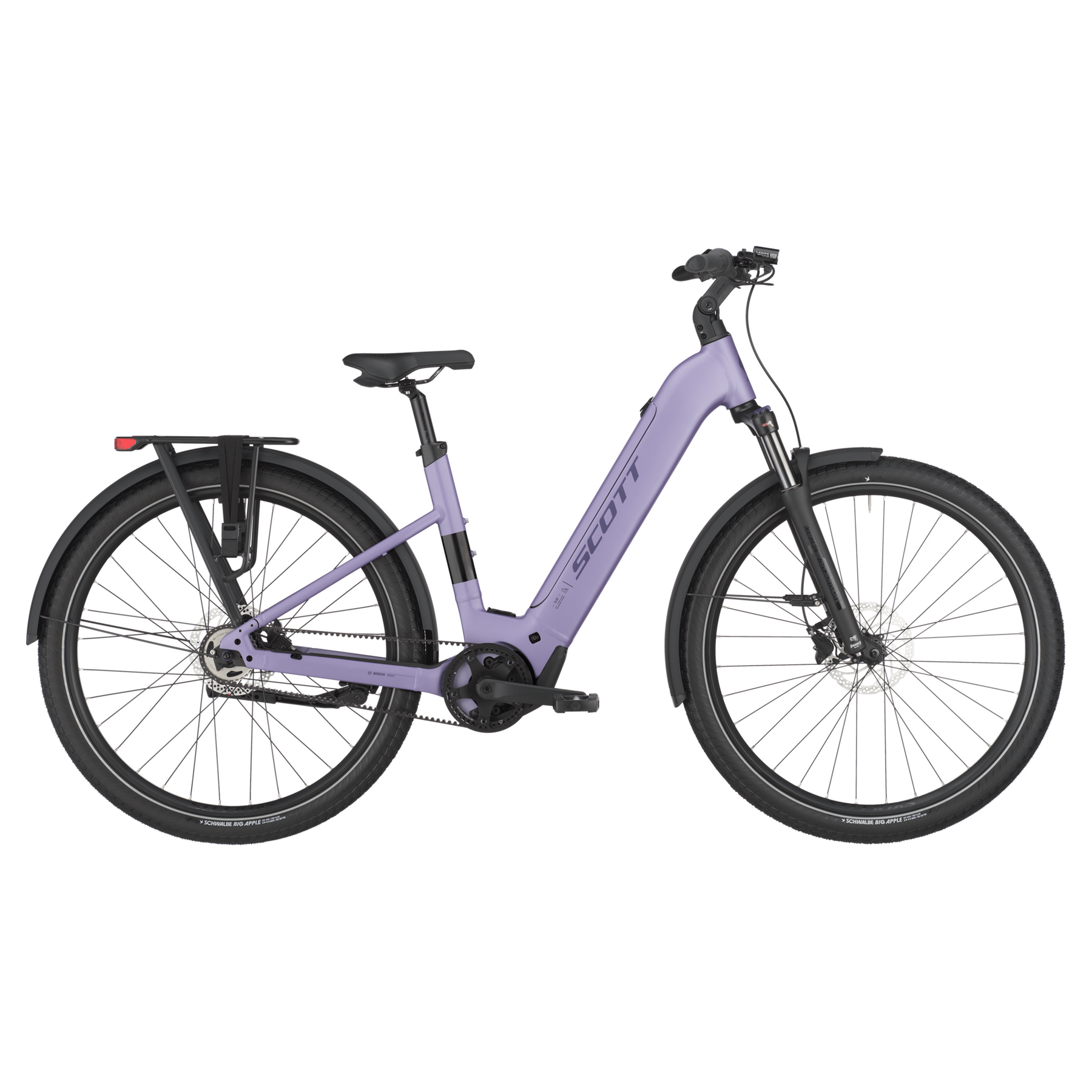

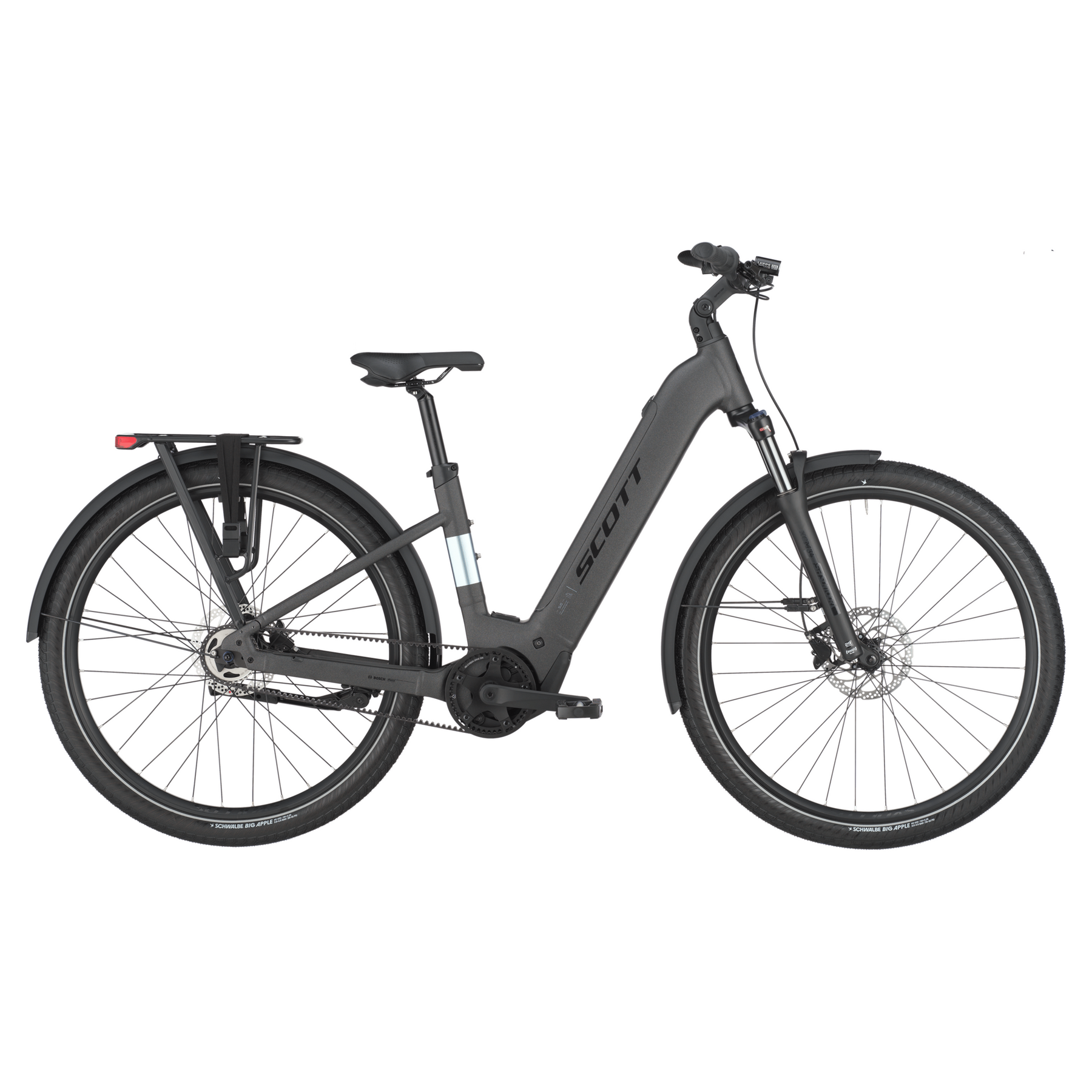

Scott Sub 20 Belt Wave Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Sub 20 Belt Wave Electric Hybrid Bike
Midnight Grey / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The power to do more.
This is the ALL-NEW SCOTT SUB eRIDE: an electric urban bike powered by the ALL-NEW Bosch Performance CX motor and 800Wh battery - goodbye range anxiety.
To minimize maintenance, SUB features a belt-driven drivetrain, no need to oil a chain anymore. Even more? You can now bring along the kids with you  -thanks to the new Syncros Heavy Duty rack that can carry up to 27kg.
No more barriers. Move with SUB.
Specifications
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface / 135mm with 46mm Beltline |
|---|---|
| Fork | SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 100mm Travel |
| Shifter | Shimano Nexus Inter 5e |
| Front Brake | Shimano BR-MT200 Disc |
| Rear Brake | Shimano BR-MT200 Disc |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano SM-RT30 CL 160mm |
| Rims | Syncros X18 Disc |
| Front Hub | Shimano HBTC50015BB CL / 15x110mm |
| Rear Hub | Shimano Nexus Inter 5e |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe Big Apple Performance, 60-622 |
| Rear Tyre | Schwalbe Big Apple Performance, 60-622 |
| Handlebars | Syncros UC3.0 680mm / Rise 12mm / Backsweep 15° |
| Stem | Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros 3.0 / 31.6mm / 350mm |
| Crankset | FSA CK-220 170mm |
| Chain | Gates CDX 130T |
| Cassette | Gates CDX 130T |
| Motor | Bosch Performance CX, EU: 25kmh |
| Battery | PowerTube 600Wh |
| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Weight (KG) | 30,6 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 696 | 688 | 705 | 705 |
| Reach | 413 | 433 | 450 | 450 |
| Headtube Angle | 68.2 | 68.2 | 68.2 | 68.2 |
| Headtube Length | 160 | 160 | 170 | 170 |
| Seattube Angle | 67.9 | 67.9 | 67.9 | 67.9 |
| Seattube Length | 440 | 480 | 520 | 560 |
| Toptube (Effective) | 575 | 595 | 615 | 615 |
| Chainstay Length | 482 | 482 | 482 | 482 |
| Wheelbase | 1190 | 1210 | 1232 | 1232 |
| BB Height | 299.5 | 299.5 | 299.5 | 299.5 |
| BB Drop | -75.5 | -75.5 | -75.5 | -75.5 |
| Standover | 638 | 633 | 630 | 630 |
| Trail | 100 | 100 | 100 | 100 |
| Stem Length | 90 | 90 | 90 | 90 |
