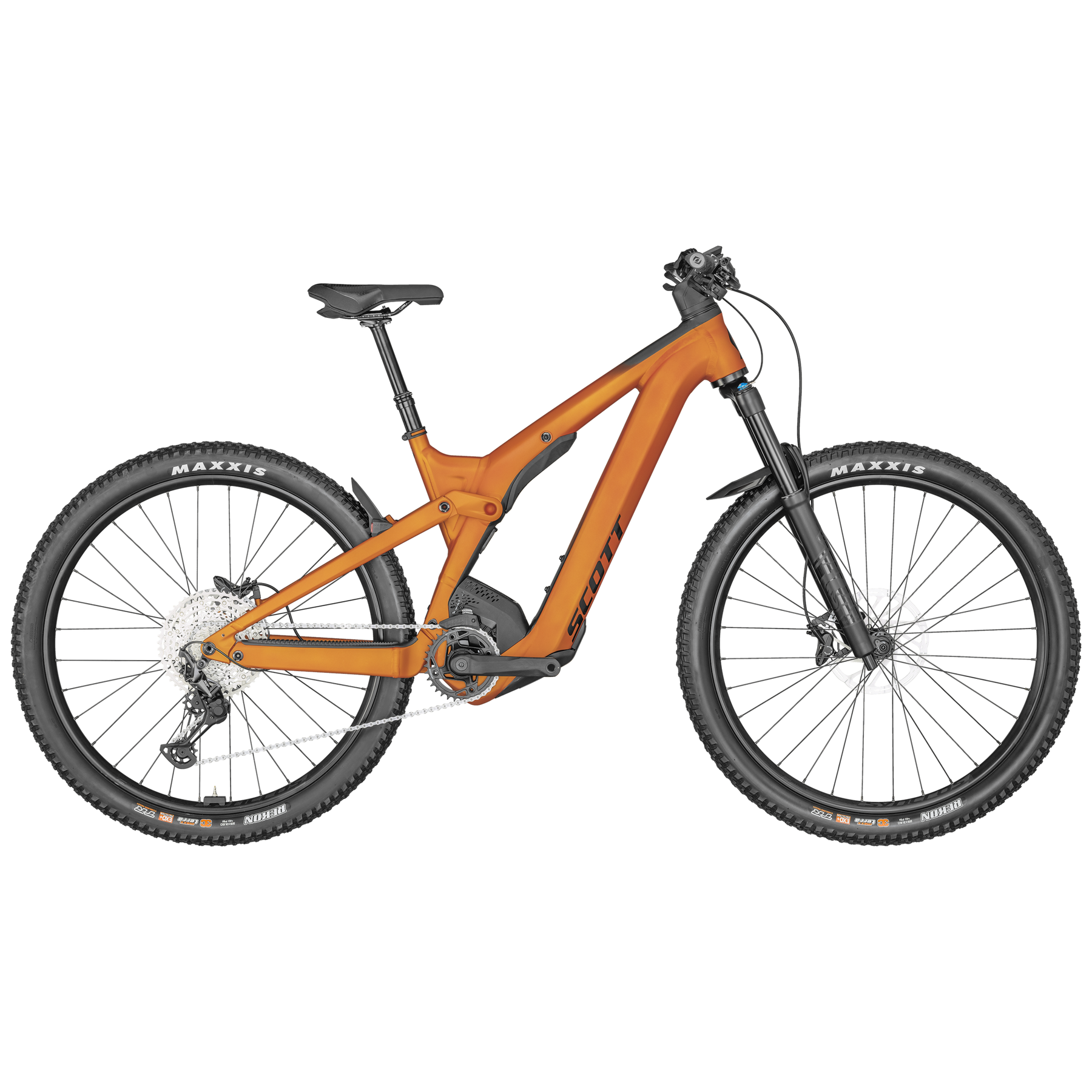

Scott Strike eRIDE 910 EVO Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Based on the Patron eRIDE platform, the Strike eRIDE 910 EVO offers SCOTT’s latest technologies together with the newest Bosch motor. Versatile, reliable, and accessible, the Strike puts the accent on the comfort with 150mm of travel, slicker tires, thicker grips and saddle to give you a solid choice for any outing.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Alloy Frame & Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 150mm travel / Bosch Gen4 / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable |
|---|---|
| fork | FOX 36 Rhythm Air, Grip 3 / 3 modes / 15x110mm QR axle, tapered steerer / Reb. Adj. / Lockout / 150mm travel |
| rear-shock | FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 150mm / 205x55mm |
| derailleur | Shimano XT / 12 Speed |
| shift-levers | Shimano SL-M6100 |
| front-derailleur | |
| brake-front | SRAM DB8 4 Piston Disc |
| brake-rear | SRAM DB8 4 Piston Disc |
| brake-disc-front | SRAM Centerline CL rotor 200mm |
| brake-disc-rear | SRAM Centerline CL rotor 200mm |
| wheelset | |
| rims | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| tire-front | Maxxis Rekon / 29x2.6" / 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Rekon / 29x2.6" / 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | Shimano HB-MT410-B CL / 15x110mm |
| hub-rear | Shimano FH-MT410-B CL / Boost 12x148mm |
| spokes | Stainless Black |
| handlebar | Syncros Hixon 2.0 Rise / Alloy 6061D.B., 20mm rise / 8° / 760mm |
| stem | Syncros AM2.0 / 6061 Alloy, 31.8mm / 4° / 1 1/8" |
| headset | Acros / 1.8", ZS66 OD74 / 12mm Adapter / integr. Cable |
| grips | Syncros Comfort lock-on grips |
| saddle | Syncros Capilano |
| seat-post | Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm |
| crankset | FSA CK-745 / 165mm / 34T |
| bottom-bracket | |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano CS-M6100 / 10-51T |
| Pedals | |
| motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| battery | PowerTube 750Wh |
| display | Bosch LED Remote & Kiox 300 |
| charger | 4A Charger |
Specifications
| stack | 627 |
|---|---|
| reach | 422 |
| seat-tube-length | 411 |
| seat-tube-angle | 76,3 |
| top-tube-length | 575 |
| head-tube-length | 120 |
| head-tube-angle | 64,8 |
| stem-length | 50 |
| handlebar-width | 760 |
| wheelbase | 1215 |
| standover | 749 |
| chainstay-length | 465 |
| fork-rake | 44 |
| bottom-bracket-height | 350 |
| bottom-bracket-drop | 30 |
