Scott

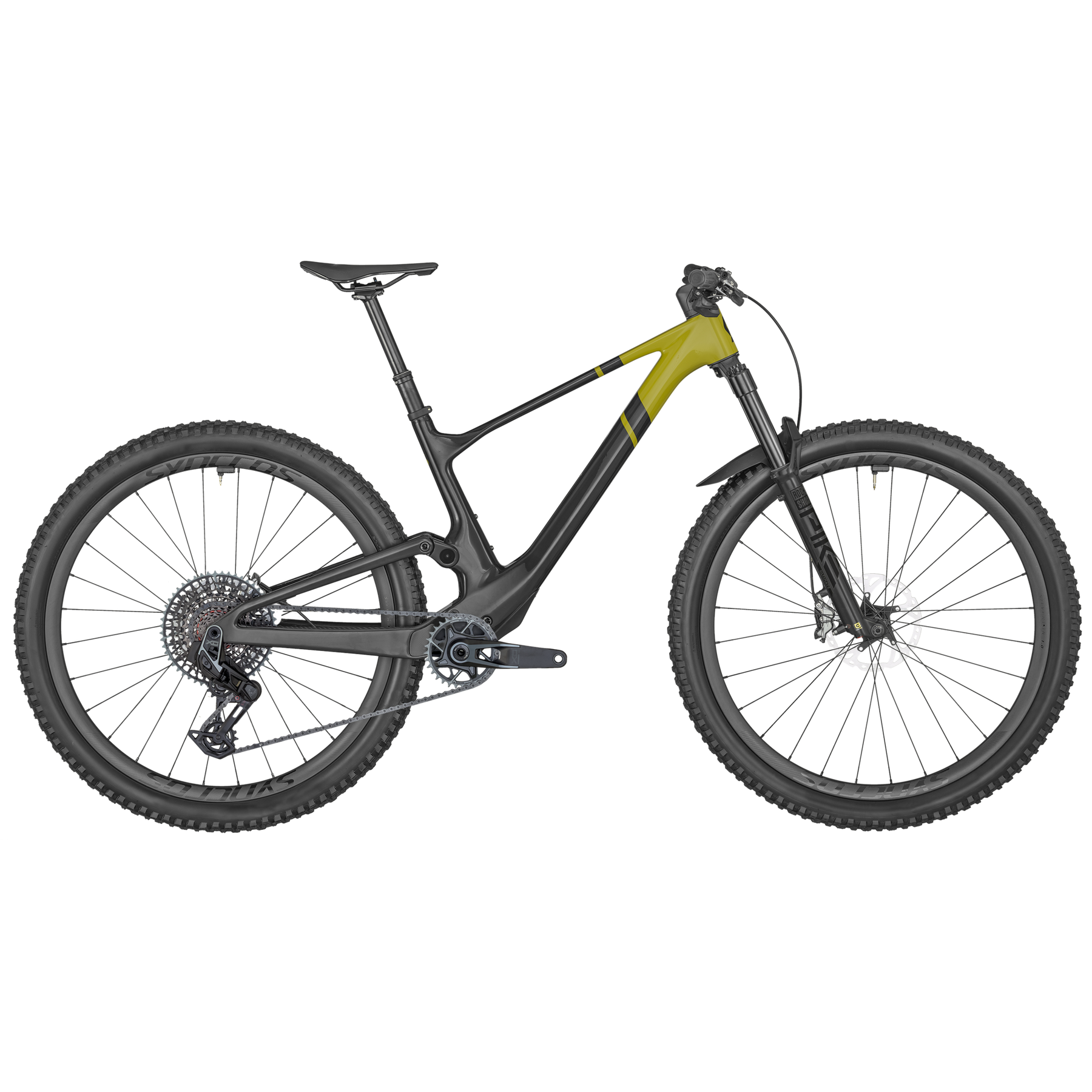

Scott Spark ST 900 Tuned TR Full Suspension Mountain Bike
Color:
Color
Size:
Size
Model:
Model
When you think of the perfect mountain bike, what comes to mind? For us, it's the Spark 900 Tuned. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Spark ST Carbon HMF, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| fork | RockShox Pike Ultimate Air, Charger 3 RC2 w/Butter Cups Damper, HSC-LSC-LSR adjustable / 15x110mm Maxle Lite, 44mm offset / Tapered steerer, Lockout / Reb. Adj. / 140mm travel |
| rear-shock | FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Climb-Traction Control-Descend, Custom large Air volume / Comp & Reb. Adj., Travel 120-80-Climb / T165X45mm |
| derailleur | SRAM X0 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM GX Eagle AXS Rocker Controller |
| front-derailleur | |
| brake-front | Shimano XTR M9120 4 Piston Disc |
| brake-rear | Shimano XTR M9120 4 Piston Disc |
| brake-disc-front | Shimano SM-RT76 / 6 Bolt / 180mm |
| brake-disc-rear | Shimano SM-RT76 / 6 Bolt / 180mm |
| wheelset | Syncros Silverton 1.0-30 6 Bolt, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready Carbon rim 28H, DT Swiss Ratchet Hubs / XD Driver, SRAM TyreWiz / Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| rims | |
| tire-front | Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
| tire-rear | Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
| hub-front | |
| hub-rear | |
| spokes | |
| handlebar | Syncros Fraser iC SL DC Carbon, 0° rise / back sweep 8° / mini Rise / 780mm |
| stem | |
| headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 1.5 Regular, Titanium rails |
| seat-post | Syncros Duncan Dropper Post 1.5, 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm |
| crankset | SRAM X0 Eagle Transmission, DUB / 55mm CL / 32T |
| bottom-bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chain | SRAM CN X0 Eagle Transmission |
| Cassette | SRAM X0 Eagle XS 1295 Transmission 10-52 |
| Pedals | |
| motor | |
| battery | |
| display | |
| charger |
Specifications
| stack | 608 |
|---|---|
| reach | 410 |
| seat-tube-length | 415 |
| seat-tube-angle | 75,7 |
| top-tube-length | 561 |
| head-tube-length | 90 |
| head-tube-angle | 65,8 |
| stem-length | 50 |
| handlebar-width | |
| wheelbase | 1145 |
| standover | 759 |
| chainstay-length | 438 |
| fork-rake | |
| bottom-bracket-height | 332 |
| bottom-bracket-drop | 44 |
