Scott

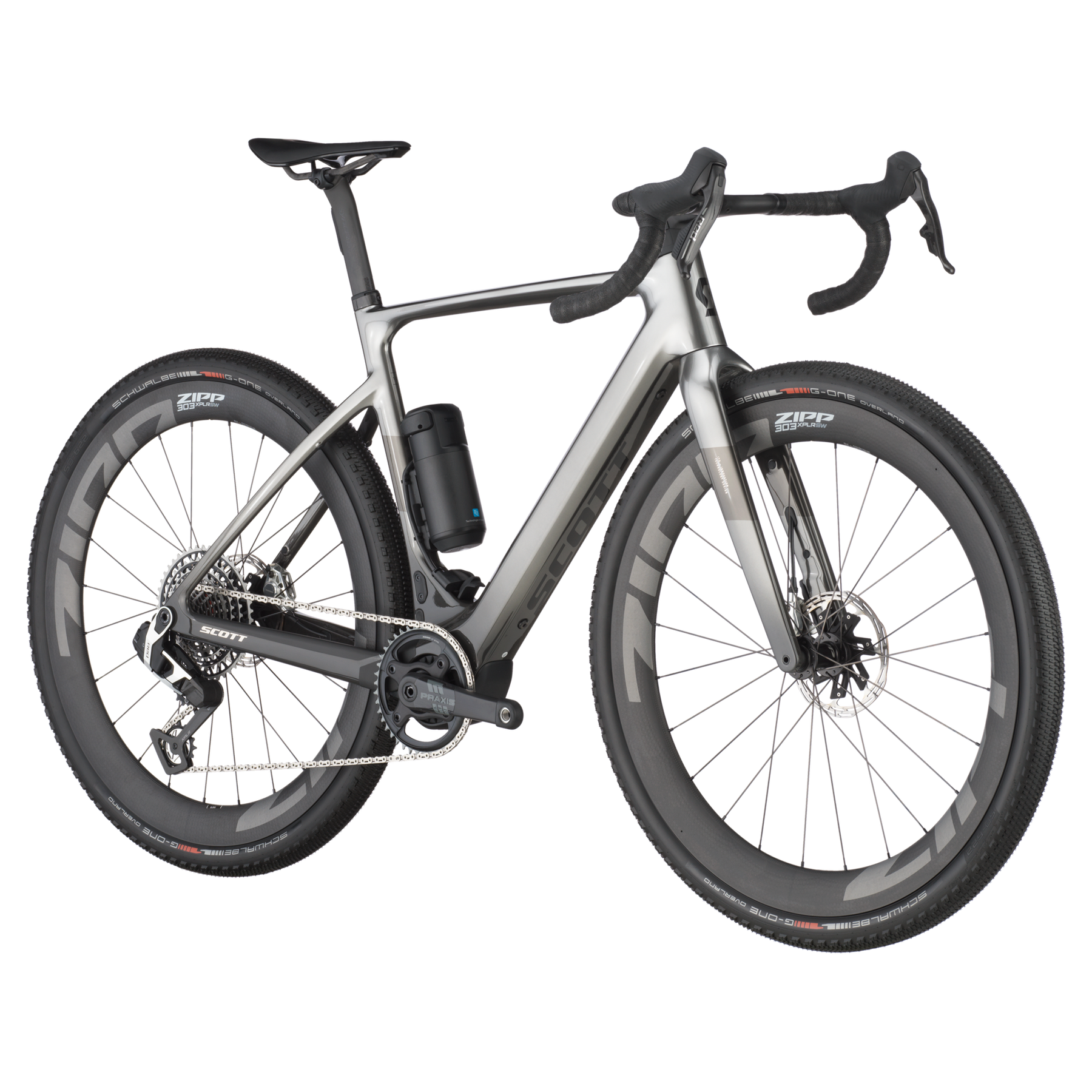

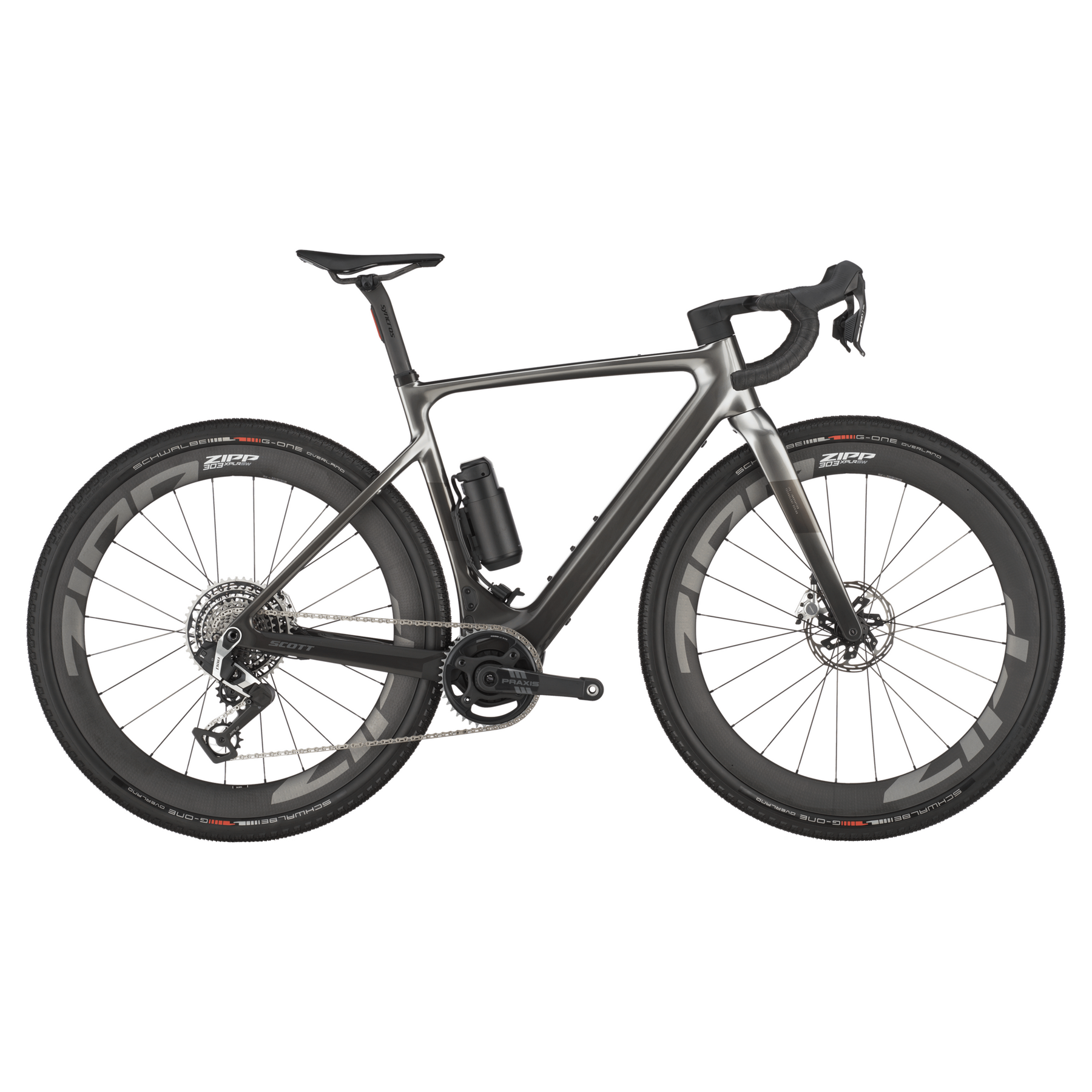

Scott Solace Gravel Ultimate Electric Gravel Bike
Color
Size
Model
Availability
Click & Collect
Scott Solace Gravel Ultimate Electric Gravel Bike
Chrome Silver / XS / NL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Expand your horizons with the Solace Gravel. From all day Alpine epics to Saturday morning time-crunched escapes the Solace Gravel is hugely versatile. Quiet, efficient and with an almost zero drag crank mounted motor, the Solace features a 360Wh internal battery with optional 160Wh externally mounted range extender (included) to push the horizon that little bit further. 3 levels of assistance allow for battery optimization or full boost. Electronic shifting from SRAM's Xplr eTAP combined with our internal cable routing results in a clean cockpit, perfect for mounting handlebar and frame bags for when adventure truly calls.
Please note that bike specifications are subject to change without prior notice
Specifications
| Frame | Solace Gravel Disc HMX, Endurance geometry / Syncros Cable Integration System, TQ HPR50 / UDH Interface / Range Extender Included |
|---|---|
| Fork | Solace Gravel HMX Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer |
| Rear Derailleur | SRAM RED XPLR AXS 13 Speed Electronic Shift System |
| Shifter | SRAM RED AXS HRD Shift-Brake System |
| Front Brake | SRAM RED AXS HRD Shift-Brake System, flatmount |
| Rear Brake | SRAM RED AXS HRD Shift-Brake System, flatmount |
| Rotors | front: SRAM PACELINE X 160mmRear: SRAM PACELINE X 160mm |
| Wheels | Zipp 303 XPLR SW Carbon tubeless disc-brake, 24 Front / 24 Rear, Syncros Axle w/Removable Lever with Tool |
| Front Tyre | Schwalbe G-One Overland EVO, 700x50C |
| Rear Tyre | Schwalbe G-One Overland EVO, 700x50C |
| Handlebars | Syncros Creston iC SL X, Carbon combo |
| Headset | Acros AIF-1135 |
| Saddle | Syncros Tofino Regular SL |
| Seatpost | Syncros Duncan Sl iL D-shape |
| Crankset | Praxis TQ Carbon |
| Chain | SRAM RED |
| Cassette | SRAM XPLR XG1391 10-46 |
| Motor | TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh - US: 28mph |
| Battery | TQ Internal 360Wh + xTra Power Bottle Cage Battery 160Wh |
| Display | TQ HPR 50, Bluetooth / ANT+ / AXS, Dedicated Smartphone app |
| Charger | TQ 100-240V 4A |
| Weight (KG) | 14 |
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 519.3 | 544.7 | 565.6 | 590.2 | 610 |
| Reach | 374 | 378 | 387 | 398 | 406 |
| Headtube Angle | 69.5 | 70 | 71 | 71 | 71 |
| Headtube Length | 85 | 110 | 128 | 154 | 175 |
| Seattube Angle | 74.5 | 74 | 73.5 | 73 | 73 |
| Seattube Length | 477 | 507 | 527 | 547 | 567 |
| Toptube (Effective) | 518 | 534.2 | 554.5 | 578.4 | 592.5 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1021.5 | 1030.1 | 1036.8 | 1056.2 | 1071.1 |
| BB Height | 294 | 294 | 294 | 294 | 294 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Standover | 759 | 785 | 803 | 824 | 841 |
| Trail | 80.8 | 77.5 | 70.7 | 70.7 | 70.7 |
| Stem Length | 80 | 90 | 100 | 100 | 110 |
