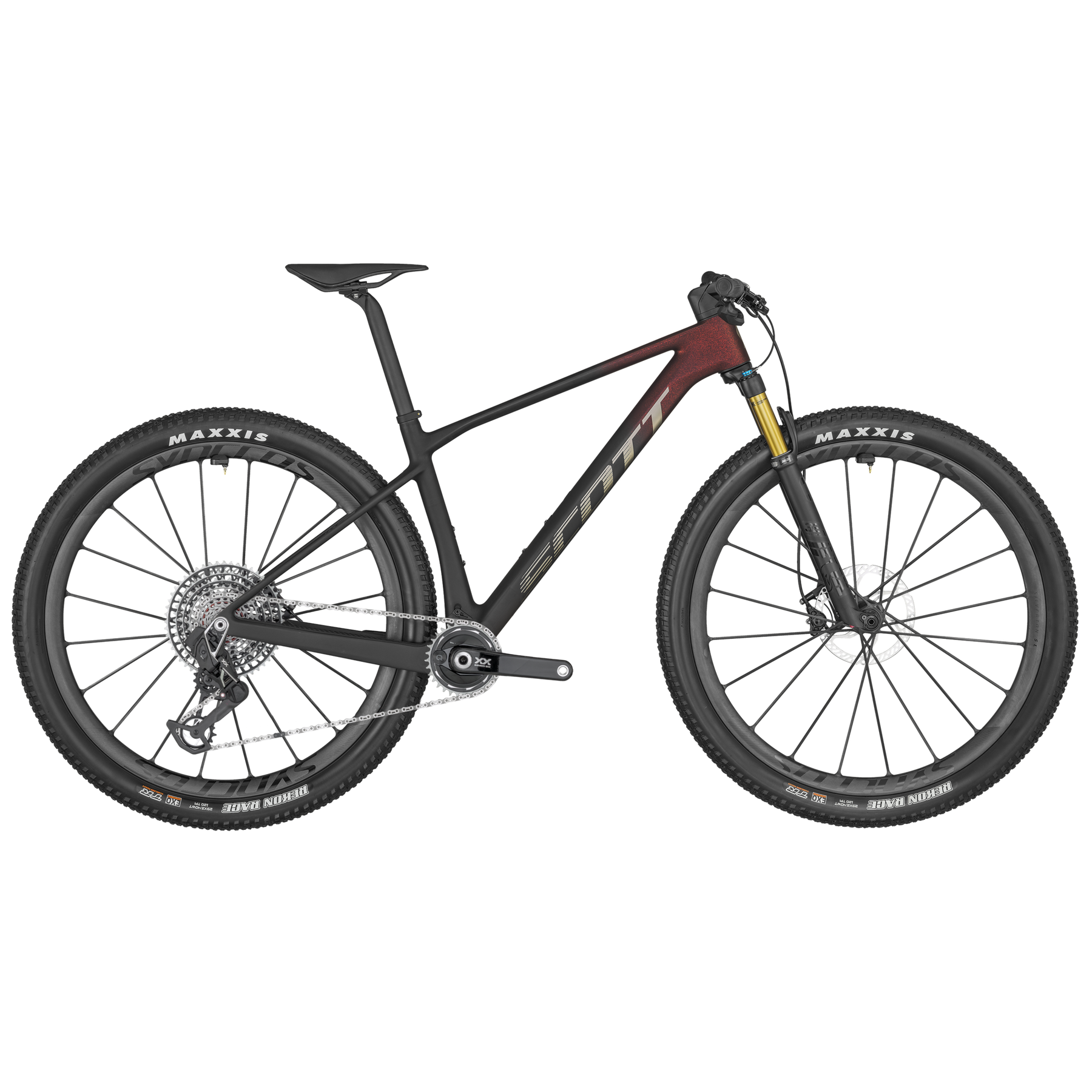

Scott Scale RC SL TR Hardtail Mountain Bike
Color:
Color
Size:
Size
Model:
Model
The Scale RC SL is the perfect blend of stiffness, light weight, and 30 years of carbon expertise. These characteristics, encompassed in an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke. Whenever you find yourself up against the clock, tip the scales in your favor.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Scale Carbon HMX SL, Adjustable head angle / Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| fork | FOX 32 SC Float Factory Air / Kashima FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset, Tapered steerer / Lockout / Reb. Adj., 100mm travel |
| rear-shock | |
| derailleur | SRAM XX SL Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM AXS Rocker Controller |
| front-derailleur | |
| brake-front | Trickstuff Piccola Carbon Disc |
| brake-rear | Trickstuff Piccola Carbon Disc |
| brake-disc-front | Trickstuff Dächle Ultra-Light / 180mm |
| brake-disc-rear | Trickstuff Dächle Ultra-Light / 160mm |
| wheelset | Syncros Silverton SL2-30 CL full Carbon, F: 15x110mm, R: 12x148mm / 30mm Tubeless ready rim, DT Swiss 240 Ratchet EXP 36 / XD Driver, SRAM TyreWiz / Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| rims | |
| tire-front | Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead, Tubeless Ready / EXO |
| tire-rear | Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead, Tubeless Ready / EXO |
| hub-front | |
| hub-rear | |
| spokes | |
| handlebar | Syncros Fraser iC SL XC Carbon, -12° rise / back sweep 8° / 740mm |
| stem | |
| headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| grips | Syncros Performance XC lock-on grips |
| saddle | Syncros Belcarra SL Regular 1.0, Carbon rails |
| seat-post | Syncros Duncan SL Carbon, 10mm offset / 31.6x400mm |
| crankset | SRAM XX SL Eagle AXS Transmission, Carbon crankarm / Spider Power Meter, DUB / 55mm CL / 32T |
| bottom-bracket | SRAM DUB PF 92 MTB / shell 41x92mm |
| Chain | SRAM CN XX SL Eagle Transmission |
| Cassette | SRAM XX SL Eagle XS 1299 Transmission 10-52 |
| Pedals | |
| motor | |
| battery | |
| display | |
| charger |
Specifications
| stack | 600 |
|---|---|
| reach | 419 |
| seat-tube-length | 390 |
| seat-tube-angle | 75,4 |
| top-tube-length | 575 |
| head-tube-length | 90 |
| head-tube-angle | 67,9 |
| stem-length | 50 |
| handlebar-width | |
| wheelbase | 1105 |
| standover | 752 |
| chainstay-length | 425 |
| fork-rake | 44 |
| bottom-bracket-height | 313 |
| bottom-bracket-drop | 62 |
