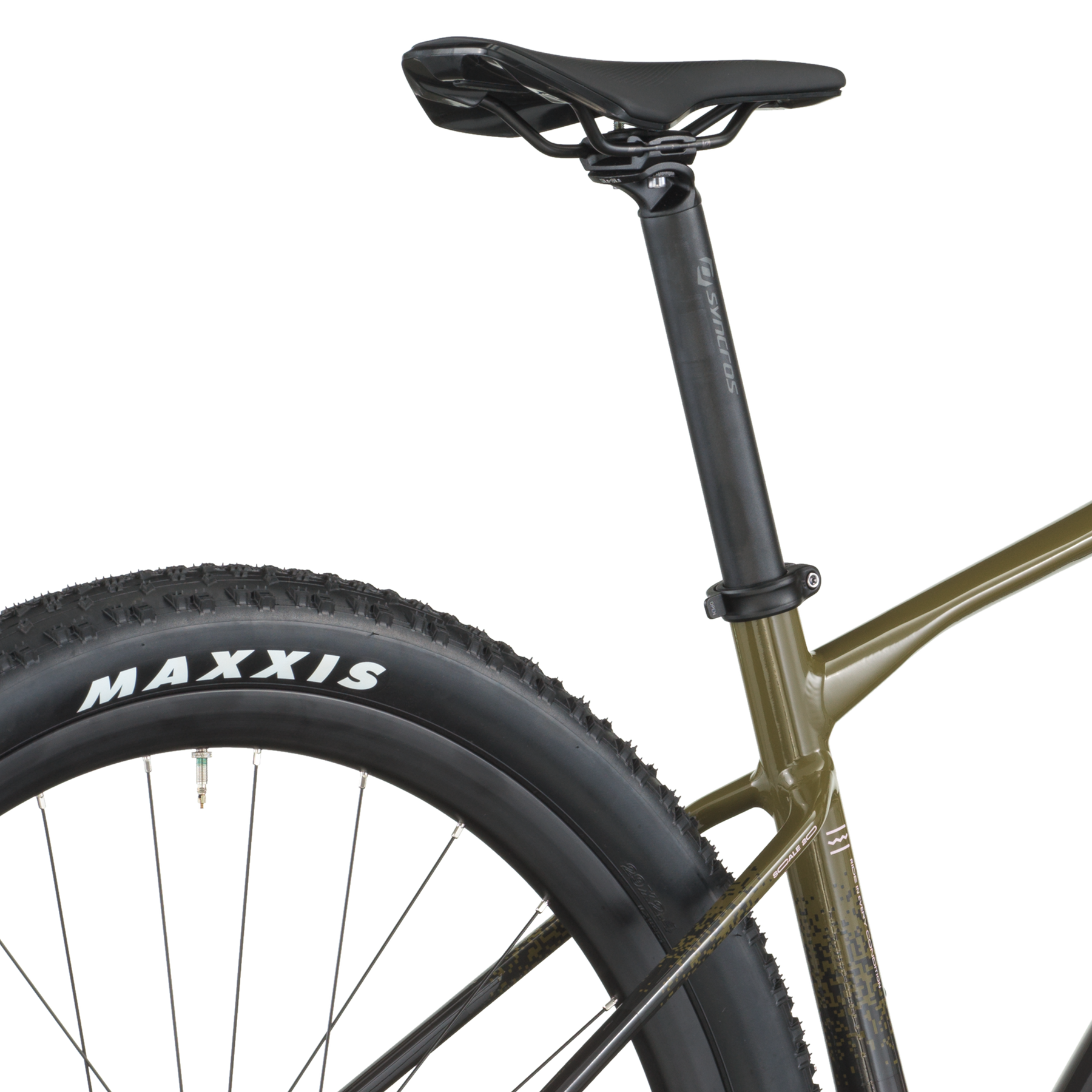

Scott Scale Gravel 20 Gravel Bike 2026
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Scale Gravel 20 Gravel Bike 2026
Khaki Green/Carbon Black / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice.
Specifications
| Frame | Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System BB92, UDH Interface, 12x148mm with 55mm Chainline |
|---|---|
| Fork | Scale Rigid HMF Postmount Disc StandardTapered Carbon steerer |
| Headset | Syncros - Acros OE Cable Routing HS SystemOD 50/62mm, ID 42/56mm |
| Stem | Syncros DC 3.0 Syncros Cable Integration System0° rise, 6061 Alloy, 31.8mm, 1 1/8" |
| Handlebars | Syncros Alloy 6061T shape Flat, 9°, 740mm Syncros Performance XC lock-on grips |
| Rims | Syncros X-28, 28H, Tubeless ready |
| Hubs | Formula CL-811, 15x110mm, Formula CL-3248, 12x148mm |
| Spokes | Stainless Black 15G, 1.8mm |
| Tyres | Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO |
| Shifter | SRAM Eagle 70 Trigger |
| Rear Derailleur | SRAM Eagle 70 Transmission 12 Speed |
| Crankset | SRAM Eagle 70 TransmissionDUB, 55mm CL, 34T |
| Cassette | SRAM Eagle XS 1270 V2 Transmission 10-52 |
| Chain | SRAM CN Eagle 70 Transmission |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Brakes | Shimano MT401 Disc Brake |
| Rotors | Shimano SM-RT10 CL, 180/F and 160/R |
| Seatpost | Syncros, 31.6x400mm |
| Saddle | Syncros Belcarra V2.5 Cut Out |
| Extras | Spirgrips+ Inner Bar ends |
| Weight | 11.4 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 600.3 | 604.9 | 618.9 | 628.1 |
| Reach | 418.5 | 442.3 | 463.6 | 491.2 |
| Headtube Angle | 67.9 | 67.9 | 67.9 | 67.9 |
| Headtube Length | 90 | 95 | 110 | 120 |
| Seattube Angle | 75.4 | 75.4 | 75.3 | 75.3 |
| Seattube Length | 390 | 440 | 480 | 530 |
| Toptube (Effective) | 575 | 600.2 | 626 | 656.5 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1105.4 | 1131.1 | 1158 | 1189.4 |
| BB Drop | -62 | -62 | -62 | -62 |
| BB Height | 313 | 313 | 313 | 313 |
| Standover | 752 | 781 | 800 | 835.1 |
| Fork Length | 506 | 506 | 506 | 506 |
| Trail | 105 | 105 | 105 | 105 |
| Stem Length | 50 | 60 | 70 | 80 |
| Maximum Seatpost Insertion | 160 | 210 | 250 | 300 |
| Crank Length | 170 | 170 | 175 | 175 |
