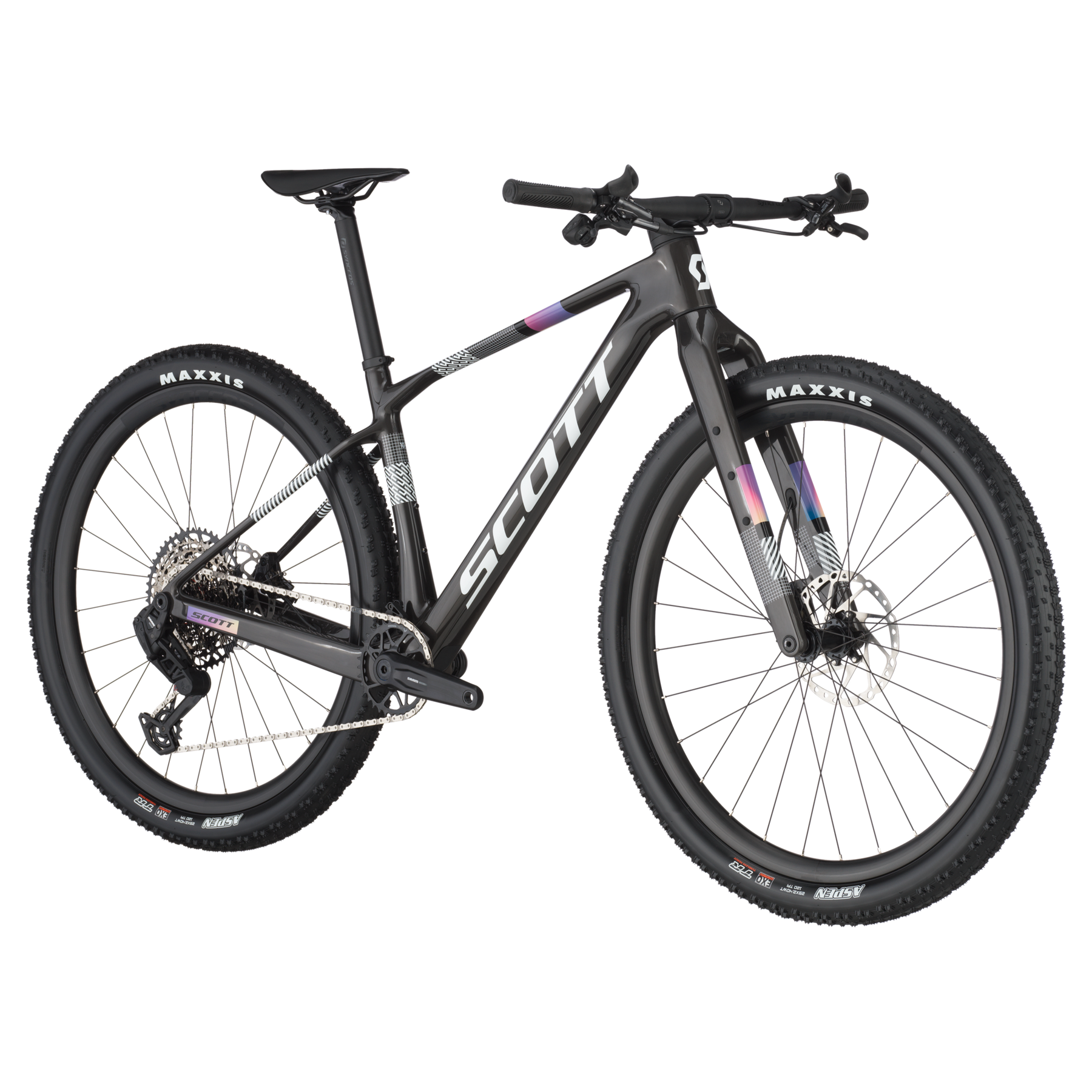

Scott Scale Gravel 10 Hardtail Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Scale Gravel 10 Hardtail Mountain Bike
Carbon Black / S / KH
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The all-new Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Specifications
| Frame | Scale Carbon HMF, Adjustable head angle / Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | Scale Rigid HMF, Postmount Disc Standard, Tapered Carbon steerer |
| Rear Derailleur | SRAM S1000 Eagle AXS Transmission 12 SpeedWireless Electronic Shift System |
| Shifter | SRAM AXS Pod Controller |
| Front Brake | Shimano Deore M6100 Disc |
| Rear Brake | Shimano Deore M6100 Disc |
| Rotors | front: Shimano SM-RT64 CL / 180mmRear: Shimano SM-RT64 CL / 160mm |
| Rims | Syncros X-28 / 28H / Tubeless ready |
| Front Hub | Formula CL-811 / 15x110mm |
| Rear Hub | Formula CL-3248 / 12x148mm |
| Spokes | Stainless Black 15G / 1.8mm |
| Front Tyre | Maxxis Aspen / 29x2.4" / 120TPI Foldable Bead, Tubeless Ready / EXO |
| Rear Tyre | Maxxis Aspen / 29x2.4" / 120TPI Foldable Bead, Tubeless Ready / EXO |
| Handlebars | Syncros Fraser 2.0 XC Alloy 6061 D.B., Flat Bar / 8° / 740mm |
| Stem | Syncros XC 2.0, Syncros Cable Integration System, -12° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Grips | Syncros Performance XC lock-on grips |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Saddle | Syncros Belcarra Regular 2.0, CRMO rails |
| Seatpost | Syncros Duncan 2.0 / 10mm offset, 31.6x400mm |
| Crankset | SRAM S1000 Eagle Transmission, DUB / 55mm CL / 34T |
| BB | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM CN GX Eagle Transmission |
| Extras |
Spirgrips+ Inner Bar ends
|
| Weight (KG) | 10,7 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 600.3 | 604.9 | 618.9 | 628.1 |
| Reach | 418.5 | 442.3 | 463.6 | 491.2 |
| Headtube Angle | 67.9 | 67.9 | 67.9 | 67.9 |
| Headtube Length | 90 | 95 | 110 | 120 |
| Seattube Angle | 75.4 | 75.4 | 75.3 | 75.3 |
| Seattube Length | 390 | 440 | 480 | 530 |
| Toptube (Effective) | 575 | 600.2 | 626 | 656.5 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1105.4 | 1131.1 | 1158 | 1189.4 |
| BB Height | 313 | 313 | 313 | 313 |
| BB Drop | 62 | 62 | 62 | 62 |
| Standover | 752 | 781 | 800 | 835.1 |
| Trail | 105 | 105 | 105 | 105 |
| Stem Length | 50 | 60 | 70 | 80 |
| Fork Length | 506 | 506 | 506 | 506 |
| Crank Length | 170 | 170 | 175 | 175 |
| Maximum Seatpost Insertion | 160 | 210 | 250 | 300 |
