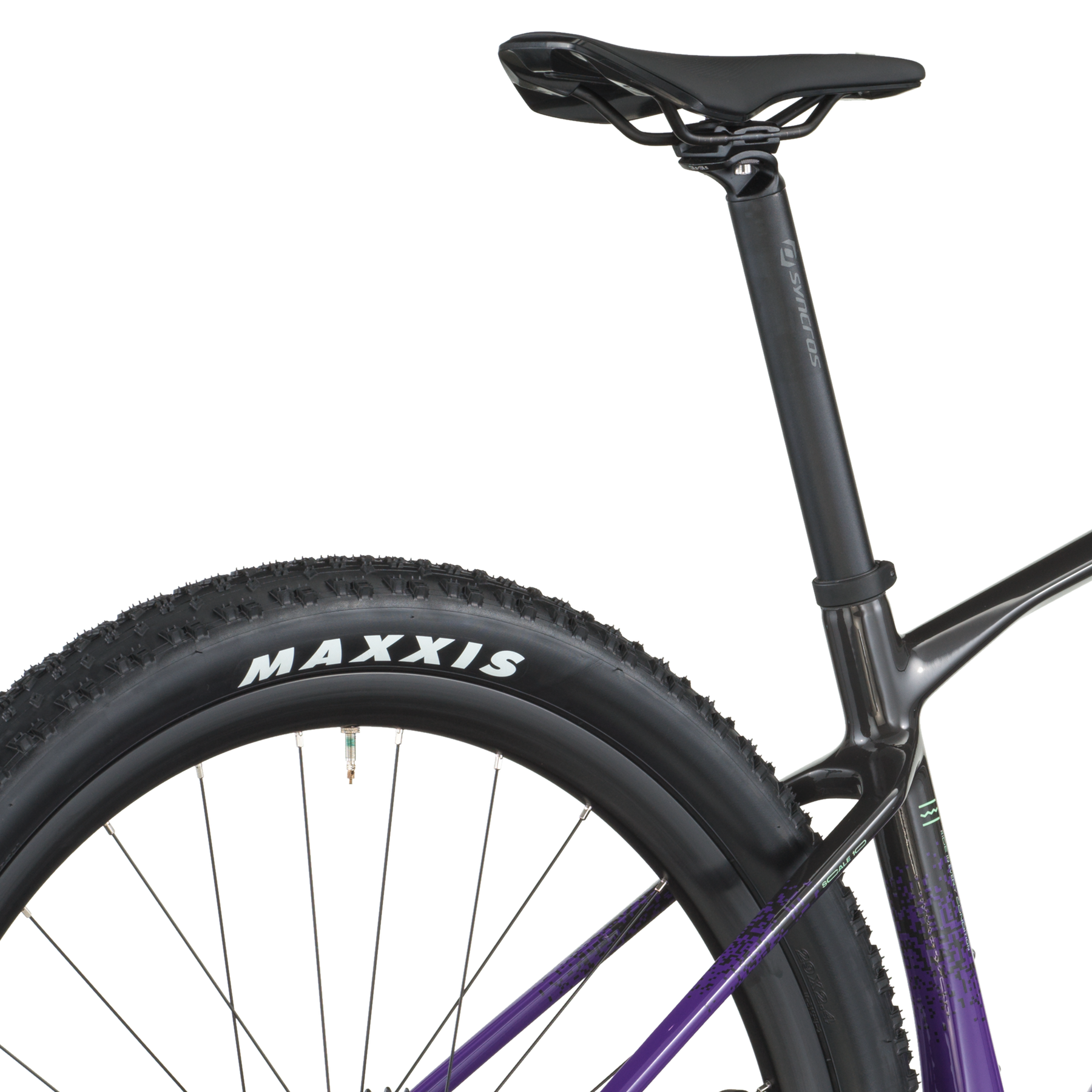

Scott Scale Gravel 10 Gravel Bike 2026
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Scale Gravel 10 Gravel Bike 2026
Carbon Black/Indigo Purple / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice.
Specifications
| Frame | Scale Carbon HMFAdjustable head angle, Syncros Cable Integration SystemAdvanced Shock & Standing Damping SystemBB92, UDH Interface, 12x148mm with 55mm Chainline |
|---|---|
| Fork | Scale Rigid HMFPostmount Disc StandardTapered Carbon steerer |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB |
| Stem | Syncros XC 2.0Syncros Cable Integration System-12° rise, 6061 Alloy, 31.8mm, 1 1/8" |
| Handlebars | Syncros Fraser 2.0 XC Alloy 6061 D.B.Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips |
| Rims | Syncros X-28, 28H, Tubeless ready |
| Hubs | Formula CL-811, 15x110mm, Formula CL-3248, 12x148mm |
| Spokes | Stainless Black 15G, 1.8mm |
| Tyres | Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO |
| Shifter | ShiftersSRAM AXS Pod Controller |
| Rear Derailleur | SRAM S1000 Eagle AXS Transmission 12 SpeedWireless Electronic Shift System |
| Crankset | SRAM Eagle 70 TransmissionDUB, 55mm CL, 34T |
| Cassette | SRAM Eagle XS 1270 V2 Transmission 10-52 |
| Chain | SRAM CN Eagle 70 Transmission |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Brakes | SRAM DB6 4-Piston Disc |
| Rotors | SRAM Centerline CL Rotors 180/F and 160/R |
| Seatpost | Syncros Duncan 2.0, 10mm offset31.6x400mm |
| Saddle | Syncros Belcarra V2.0 Cut OutCRMO rails |
| Extras | SRAM AXS Powerpack, Spirgrips+ Inner Bar ends |
| Weight | 10.5 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 600.3 | 604.9 | 618.9 | 628.1 |
| Reach | 418.5 | 442.3 | 463.6 | 491.2 |
| Headtube Angle | 67.9 | 67.9 | 67.9 | 67.9 |
| Headtube Length | 90 | 95 | 110 | 120 |
| Seattube Angle | 75.4 | 75.4 | 75.3 | 75.3 |
| Seattube Length | 390 | 440 | 480 | 530 |
| Toptube (Effective) | 575 | 600.2 | 626 | 656.5 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1105.4 | 1131.1 | 1158 | 1189.4 |
| BB Drop | -62 | -62 | -62 | -62 |
| BB Height | 313 | 313 | 313 | 313 |
| Standover | 752 | 781 | 800 | 835.1 |
| Fork Length | 506 | 506 | 506 | 506 |
| Trail | 105 | 105 | 105 | 105 |
| Stem Length | 50 | 60 | 70 | 80 |
| Maximum Seatpost Insertion | 160 | 210 | 250 | 300 |
| Crank Length | 170 | 170 | 175 | 175 |
