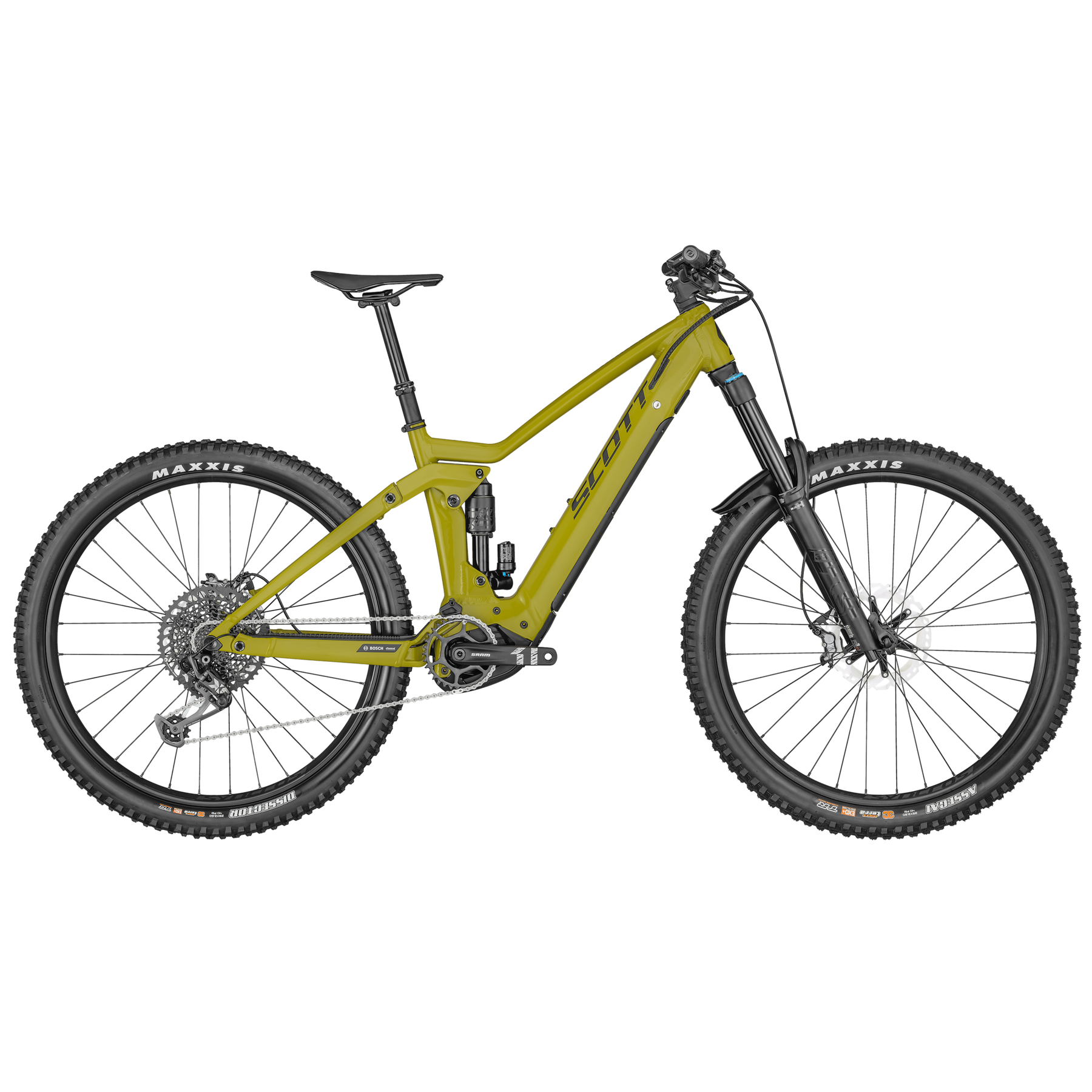

Scott Ransom eRIDE 910 Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Having won nearly every test in which it was featured, there was only one thing we could do to make the Ransom more fun and versatile: make an E-Bike version. Ransom eRIDE - more ups, more down, more hoots, more hollers, more Ransom.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Alloy Frame / Virtual 4 link kinematic VLK, 27.5" and 29" compatible / geo adj. / Boost 148x12mm, 180mm travel / Bosch Gen4 / Integr. removable Battery, Tapered Headtube E2, Central Kickstand Mount |
|---|---|
| fork | FOX 38 Performance Elite / Air / eMTB+, FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle, tapered steerer / Reb. Adj. / 180mm travel |
| rear-shock | FOX Float X2 Performance / Air, LSC, LSR w/2-Pos. lever |
| derailleur | SRAM X01 Eagle / 12 Speed |
| shift-levers | SRAM NX Eagle Single Click |
| front-derailleur | |
| brake-front | Shimano XT / BR-M8120 4 Piston |
| brake-rear | Shimano XT / BR-M8120 4 Piston |
| brake-disc-front | RT-MT800 CL 203mm |
| brake-disc-rear | RT-EM810 CL 203mm |
| wheelset | |
| rims | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| tire-front | Maxxis Assegai 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | Formula CL-811 / 15x110mm |
| hub-rear | Formula ECT-1481 / Boost 148x12mm |
| spokes | Stainless Black |
| handlebar | Syncros Hixon 1.5 Rise / Alloy 2014D.B., 20mm rise / 8° / 800mm |
| stem | Syncros XM1.5 / Alloy 6061, integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
| headset | Acros Blocklock / Tapered 1.5"-1 1/8", OD 52/62mm / ID 44/56mm |
| grips | Syncros Pro lock-on grips |
| saddle | Syncros Tofino 1.5 Regular, Titanium rails |
| seat-post | FOX Transfer Dropper Post, 31.6mm / S size 125mm / M size 150mm / size 175mm / XL size 200mm |
| crankset | SRAM X1 1000 / 165mm / 34T |
| bottom-bracket | |
| Chain | SRAM NX Eagle |
| Cassette | SRAM XG1275 / 10-52 T |
| Pedals | |
| motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| battery | PowerTube 625Wh |
| display | Bosch Purion |
| charger | 4A Charger |
Specifications
| stack | 640 |
|---|---|
| reach | 422 |
| seat-tube-length | 420 |
| seat-tube-angle | 77,2 |
| top-tube-length | 570 |
| head-tube-length | 120 |
| head-tube-angle | 64 |
| stem-length | 50 |
| handlebar-width | 800 |
| wheelbase | 1228 |
| standover | 753 |
| chainstay-length | 463 |
| fork-rake | 42 |
| bottom-bracket-height | 349 |
| bottom-bracket-drop | 13 |
