Scott
Scott Ransom 910 2023
Color:
Color
Size:
Size
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Ransom 910 2023
Black / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin

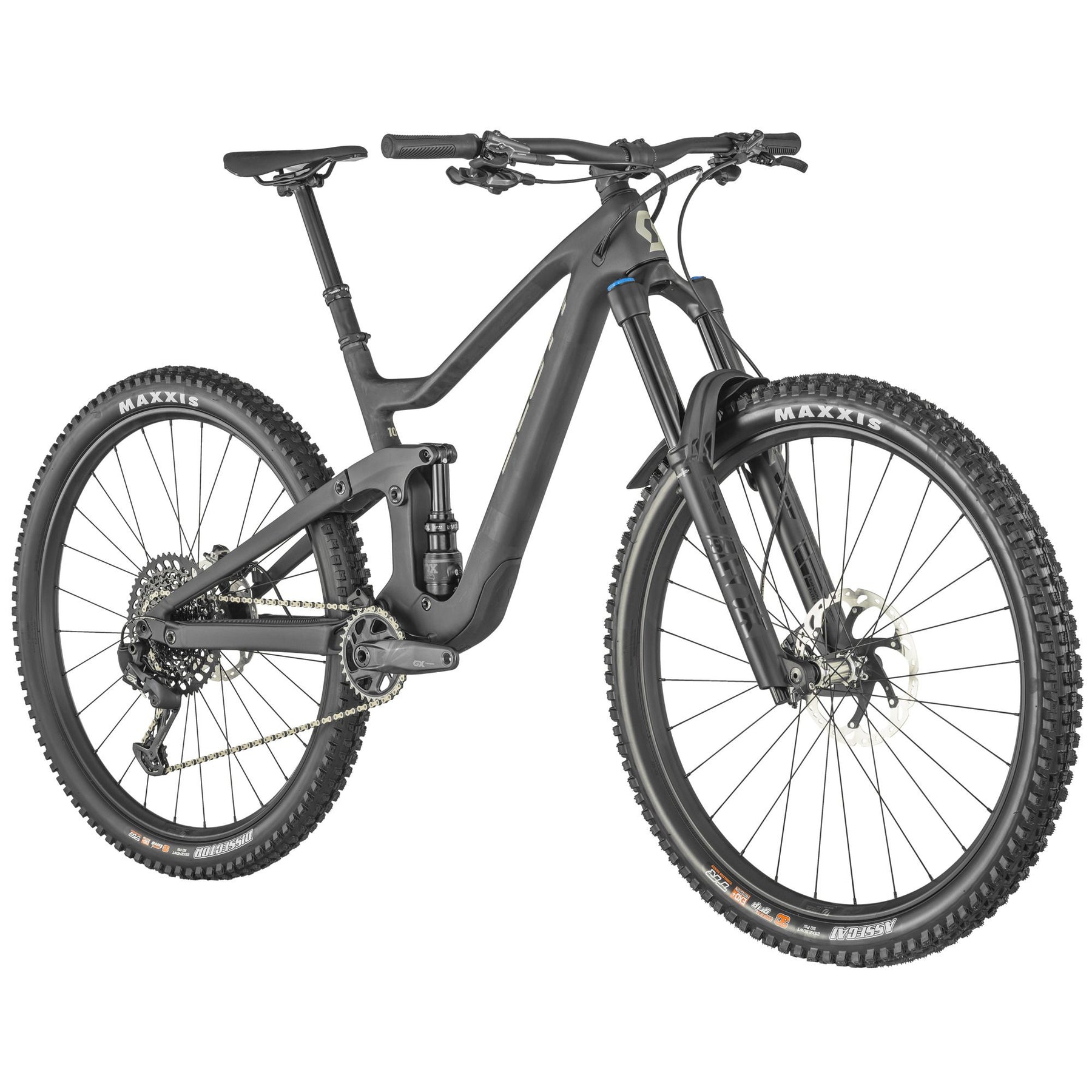

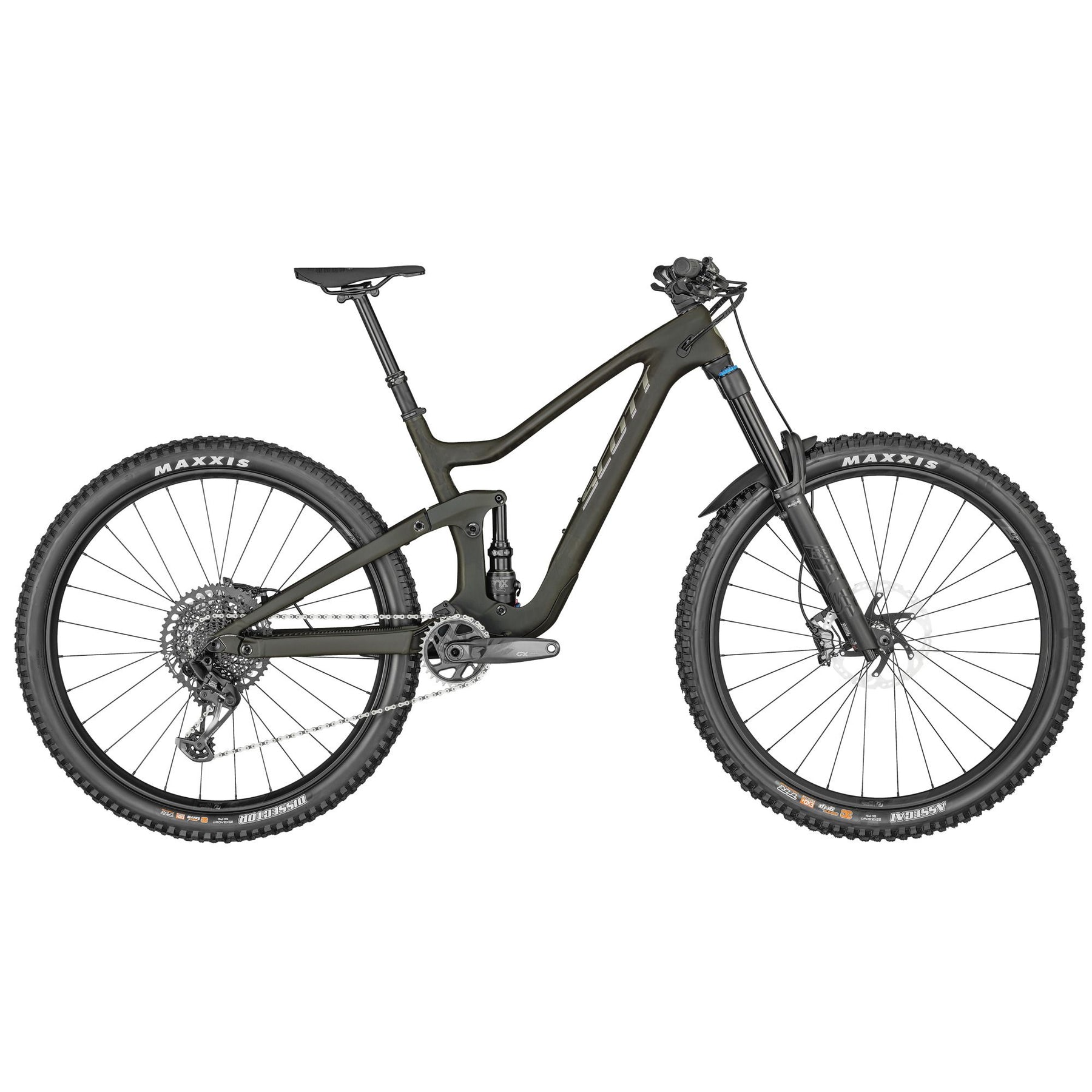

+3532840609The Ransom. This Enduro Mountain Bike features 170mm of trail munchin', climb crushing, stage winning all day pinning mountain biking excellence. The 910 comes equipped with a FOX 38 fork, our TracLoc Suspension System, a SRAM Eagle groupset and Syncros components to help you get away with murder, regardless of your ability level.
Specifications
| Frame | Ransom Carbon / IMP Technology / HMX Main FrameBB92 / Alloy SL 6011 swingarmVLK Virtual 4 Link kinematic27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj.SW dropouts for Boost 12x148mmTBC Trunnion box construction |
|---|---|
| Fork | FOX 38 Float Performance Elite Grip 2 AirHSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle44mm offset / tapered steerer170mm travel |
| Rear Shock | FOX NUDE TR EVOL TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-Descendcustom Ramp Adjust with linear and progressive settingDPS / Reb. Adj.Travel 170-120-Lockout / 205X65m |
| Remote System | TracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes |
| Headset | Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8"OD 50/62mm / ID 44/56mm |
| Stem | Syncros XM1.5 / Alloy 6061integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
| Handlebars | Syncros Hixon 1.5 Rise / Alloy 20140D.B.20mm rise / 8° / 780mm Syncros Pro lock-on grips |
| Wheels | Syncros Revelstoke 2.0 6 BoltF: 15x110mm, R: 12x148mm Boost30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Lever with Tool |
| Front Tyre | Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp |
| Rear Tyre | Maxxis Dissector / 2.4" / 120TPI Foldable / EXO+/ TR / 3C Maxx Terra |
| Shifter | SRAM GX Eagle Trigger |
| Rear Derailleur | SRAM GX Eagle 12 Speed |
| Crankset | SRAM GX Eagle DUB Boost 32T |
| Cassette | SRAM GX / XG1275 / 10-52 T |
| Chain | SRAM CN GX Eagle |
| Bottom Bracket | SRAM DUB PF integrated / shell 41x92mm |
| Chainguide | SCOTT Chainguide |
| Brakes | Shimano XT M8120 4 Piston Disc |
| Rotors | Shimano SM-RT76 / 6 Bolt / 203/F and 180/R |
| Seatpost | FOX Transfer Performance Elite Dropper Post31.6mm / S 125mm / M 150mm / L & XL 175mm |
| Saddle |
Syncros Kaslo 1.5 Titanium Rails
|
| Weight | 14.4 (with tubes) |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| A. head tube angle | 64.5 | 64.5 | 64.5 | 64.5 |
| B. head tube length | 100 | 100 | 115 | 130 |
| C. top tube horizontal | 571.1 | 604.2 | 634.7 | 671.3 |
| D. standover height | 744.6 | 746.3 | 760.9 | 776.5 |
| E. BB offset | 22 | 22 | 22 | 22 |
| F. BB height | 353.5 | 353.5 | 353.5 | 353.5 |
| G. wheel base | 1182.9 | 1215.9 | 1249.2 | 1288.5 |
| I. BB center to top of seattube | 420 | 440 | 470 | 500 |
| J. seat angle | >75.0 | >75.0 | >75.0 | >75.0 |
| K. chainstay | 437.9 | 437.9 | 437.9 | 437.9 |
| L. reach | 406.3 | 439.5 | 466.5 | 499.5 |
| M. stack | 613.6 | 613.6 | 627.6 | 641.3 |
| N. stem length | 50 | 50 | 50 | 50 |
| O. trail | 122.5 | 122.5 | 122.5 | 122.5 |
