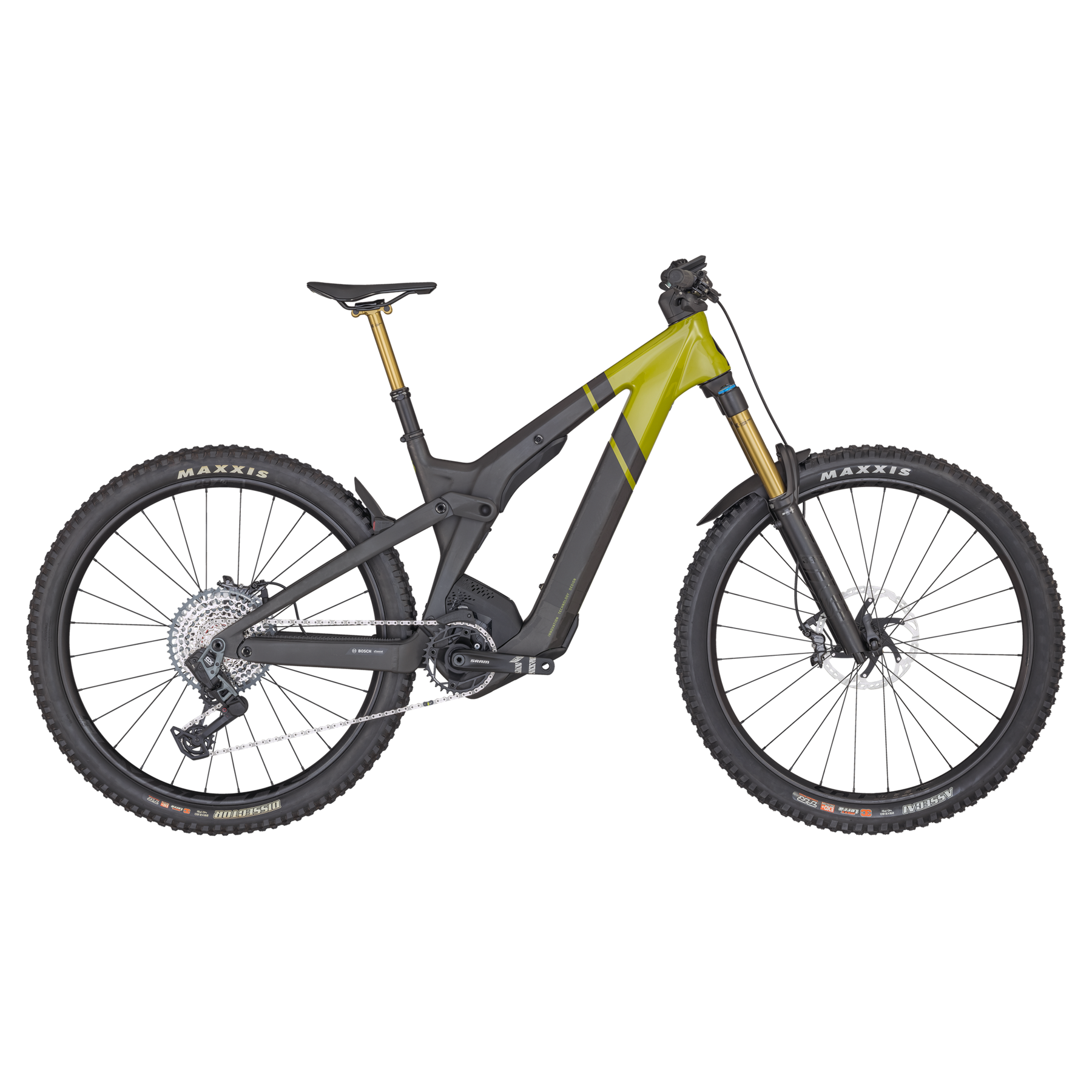

Scott Patron ST eRIDE 900 Tuned TR Electric Mountain Bike
Savana Green / S / NL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609ST for Super Trail, the Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Boss the trails!
, ,Please note that bike specifications are subject to change without prior notice
,Specifications
| frame | Carbon Main Frame & SST / Alloy CST-Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch SmartSystem / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable |
|---|---|
| fork | FOX 38 FIT Factory Grip 2 Air / Kashima, HSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm, 44mm offset / tapered steerer, 170mm travel |
| rear-shock | FOX NUDE T eRIDE EVOL Kashima / Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom large air volume / DPS / Reb. Adj., Travel 160-115-Lockout / 205X60mm |
| derailleur | SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM GX Eagle AXS Rocker Controller |
| front-derailleur | |
| brake-front | Shimano XT / BR-M8120 4 Piston |
| brake-rear | Shimano XT / BR-M8120 4 Piston |
| brake-disc-front | RT-MT800 CL 203mm |
| brake-disc-rear | RT-EM800 CL 203mm |
| wheelset | Syncros Revelstoke-E 1.5 CL, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready rim 28H, Syncros Axle w/Removable Lever with Tool |
| rims | |
| tire-front | Maxxis Assegai 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | |
| hub-rear | |
| spokes | |
| handlebar | Syncros Hixon iC SL / 15mm Rise / integrated cockpit, S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension, 7° backsweep / 6° upsweep |
| stem | |
| headset | Acros / 1.8", ZS66 OD74 / integr. Cable |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 1.5 Regular, Titanium rails |
| seat-post | FOX Transfer Factory Dropper Post Kashima, 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm |
| crankset | SRAM X1 1000 / 165mm |
| bottom-bracket | |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM GX Eagle XS 1275 Transmission 10-52T |
| Pedals | |
| motor | Bosch Performance CX-R, EU: 25kmh / INT: 20mph |
| battery | PowerTube 750Wh |
| display | Bosch LED Remote & Kiox 300 |
| charger | 4A Charger |
Specifications
| stack | 635 |
|---|---|
| reach | 433 |
| seat-tube-length | 411 |
| seat-tube-angle | 77 |
| top-tube-length | 579 |
| head-tube-length | 120 |
| head-tube-angle | 64,5 |
| stem-length | 40 |
| handlebar-width | |
| wheelbase | 1222 |
| standover | 766 |
| chainstay-length | 454 |
| fork-rake | 42 |
| bottom-bracket-height | 347 |
| bottom-bracket-drop | 30 |
