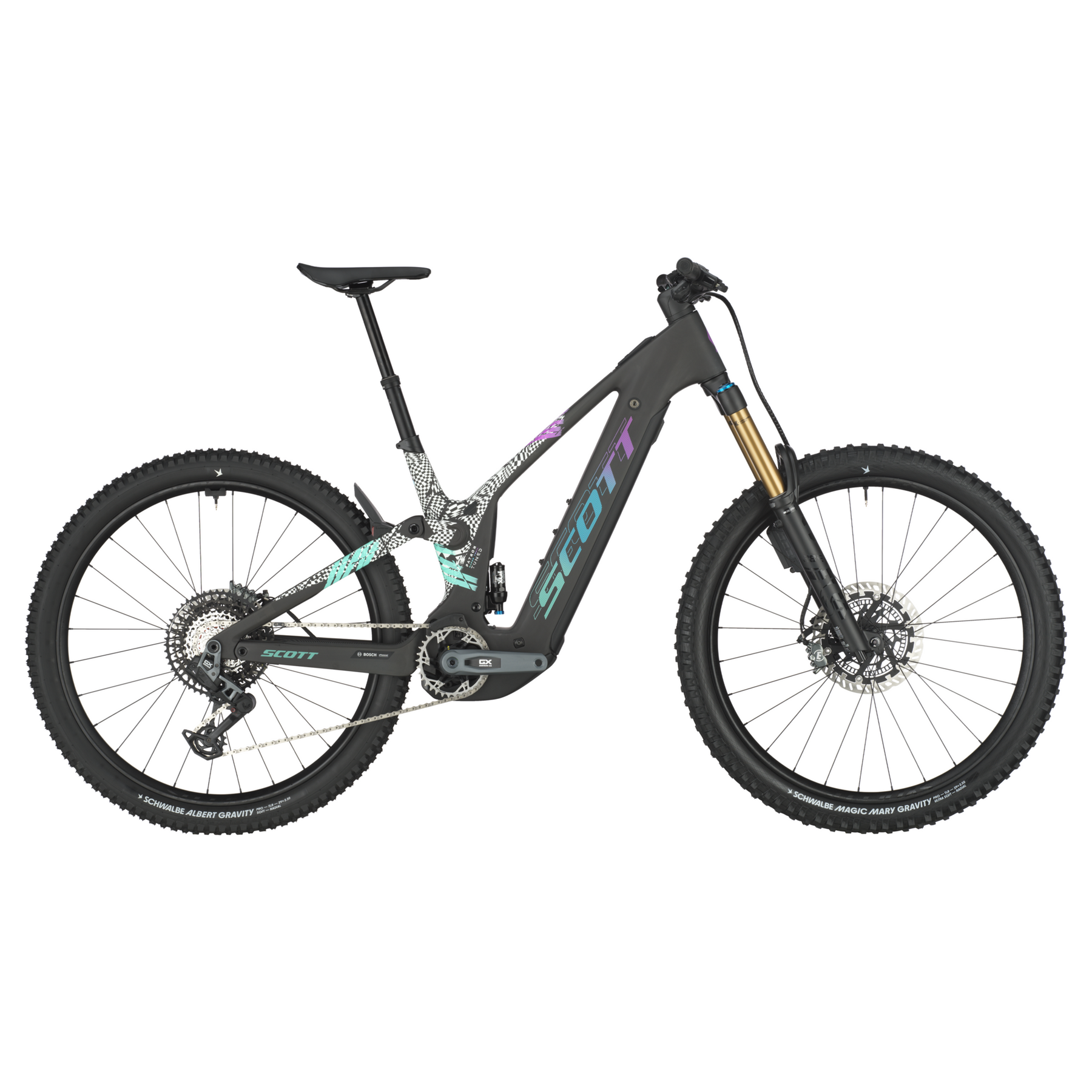

Scott Patron ST 900 Tuned Electric Mountain Bike
Carbon Black / S / NL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The strength of a powerlifter, with marathon endurance and the physique of a gymnast. For the hard-charging riders looking to take on the wildest mountains, The ALL-NEW Patron eRIDE ST holsters the cutting edge of full-power moter and battery technology in an aggressive package built for singletrack domination. Harness the power. Master the trails.
Specifications
| Frame | Carbon Frame, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline, Bosch PowerMore Ready |
|---|---|
| Fork | FOX 38 Factory Grip X2 Air / Kashima, HSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm, 44mm offset / tapered steerer, 170mm travel |
| Shock | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion, Kashima / SCOTT custom w. travel / geo adj., 3 modes: Climb-Ramp Control-Descend, Custom large Air volume / Comp & Reb. Adj. Travel 150-100-Climb / T185X55mm |
| Rear Derailleur | SRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System |
| Shifter | SRAM AXS Rocker Pod Controller |
| Front Brake | Magura MT7 4 Piston / Bosch ABS Pro |
| Rear Brake | Magura MT7 4 Piston |
| Rotors | front: Magura MDR-P 220mmRear: Magura MDR-P 203mm |
| Wheels | Syncros Revelstoke-E 1.5 IS, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready rim 28H, Syncros Axle w/Removable Lever with Tool |
| Front Tyre | Schwalbe Magic Mary 29x2.5", SuperGravity / PSF / Ultra Soft, Tubeless ready, 120TPI Foldable Bead |
| Rear Tyre | Schwalbe Explore 29x2.5", SuperGravity / PSF / Soft, Tubeless ready, 120TPI Foldable Bead |
| Handlebars | Syncros Hixon iC Carbon, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm |
| Grips | Syncros Endurance lock-on grips |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Remote Lockout | TracLoc Technology, Rear Suspension & Dropper Remote, 3 Rear Suspension modes |
| Saddle | Syncros Tofino-E 1.5 Regular, Titanium rails |
| Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm, S size 140mm / M size 180mm / L size 180mm / XL size 210mm |
| Crankset | SRAM GX Eagle / Alloy |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM CN GX Eagle Transmission |
| Motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| Battery | PowerTube 800Wh |
| Display | Bosch System Controller, Mini Remote |
| Charger | 4A Charger |
| Weight (KG) | 24,3 |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 650.5 | 655.0 | 664.2 | 673.3 |
| Reach | 428.3 | 448.3 | 473.9 | 503.4 |
| Headtube Angle | 64.9 | 64.9 | 64.9 | 64.9 |
| Headtube Length | 120 | 125 | 135 | 145 |
| Seattube Angle | 76.4 | 76.3 | 76.3 | 76.3 |
| Seattube Length | 405 | 435 | 470 | 500 |
| Toptube (Effective) | 582.4 | 607.9 | 629.7 | 660.2 |
| Chainstay Length | 454 | 454 | 454 | 454 |
| Wheelbase | 1222.3 | 1244.5 | 1274.2 | 1308.0 |
| BB Height | 348.6 | 348.6 | 348.6 | 348.6 |
| BB Drop | -28.4 | -28.4 | -28.4 | -28.5 |
| Standover | 719 | 719 | 729 | 732 |
| Stem Length | 50 | 50 | 50 | 50 |
| Crank Length | 165 | 165 | 165 | 165 |
| Fork Length | 584 | 584 | 584 | 584 |
| Max Seatpost Insertion | 200 | 230 | 265 | 295 |
| Trail | 127.9 | 127.9 | 127.9 | 127.9 |
