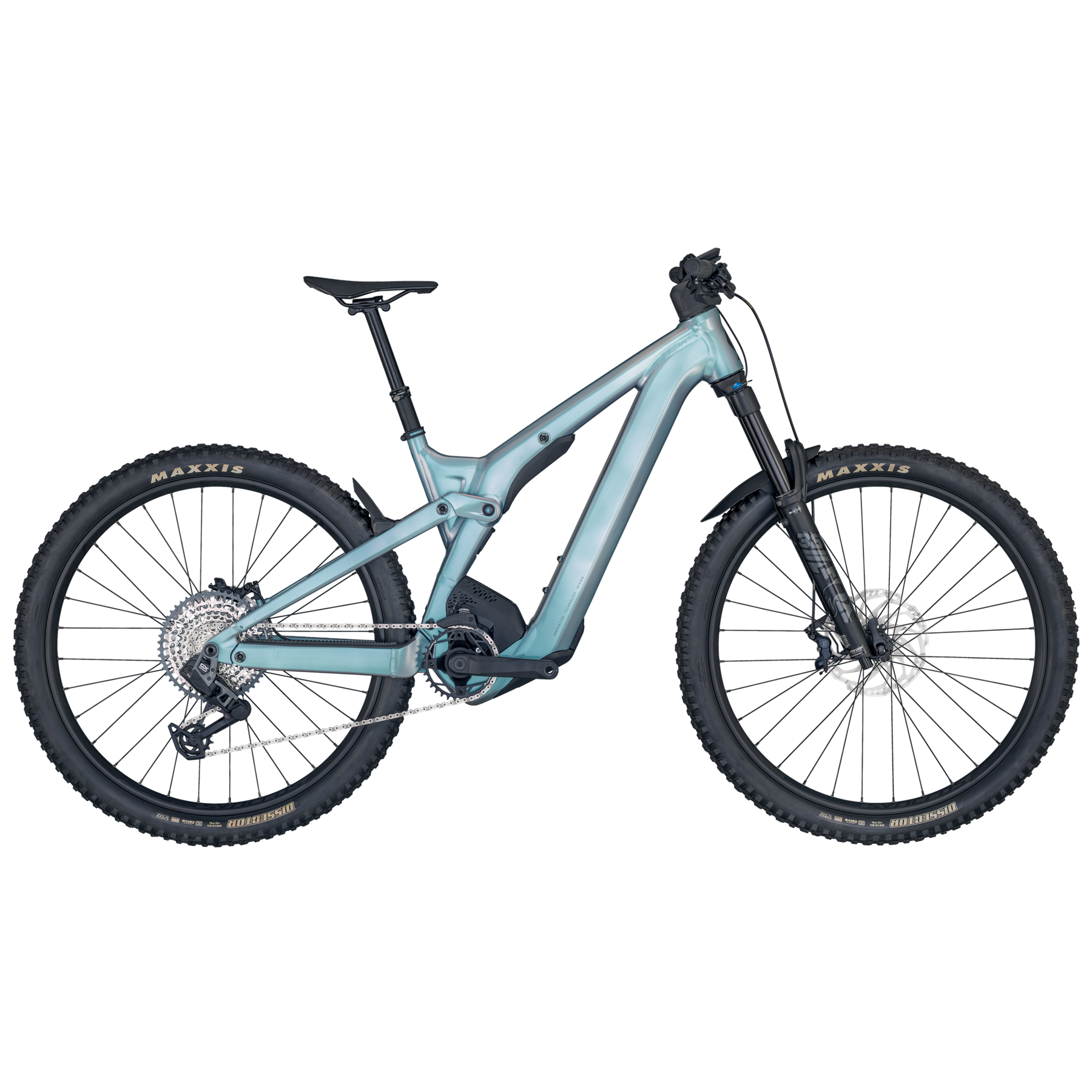

Scott Patron eRIDE 910 TR Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Patron eRIDE 910 TR Electric Mountain Bike
Prism Grey Green / S / NL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Patron eRIDE 910 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - Boss the trails.
,
, Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Alloy Frame & Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch SmartSystem / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable |
|---|---|
| fork | FOX 38 Perf. Air / eMTB+ / FIT4, 3 modes with low Speed adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel |
| rear-shock | FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj., Travel 160mm / 205x60mm |
| derailleur | SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM GX Eagle AXS Rocker Controller |
| front-derailleur | |
| brake-front | Shimano SLX / BR-M7120 4 Piston |
| brake-rear | Shimano SLX / BR-M7120 4 Piston |
| brake-disc-front | SM-RT70 CL 203mm |
| brake-disc-rear | SM-RT70 CL 203mm |
| wheelset | |
| rims | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| tire-front | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | Formula CL-811 / 15x110mm |
| hub-rear | Formula ECT-1481 / Boost 148x12mm |
| spokes | Stainless Black |
| handlebar | Syncros Hixon 1.5 / Alloy 7050D.B., 12mm rise / 9° / 780mm |
| stem | Syncros AM1.5 / 7050 Alloy, 31.8mm / 4° / 1 1/8" |
| headset | Acros / 1.8", ZS66 OD74 / integr. Cable |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 2.0 Regular |
| seat-post | FOX Transfer Dropper Post, 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm |
| crankset | FSA CK-745 165mm / 34T |
| bottom-bracket | |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM GX Eagle XS 1275 Transmission 10-52T |
| Pedals | |
| motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| battery | PowerTube 750Wh |
| display | Bosch LED Remote & Kiox 300 |
| charger | 4A Charger |
Specifications
| stack | 635 |
|---|---|
| reach | 433 |
| seat-tube-length | 411 |
| seat-tube-angle | 77 |
| top-tube-length | 579 |
| head-tube-length | 120 |
| head-tube-angle | 64,5 |
| stem-length | 40 |
| handlebar-width | |
| wheelbase | 1222 |
| standover | 766 |
| chainstay-length | 454 |
| fork-rake | 42 |
| bottom-bracket-height | 347 |
| bottom-bracket-drop | 30 |
