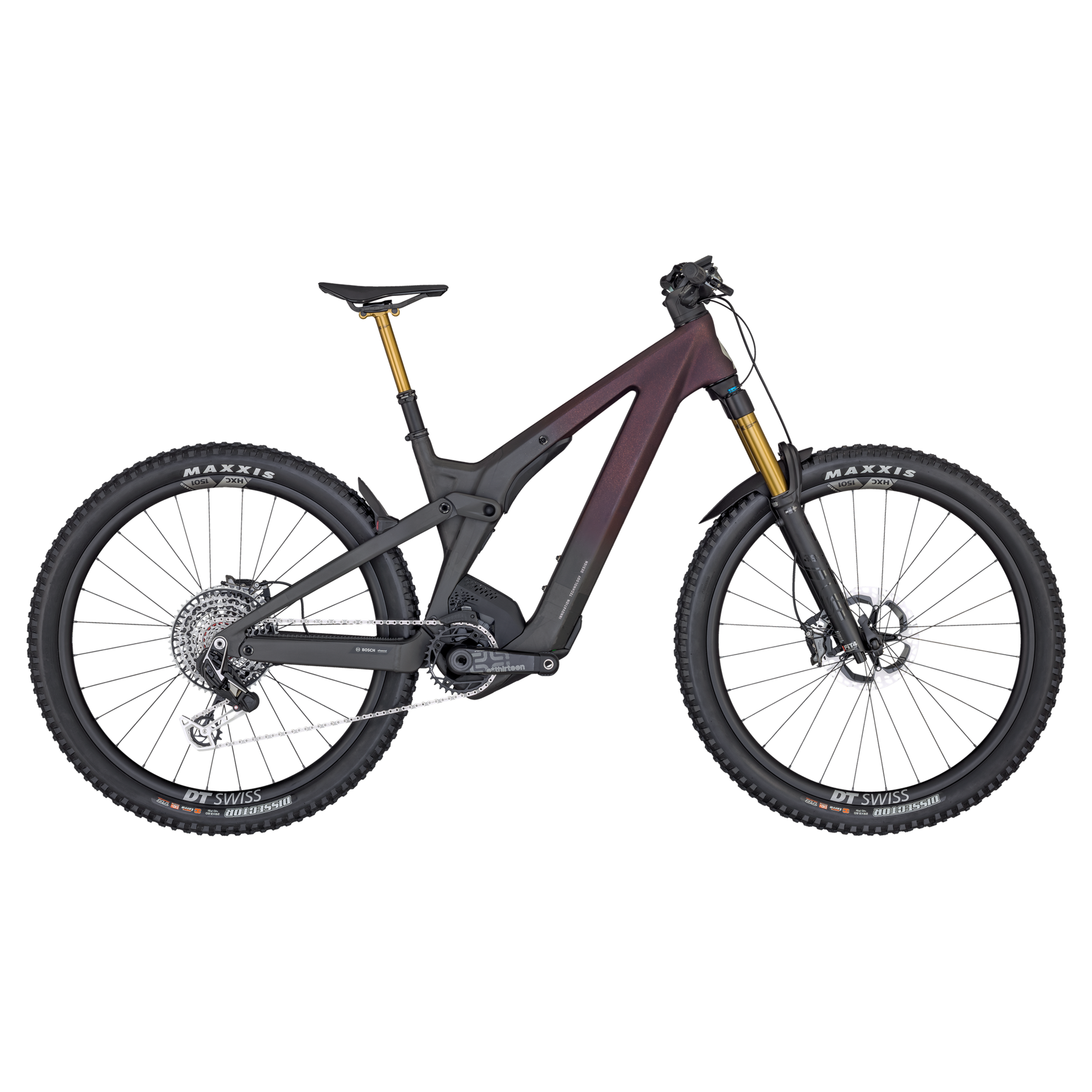

Scott Patron eRIDE 900 Ultimate TR Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
The Patron eRIDE 900 Ultimate was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - Boss the trails.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Carbon Main Frame & SST / Alloy CST-Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch SmartSystem/ Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable |
|---|---|
| fork | FOX 38 Float Factory Air / Kashima / eMTB+ / FIT4, 3 modes with low Speed adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel |
| rear-shock | FOX NUDE T eRIDE EVOL Kashima / Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom large air volume / DPS / Reb. Adj., Travel 160-115-Lockout / 205X60mm |
| derailleur | SRAM XX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM AXS Pod Ultimate Controller |
| front-derailleur | |
| brake-front | Shimano XTR / BR-M9120 4 Piston Disc |
| brake-rear | Shimano XTR / BR-M9120 4 Piston Disc |
| brake-disc-front | RT-MT900 CL 203mm |
| brake-disc-rear | RT-EM900 CL 203mm |
| wheelset | DT Swiss HXC1501 CL, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready Carbon rim 28H / XD Driver, Syncros Axle w/Removable Lever with Tool |
| rims | |
| tire-front | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| tire-rear | Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| hub-front | |
| hub-rear | |
| spokes | |
| handlebar | Syncros Hixon iC SL / 15mm Rise / integrated cockpit, S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension, 7° backsweep / 6° upsweep |
| stem | |
| headset | Acros / 1.8", ZS66 OD74 / integr. Cable |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 1.0 Regular, Carbon rails |
| seat-post | FOX Transfer Factory Dropper Post Kashima, 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm |
| crankset | e*thirteen / e*spec Race Carbon / 165mm / 34T |
| bottom-bracket | |
| Chain | SRAM CN XX Eagle Transmission |
| Cassette | SRAM XX Eagle XS 1297 Transmission 10-52T |
| Pedals | |
| motor | Bosch Performance CX-R, EU: 25kmh / INT: 20mph |
| battery | PowerTube 750Wh |
| display | Bosch LED Remote & Kiox 300 |
| charger | 4A Charger |
Specifications
| stack | 635 |
|---|---|
| reach | 433 |
| seat-tube-length | 411 |
| seat-tube-angle | 77 |
| top-tube-length | 579 |
| head-tube-length | 120 |
| head-tube-angle | 64,5 |
| stem-length | 40 |
| handlebar-width | |
| wheelbase | 1222 |
| standover | 766 |
| chainstay-length | 454 |
| fork-rake | 42 |
| bottom-bracket-height | 347 |
| bottom-bracket-drop | 30 |
