Scott Patron 900 Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Patron 900 Electric Mountain Bike
Carbon Black / S / NL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The strength of a powerlifter, with marathon endurance and the physique of a gymnast. For the mountain biker looking to unlock new zones and ride more terrain than ever, the ALL-NEW Patron eRIDE holsters the cutting edge of full-power moter and battery technology in a package built for singletrack domination. Harness the power. Master the trails.
Specifications
| Frame | Carbon Main Frame / Alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline, Bosch PowerMore Ready |
|---|---|
| Fork | FOX 36 Perf. Air / eMTB+ / Grip / Comp & Reb Adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / 150mm travel |
| Shock | FOX NUDE 6T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Low Speed Adj. / Custom large Air volume / Reb. Adj., Bearing Hardware / Travel 150-100-Lockout / T185X55mm |
| Rear Derailleur | SRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System |
| Shifter | SRAM AXS Pod Controller |

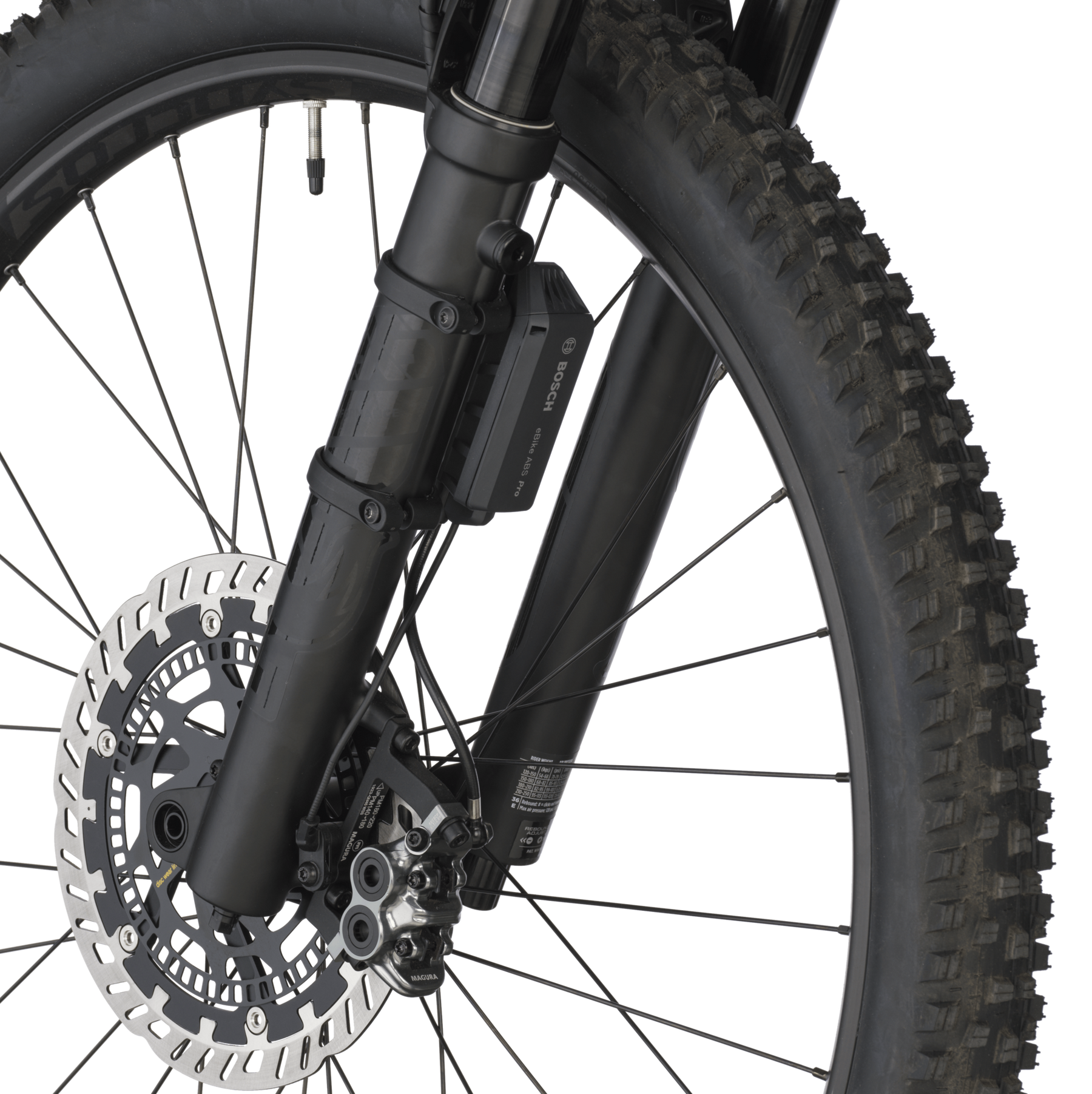

| Front Brake | Magura MT7 4 Piston / Bosch ABS Pro |
| Rear Brake | Magura MT7 4 Piston |
| Rotors | front: Magura MDR-P 220mmRear: Magura MDR-P 203mm |
| Rims | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| Front Hub | Formula DC-711 / 15x110mm |
| Rear Hub | Formula EHT-1481 / Boost 148x12mm |
| Spokes | Stainless Black |
| Front Tyre | Maxxis Forekaster 29x2.6", 120TPI Foldable Bead, EXO / TR Tubeless ready, 3C Maxx Terra |
| Rear Tyre | Maxxis Forekaster 29x2.6", 120TPI Foldable Bead, EXO / TR Tubeless ready, 3C Maxx Terra |
| Handlebars | Syncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm |
| Stem | Syncros AM 1.5, Syncros Cable Integration System, 4° rise / 7050 Alloy / 31.8mm / 1 1/8" |
| Grips | Syncros Performance XC lock-on grips |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Remote Lockout | SCOTT TracLoc 2 Technology, Suspension & Dropper Remote, 3 modes |
| Saddle | Syncros Tofino-E 1.5 Regular, Titanium rails |
| Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm, S size 140mm / M size 180mm / L size 180mm / XL size 210mm |
| Crankset | SRAM GX Eagle / Alloy |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM CN GX Eagle Transmission |

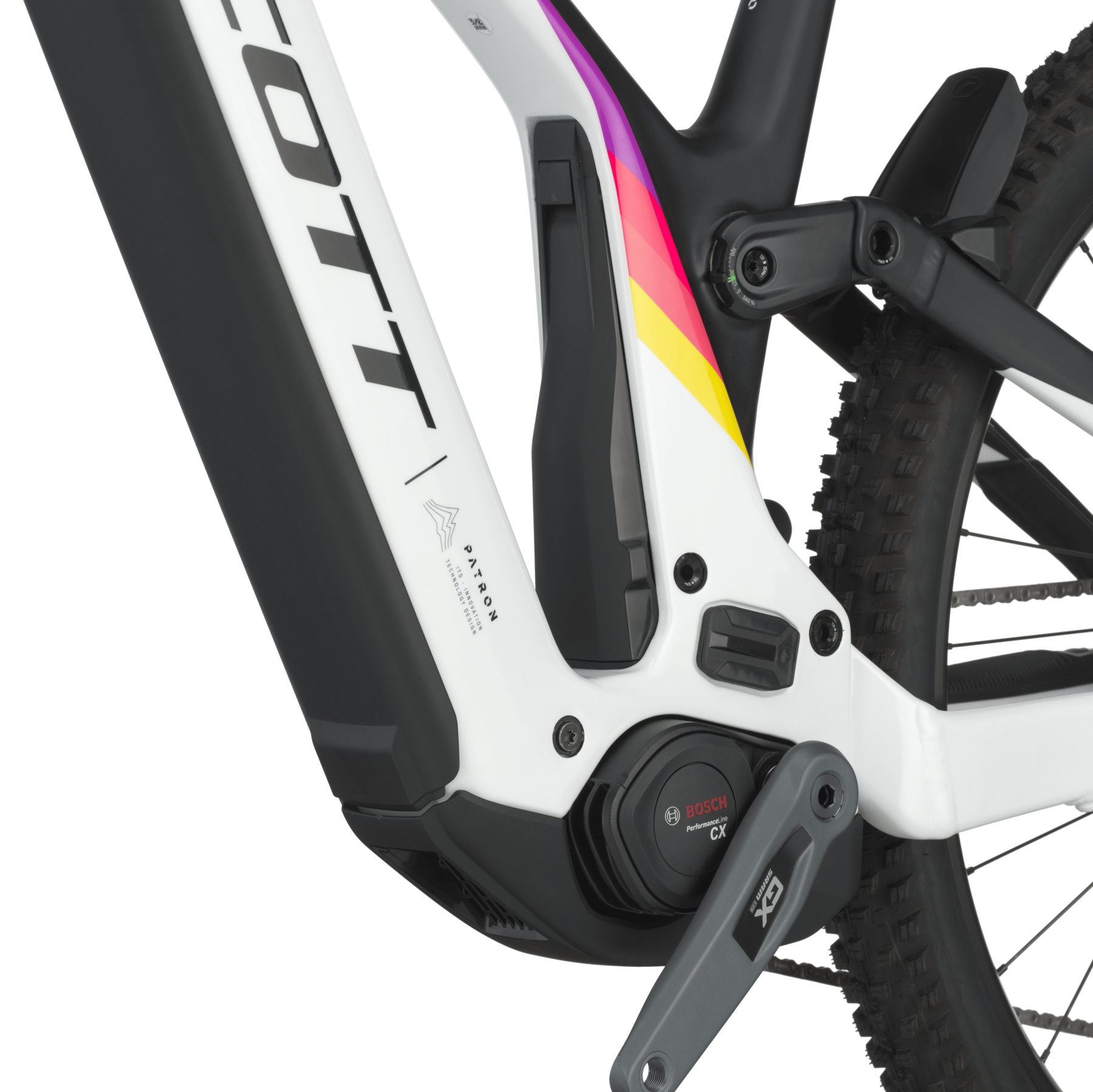

| Motor | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| Battery | PowerTube 800Wh |
| Display | Bosch System Controller, Mini Remote & Kiox 300 |
| Charger | 4A Charger |
| Weight (KG) | 24,4 |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 650.5 | 655.0 | 664.2 | 673.3 |
| Reach | 428.3 | 448.3 | 473.9 | 503.4 |
| Headtube Angle | 64.9 | 64.9 | 64.9 | 64.9 |
| Headtube Length | 120 | 125 | 135 | 145 |
| Seattube Angle | 76.4 | 76.3 | 76.3 | 76.3 |
| Seattube Length | 405 | 435 | 470 | 500 |
| Toptube (Effective) | 582.4 | 607.9 | 629.7 | 660.2 |
| Chainstay Length | 454 | 454 | 454 | 454 |
| Wheelbase | 1222.3 | 1244.5 | 1274.2 | 1308.0 |
| BB Height | 348.6 | 348.6 | 348.6 | 348.6 |
| BB Drop | -28.4 | -28.4 | -28.4 | -28.5 |
| Standover | 719 | 719 | 729 | 732 |
| Stem Length | 50 | 50 | 50 | 50 |
| Crank Length | 165 | 165 | 165 | 165 |
| Fork Length | 584 | 584 | 584 | 584 |
| Max Seatpost Insertion | 200 | 230 | 265 | 295 |
| Trail | 127.9 | 127.9 | 127.9 | 127.9 |
