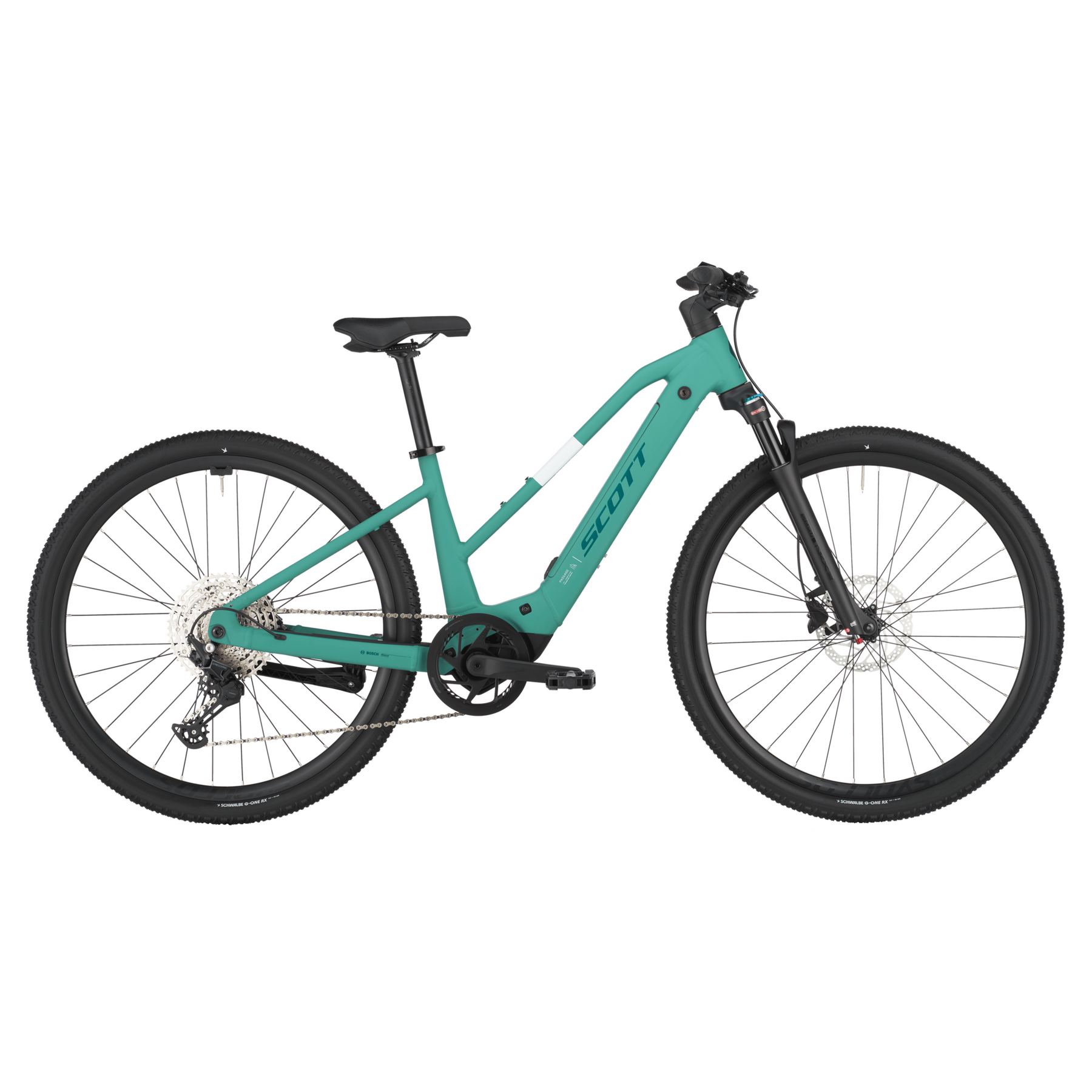

Scott Passage 20 Slope Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Passage 20 Slope Electric Hybrid Bike
Aventurine Green / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Cycling everyday is a total breeze.
Passage eRIDE is the ALL-NEW SCOTT electric urban bike designed for easy, hassle-free riding in the city.
Equipped with the lightweight Bosch SX motor and 400Wh battery it gives you a feeling of weightlessness as you ride, while giving you the power to go further. A clean Syncros cockpit completes the picture, adding even more style to Passage.
Your Passage through the city just became easier.
Specifications
| Frame | Alloy S-L=29" / 6061 Alloy custom butted tubing, Top extraction battery |
|---|---|
| Fork | SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Alloy Steerer / 75mm Travel |
| Rear Derailleur | Shimano Deore RD M6100SGS 12 Speed |
| Shifter | Shimano Deore SL-M6100RA |
| Front Brake | Shimano BR-MT200 Disc |
| Rear Brake | Shimano BR-MT200 Disc |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano SM-RT30 CL 160mm |
| Rims | Syncros X15 Disc |
| Front Hub | Shimano HBTC50015B CL / 15x100mm |
| Rear Hub | Shimano FHTC500MSB CL / 12x142mm |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe G-One RX Performance, 700x50C |
| Rear Tyre | Schwalbe G-One RX Performance, 700x50C |

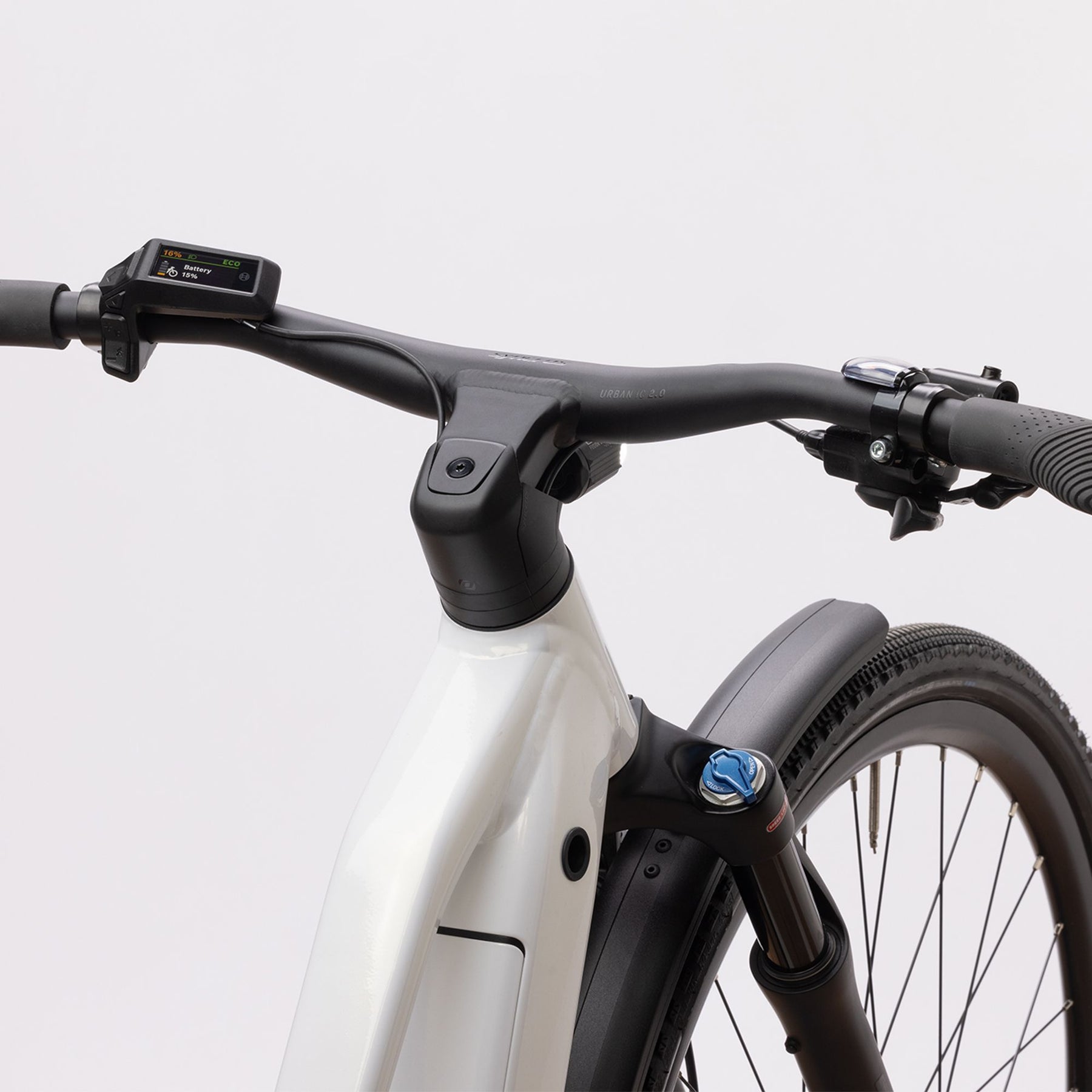

| Handlebars | Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 / 31.6 |
| Crankset | FSA CK-220 170mm |
| Chain | KMC E12S |
| Cassette | Shimano CS-M6100-12 10-51T |
| Motor | Bosch Performance SX, EU: 25kmh |
| Battery | Compact Tube 400Wh |

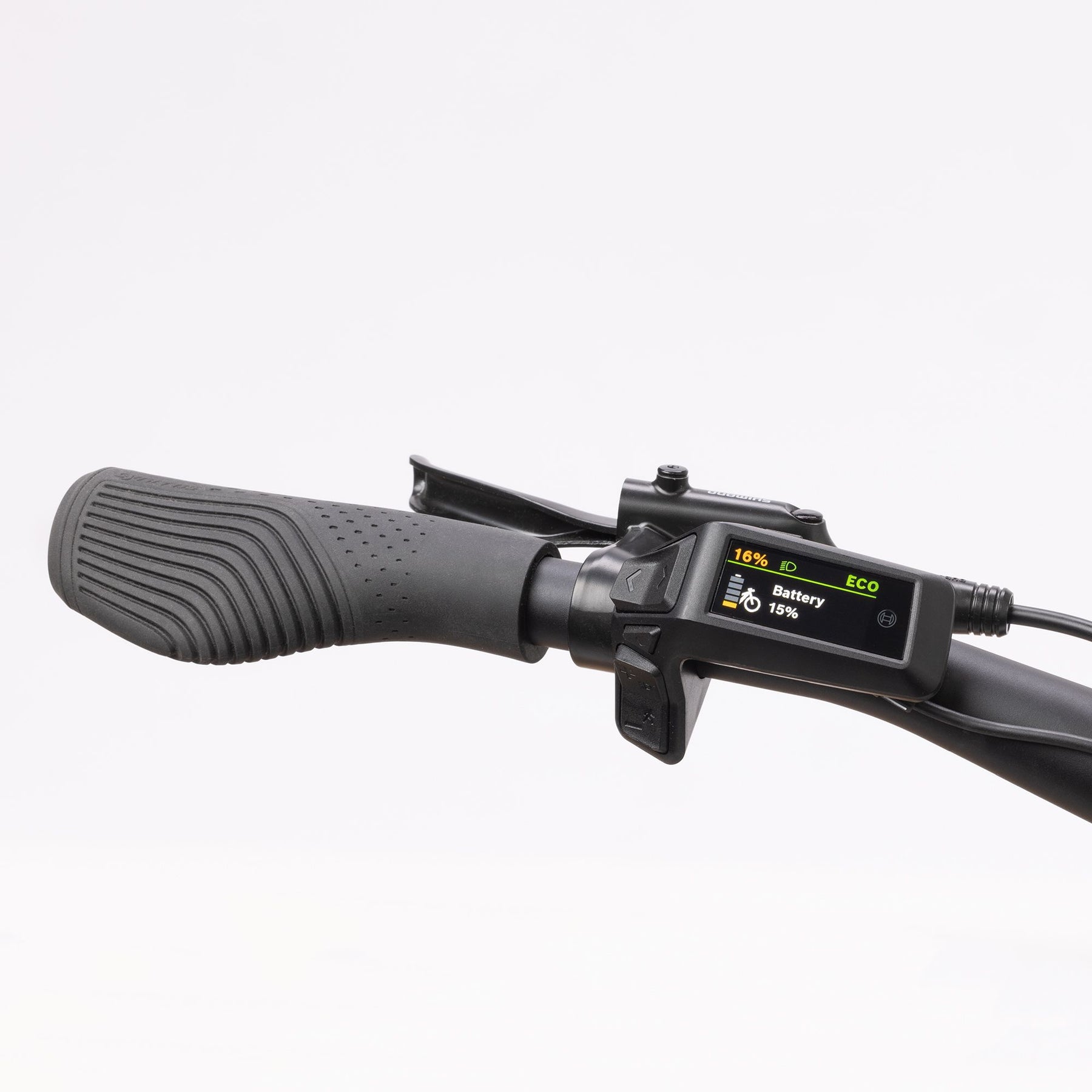

| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Weight (KG) | 20,5 |
Geometry
| S | M | L | |
|---|---|---|---|
| Stack | 599.6 | 608.9 | 618.2 |
| Reach | 419.3 | 436.8 | 454.4 |
| Headtube Angle | 68 | 68 | 68 |
| Headtube Length | 110 | 120 | 130 |
| Seattube Angle | 75 | 75 | 75 |
| Seattube Length | 400 | 440 | 490 |
| Toptube (Effective) | 580 | 600 | 620 |
| Chainstay Length | 475 | 475 | 475 |
| Wheelbase | 1160.8 | 1182.1 | 1203.3 |
| BB Height | 307 | 307 | 307 |
| BB Drop | -55 | -55 | -55 |
| Standover | 655 | 655 | 670 |
| Trail | 96.6 | 96.6 | 96.6 |
| Stem Length | 70 | 70 | 70 |
