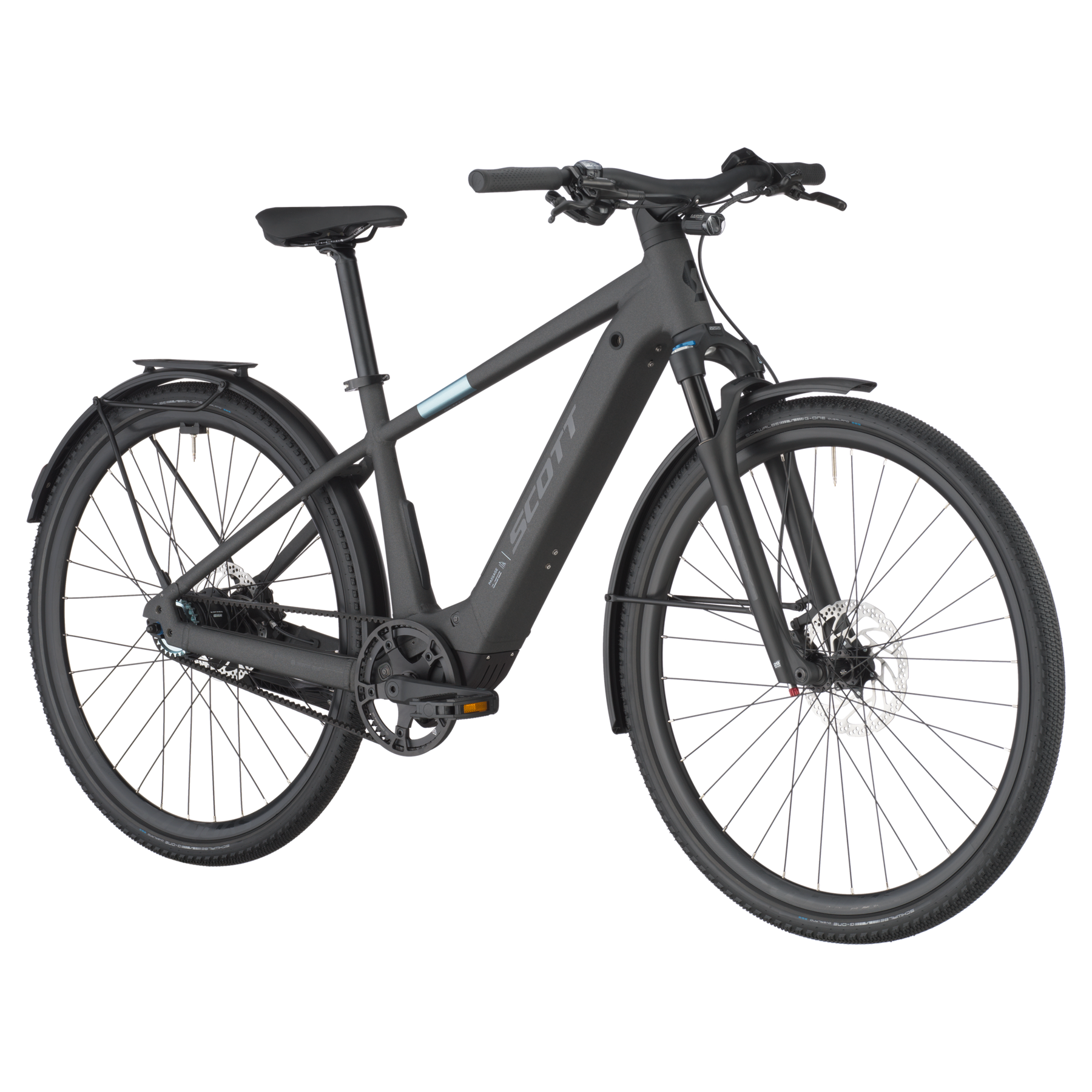

Scott Passage 10 Belt Electric Hybrid Bike
Color
Size
Model
Availability
Click & Collect
Scott Passage 10 Belt Electric Hybrid Bike
Midnight Grey / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Cycling everyday is a total breeze.
Passage eRIDE is the ALL-NEW SCOTT electric urban bike designed for easy, hassle-free riding in the city.

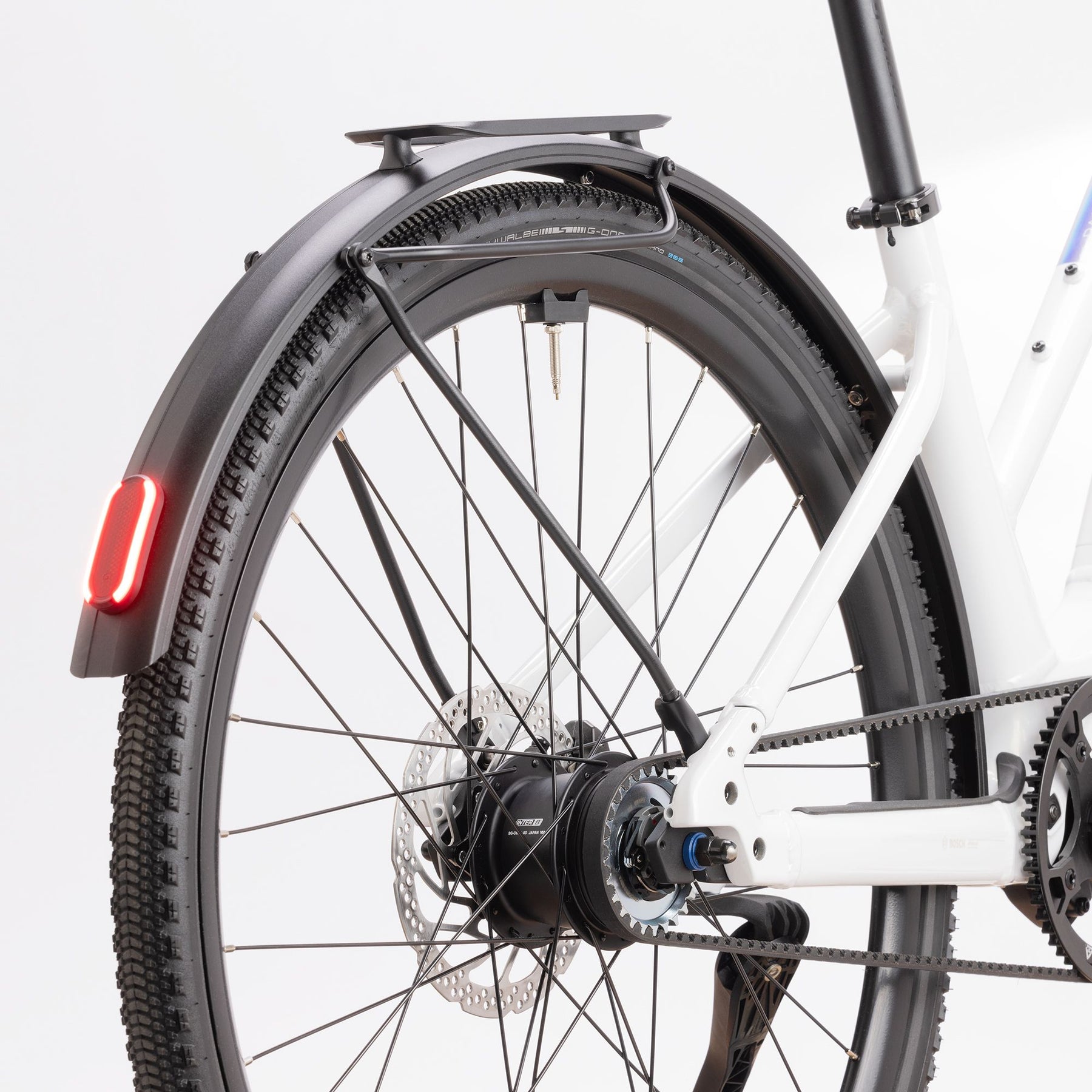

Equipped with the lightweight Bosch SX motor and 400Wh battery it gives you a feeling of weightlessness as you ride, while giving you the power to go further. A belt driven drivetrain combined with an internal gear hub results in great reliability and low maintenance. The minimalistic rear rack completes the picture allowing you to bring whatever you need on your journey.
Your Passage through the city just became easier.
Specifications
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing, Top extraction battery |
|---|---|
| Fork | SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Alloy Steerer / 75mm Travel |
| Shifter | Shimano Alfine SL-S503 Rapid Fire Plus |
| Front Brake | Shimano BR-MT200 Disc |
| Rear Brake | Shimano BR-MT200 Disc |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano SM-RT30 CL 160mm |
| Rims | Syncros X15 Disc |
| Front Hub | Shimano HBTC50015B CL / 15x100mm |
| Rear Hub | Shimano Nexus 8 Speed |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe G-One Overland 365 Performance, 700x45C |
| Rear Tyre | Schwalbe G-One Overland 365 Performance, 700x45C |
| Handlebars | Syncros Welded Alloy Combo 680mm / Back Sweep 9° / Up Sweep 8° / 70mm / with front Light mount |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 / 31.6 |
| Crankset | FSA CK-220 170mm |
| Chain | Gates CDC 125T |
| Cassette | Gates CDC 26T |
| Motor | Bosch Performance SX, EU: 25kmh |
| Battery | Compact Tube 400Wh |

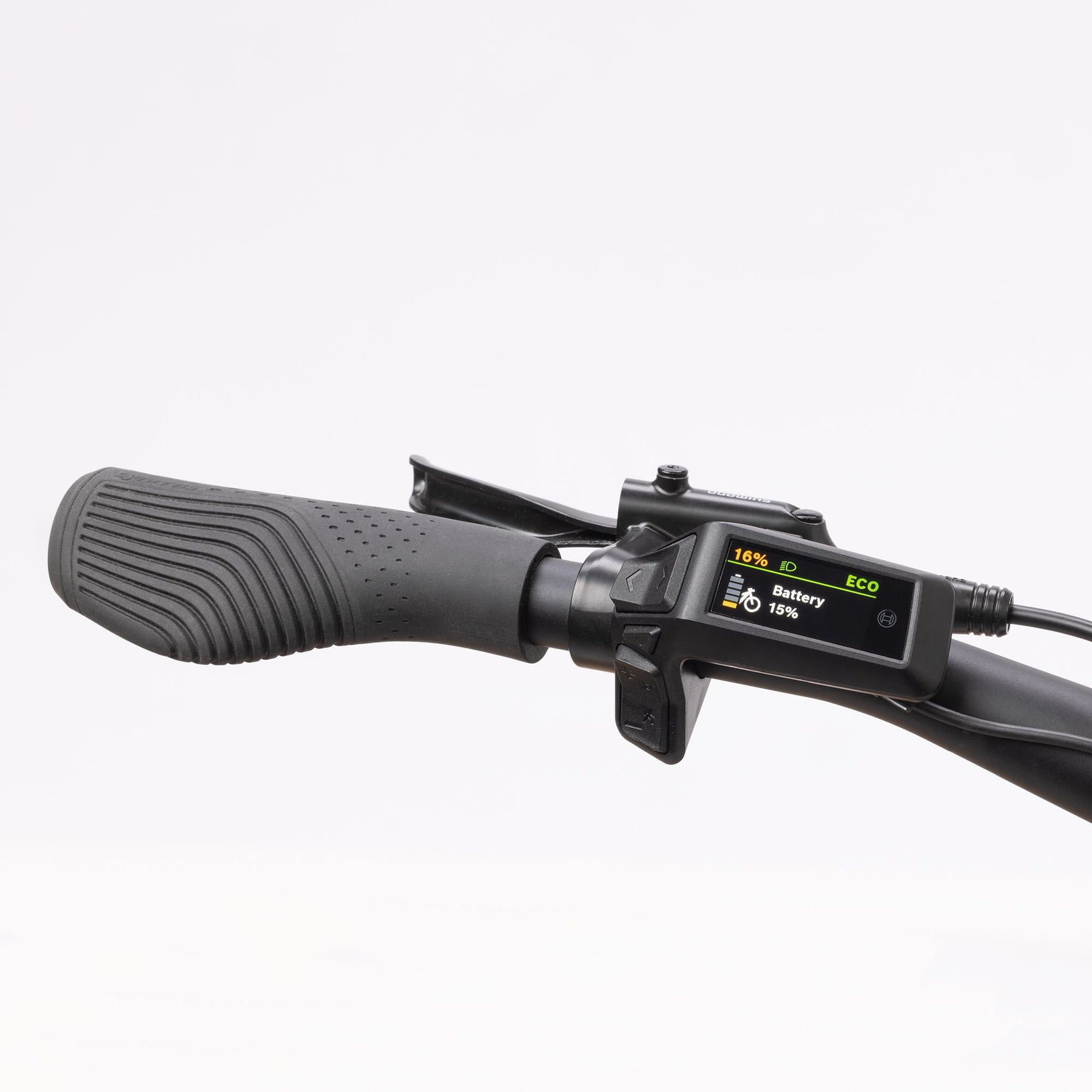

| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Weight (KG) | 21,7 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 599.6 | 608.9 | 618.2 | 636.7 |
| Reach | 419.3 | 436.8 | 454.4 | 469.4 |
| Headtube Angle | 68 | 68 | 68 | 68 |
| Headtube Length | 110 | 120 | 130 | 150 |
| Seattube Angle | 75 | 75 | 75 | 75 |
| Seattube Length | 400 | 440 | 490 | 540 |
| Toptube (Effective) | 580 | 600 | 620 | 640 |
| Chainstay Length | 475 | 475 | 475 | 475 |
| Wheelbase | 1160.8 | 1182.1 | 1203.3 | 1225.8 |
| BB Height | 307 | 307 | 307 | 307 |
| BB Drop | -55 | -55 | -55 | -55 |
| Standover | 740 | 755 | 787 | 824 |
| Trail | 96.6 | 96.6 | 96.6 | 96.6 |
| Stem Length | 70 | 70 | 70 | 70 |
