Scott

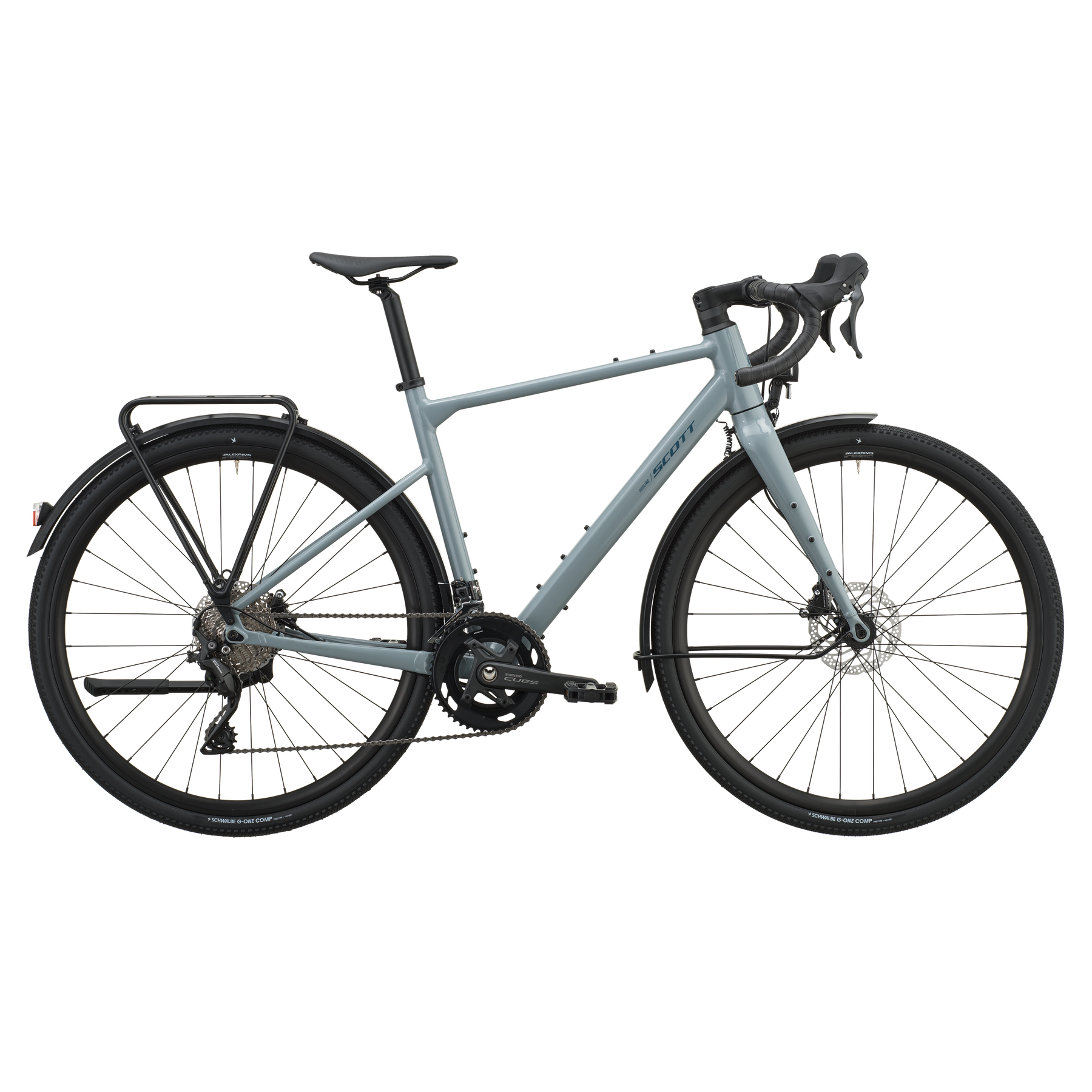

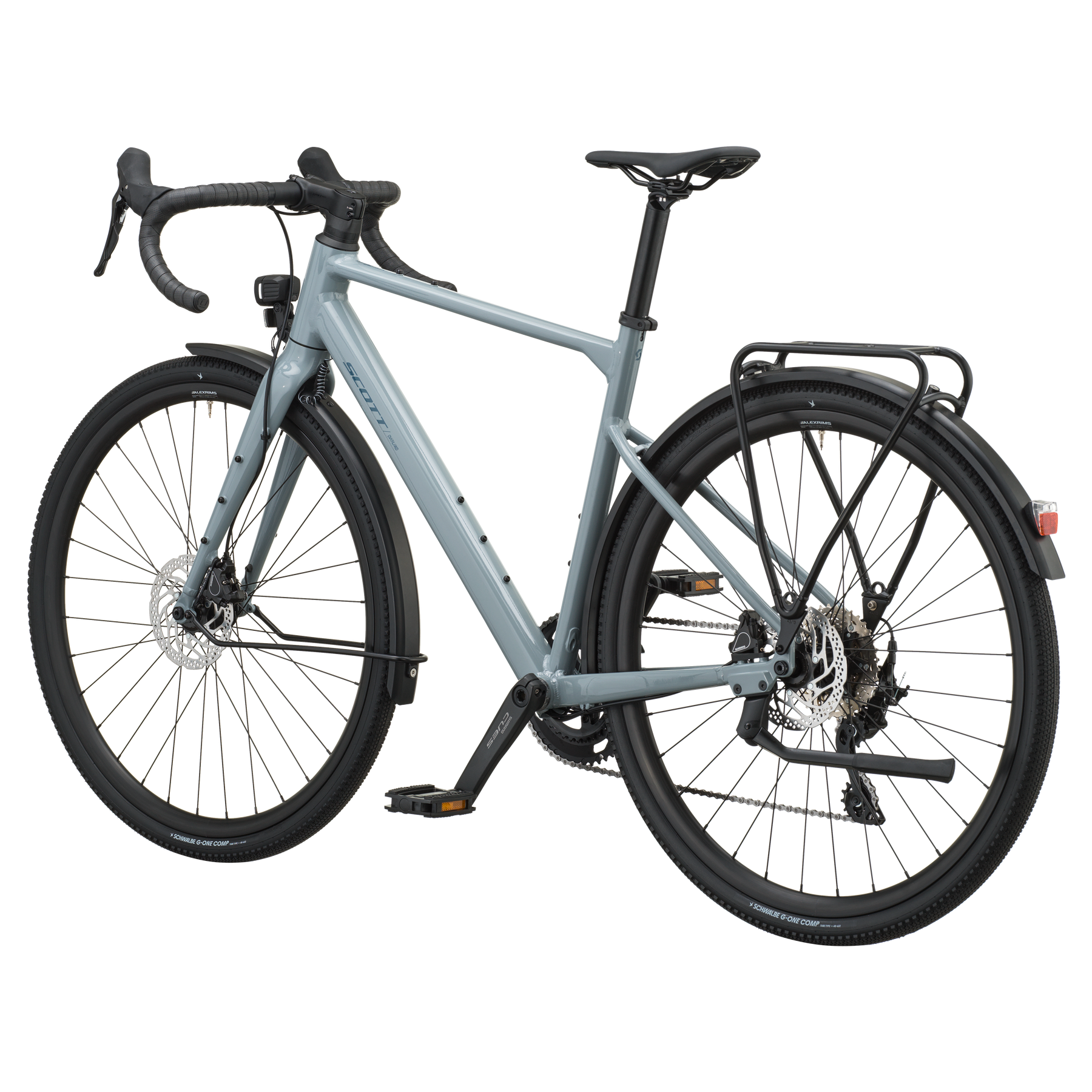

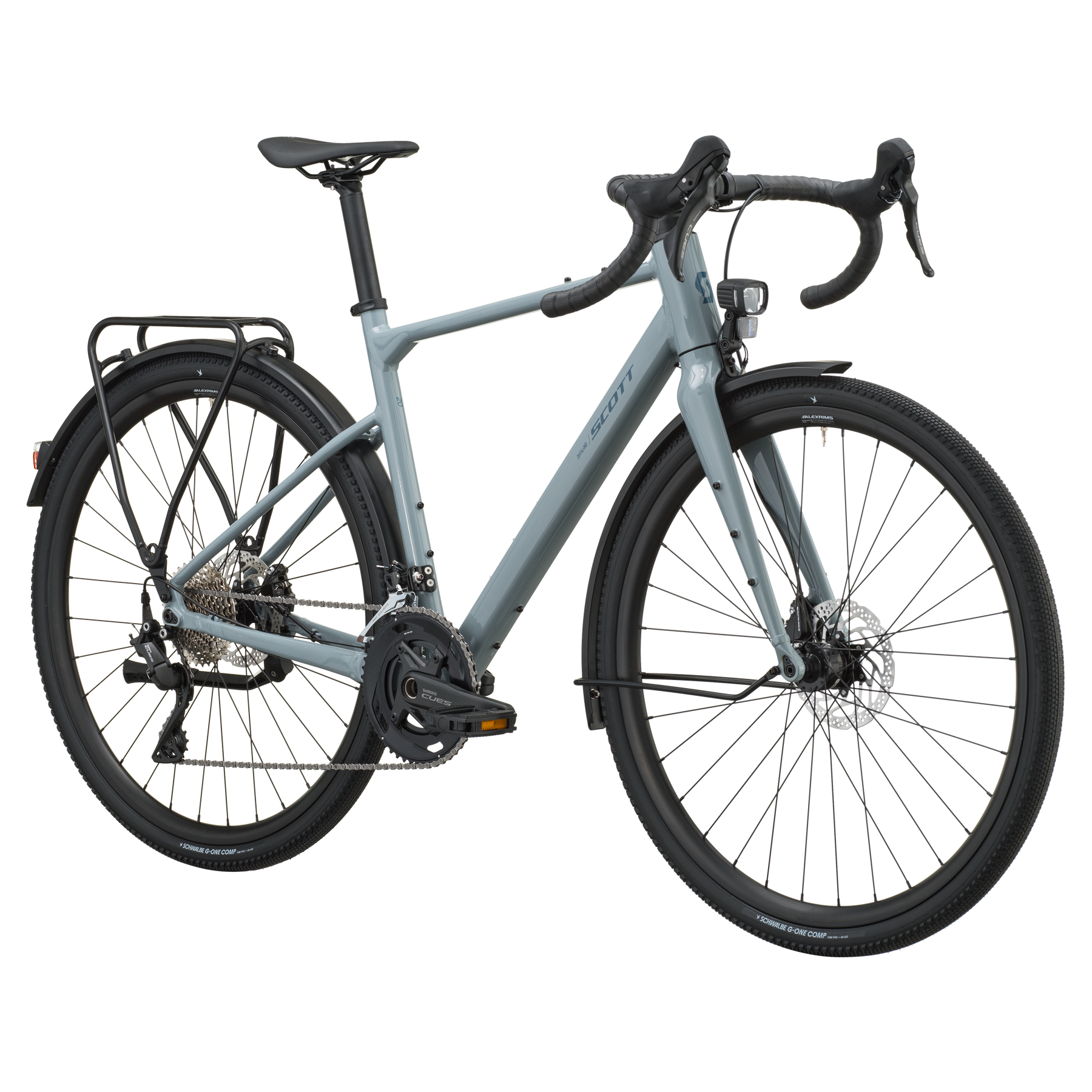

Scott Overland 20 Gravel Bike 2027
Color
Size
Click & Collect
Scott Overland 20 Gravel Bike 2027
Graphite Blue / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The SCOTT Overland 20 is a gravel bike built to handle every off-road adventure, from quick spins to long-haul journeys. Its durable alloy frame delivers the speed and endurance you need for gravel routes, while proven materials ensure reliable performance over rough terrain.
Whether you’re packing for a day ride, an overnight trip, or a longer expedition, you’ll have the capacity to carry what you need. Front-fork mounts support up to 3kg on each side, and the rear rack can handle an additional 20kg of gear. Need even more space? An optional front rack adds 10kg of capacity, and a top-tube bag keeps smaller items within easy reach.
Visibility is always assured with front and rear lights powered by a dynamo hub—no batteries needed. The lights charge as you ride, so you can see and be seen, no matter how long your journey lasts.
The Overland 20 ships with 40mm tires to offer a smooth yet responsive ride across varied surfaces. For rougher terrain, remove the fenders to clear up to 50mm tread, allowing you to fit wider tires for extra grip and control on less-maintained paths. The Shimano 10-speed drivetrain provides precise shifting and durability, ensuring a reliable ride mile after mile.
Whether you’re commuting, touring, or seeking new challenges, it’s designed to adapt to your needs—making it the perfect companion for any adventure.
Please note that bike specifications are subject to change without prior notice.
Key features
- Alloy frame

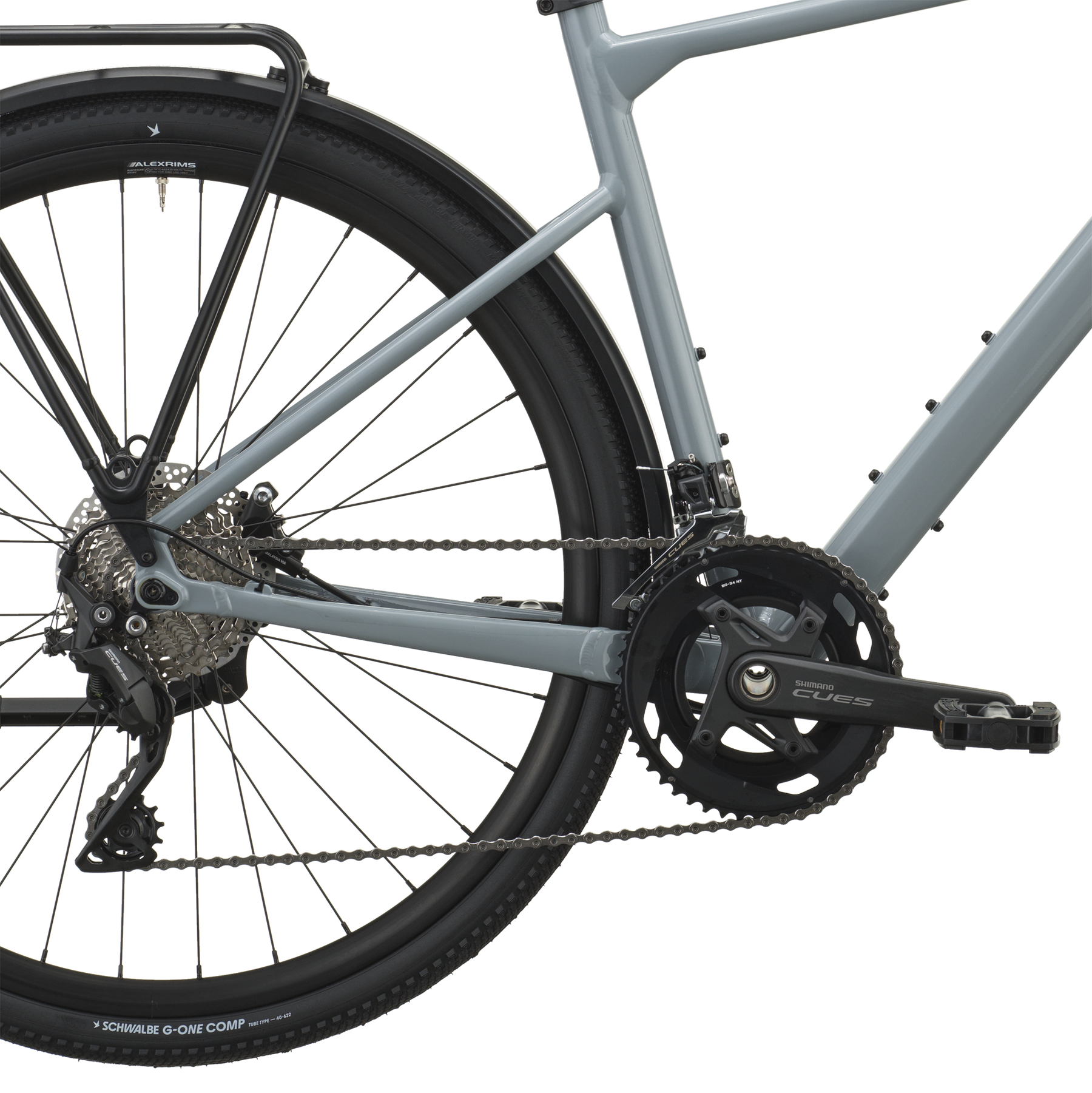

- Shimano Cues 2x11 Speed drivetrain
- Shimano Cues Hyd. disc brakes
- Alexrims race X25 wheelset
- Schwalbe G-One Comp K-Guard tires, 700x40C
- Syncros alloy components
- Herrmans MR5, Herrmans H-Trace Mini light
- Racktime SnapIt 2.0, 20KG
Tire Clearance
The Overland is spec’d with 40-mm tires, ensuring compatibility with fenders for all weather performance and daily use. When fenders are removed, the frame and fork can take up to 50-mm tires. Choose bigger tires for enhanced comfort, traction, and stability on rougher gravel or mixed terrain.
Equipped For Any Occasion
Fully equipped for versatile use, the Overland features full coverage fenders and a rear carrier rated for loads of up to 20 kg. The platform supports additional cargo solutions, including an optional front rack with a load capacity of up to 10 kg. The fork is also designed with mounting points capable of supporting up to 3 kg per side, enabling flexible accessory and cargo configurations.
Made For The Everyday
Designed to perform equally well on daily commutes and longer rides, the Overland is made for the everyday. Packs can be mounted on the rear carrier, the optional front carrier, or directly to the fork mounting points, allowing the setup to be tailored to the demands of each ride. An integrated kickstand provides stable and convenient parking, especially when bike racks are nowhere to be found.

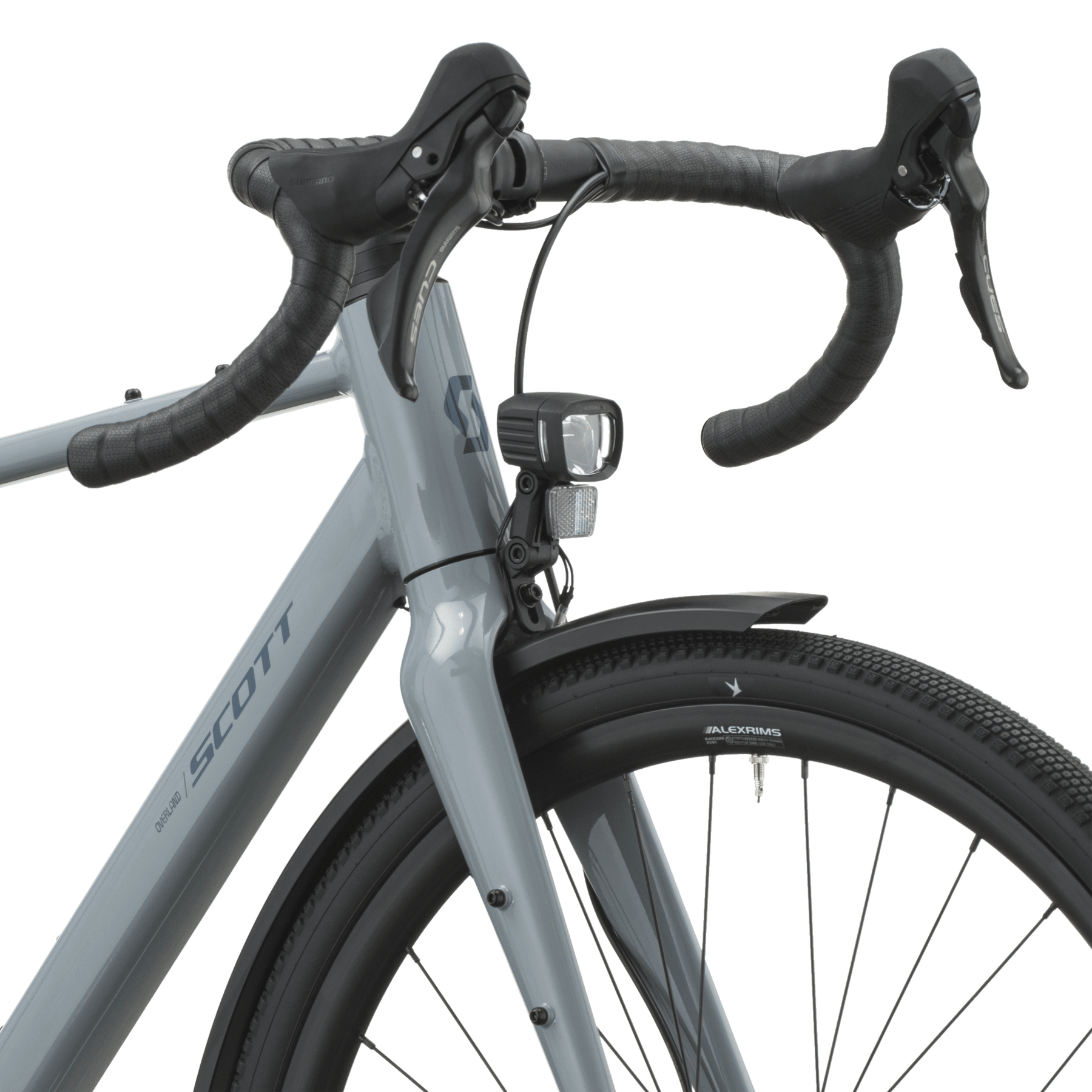

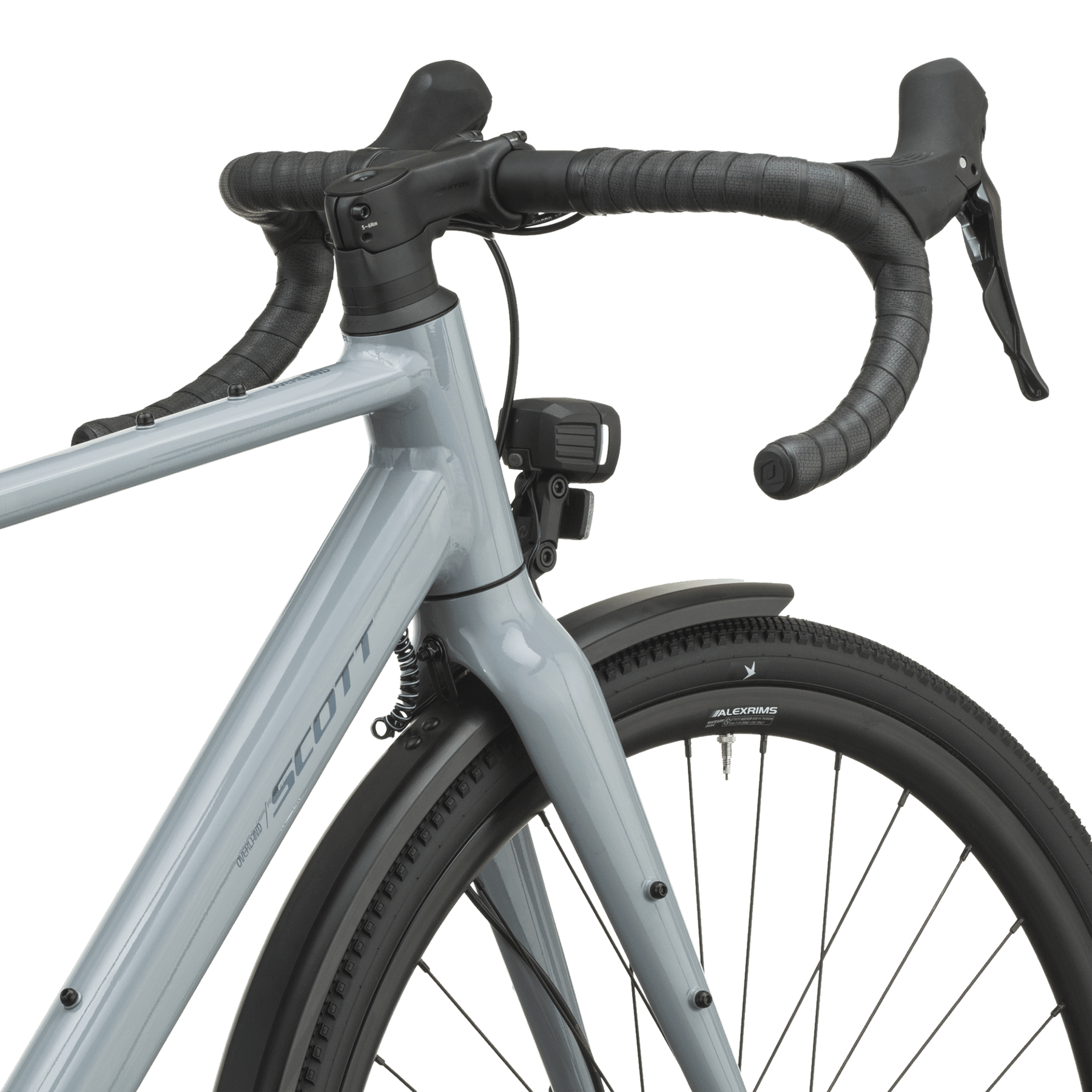

Ready For Night Riding
The Overland is equipped with front- and rear lights powered by a hub dynamo, providing a reliable, integrated lighting system. This setup ensures consistent illumination without the need for battery charging or level monitoring, enhancing convenience and visibility for everyday and long distance riding.
Specifications
| Frame | 28", ultra lite AL-6061 |
|---|---|
| Fork |
Allroad alloy, 12x100 mm axle, 1 1/8" alloy steerer |
| Headset | Acros AZA-813 |
| Stem | Syncros, 1 1/8", four Bolt 31.8mm, GoPro Mount |
| Handlebars | Syncros Creston 2.0 X, Alloy 31.8mm |
| Bartape | Syncros RC Bartape |
| Rims | Syncros Race X25 Disc 32H |
| Spokes | Black 2mm |
| Front Hub | Shutter Precision PL-7, 32h, Thru axle |
| Rear Hub | Formula CL Disc 32 H |
| Front Tyre | Schwalbe G-One Comp, 700x40C |
| Rear Tyre | Schwalbe G-One Comp, 700x40C |
| Shifter |
Shimano Cues BR-RS405, Shimano ST-U6030 22 Speed |
| Rear Derailleur |
Shimano Cues RD-U6040, 22 Speed |
| Front Derailleur |
Shimano Cues FD-U6030 |

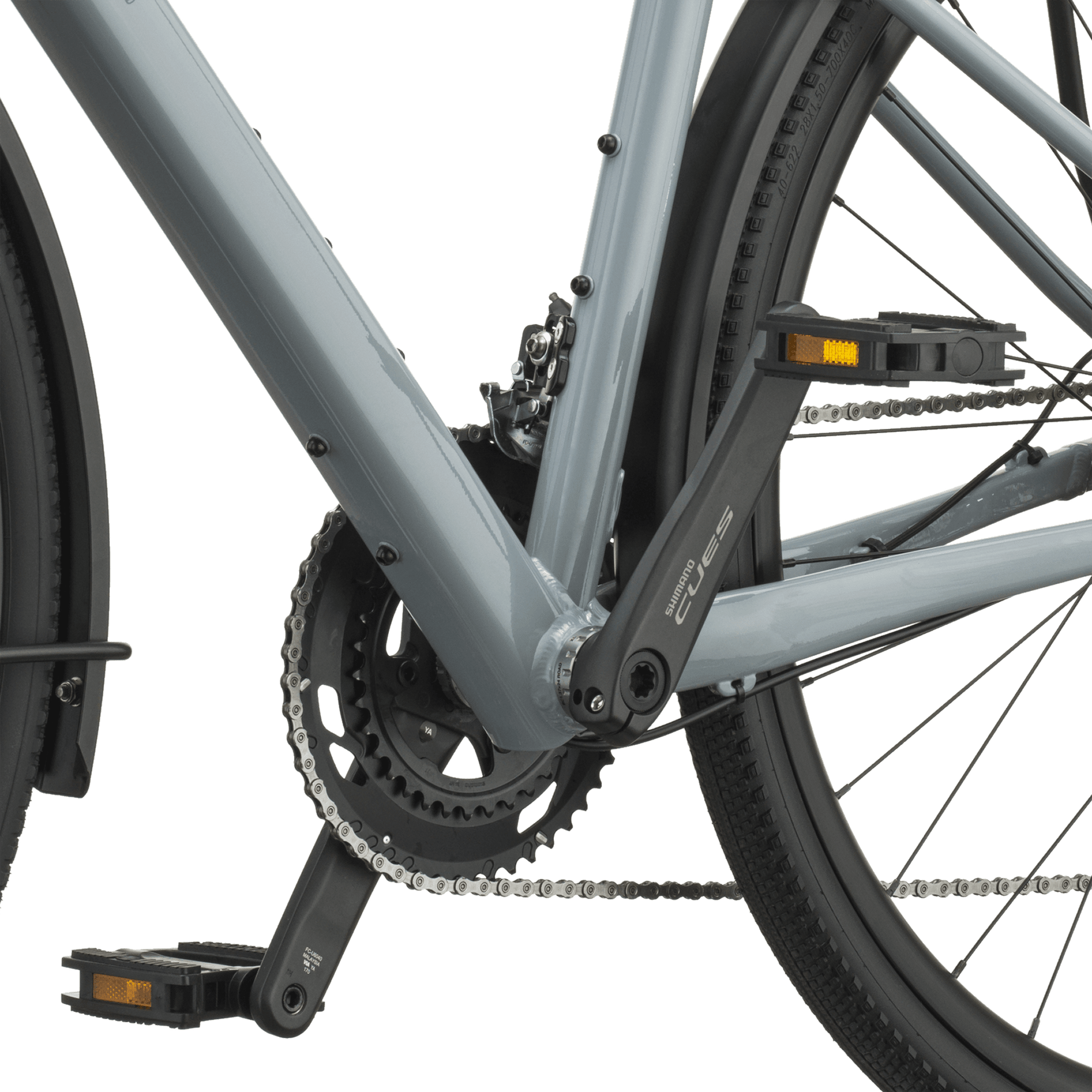

| Crankset | Shimano Cues FC-U6040, 50-34T |
| Cassette | Shimano CS-RS400, 11-36 |
| Chain | Shimano CN-LG500 |
| Bottom Bracket | Shimano BB-RS501 BSA |
| Brakes | Shimano Cues BR-RS405 Hyd. Disc |
| Brake Rotor (Front) |
Shimano RT-CL300, 160mm |
| Brake Rotor (Rear) |
Shimano RT-CL300, 160mm |

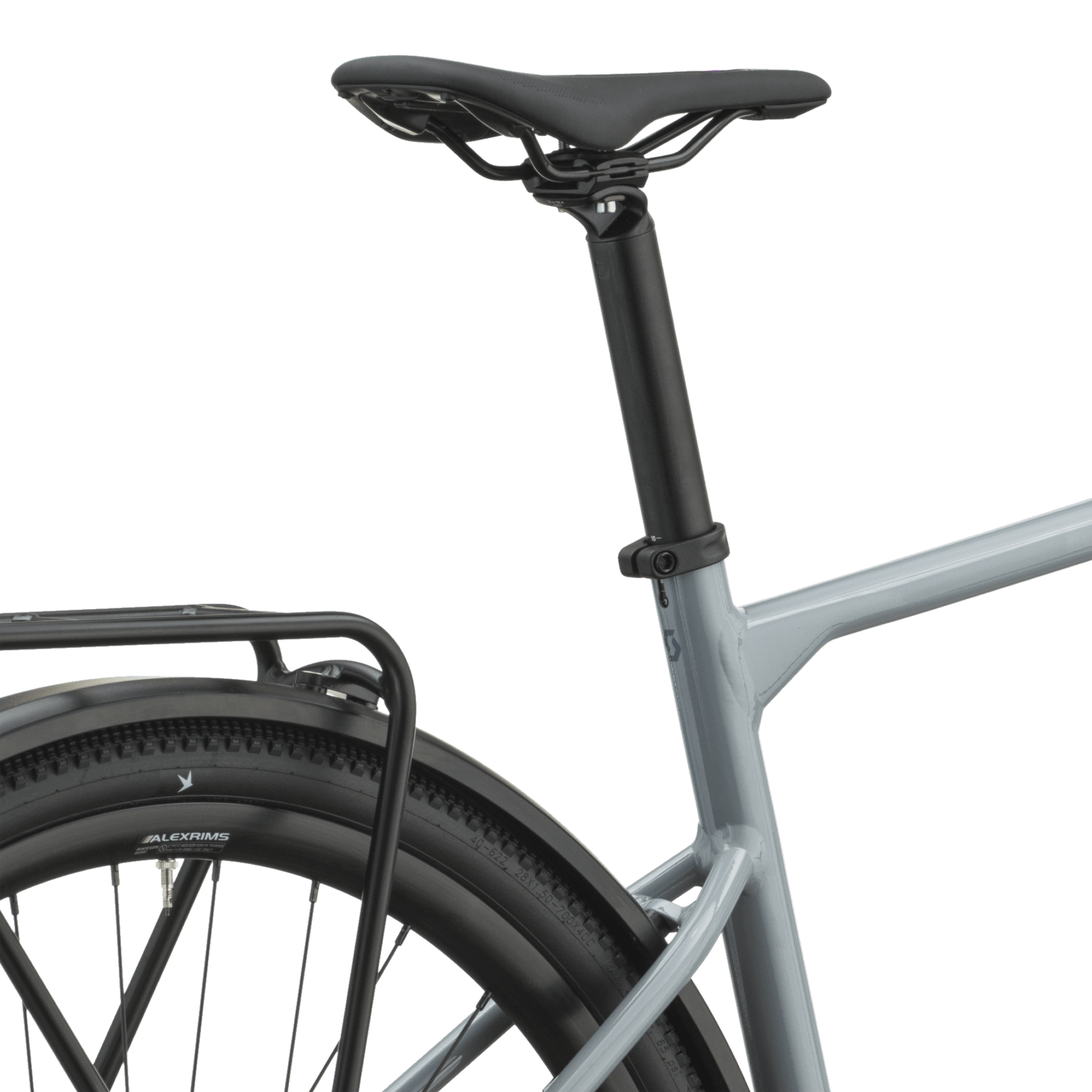

| Seatpost | Syncros alloy, 10mm offset, 31.6x400mm |
| Saddle | Syncros Tofino R 2.5 |
| Max System Weight | 120kg, The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| Mudguards | Fenderset, alloy |
| Rear Rack | Racktime carrier SnapIt 2.0 20Kg |
| Lights | Front: Hermanns MR5 Rear: Hermanns H-Trace |
| Weight | 14.1kg |
