Scott

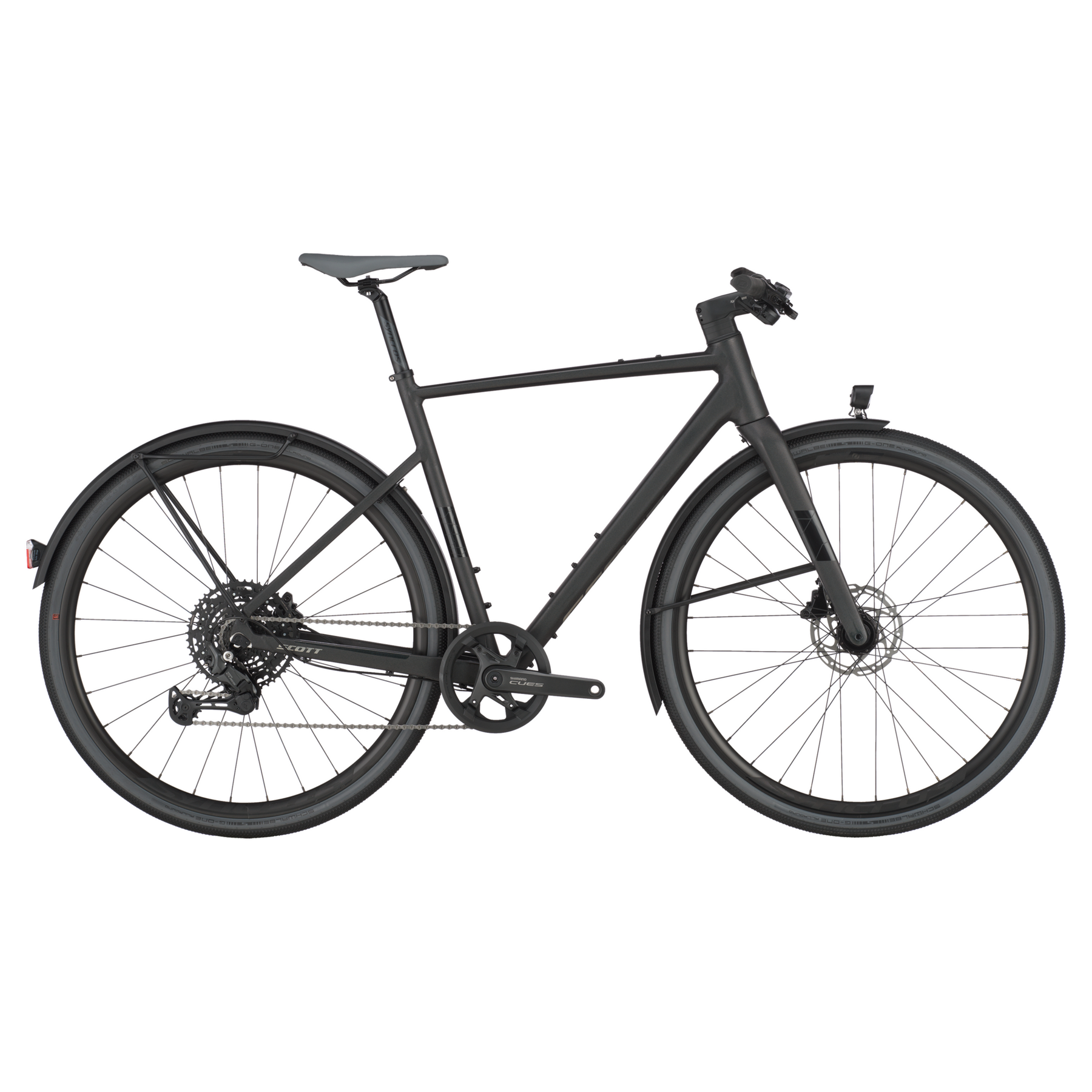

Scott Metrix 20 EQ Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Metrix 20 EQ Hybrid Bike
Champion Black / XXS / HU
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The SCOTT Metrix 20 is your hyper-commuter, ready for some real action on the road. It features an Alloy frame, fully integrated cables routing, a very sporty position on the saddle and high-end components. Out in the hills or on your way to work, the Metrix will keep you fit and healthy.
Please note that bike specifications are subject to change without prior notice
Specifications
| Frame | Metrix Disc / 6061 D.Butted Alloy, Endurance geometry / Replaceable Derailleur Hanger, Syncros fender kit included |
|---|---|
| Fork | Metrix HMF Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer |
| Rear Derailleur | Shimano CUES RD-U600010 speed |
| Shifter | Shimano SL-U6000 |
| Front Brake | Tektro HD-R3020, flatmount |
| Rear Brake | Tektro HD-R3020, flatmount |
| Brake Levers | Tektro HD-R3020, Clean cockpit |
| Rotors | front: Tektro rotor CL 180mmRear: Tektro rotor CL 160mm |
| Rims | Syncros Race 24 Disc, 28H |
| Front Hub | Shimano DH-UR705 Dynamo |
| Rear Hub | Formula Team II CL Disc 28 H |
| Spokes | Black 2mm |
| Front Tyre | Schwalbe G-One Comp, 700x40C |
| Rear Tyre | Schwalbe G-One Comp, 700x40C |
| Handlebars | Syncros rise-Bar 3.0 640mm |
| Stem | Syncros RR2.5, 1 1/4" / four Bolt 31.8mm |
| Headset | Acros AIF-1113 |
| Saddle | Syncros Tofino Regular 2.5 |
| Seatpost | Syncros RR2.5 27.2/350mm |
| Crankset | Shimano FC-U6000. 42T |
| BB | Shimano BB-RS500 PF |
| Chain | Shimano CN-LG300-10 |
| Cassette | Shimano CS-LG30010 Speed 11-48T |
| Weight (KG) | 12,3 |
Geometry
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Stack | 519 | 528.4 | 547.2 | 570 | 588.9 | 607.8 | 626.8 |
| Reach | 374 | 378 | 382 | 387 | 392 | 396 | 403 |
| Headtube Angle | 70 | 70 | 70 | 71 | 71 | 71 | 71 |
| Headtube Length | 93 | 103 | 123 | 143 | 163 | 183 | 203 |
| Seattube Angle | 75 | 74.5 | 74 | 73 | 72.5 | 72.5 | 72.5 |
| Seattube Length | 470 | 490 | 520 | 540 | 560 | 580 | 610 |
| Toptube (Effective) | 512.3 | 523 | 536.5 | 556.5 | 571.2 | 581.2 | 594.2 |
| Chainstay Length | 435 | 435 | 435 | 49 | 439 | 439 | 439 |
| Wheelbase | 1019.5 | 1026.9 | 1037.7 | 1044.9 | 1056.4 | 1067 | 1071.3 |
| BB Height | 283 | 283 | 283 | 283 | 283 | 283 | 283 |
| BB Drop | -71 | -71 | -71 | -71 | -71 | -71 | -71 |
| Standover | 747 | 762 | 786 | 806 | 825 | 844 | 869 |
| Stem Length | 73 | 83 | 93 | 103 | 103 | 113 | 113 |
