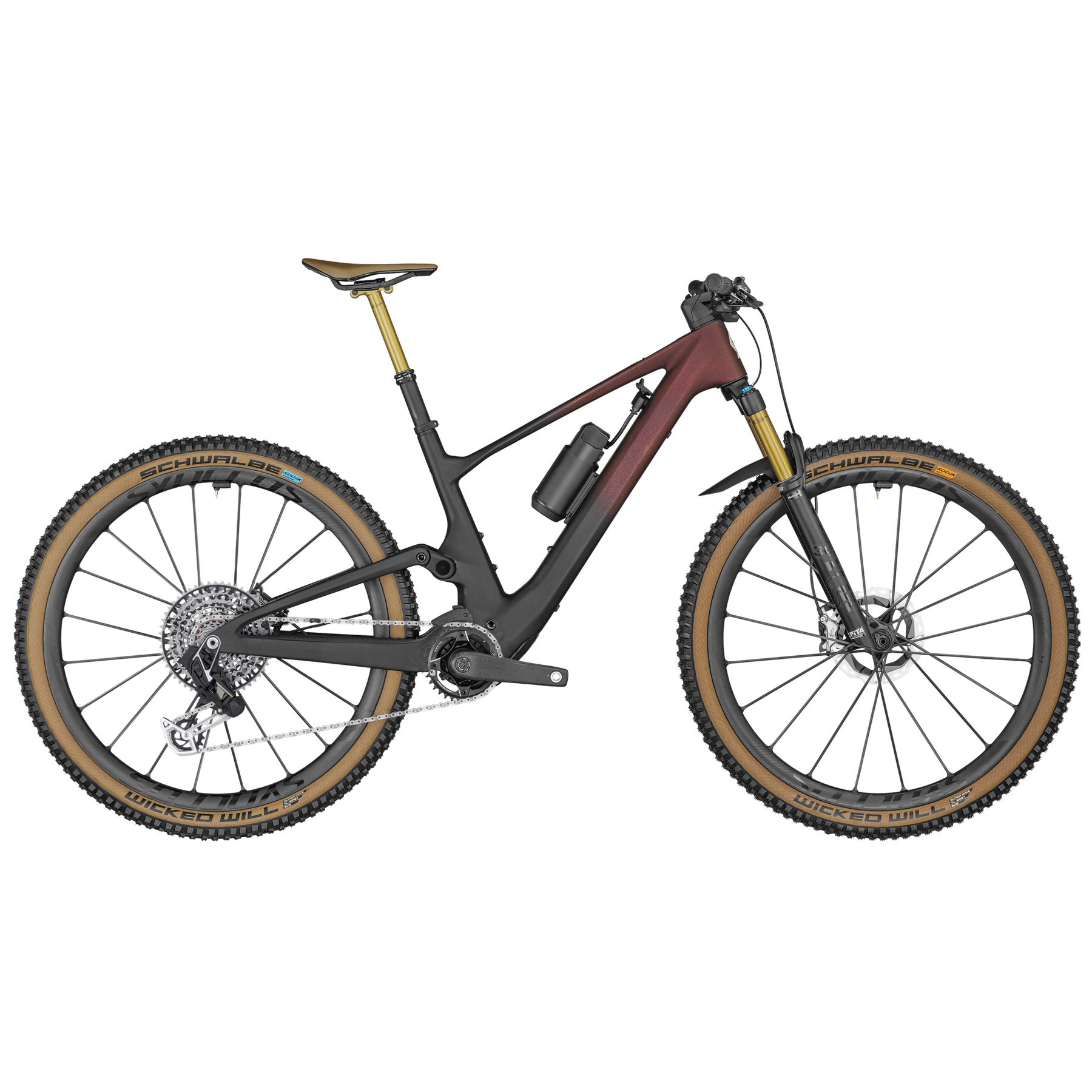

Scott Lumen eRIDE 900 SL TR Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup available at Warehouse
Usually ready in 5+ days
Scott Lumen eRIDE 900 SL TR Electric Mountain Bike
Carbon Black / S / NL
Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino&rsquo-s speed.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Carbon HMX, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| fork | FOX 34 Float Factory Air / Kashima FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset, Tapered steerer / Lockout / Reb. Adj., 130mm travel |
| rear-shock | FOX NUDE 5T Factory EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Custom large Air volume / DPS / Kashima / Reb. Adj., Travel 130-90-Lockout / T165X45mm |
| derailleur | SRAM XX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM AXS Pod Ultimate Controller |
| front-derailleur | |
| brake-front | Shimano XTR M9120 4 Piston Disc |
| brake-rear | Shimano XTR M9120 4 Piston Disc |
| brake-disc-front | RT-MT900 CL 180mm |
| brake-disc-rear | RT-EM910 CL 180mm |
| wheelset | Syncros Silverton SL2-30 CL full Carbon, F: 15x110mm, R: 12x148mm / 30mm Tubeless ready rim, DT Swiss 240 Ratchet EXP 36 / XD Driver, SRAM TyreWiz / Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| rims | |
| tire-front | Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Soft |
| tire-rear | Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Grip |
| hub-front | |
| hub-rear | |
| spokes | |
| handlebar | Syncros Fraser iC SL DC Carbon, 0° rise / back sweep 8° / mini Rise / 760mm |
| stem | |
| headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| grips | Syncros Performance XC lock-on grips |
| saddle | Syncros Tofino Regular 1.0, Carbon rails |
| seat-post | FOX Transfer Factory Dropper Post Kashima, 31.6mm / S size 125mm / M size 140mm, L ize 150mm / XL size 175mm |
| crankset | FSA Carbon crankset / 175mm / 34T |
| bottom-bracket | |
| Chain | SRAM CN XX Eagle Transmission |
| Cassette | SRAM XX Eagle XS 1297 Transmission 10-52 |
| Pedals | |
| motor | TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph |
| battery | TQ Internal 360Wh + Range Extender 160Wh |
| display | TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app |
| charger | TQ 100-240V-4A |
Specifications
| stack | 615 |
|---|---|
| reach | 416 |
| seat-tube-length | 415 |
| seat-tube-angle | 76,8 |
| top-tube-length | 562 |
| head-tube-length | 110 |
| head-tube-angle | 65,5 |
| stem-length | 50 |
| handlebar-width | |
| wheelbase | 1176 |
| standover | 765 |
| chainstay-length | 450 |
| fork-rake | |
| bottom-bracket-height | 339 |
| bottom-bracket-drop | 39 |
