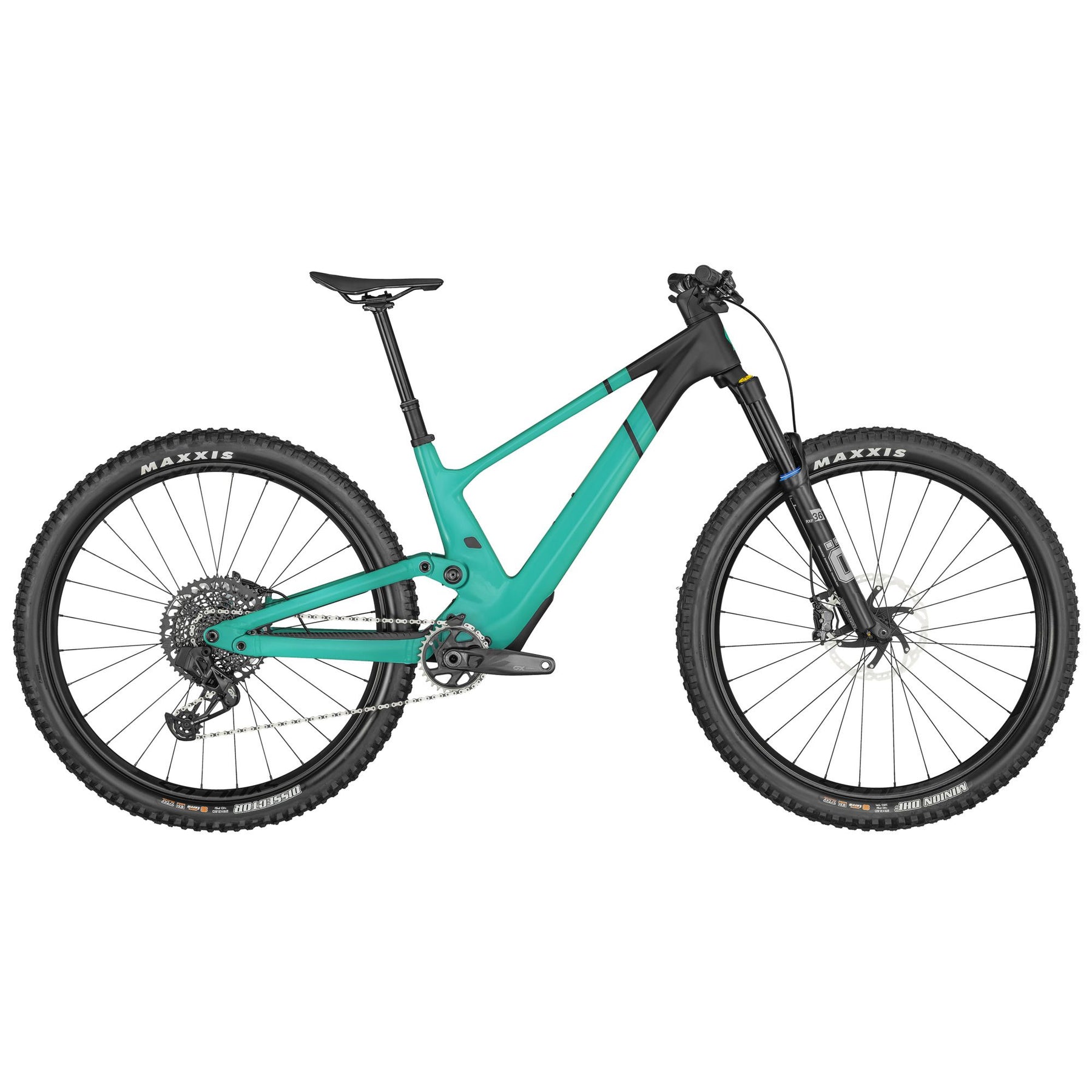

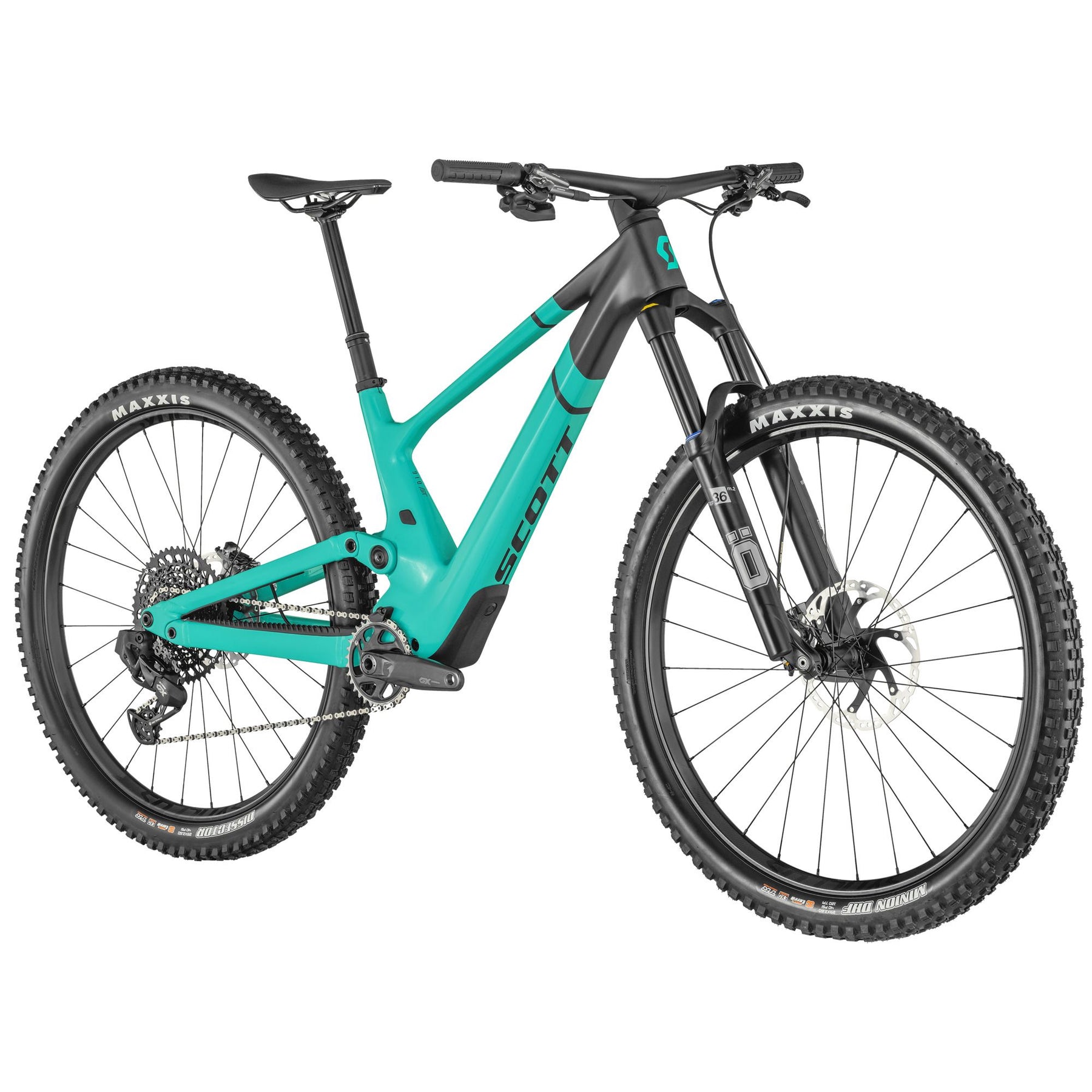

Scott Genius ST 910 2023
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Genius ST 910 2023
Green/Black / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
Specifications
| Frame | Genius Carbon HMF Mainframe with Alloy 6061 Swingarm Integrated Suspension TechnologyVirtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | Ohlins RXF36m.2 AirTTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle44mm offset / tapered steerer160mm travel |
| Rear Shock | FOX FLOAT X NUDE PE EVOL Piggy Back TrunnionSCOTT custom w. travel / geo adj.3 modes: Climb-Traction Control-DescendCustom large Air volume / Comp & Reb. Adj.Travel 150-100-Climb / T185X55mm |
| Remote System | TracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes |
| Headset | |
| Stem | |
| Handlebars | Syncros Hixon iC CarbonSize S & M 15mm rise / Size L & XL 25mm riseback sweep 8° / 780mm Syncros Endurance lock-on grips |
| Wheels | Syncros Revelstoke 2.0 6 BoltF: 15x110mm, R: 12x148mm30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools |
| Front Tyre | Maxxis Minion DHF / 120TPI FoldableTubeless Ready / EXO 3C maxxTerra |
| Rear Tyre | Maxxis Dissector / 60TPI FoldableTubeless Ready / EXO 3C maxxTerra |
| Shifter | SRAM GX Eagle AXS Rocker Controller |
| Rear Derailleur | SRAM GX Eagle AXS 12 SpeedWireless Electronic Shift System |
| Crankset | SRAM GX Eagle DUB55mm CL / 32T |
| Cassette | SRAM XG1275 / 10-52 T |
| Chain | SRAM CN GX Eagle |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chainguide | |
| Brakes | Shimano XT M8120 4 Piston Disc |
| Rotors | Shimano SM-RT76 / 6 Bolt / 203/F and 180/R |
| Seatpost | Syncros Duncan Dropper Post 1.531.6mm / S size 140mm / M size 160mmL size 170mm / XL size 200mm |
| Saddle | |
| Weight | 14.4 (Tubeless setup) |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| A. Head Tube Angle | 63.9 | 63.9 | 63.9 | 63.9 |
| B. Head Tube Length | 90 | 100 | 120 | 135 |
| C. Top Tube Horizontal | 570.1 | 602.2 | 631.3 | 659.3 |
| D. Standover Height | 728.5 | 738.5 | 753.5 | 768.5 |
| E. BB Offset | 33 | 33 | 33 | 33 |
| F. BB Height | 342.5 | 342.5 | 342.5 | 342.5 |
| G. Wheelbase | 1195 | 1229 | 1263 | 1294 |
| I. BB Center to Top of Seattube | 380 | 410 | 440 | 470 |
| J. Seat Angle | 76.8 | 77.1 | 77.2 | 77.4 |
| K. Chainstay | 440 | 440 | 440 | 440 |
| L. Reach | 430 | 460 | 485 | 510 |
| M. Stack | 617.0 | 626.1 | 644.2 | 657.8 |
| N. Stem Length | 40 | 40 | 40 | 40 |
| O. Trail | 125.8 | 125.8 | 125.8 | 125.8 |
| P. Fork Length | 571 | 571 | 571 | 571 |
| Q. Maxiumum Seatpost Insertion | 173 | 204 | 234 | 265 |
| R. Crank Length | 170 | 170 | 170 | 170 |
