Scott

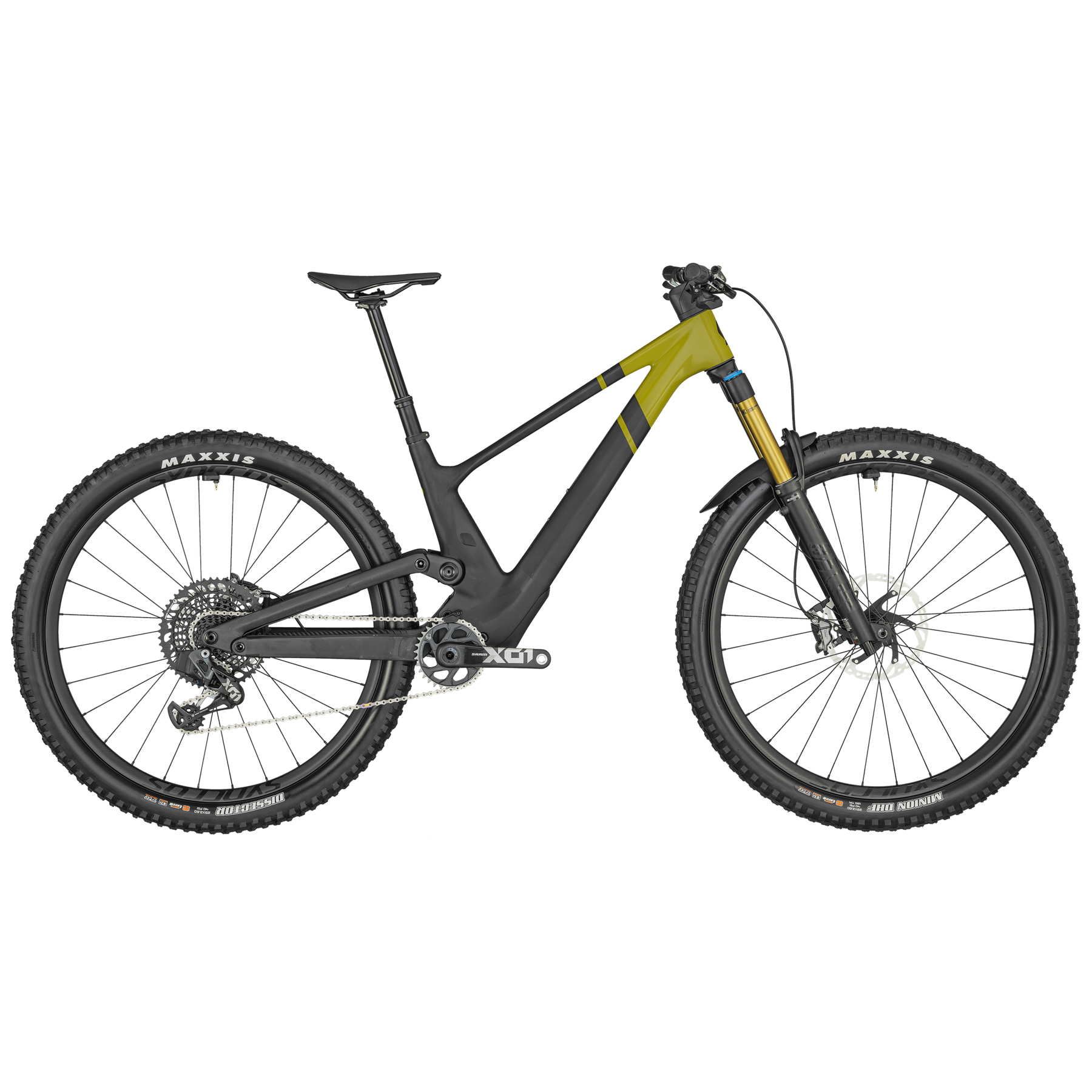

Scott Genius ST 900 Tuned Full Suspension Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup available at Warehouse
Usually ready in 5+ days
Scott Genius ST 900 Tuned Full Suspension Mountain Bike
Savana Green / S / TW
Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
Please note that bike specifications are subject to change without prior notice.
Specifications
| frame | Genius Carbon HMX, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| fork | FOX 36 Float Factory Grip 2 Air / Kashima, HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle, 44mm offset / tapered steerer, 160mm travel |
| rear-shock | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion, Kashima / SCOTT custom w. travel / geo adj., 3 modes: Climb-Traction Control-Descend, Custom large Air volume / Comp & Reb. Adj., Travel 150-100-Climb / T185X55mm |
| derailleur | SRAM X01 Eagle AXS / 12 Speed, Wireless Electronic Shift System |
| shift-levers | SRAM GX Eagle AXS Rocker Controller |
| front-derailleur | |
| brake-front | Shimano XTR M9120 4 Piston Disc |
| brake-rear | Shimano XTR M9120 4 Piston Disc |
| brake-disc-front | Shimano SM-RT76 / 6 Bolt / 203mm |
| brake-disc-rear | Shimano SM-RT76 / 6 Bolt / 180mm |
| wheelset | Syncros Revelstoke 1.0-30 CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready Carbon rim 28H, DT Swiss Ratchet Hubs / XD Driver, SRAM TyreWiz / Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| rims | |
| tire-front | Maxxis Minion DHF / 120TPI Foldable, Tubeless Ready / EXO 3C maxxTerra |
| tire-rear | Maxxis Dissector / 60TPI Foldable, Tubeless Ready / EXO 3C maxxTerra |
| hub-front | |
| hub-rear | |
| spokes | |
| handlebar | Syncros Hixon iC Carbon, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm |
| stem | |
| headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| grips | Syncros Endurance lock-on grips |
| saddle | Syncros Tofino 1.5 Regular, Titanium rails |
| seat-post | Syncros Duncan Dropper Post 1.5, 31.6mm / S size 140mm / M size 160mm, L size 170mm / XL size 200mm |
| crankset | SRAM X01 DUB Eagle Carbon crankarm, 55mm CL / 32T |
| bottom-bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chain | SRAM CN X01 Eagle |
| Cassette | SRAM X01 XG1295 / 10-52 T |
| Pedals | |
| motor | |
| battery | |
| display | |
| charger |
Specifications
| stack | 617 |
|---|---|
| reach | 430 |
| seat-tube-length | 380 |
| seat-tube-angle | 76,8 |
| top-tube-length | 570 |
| head-tube-length | 90 |
| head-tube-angle | |
| stem-length | 40 |
| handlebar-width | 780 |
| wheelbase | 1195 |
| standover | 729 |
| chainstay-length | 440 |
| fork-rake | 44 |
| bottom-bracket-height | 343 |
| bottom-bracket-drop | 33 |
