Scott
Scott Genius 910 2023
Color:
Color
Size:
Size
Type:
Type
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

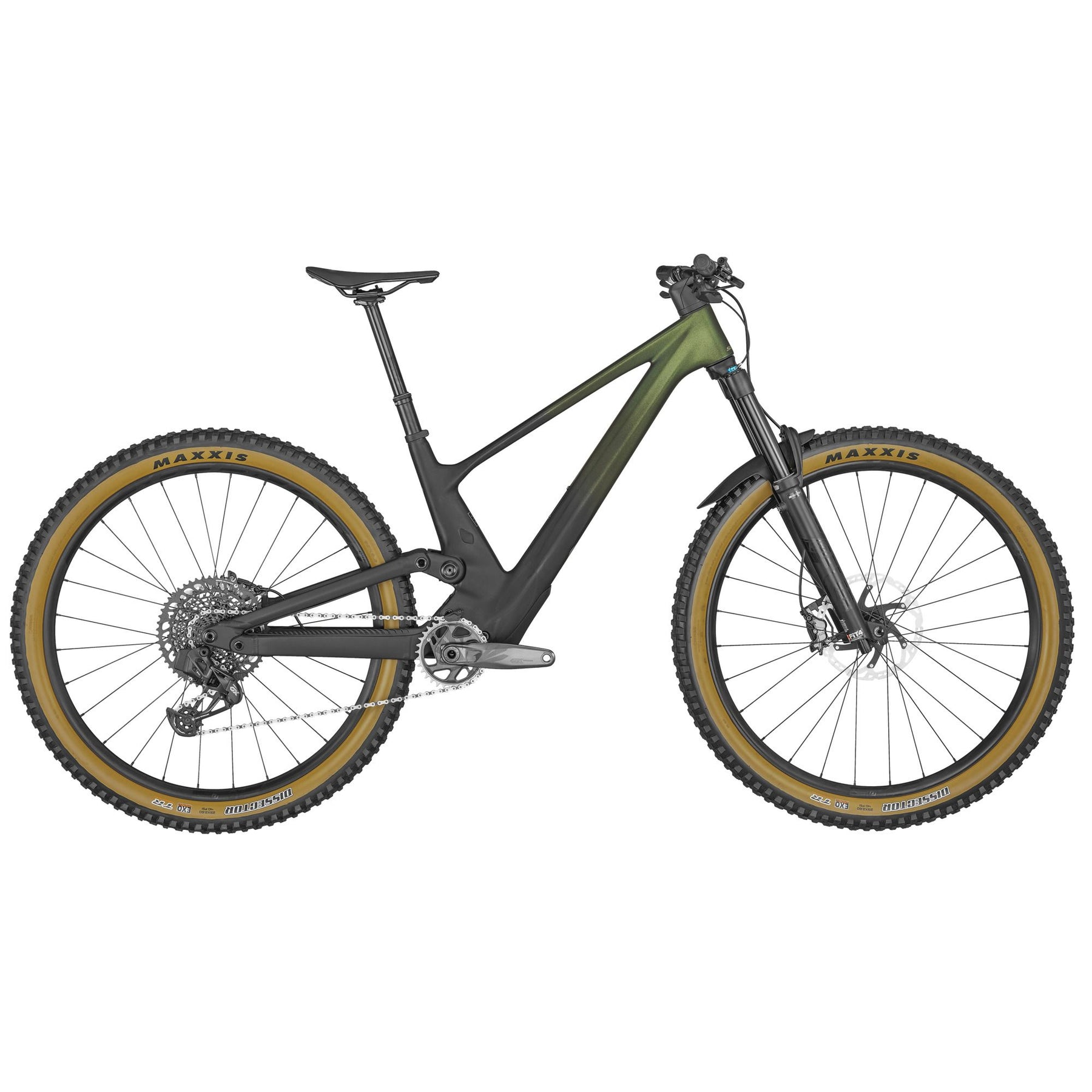

Scott Genius 910 2023
Green/Black / S / EU
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Genius has always been our favorite bike. Smart suspension, smarter features, and the smartest design lead to an unbelievable trail bike that just can't get enough. The All-New Genius, any trail, any time.
Specifications
| Frame | Genius Carbon HMF Mainframe with Alloy 6061 SwingarmIntegrated Suspension TechnologyVirtual 4 Link kinematic / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | FOX 36 Float Performance Elite Air FIT43-Modes with low Speed adj. / Kabolt 15x110mm axle44mm offset / tapered steerer / Reb. Adj. / Lockout160mm travel |
| Rear Shock | FOX NUDE 5T EVOL TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendCustom large Air volume / DPS / Reb. Adj.Travel 150-100-Lockout / T185X55mm |
| Remote System | SCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB |
| Handlebars | Syncros Hixon iC CarbonSize S & M 15mm rise / Size L & XL 25mm riseback sweep 8° / 780mmSyncros Endurance lock-on grips |
| Wheels | Syncros Revelstoke 1.5 6 BoltF: 15x110mm, R: 12x148mm30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools |
| Front Tyre | Maxxis Dissector / 60TPI FoldableTubeless Ready / EXO 3C maxx Terra |
| Rear Tyre | Maxxis Dissector / 60TPI FoldableTubeless Ready / EXO 3C maxx Terra |
| Shifter | SRAM GX Eagle AXS Rocker Controller |
| Rear Derailleur | SRAM GX Eagle AXS 12 SpeedWireless Electronic Shift System |
| Crankset | SRAM GX Eagle DUB55mm CL / 32T |
| Cassette | SRAM XG1275 / 10-52 T |
| Chain | SRAM CN GX Eagle |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| chainguide | SCOTT custom |
| Brakes | Shimano XT M8120 4 Piston Disc |
| Rotors | Shimano SM-RT76 / 6 Bolt / 203/F and 180/R |
| Seatpost | Syncros Duncan Dropper Post 1.531.6mm / S size 140mm / M size 160mm / L size 170mm / XL size 200mm |
| Saddle | Syncros Tofino 1.5 RegularTitanium rail |
| Extras | SRAM AXS PowerpackSyncros Fork Fender |
| Weight (KG) | 14.1 (Tubeless setup) |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| A. Headtube Angle | 65.1 | 65.1 | 65.1 | 65.1 |
| B. Headtube Length | 90 | 100 | 120 | 135 |
| C. Toptube Horizontal | 570.1 | 602.2 | 631.3 | 659.3 |
| D. Standover Height | 728.5 | 738.5 | 753.5 | 768.5 |
|
E. BB Offset |
33 | 33 | 33 | 33 |
| F. BB Height | 342.5 | 342.5 | 342.5 | 342.5 |
| G. Wheelbase | 1182 | 1216 | 1249 | 1281 |
| I. Seatube Length | 380 | 410 | 440 | 470 |
| J. Seattube Angle | 76.8 | 77.1 | 77.2 | 77.4 |
| K. Chainstay Length | 440 | 440 | 440 | 440 |
| L. Reach | 430 | 460 | 485 | 510 |
| M. Stack | 617.0 | 626.1 | 644.2 | 657.8 |
| N. Stem Length | 40 | 40 | 50 | 50 |
| O. Trail | 125.8 | 125.8 | 125.8 | 125.8 |
| P. Fork Length | 571 | 571 | 571 | 571 |
| Q. Max Seatpost Insertion | 173 | 204 | 234 | 265 |
| R. Crank Length | 170 | 175 | 175 | 175 |
