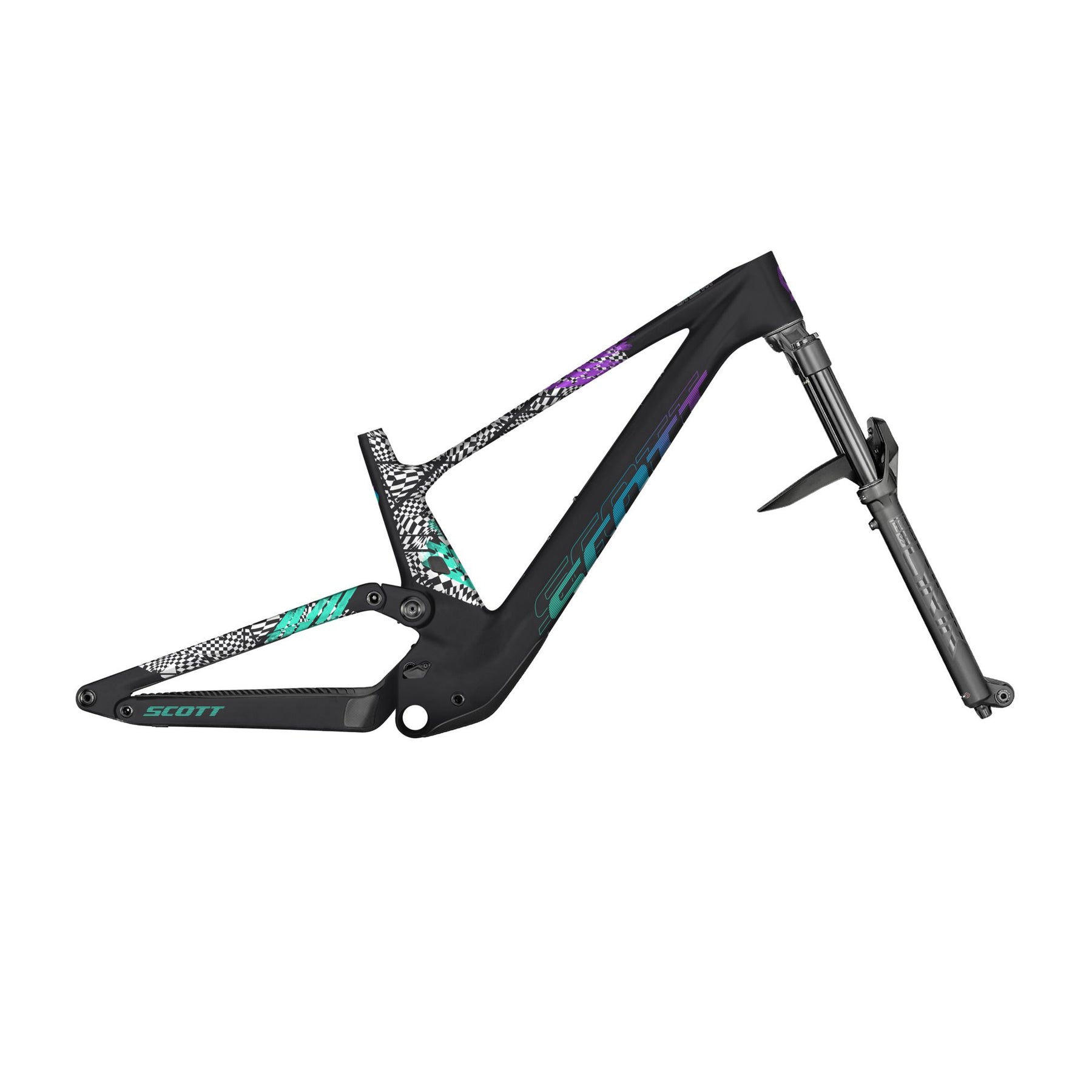

Scott Genius 900 Tuned HMX Frame & Fork Kit
Carbon Black / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Genius has always been our favorite bike. Smart suspension, smarter features, and the smartest design lead to an unbelievable trail bike that just can't get enough. The Genius, any trail, any time.
Fork not included
Please note that bike specifications are subject to change without prior notice
Specifications
| Frame | Genius Carbon HMXIntegrated Suspension TechnologyVirtual 4 Link kinematic / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Headset | Syncros - Acros Pro Headset System |
| Rear Shock | FOX FLOAT X NUDE Factory EVOL Piggy Back TrunnionKashima / SCOTT custom w. travel / geo adj.3 modes: Climb-Ramp Control-DescendCustom large Air volume / Comp & Reb. Adj.Bearing Hardware / T185X55mm |
| Remote System | Tracloc Remote Control Shifter Kit |
| Extras | Syncros rear axle |
| Weight | Frame without Shock 2295g |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| A. Headtube Angle | 65.1 | 65.1 | 65.1 | 65.1 |
| B. Headtube Length | 90 | 100 | 120 | 135 |
| C. Toptube Horizontal | 570.1 | 602.2 | 631.3 | 659.3 |
| D. Standover Height | 728.5 | 738.5 | 753.5 | 768.5 |
|
E. BB Offset |
33 | 33 | 33 | 33 |
| F. BB Height | 342.5 | 342.5 | 342.5 | 342.5 |
| G. Wheelbase | 1182 | 1216 | 1249 | 1281 |
| I. Seatube Length | 380 | 410 | 440 | 470 |
| J. Seattube Angle | 76.8 | 77.1 | 77.2 | 77.4 |
| K. Chainstay Length | 440 | 440 | 440 | 440 |
| L. Reach | 430 | 460 | 485 | 510 |
| M. Stack | 617.0 | 626.1 | 644.2 | 657.8 |
| N. Stem Length | 40 | 40 | 50 | 50 |
| O. Trail | 125.8 | 125.8 | 125.8 | 125.8 |
| P. Fork Length | 571 | 571 | 571 | 571 |
| Q. Max Seatpost Insertion | 173 | 204 | 234 | 265 |
| R. Crank Length | 170 | 175 | 175 | 175 |
