Scott

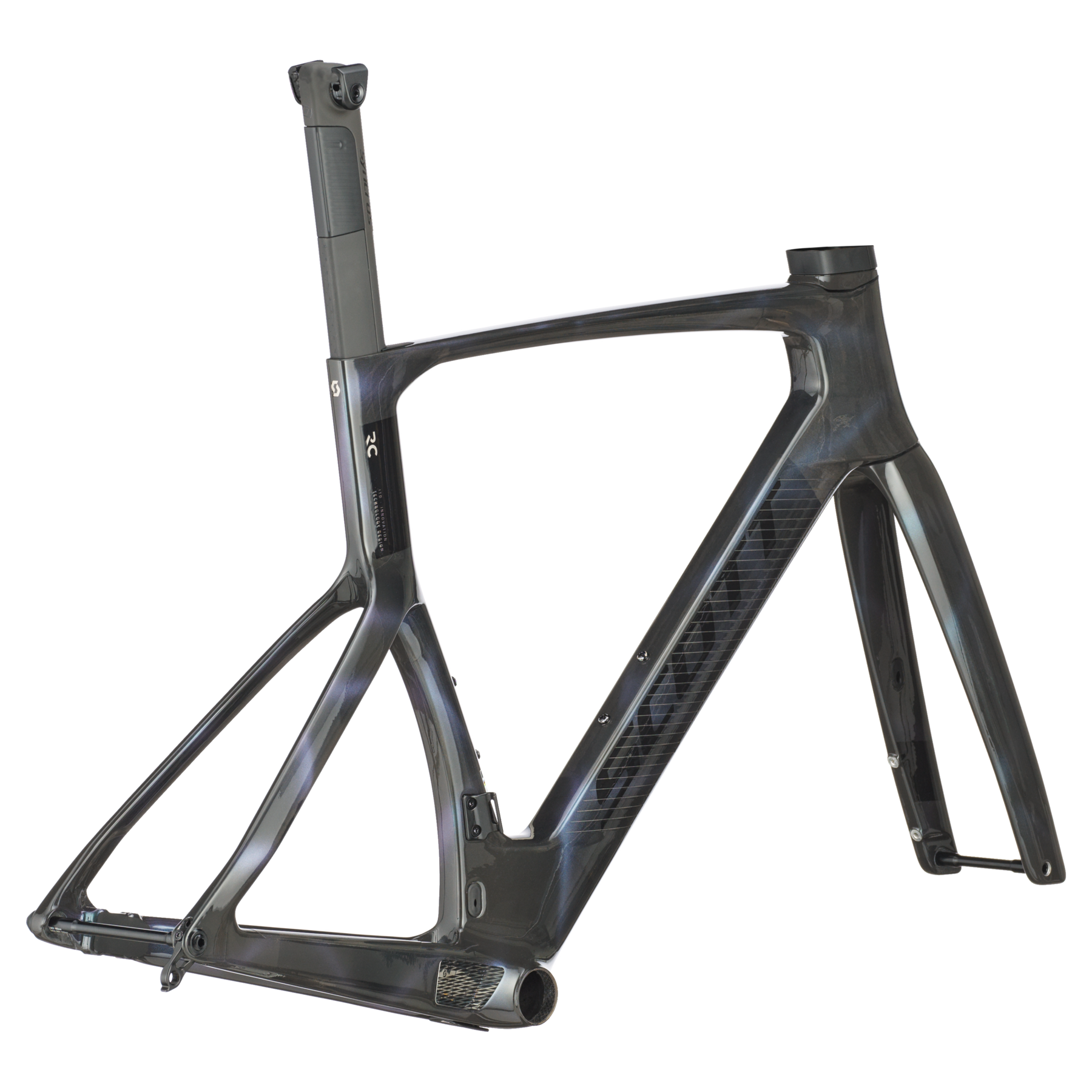

Scott Foil RC Ultimate HMX SL Frameset
Color
Size
Availability
Click & Collect
Scott Foil RC Ultimate HMX SL Frameset
Sunbeam Black / XXS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.
The SL version is Scott's highest level carbon layup which saves approx 15g on the frame and 35g fork compared to the standard Foil RC HMX frameset.
Please note that bike specifications are subject to change without prior notice
Specifications
Geometry
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Stack | 505 | 511 | 527 | 548 | 568 | 589 | 606 |
| Reach | 380 | 388 | 389 | 389 | 394.5 | 400 | 409 |
| Headtube Angle | 70.5 | 71 | 72 | 72.5 | 73 | 73.3 | 73.3 |
| Headtube Length | 103 | 108 | 121 | 141 | 161 | 181 | 199 |
| Seattube Angle | 74.5 | 74.5 | 74 | 73.6 | 73.3 | 73 | 72.5 |
| Seattube Length | 451.8 | 481.9 | 502.4 | 522.6 | 542.4 | 559.8 | 572.4 |
| Toptube (Effective) | 520 | 530 | 540 | 550 | 565 | 580 | 600 |
| Chainstay Length | 412 | 412 | 412 | 412 | 412 | 412 | 412 |
| Wheelbase | 987.7 | 993.7 | 990.7 | 992.6 | 999.9 | 1008.6 | 1022.7 |
| BB Height | 274.5 | 274.5 | 274.5 | 274.5 | 274.5 | 274.5 | 274.5 |
| BB Drop | -70 | -70 | -70 | -70 | -70 | -70 | -70 |
| Standover | 746.4 | 759.6 | 779.4 | 801.0 | 820.0 | 838.0 | 853.3 |
| Stem Length | 80 | 90 | 100 | 110 | 110 | 120 | 120 |
