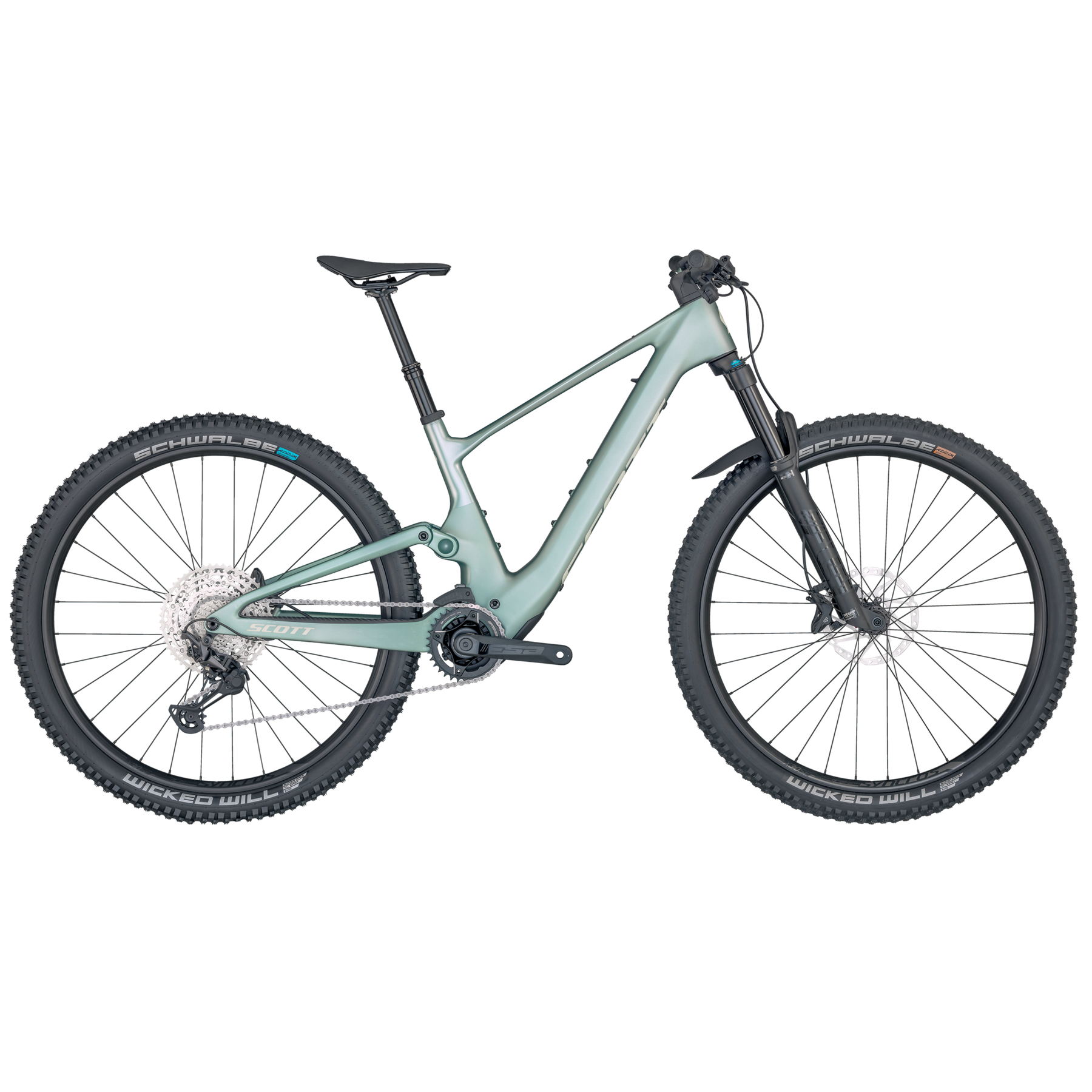

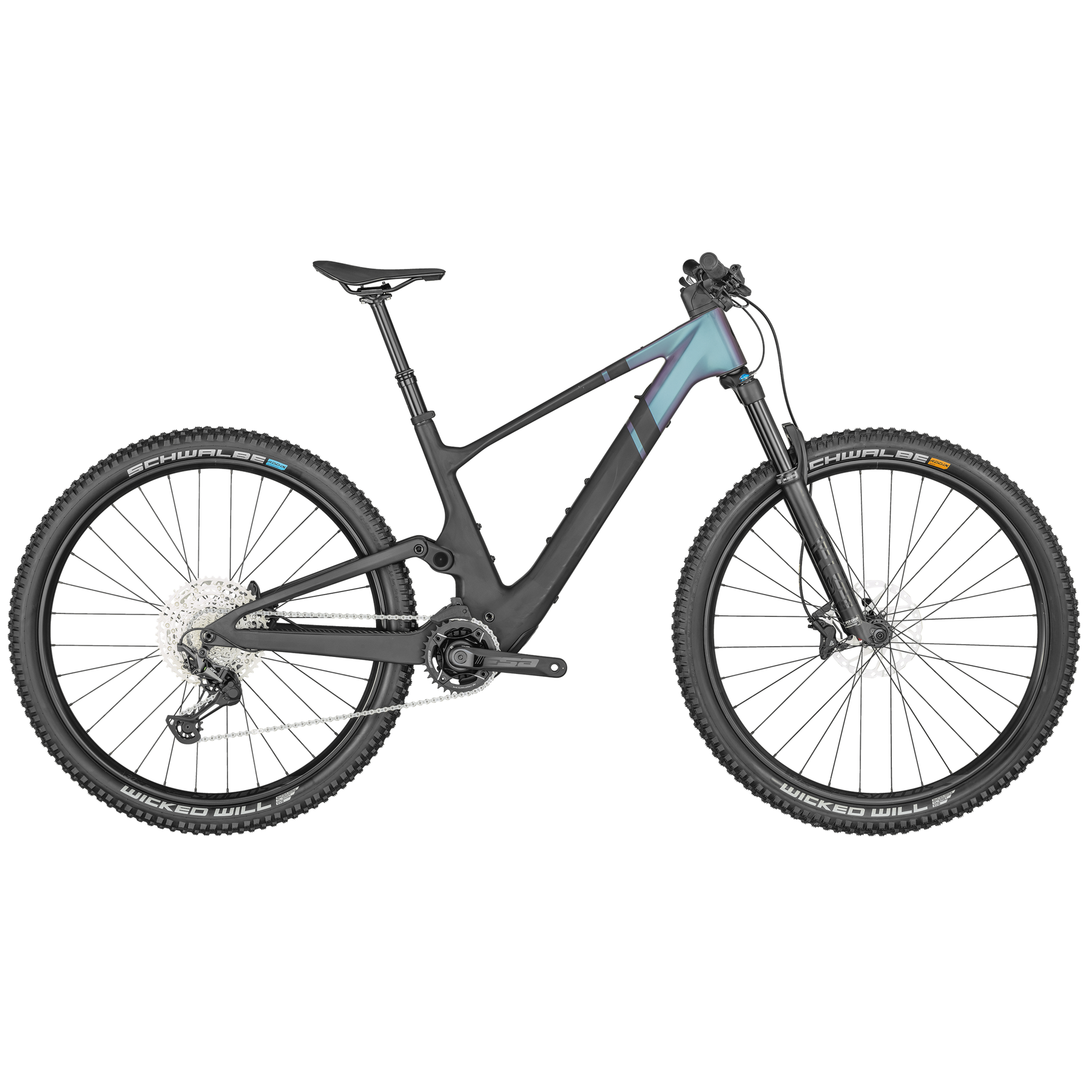

Scott Contessa Lumen eRIDE 900 Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
An E-MTB with the weight of an MTB, only 17.6kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Kate&rsquo-s speed.
,
, Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Lumen eRIDE Carbon HMX, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| fork | FOX 34 Float Rhythm Air Grip, 3-Modes / Kabolt 15x110mm axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 130mm travel |
| rear-shock | FOX NUDE 5T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Custom large Air volume / DPS / Reb. Adj., Travel 130-90-Lockout / T165X45mm |
| derailleur | Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed |
| shift-levers | Shimano Deore SL-M6100-IR / Rapidfire Plus, Ispec EV clamp |
| front-derailleur | |
| brake-front | Shimano Deore M6120 4 Piston Disc |
| brake-rear | Shimano Deore M6120 4 Piston Disc |
| brake-disc-front | SM-RT64 CL 180mm |
| brake-disc-rear | RT-EM600 CL 180mm |
| wheelset | |
| rims | Syncros X-30SE / 32H / 30mm, Tubeless ready |
| tire-front | Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Soft |
| tire-rear | Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Grip |
| hub-front | Formula CL-811 / 15x110mm |
| hub-rear | Formula CL-148M / 12x148mm / Micro Spline, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| spokes | Stainless Black 15G / 1.8mm |
| handlebar | Syncros Fraser 2.0 DC Alloy 6061 D.B., mini Rise / back sweep 8° / 760mm |
| stem | Syncros DC 2.0, Syncros Cable Integration System, 0° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| headset | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| grips | Syncros Performance XC lock-on grips |
| saddle | Syncros Savona 1.5 V-Concept |
| seat-post | Syncros Duncan Dropper Post 2.0, 31.6mm / S & M size 125mm / L size 150mm |
| crankset | FSA Alloy crankset / 175mm / 34T |
| bottom-bracket | |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano CS-M6100 / 10-51 T |
| Pedals | |
| motor | TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph |
| battery | TQ Internal 360Wh |
| display | TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app |
| charger | TQ 100-240V-4A |
Specifications
| stack | 615 |
|---|---|
| reach | 416 |
| seat-tube-length | 415 |
| seat-tube-angle | 76,8 |
| top-tube-length | 562 |
| head-tube-length | 110 |
| head-tube-angle | 65,5 |
| stem-length | 50 |
| handlebar-width | 760 |
| wheelbase | 1176 |
| standover | 765 |
| chainstay-length | 450 |
| fork-rake | |
| bottom-bracket-height | 339 |
| bottom-bracket-drop | 39 |
