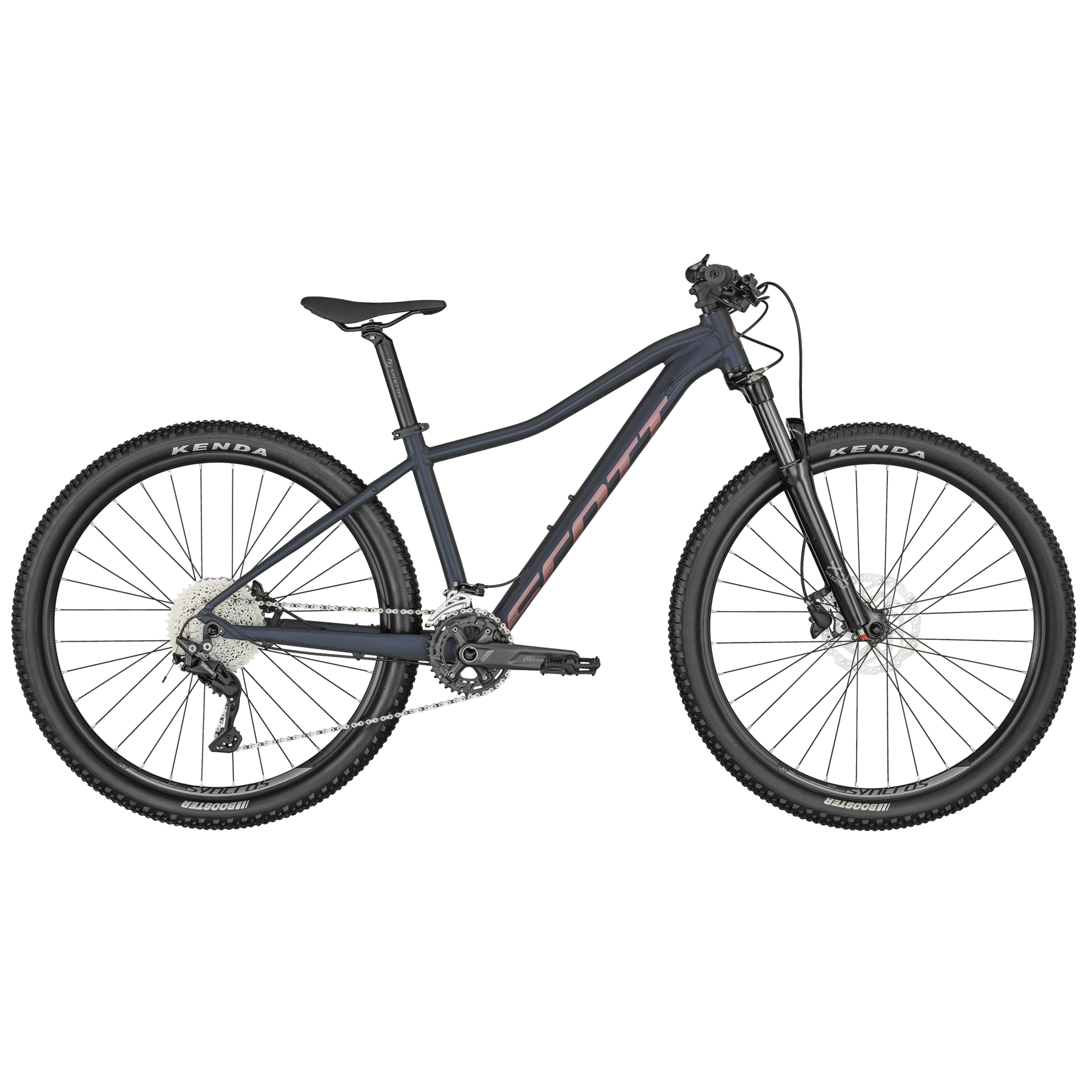

Scott Contessa Active 20 Cu Hardtail Mountain Bike
Color:
Color
Size:
Size
Model:
Model
What does it mean to be active? That's up to you. The SCOTT Contessa Active 20 is a hardtail mountain bike that features a light Alloy Frame. The 20 comes fully equipped with a Suntour fork and a Shimano drivetrain.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Contessa Active 700/900 series / Alloy 6061 Custom Butted Tubing, OLD 135mm / BSA73, Internal Cable Routing / replaceable hanger |
|---|---|
| fork | Suntour XCR32/X1-RL-R, Remote Lockout / Reb. Adj., 100mm travel |
| rear-shock | |
| derailleur | Shimano CUES RD-U6000-SGS, Shadow Type / 10 Speed |
| shift-levers | Shimano CUES SL-U6000-10 / 2 way release |
| front-derailleur | |
| brake-front | Shimano MT200 / Hydr. Disc |
| brake-rear | Shimano MT200 / Hydr. Disc |
| brake-disc-front | Shimano SM-RT10 CL / 180mm |
| brake-disc-rear | Shimano SM-RT10 CL / 160mm |
| wheelset | |
| rims | Syncros X-20 Disc, 32H / black |
| tire-front | Kenda Booster, 2.4" / 30TPI |
| tire-rear | Kenda Booster, 2.4" / 30TPI |
| hub-front | Formula CL51 |
| hub-rear | Shimano FH-TX5058 |
| spokes | 14 G / stainless / black |
| handlebar | Syncros 3.0 / 680mm, black / 31.8mm / 12mm rise / 9° BS |
| stem | Syncros 3.0 / 7° / Black |
| headset | Syncros OE Press Fit / 1 1/8", OD 50mm / ID 44mm |
| grips | Syncros Women Pro grip |
| saddle | Syncros Savona 2.5 V-Concept |
| seat-post | Syncros 3.0, 31.6mm / 350mm / Black |
| crankset | Shimano CUES FC-U6000-1, 32T |
| bottom-bracket | Shimano BB-SM-BB52, Hollowtech II / threaded |
| Chain | KMC X11 |
| Cassette | Shimano CUES CS-LG400-10 / 11-48T |
| Pedals | VP VP-536 |
| motor | |
| battery | |
| display | |
| charger |
Specifications
| stack | 552 |
|---|---|
| reach | 402 |
| seat-tube-length | 355 |
| seat-tube-angle | 74 |
| top-tube-length | 560 |
| head-tube-length | 95 |
| head-tube-angle | 68 |
| stem-length | 50 |
| handlebar-width | 680 |
| wheelbase | 1087 |
| standover | 678 |
| chainstay-length | 435 |
| fork-rake | 44 |
| bottom-bracket-height | 309 |
| bottom-bracket-drop | 44 |
