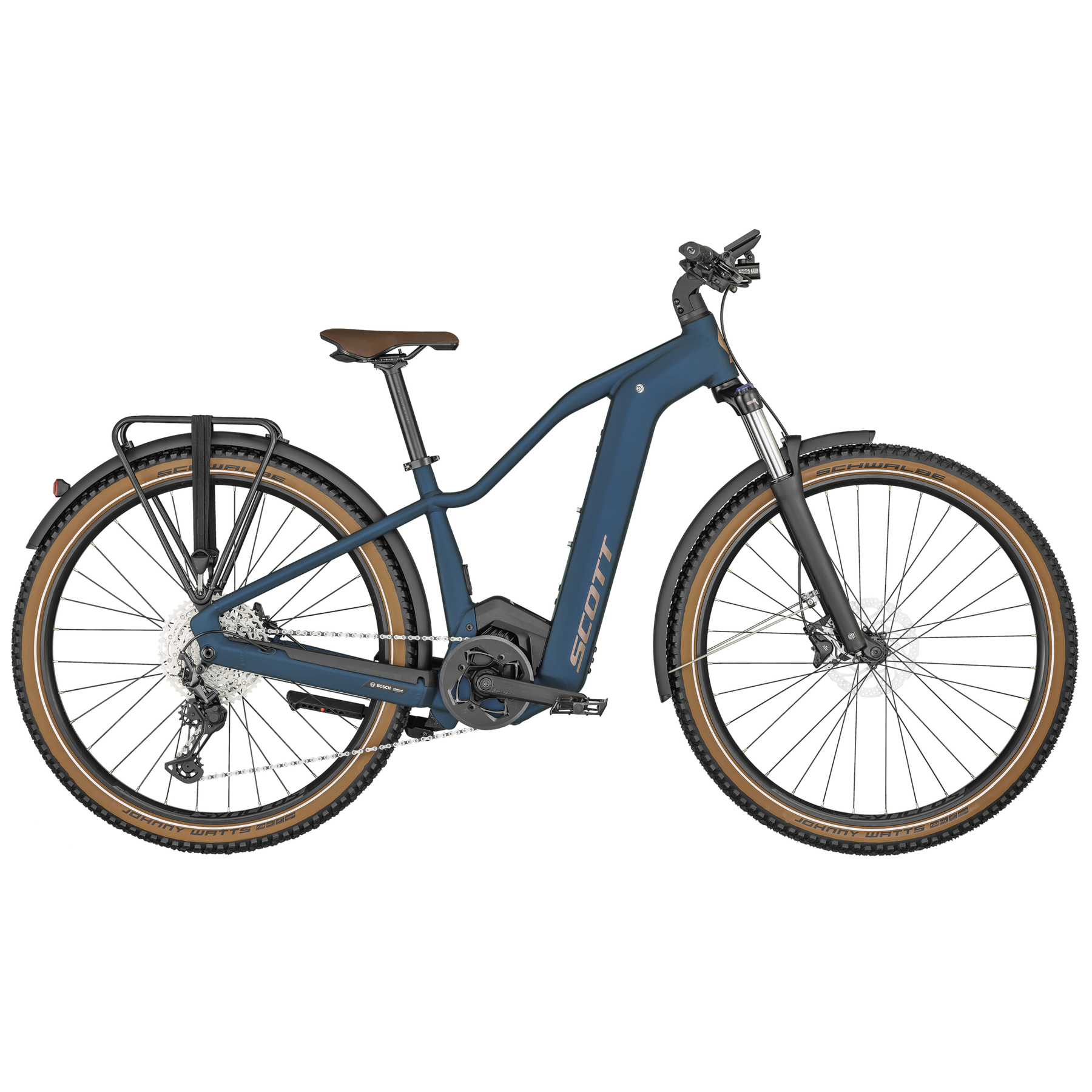

Scott Axis eRIDE 20 Lady Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Scott Axis eRIDE 20 Lady Electric Hybrid Bike
Rift Blue / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The SCOTT Axis eRIDE 20 Lady comes now with a women's specific frame. Charge up the battery, set your course or activity, head out and don't look back. Want to take some extra kit with you? No problem, load up the rack for the ride and you're good to go explore.
Please note that bike specifications are subject to change without prior notice.
Specifications
| frame | 6061 Alloy custom butted tubing, Bosch Integr. removable Battery, internal cable routing |
|---|---|
| fork | SR Suntour XCM34 Coil / Tapered / S-XL 29" / 120mm Travel / 15x110 bolt Axle / Lock Out |
| rear-shock | |
| derailleur | Shimano RD M8100SGS / 12 Speed |
| shift-levers | Shimano Deore Trigger SL-M6100RA |
| front-derailleur | |
| brake-front | Shimano BR-MT410 2 Piston |
| brake-rear | Shimano BR-MT410 2 Piston |
| brake-disc-front | SM-RT30 CL rotor 180mm |
| brake-disc-rear | RT-EM300M CL rotor 180mm |
| wheelset | |
| rims | Syncros X18 Disc |
| tire-front | Schwalbe Johnny Watts 29x2.35" Wired |
| tire-rear | Schwalbe Johnny Watts 29x2.35" Wired |
| hub-front | Shimano HB-MT400 / 15x110mm |
| hub-rear | Shimano FH-MT510B / Boost 12x148mm |
| spokes | Black Spokes |
| handlebar | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise |
| stem | Syncros with front Light mount and Intuvia 100 mount |
| headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| grips | Syncros Lock On Grip |
| saddle | Syncros Capilano |
| seat-post | Syncros M3.0 / 31.6 |
| crankset | Miranda 172,5mm |
| bottom-bracket | |
| Chain | KMC E12S |
| Cassette | Shimano CS-M6100-12 10-51T 12S |
| Pedals | VP VPE-506 |
| motor | Bosch Performance CX BES3 |
| battery | PowerTube 625Wh |
| display | Intuvia 100 Display |
| charger | 4A Charger |
Specifications
| stack | 644 |
|---|---|
| reach | 396 |
| seat-tube-length | 420 |
| seat-tube-angle | 74 |
| top-tube-length | 580 |
| head-tube-length | 120 |
| head-tube-angle | 68 |
| stem-length | 70 |
| handlebar-width | 720 |
| wheelbase | 1176 |
| standover | 781 |
| chainstay-length | 500 |
| fork-rake | 47 |
| bottom-bracket-height | 312 |
| bottom-bracket-drop | 65 |
